Bosch SPS10

Bosch SPS10 cordless drill driver: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SPS10: 47 positions on 1 sheet

Bosch SPS10 parts list (1 sheet)

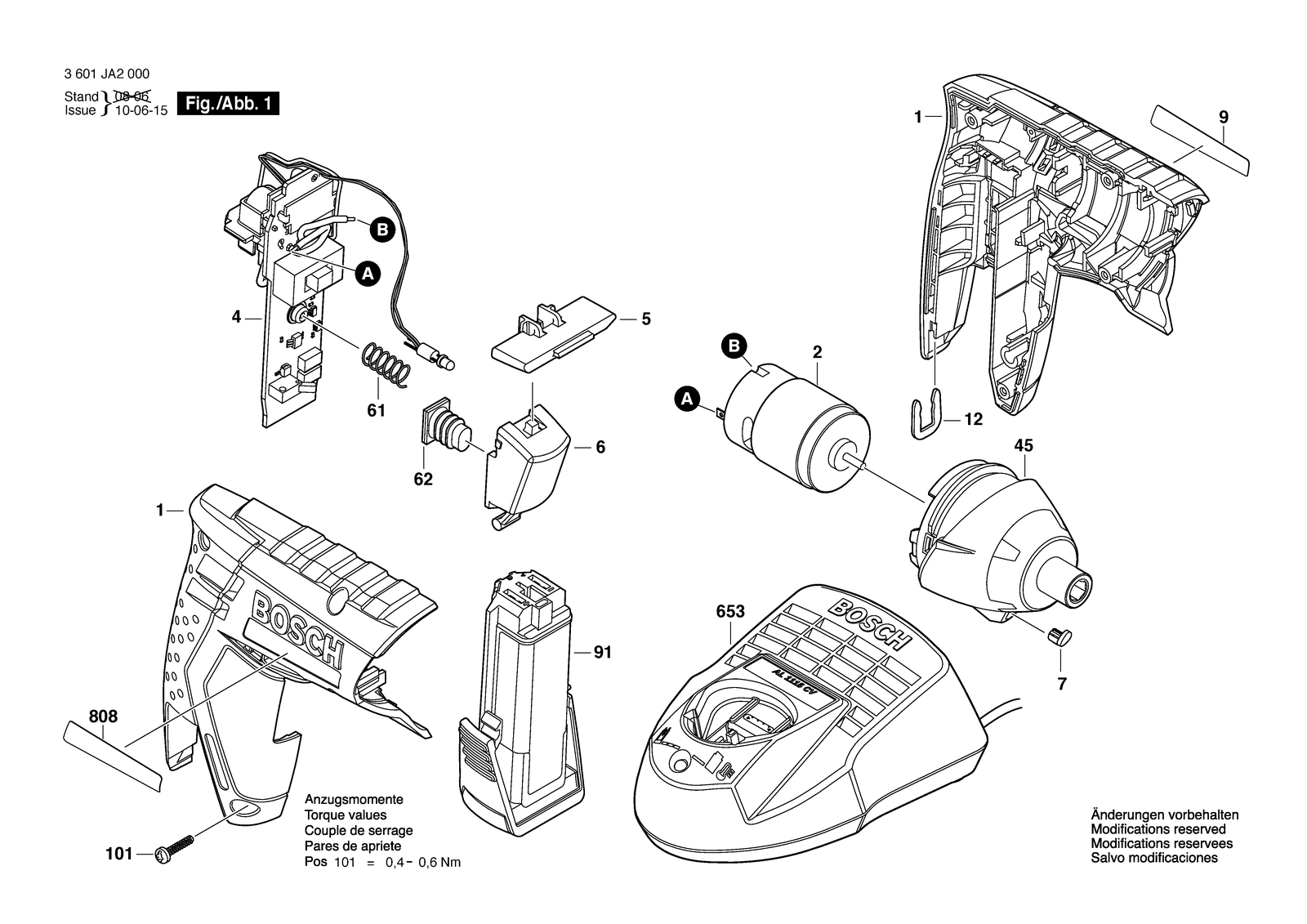

Bosch SPS10 parts diagram, sheet 1
No.Part numberPart name
12609100694Housing Blue
12609100671Housing
1012609110361Screw
1012609110361Screw
122609110838Clip
122609110838Clip
21607022568DC motor 3,6V
21607022568DC motor 3,6V
42609120341Electronics Module
42609120341Electronics Module
452609199188Gear Box
452609199188Gear Box
52609100687Changeover Lever
52609100687Changeover Lever
62609100686Trigger
62609100686Trigger
612609110535Spring
612609110535Spring
622609170058Cover
622609170058Cover
6532607225139Fast Charger Usa/can 120/10,8-12V/30 Min.
6532607225519Fast Charger USA 120/3,6-10,8V,1H
6532607225515Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H
6532607225523Fast Charger J 100/3,6-10,8V, 1H
6532607225527Fast Charger BR 220/3,6-10,8V, 1H
6532607225529Fast Charger CN 220/3,6-10,8V, 1H
6532607225531Fast Charger BR 127/3,6-10,8V, 1H
6532607226187Fast Charger EU GAL 12V-20 230/3,6-12V 2A
6532607226191Fast Charger Aus GAL 12V-20 240/3,6-12V 2A
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
6532607226409Fast Charger Korea GAL 12V-20
72609100382Light Conductor
72609100382Light Conductor
8082609131690Warning Label
8081600A00YE3Nameplate
8081600A00YE4Nameplate
8082609132012Nameplate
8082609132014Nameplate
8082609132693Nameplate
8082609135901Nameplate
8082609135911Nameplate
92609131807Label
92609131790Manufacturer's nameplate Gsr Prodrive
912607336243Battery Set Oxi-Batt. 3,6V, 1,3AH/4V, LI
911607A35063Battery Pack
911607A35065Battery Pack
