Makita SP2524R

Makita SP2524R: exploded parts diagram, 5 sheets, 219 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SP2524R: 219 positions on 5 sheets

Sheet 1: Makita SP2524R parts diagram

Makita SP2524R parts diagram, sheet 1
No.Part numberPart name
16908502400Makita 6908502400 TUBE,CABLESP252.4R
20630039751Makita 0630039751 CONTROL CABLESP252.4R
30043604203Makita 0043604203 SCREW ASSEMBLY M4X20SP252.4R
40662009650Makita 0662009650 STOP SWITCHSP252.4R
56906507500Makita 6906507500 PLATE, SWITCHSP252.4R
60170049990Makita 0170049990 NUT M4SP252.4R
76906503600Makita 6906503600 WIRESP252.4R
80140059310Makita 0140059310 SCREW M5X14(W)SP252.4R
90023704000Makita 0023704000 FLANGE NUT M4
100023705000Makita 0023705000 FLANGE NUT M5
116906505500Makita 6906505500 PLATE,CONTROL LEVERSP252.4R
126945002000Makita 6945002000 LEVER COMPLETESP252.4R
130213189970Makita 0213189970 GASKETSP252.4R
146986502100Makita 6986502100 JOINTSP252.4R
156974007000Makita 6974007000 STRAINER SUCTIONSP252.4R
166904503601Makita 6904503601 STRAINER, TANKSP252.4R
176974001000Makita 6974001000 TANK CAP COMPLETESP252.4R
186909070000Makita 6909070000 BAND COMPLETESP252.4R
196904017000Makita 6904017000 TANK CPSP252.4R
206909539800Makita 6909539800 LABEL, CAUTIONSP252.4R
216909539300Makita 6909539300 LABEL, TANKSP252.4R
226908502602Makita 6908502602 TUBE,CABLESP252.4R
230851289950Makita 0851289950 TUBESP252.4R
240561149980Makita 0561149980 HOSE CLAMPSP252.4R
256908502501Makita 6908502501 TUBE,CABLESP252.4R
260851389980Makita 0851389980 TUBESP252.4R
270561159960Makita 0561159960 HOSE,CLAMPSP252.4R
286974500600Makita 6974500600 NUT,SUCTIONSP252.4R
296906504300Makita 6906504300 DAMPER(1)CPSP252.4R
300023706000Makita 0023706000 FLANGE NUT M6
310011005400Makita 0011005400 BOLT AY M5X40SP252.4R
320031205000Makita 0031205000 WASHER
336906507301Makita 6906507301 PLATESP252.4R
346901504301Makita 6901504301 BOLTSP252.4R
350023704000Makita 0023704000 FLANGE NUT M4
360561159970Makita 0561159970 HOSE CLAMPSP252.4R
370043604203Makita 0043604203 SCREW ASSEMBLY M4X20SP252.4R
386904507500Makita 6904507500 HOOKSP252.4R
396824505200Makita 6824505200 CAPSP252.4R
406904500300Makita 6904500300 GASKET, BLINDSP252.4R
416904507400Makita 6904507400 CUSHIONSP252.4R
420031205000Makita 0031205000 WASHER
430140059980Makita 0140059980 SCREW M5X10SP252.4R

Sheet 2: Makita SP2524R parts diagram

Makita SP2524R parts diagram, sheet 2
No.Part numberPart name
44MS10266100Makita MS10266100 ELBOWSP252.4R
45MS10846000Makita MS10846000 PLUGSP252.4R
46MS01417500Makita MS01417500 O RINGSP252.4R
47MS10055400Makita MS10055400 PIPESP252.4R
48MS12183200Makita MS12183200 CRANK CASE AYSP252.4R
49MS08123800Makita MS08123800 NUT M5SP252.4R
50MS10268300Makita MS10268300 OIL SEALSP252.4R
51MS10619000Makita MS10619000 COLLERSP252.4R
52MS11225200Makita MS11225200 SEAL PACKINGSP252.4R
53MS10235800Makita MS10235800 SEAL HOLDERSP252.4R
54MS01397700Makita MS01397700 O RINGSP252.4R
55MS04342600Makita MS04342600 SUCTION VALVESP252.4R
56MS10044100Makita MS10044100 PISTON PACKING AYSP252.4R
57MS02335700Makita MS02335700 SUCTION VALVE COLLERSP252.4R
58MS02202300Makita MS02202300 SUCTION VALVE STOPPESP252.4R
59MS01584800Makita MS01584800 SPRING WASHER M5SP252.4R
60MS11835700Makita MS11835700 BOLT M5X45X22SP252.4R
61MS10313000Makita MS10313000 CYLINDER PIPESP252.4R
62MS02317200Makita MS02317200 O RINGSP252.4R
63MS11801800Makita MS11801800 VALVE SEATSP252.4R
64MS10357500Makita MS10357500 O RINGSP252.4R
65MS04372300Makita MS04372300 VALVESP252.4R
66MS04336000Makita MS04336000 COIL SPRINGSP252.4R
67MS01398300Makita MS01398300 O RINGSP252.4R
68MS10312800Makita MS10312800 CYLINDER HEAD ASP252.4R
69MS12195600Makita MS12195600 SCREW AY M5X32(W,SW)SP252.4R
70MS12117900Makita MS12117900 CORN RODSP252.4R
71MS11805500Makita MS11805500 SLEEVESP252.4R
72MS02154900Makita MS02154900 O RINGSP252.4R
73MS81603600Makita MS81603600 SCREW AY M5X60(W,SW)SP252.4R
74MS08103900Makita MS08103900 NUT M8SP252.4R
75MS01406500Makita MS01406500 WASHER M8SP252.4R
76MS10719800Makita MS10719800 CAM HANDLESP252.4R
77MS10327000Makita MS10327000 COLLERSP252.4R
78MS02001200Makita MS02001200 WASHERSP252.4R
79MS10313200Makita MS10313200 SPRING CASESP252.4R
80MS12161800Makita MS12161800 SPRING HOLDERSP252.4R
81MS01168200Makita MS01168200 O RINGSP252.4R
82MS10375900Makita MS10375900 SPRINGSP252.4R
83MS12161900Makita MS12161900 VALVESP252.4R
84MS01134600Makita MS01134600 O RINGSP252.4R
85MS10374600Makita MS10374600 VALVE SEATSP252.4R
86MS01134300Makita MS01134300 O RINGSP252.4R
87MS10263400Makita MS10263400 CYLINDER HEAD BSP252.4R

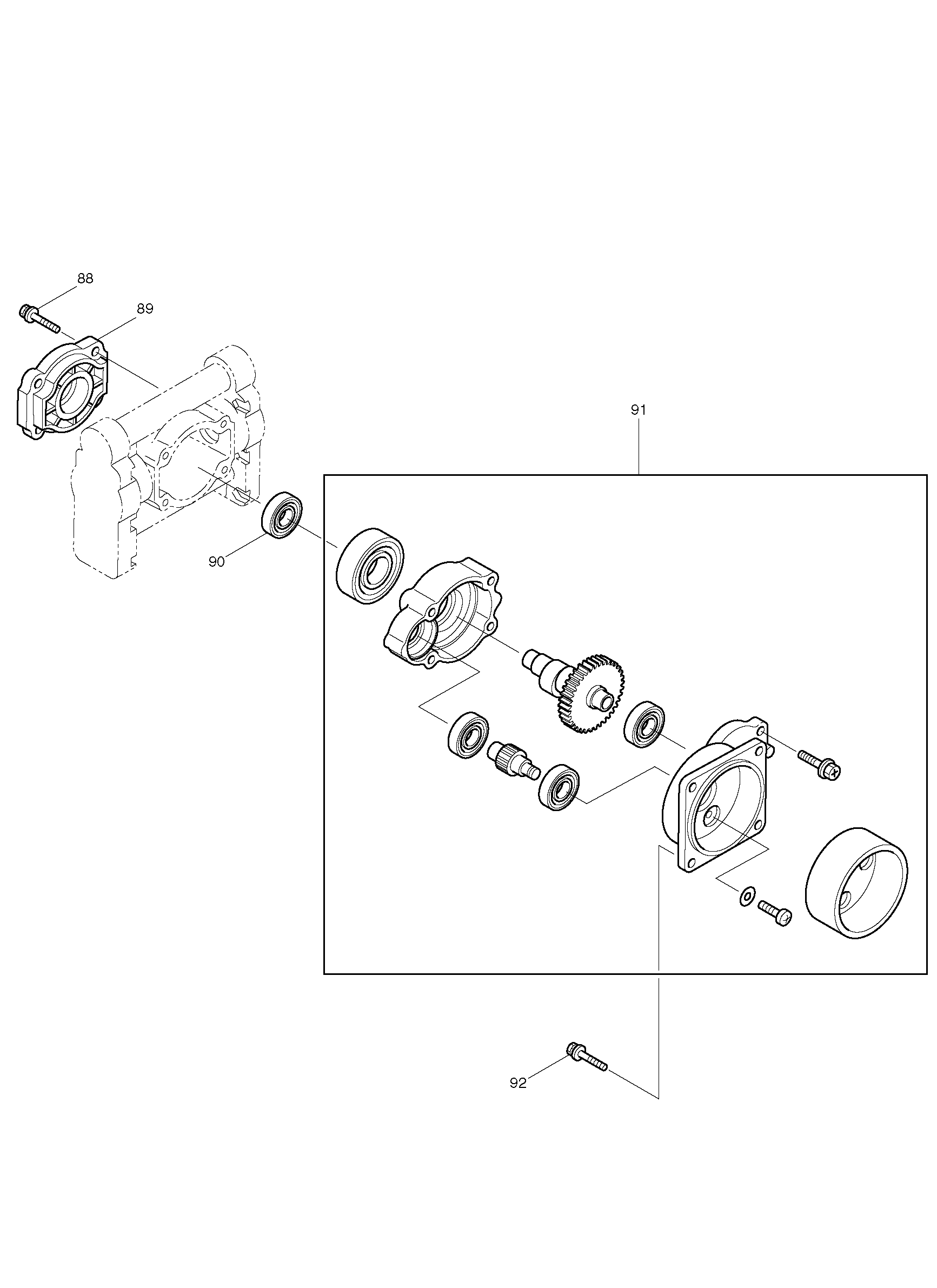

Sheet 3: Makita SP2524R parts diagram

Makita SP2524R parts diagram, sheet 3
No.Part numberPart name
88MS11808500Makita MS11808500 BOLT AY M6X55SP252.4R
89MS11800600Makita MS11800600 BEARING CASESP252.4R
90MS10268000Makita MS10268000 BEARINGSP252.4R
91MS12201300Makita MS12201300 MISSION UNITSP252.4R
920011606160Makita 0011606160 BOLT M6X16SP252.4R

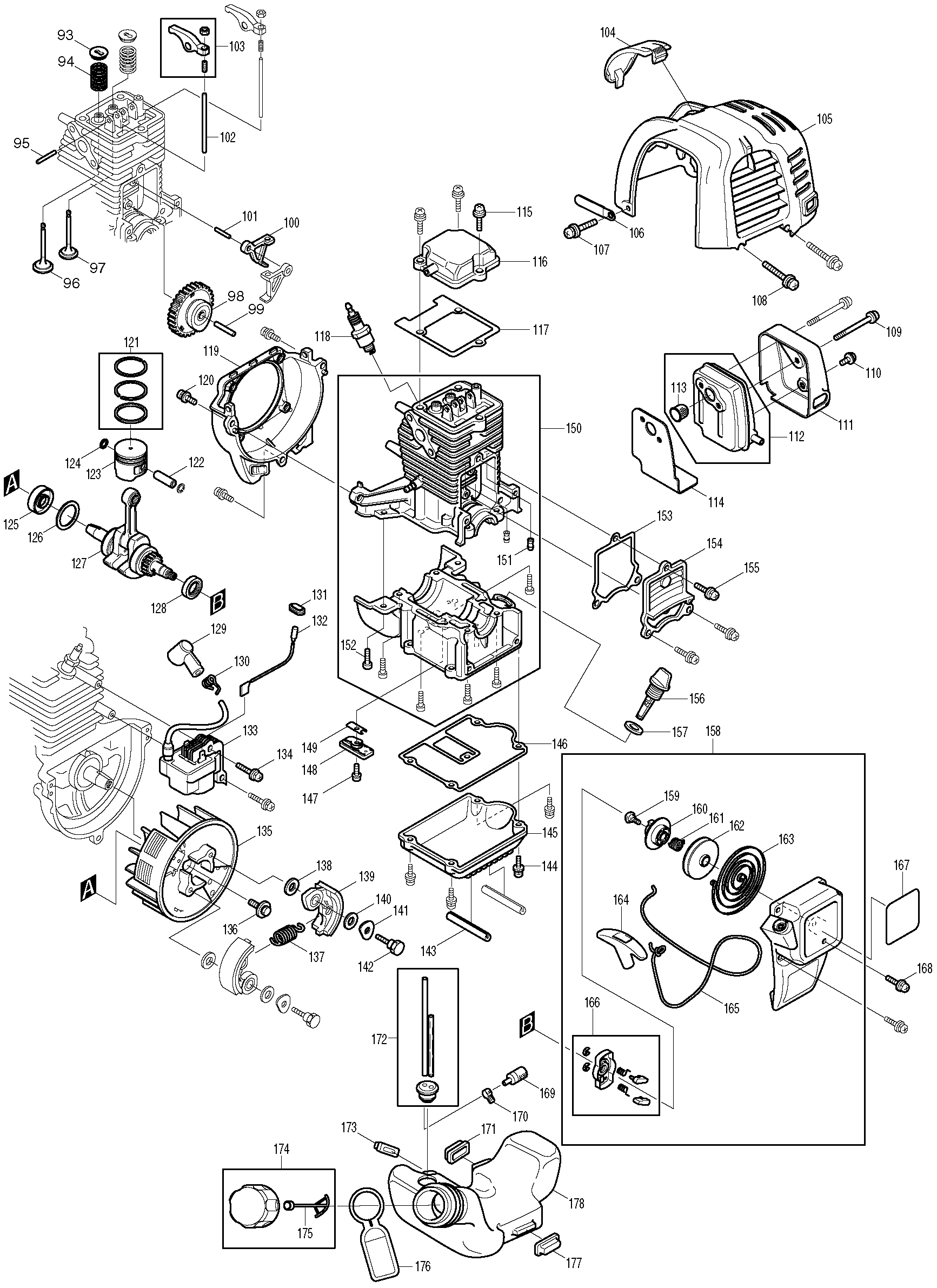

Sheet 4: Makita SP2524R parts diagram

Makita SP2524R parts diagram, sheet 4
No.Part numberPart name
935923501300Makita 5923501300 SPRING RETAINERBHX2500/PB-250.4
945923501200Makita 5923501200 VALVE SPRINGBHX2500/PB-250.4
955933500100Makita 5933500100 ROCKER SHAFTBHX2500/PB-250.4
965923501500Makita 5923501500 INTAKE VALVEBHX2500/PB-250.4
975923501400Makita 5923501400 EXHAUST VALVEBHX2500/PB-250.4
985933003000Makita 5933003000 CAM GEAR ASS'YBHX2500/PB-250.4
995923500501Makita 5923500501 CAM GEAR SHAFTBHX2500/PB-250.4
1005923500001Makita 5923500001 CAM LIFTERBHX2500/PB-250.4
1015923500600Makita 5923500600 CAM LIFTER SHAFTBHX2500/PB-250.4
1025923500700Makita 5923500700 PUSH RODBHX2500/PB-250.4
1035933002000Makita 5933002000 ROCKER ARM ASS'YBHX2500/PB-250.4
1045927500000Makita 5927500000 PLUG COVER
1055925500900Makita 5925500900 CYLINDER COVER
1060566059980DISC Genuine Makita 0566059980 CLAMP
1070140059370Makita 0140059370 SCREW ASS'Y M5X12BCX3400
1080140049770Makita 0140049770 SCREW ASSY M4X16(W,SBHX2500/PB-250.4
1090119059520Makita 0119059520 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
1100140059962Makita 0140059962 SCREW M5X6
1115923503400Makita 5923503400 MUFFLER COVER
1135923008011Makita 5923008011 SPARK ARRESTERBHX2500/PB-250.4
1145923501601Makita 5923501601 MUFFLER GASKET
1150043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
1165921004001Makita 5921004001 ROCKER COVER COMPLETBHX2500/PB-250.4
1175921500800Makita 5921500800 ROCKER COVER GASKETBHX2500/PB-250.4
1180650109950Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4
1195255501100Makita 5255501100 HOUSING,BLOWERSP252.4R
1200140059350Makita 0140059350 SCREW ASSY M5X18(W,SSP252.4R
1215922004000Makita 5922004000 PISTON RING SETBHX2500/PB-250.4
1225232502600Makita 5232502600 PISTON PINBHX2500/PB-250.4
1235922500900Makita 5922500900 PISTONBHX2500/PB-250.4
1240565089970Makita 0565089970 CLIPBHX2500/PB-250.4
1250440129960Makita 0440129960 OIL SEAL (L)BHX2500/PB-250.4
1265421500500Makita 5421500500 CLIPBHX2500/PB-250.4
1275922003000Makita 5922003000 CRANK SHAFT ASS'YBHX2500/PB-250.4
1280440109970Makita 0440109970 OIL SEAL (S)BHX2500/PB-250.4
1295927500100Makita 5927500100 PLUG CAPBHX2500/PB-250.4
1300654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
1315257500300Makita 5257500300 GROMMET
1325257018001Makita 5257018001 WIRE COMPLETE
1335927012011Makita 5927012011 IGNITION COILEPH1000
1340043704200Makita 0043704200 SCREW ASS'Y M4X20BHX2500/PB-250.4
1355927009010Makita 5927009010 FLYWHEELSP252.4R
1360130069940Makita 0130069940 BOLT ASSEMBLY M6X16BHX2500/PB-250.4
1375258001010Makita 5258001010 CLUTCH SPRING
1386202500600Makita 6202500600 WASHER
1395258002010Makita 5258002010 SHOE,CLUTCHSP252.4R
1400031008000Makita 0031008000 WASHER
1410200089911Makita 0200089911 WASHER M8
1426252500400Makita 6252500400 CLUTCH BOLT
1435926500900Makita 5926500900 GUARD,CASE OILSP252.4R
1440043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
1455926500000Makita 5926500000 OIL CASEBHX2500/PB-250.4
1465926500100Makita 5926500100 CASE GASKETBHX2500/PB-250.4
1470119049980Makita 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4
1485921501100Makita 5921501100 RETAINER PLATEBHX2500/PB-250.4
1495921501000Makita 5921501000 LEAD VALVEBHX2500/PB-250.4
1515921501400Makita 5921501400 SPACERBHX2500/PB-250.4
1520119059510Makita 0119059510 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
1535921500700Makita 5921500700 CAMGEAR COVER GASKETBHX2500/PB-250.4
1545921500502Makita 5921500502 CAMGEAR COVERBHX2500/PB-250.4
1550043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
1565926500600Makita 5926500600 OIL GAUGE
1570213169990Makita 0213169990 GASKETBCX3400
1595195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
1605195019020Makita 5195019020 CAM PLATESP252.4R
1615195019030Makita 5195019030 DAMPER SPRINGSP252.4R
1625255050010Makita 5255050010 REELSP252.4R
1635215002030Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4
1645225004020Makita 5225004020 HANDLEBHX2500/PB-250.4
1655925006010Makita 5925006010 STARTER ROPESP252.4R
1665925022000Makita 5925022000 PULLEYSP252.4R
1676909539600Makita 6909539600 LABEL, MODELSP252.4R
1680140049770Makita 0140049770 SCREW ASSY M4X16(W,SBHX2500/PB-250.4
1695236503900Makita 5236503900 FILTERBHX2500/PB-250.4
1700561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
1715036500300Makita 5036500300 PLATEBCX3400
1725926003000Makita 5926003000 TUBE
1735036500200Makita 5036500200 PLATEBCX3400
1755256067000Makita 5256067000 STRAPEPH1000
1766249501501Makita 6249501501 STRAP
1775196500302Makita 5196500302 DAMPERBCX3400
1785926500400Makita 5926500400 FUEL TANK

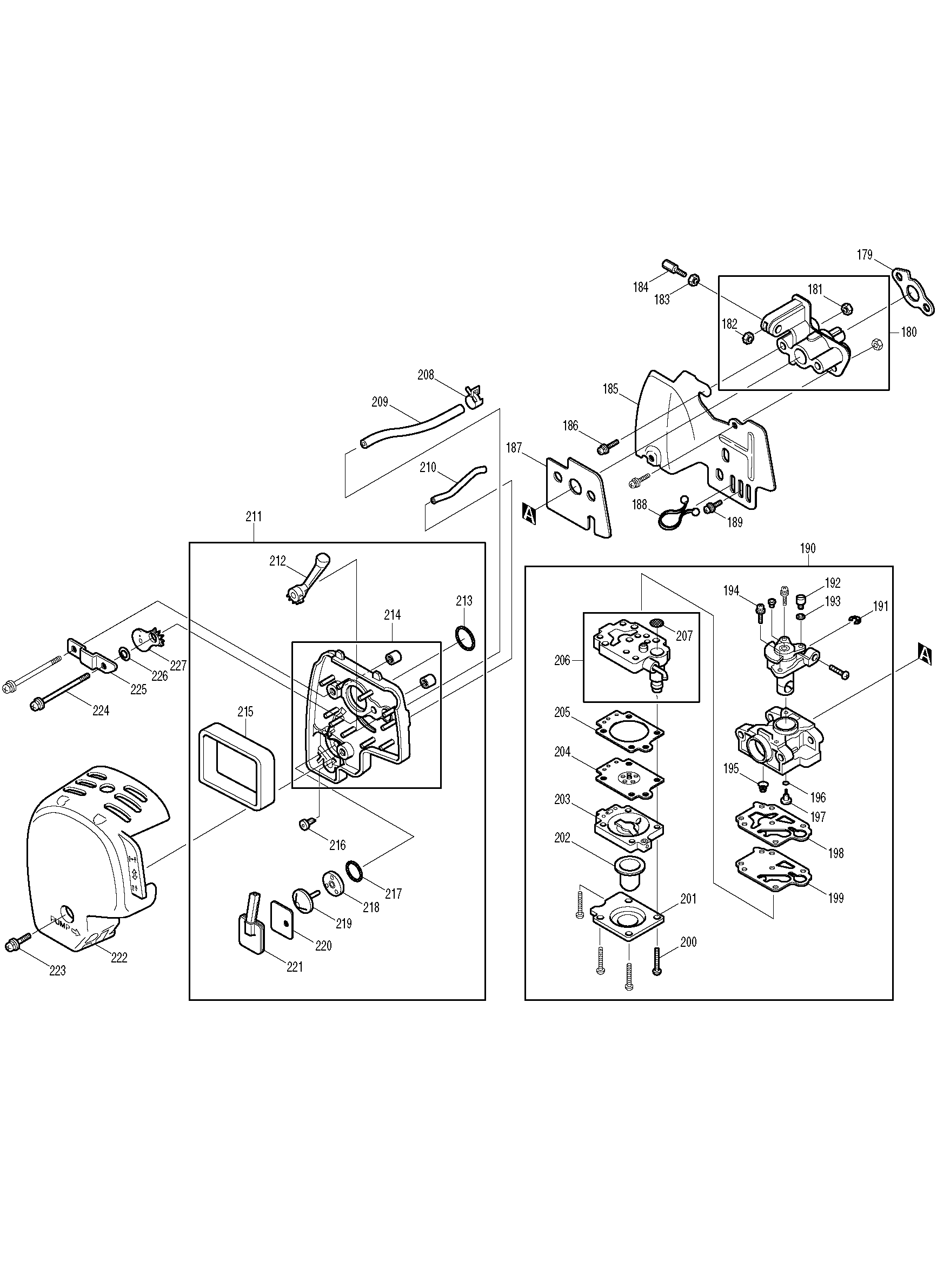

Sheet 5: Makita SP2524R parts diagram

Makita SP2524R parts diagram, sheet 5
No.Part numberPart name
1795923501801Makita 5923501801 INSULATOR GASKETBHX2500/PB-250.4
1810021705000Makita 0021705000 NUT M5
1820022706000Makita 0022706000 NUT M6
1830022706000Makita 0022706000 NUT M6
1840149060120Makita 0149060120 ADJUSTING SCREWSP252.4R
1855923502000Makita 5923502000 CARBURETOR INSULATOR
1860043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
1875923504000Makita 5923504000 CARBURETOR GASKETSP252.4R
1885926501300Makita 5926501300 CLAMPEPH1000
1890140059370Makita 0140059370 SCREW ASS'Y M5X12BCX3400
1915316005120Makita 5316005120 RINGBHX2500/PB-250.4
1925236018040Makita 5236018040 SWIVELBHX2500/PB-250.4
1935426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1945206008030Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4
1955926002020Makita 5926002020 PUMP SPRINGBHX2500/PB-250.4
1965246001010Makita 5246001010 O RINGBHX2500/PB-250.4
1975196002020Makita 5196002020 JETBHX2500/PB-250.4
1985926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
1995246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4
2005236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
2015236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
2025246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
2035236046140Makita 5236046140 AIR PURGE BODY ASS'YBHX2500/PB-250.4
2045926008010
2055236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
2075016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
2080561080010Makita 0561080010 HOSE CLAMPBHX2500/PB-250.4
2095921500900Makita 5921500900 BREATHER PIPEBHX2500/PB-250.4
2105923503001Makita 5923503001 PIPE
2125923502200Makita 5923502200 CHOKE LEVERBHX2500/PB-250.4
2130240159990Makita 0240159990 O RING P15BHX2500/PB-250.4
2145923006002Makita 5923006002 AIR CLEANER PLATE COSP252.4R
2155923503200Makita 5923503200 AIR CLEANER ELEMENT
2165923502400Makita 5923502400 CHECK VALVE (1)BHX2500/PB-250.4
2170240139970Makita 0240139970 O RING P14BHX2500/PB-250.4
2185923502500Makita 5923502500 CHECK VALVE PLATEBHX2500/PB-250.4
2195316500701Makita 5316500701 CHECK VALVEBHX2500/PB-250.4
2205923503500Makita 5923503500 GASKET SEPARATORBHX2500/PB-250.4
2215933501600Makita 5933501600 SEPARATOR PLATEBHX2500/PB-250.4
2225923502700Makita 5923502700 AIR CLEANER COVER
2230140059480Makita 0140059480 SCREW ASS'Y M5X14BHX2500/PB-250.4
2245923503100Makita 5923503100 SCREW M5X68 (W,SW SUBHX2500/PB-250.4
2255923502600Makita 5923502600 PLATEBHX2500/PB-250.4
2260213069990Makita 0213069990 GASKETBHX2500/PB-250.4
2275923502301Makita 5923502301 CHOKE PLATEBHX2500/PB-250.4
Selected parts0
