Bosch SN 350-2 0F

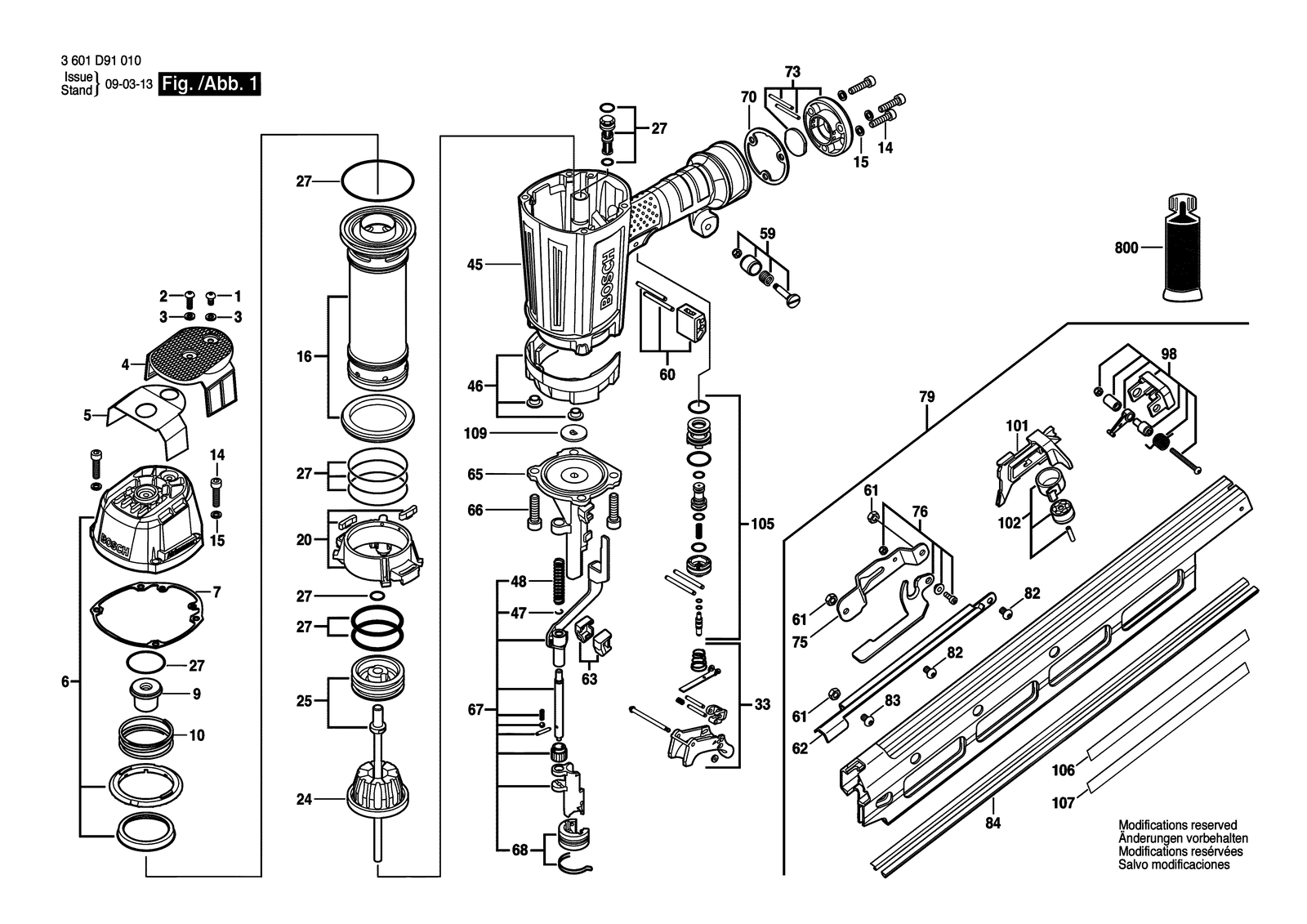

Bosch SN 350-2 0F pneumatic nailgun: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SN 350-2 0F: 46 positions on 1 sheet
Bosch SN 350-2 0F parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610001663 | Screw |
| 10 | 2610001671 | Compression Spring |
| 101 | 2610001704 | Screw |
| 102 | 2610001705 | Follower Spring |
| 105 | 2610001706 | Trigger |
| 106 | 2610001707 | Screw |
| 107 | 2610001708 | Screw |
| 109 | 2610004499 | Lead-Seal Plate |
| 14 | 2610001673 | Screw |
| 15 | 2610001674 | Washer |
| 16 | 2610001675 | Piston Cylinder |
| 2 | 2610001664 | Screw |
| 20 | 2610001676 | Cylinder Support |
| 24 | 2610001677 | Bumper |
| 25 | 2610001678 | Piston |
| 27 | 2610001679 | O-Ring |
| 3 | 2610001665 | Washer |
| 33 | 2610001680 | Trigger |
| 4 | 2610001666 | Cover Plate |
| 45 | 2610001682 | Housing |
| 46 | 2610001683 | Cover |
| 47 | 2610001684 | Spring Clip |
| 48 | 2610001685 | Coil Spring |
| 5 | 2610001667 | Mat seal |
| 59 | 2610001686 | Hub |
| 6 | 2610001668 | Cylinder Cover |
| 60 | 2610001687 | Guide Block |
| 61 | 2610001688 | Lock Nut |
| 62 | 2610001689 | Magazine cover |
| 63 | 2610001690 | Rubber Pad |
| 65 | 2610001691 | Nose |
| 66 | 2610001692 | Screw |
| 67 | 2610001693 | Safety Lever |
| 68 | 2610001694 | Protective Guard |
| 7 | 2610001669 | Mat seal |
| 70 | 2610001695 | Mat seal |
| 73 | 2610001696 | End cap |
| 75 | 2610001697 | Mounting Bracket |
| 76 | 2610001698 | Release Lever |
| 79 | 2610001699 | Assembly |
| 800 | 2610005257 | Grease |
| 82 | 2610001700 | Screw |
| 83 | 2610001701 | Safety Lever |
| 84 | 2610001702 | Wearing Strip |
| 9 | 2610001670 | Bumper |
| 98 | 2610001703 | Screw |
