Makita SKR200Z: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SKR200Z: 8 positions on 1 sheet

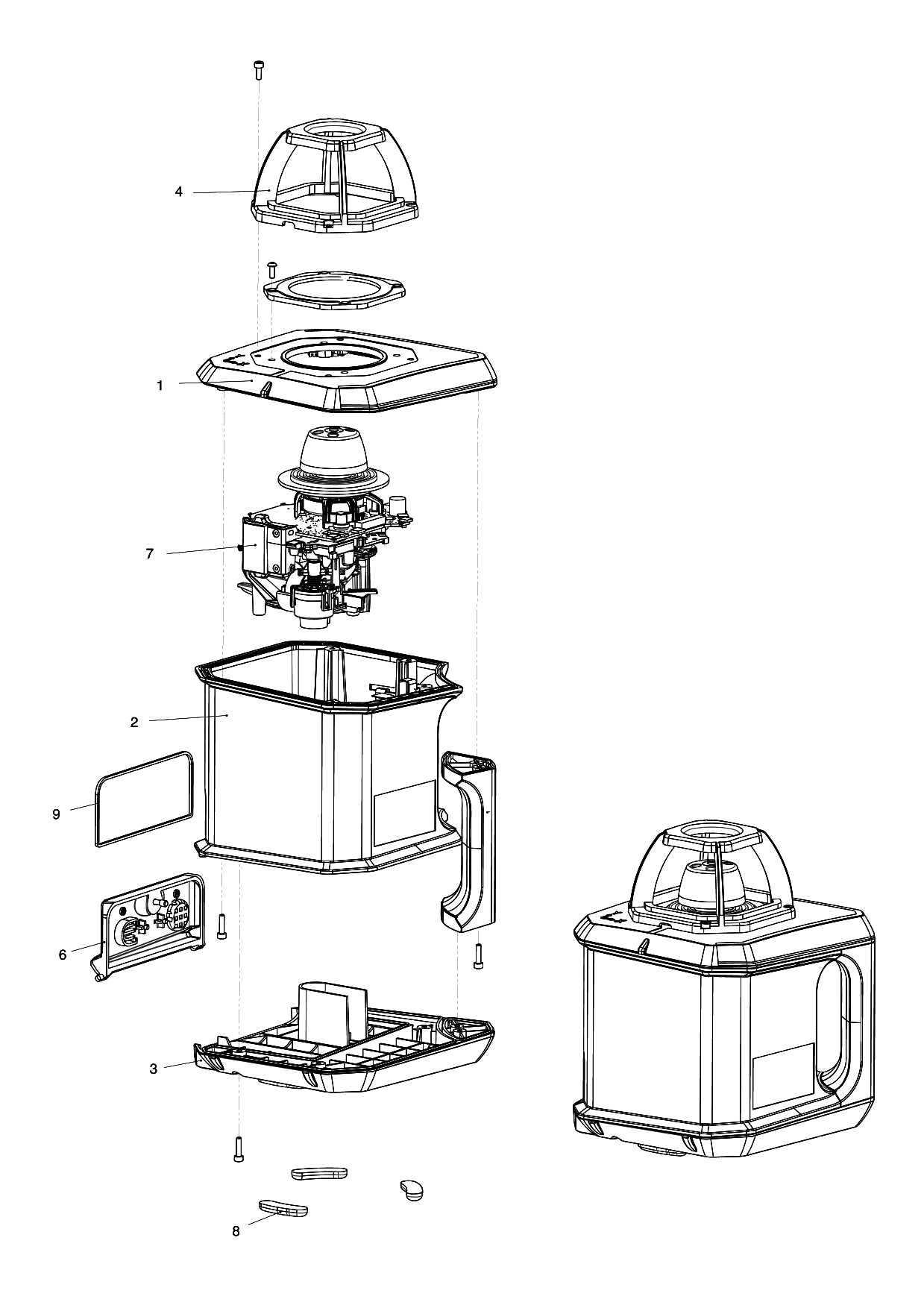

Sheet 1: Makita SKR200Z parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | LE00813970 | Makita LE00813970 UPPER HOUSING WITH INFRARED ASSEMBLY |
| 2 | LE00813968 | Makita LE00813968 MIDDLE HOUSING ASSEMBLY KIT |
| 3 | LE00813971 | Makita LE00813971 BOTTOM HOUSING WITH RUBBER FEET |
| 4 | LE00813972 | Makita LE00813972 CAGE ASSEMBLY |
| 6 | LE00813973 | Makita LE00813973 BATTERY DOOR WITH LOCKING SCREW AND CONTACT PLATE |
| 7 | LE00813966 | Makita LE00813966 CORE ASSEMBLY WITH HEAD |
| 8 | LE00813975 | Makita LE00813975 RUBBER FOOT |
| 9 | LE00813974 | Makita LE00813974 BATTERY DOOR SEAL |
