Bosch SHO 280

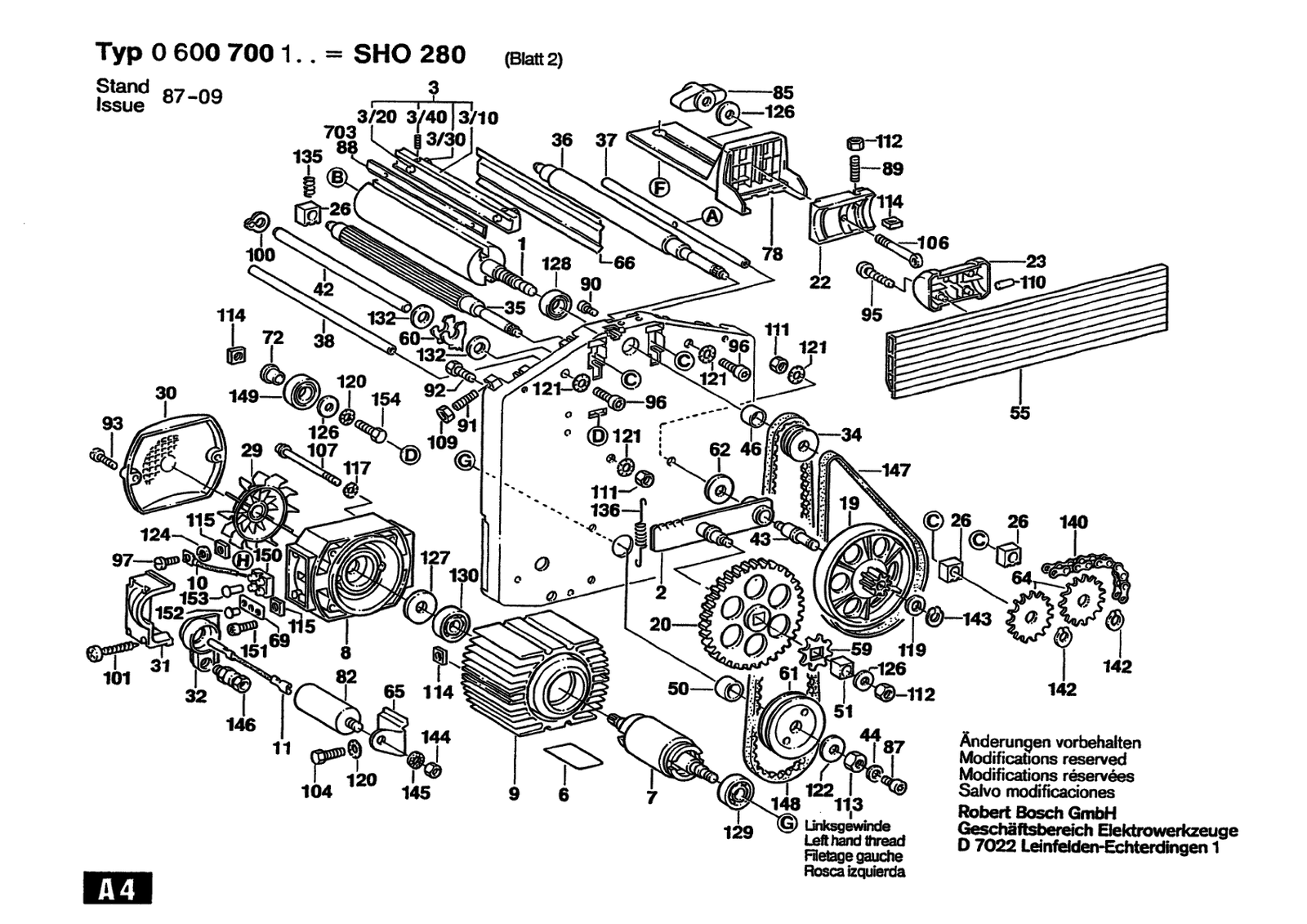

Bosch SHO 280 surface/thickness planer: exploded parts diagram, 3 sheets, 157 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SHO 280: 157 positions on 3 sheets
Bosch SHO 280 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609202021 | Planer Shaft |
| 10 | 1609202051 | Cable |
| 101 | 2910611494 | Tapping Screw DIN 7981-ST 3,9X45-F-H |
| 102 | 1609202029 | Shoulder Screw M6X4 MM |
| 103 | 2911071201 | Hex Screw DIN 933-M6X20-10.9 |
| 104 | 2911071197 | Hex Screw DIN 933-M6X16-10.9 |
| 105 | 2917721032 | Dummy 2X4 DIN 1476 St |
| 106 | 1609202030 | Eye Bolt M6 |
| 107 | 1609202106 | Collar Screw M5X133 MM |
| 108 | 1609202327 | Set screw |
| 109 | 2915011006 | Hex Nut DIN 934-M 5-M-8 |
| 11 | 1609202052 | Cable |
| 110 | 2917621149 | Straight Pin DIN 7-3H6X20-ST |
| 111 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 112 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 113 | 1609202050 | Hex Nut Lefthand Threads |
| 114 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 115 | 2915121004 | Square Nut DIN 562-M4-04 |
| 116 | 1609202057 | O-Ring |
| 117 | 1609202066 | Locking washer Ø5 MM |
| 118 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 119 | 1609202033 | Plain Washer |
| 12 | 1609202160 | Rear Housing Section |
| 120 | 1609202031 | Locking washer Ø6 MM |
| 121 | 1609202032 | Locking washer Ø8 MM |
| 122 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 123 | 2915121007 | Square Nut DIN 562-M8-04 |
| 124 | 1609202034 | Locking washer Ø4 MM |
| 125 | 2916011895 | Plain Washer DIN 9021-B 8,4-ST |
| 126 | 2916011884 | Plain Washer DIN 9021-A6,4-ST |
| 127 | 1609202035 | Spring Washer |
| 128 | 1900905279 | Groove ball bearing 15X35X11 |
| 129 | 1609202036 | Groove ball bearing DIN 625-6302-2 Z |
| 13 | 1609202161 | Front Housing |
| 130 | 1900905281 | Groove ball bearing 17X40X12 |
| 131 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 132 | 2916011020 | Plain Washer DIN 125-A13-ST |
| 133 | 1609202037 | Nozzle Socket |
| 134 | 1609202038 | Shim ring |
| 135 | 1609202107 | Compression Spring |
| 136 | 1609202108 | Extension Spring |
| 137 | 2916160055 | Disc Spring DIN 2093-A16 GR 1 |
| 138 | 1609202039 | Disc Spring Ø23XØ8,2X0,9 MM |
| 139 | 1609202040 | Chain |
| 14 | 1609202162 | Table top |
| 140 | 1609202359 | Parts Set |
| 141 | 1609202109 | Extension Spring |
| 142 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 143 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 144 | 2915011011 | Hex Nut DIN 934-M12-M-8 |
| 145 | 2916070013 | Serrated Lock-Washer DIN 6798-A12,5-FST |
| 146 | 1609202043 | Compression Gland |
| 147 | 1609202044 | Flat Belt 22X3X625 MM |
| 148 | 1609202045 | V-Belt 9,5X850 MM |
| 149 | 1600905007 | Groove ball bearing 12X32X10 |
| 149 | 1900905019 | Groove ball bearing 6X19X6 |
| 15 | 1609202163 | Table top |
| 151 | 1609202047 | Socket head cap screw |
| 152 | 2917721075 | Round-Head Grooved Pin DIN 1476-3X8-ST |
| 153 | 1609202048 | Grooved Nail 3X18 MM |
| 155 | 1601110542 | Manufacturer's nameplate |
| 156 | 1601110541 | Reference Plate |
| 157 | 1609202243 | Fastening Clamp |
| 158 | 1609202244 | Grommet |
| 19 | 1609202173 | Pulley |
| 2 | 1609202022 | Tensioning Lever |
| 20 | 1609202142 | Toothed Gear |
| 21 | 1609202158 | Protective Cover |
| 22 | 1609202143 | Swivel Bearing |
| 23 | 1609202144 | Swivel Bearing |
| 25 | 1609202067 | Star Knob |
| 26 | 1609202068 | Bearing Sleeve |
| 27 | 1609202069 | Tensioning Lever |
| 29 | 1609202145 | Fan |
| 3 | 1609202023 | Clamping jaws |
| 3/20 | 2917780116 | Slotted Spring Pin DIN 7346 5X8 |
| 3/30 | 1609201825 | Hex Screw |
| 3/40 | 1609202233 | Set screw 5X8 MM |
| 30 | 1609202146 | Fan Cover |
| 31 | 1609202147 | Covering hood |
| 32 | 1609202070 | Capacitor Holder |
| 34 | 1609202071 | Pulley |
| 35 | 1609202148 | Draw-In Roll |
| 36 | 1609202149 | Feed Roll |
| 37 | 1609202072 | Strut |
| 38 | 1609202073 | Strut |
| 39 | 1609202074 | Threaded Spindle |
| 4 | 1609202024 | Planing Table |
| 40 | 1609202075 | Threaded Spindle |
| 41 | 1609202076 | Threaded Spindle |
| 42 | 1609202077 | Retaining Pin |
| 43 | 1609202078 | Axle |
| 44 | 1609202079 | Plain Washer |
| 45 | 1609202080 | Bushing |
| 46 | 1609202081 | Spacer Ring |
| 47 | 1609202082 | Tensioning Roller |
| 48 | 1609202083 | Lock Screw |
| 49 | 1609202110 | Spacer Ring |
| 50 | 1609202084 | Spacer Sleeve |
| 51 | 1609202085 | Spacer Sleeve |
| 52 | 1609202086 | Hex Nut |
| 53 | 1609202087 | Spindle Nut |
| 54 | 1609202088 | Guide Rail |
| 55 | 1609202150 | End stop |
| 56 | 1609202151 | Guide Rail |
| 58 | 1609202089 | Plain Washer |
| 59 | 1609202090 | Sprocket wheel |
| 6 | 1601110544 | Nameplate |
| 60 | 1609202091 | Safety Catch |
| 61 | 1609202152 | Pulley |
| 62 | 1609202092 | Tensioning Roller |
| 63 | 1609202093 | Sprocket wheel |
| 65 | 1609202095 | Holding Bracket |
| 650 | 2607950504 | Single-Head Eng. Wrench |
| 651 | 1609201884 | Crank Handle |
| 651/10 | 1601110531 | Reference Plate |
| 652 | 1609202346 | Covering hood |
| 652/20 | 1609202347 | Collar Nut |
| 653 | 1609201820 | Adapter |
| 66 | 1609202153 | Guide-Plate |
| 67 | 1609202159 | Covering hood |
| 68 | 1609202096 | Tab Washer |
| 69 | 1609202097 | Holding Plate |
| 7 | 1609202026 | Rotor |
| 700 | 1609201820 | Adapter |
| 701 | 1609201816 | Sliding Agents 100 Gr. |
| 702 | 1609201815 | Thrust Member |
| 703 | 1609201818 | Set of knives |
| 71 | 1609202139 | Plain Washer |
| 710 | 1609201814 | Base |
| 72 | 1609202240 | Headed Bush |
| 78 | 1609202164 | Striker Bar |
| 79 | 1609202165 | Protective Cover |
| 8 | 1609202027 | Bearing Housing |
| 82 | 1609202098 | Motor Capacitor |
| 83 | 1609202099 | Scale |
| 84 | 1601110532 | Reference Plate |
| 85 | 1603339006 | Wing Nut M6 |
| 86 | 1609202154 | On-Off Switch |
| 86 | 1609202174 | On-Off Switch |
| 86 | 1609202175 | On-Off Switch |
| 86 | 1609202176 | On-Off Switch |
| 86 | 1609202177 | On-Off Switch |
| 86/100 | 2910211234 | Tapping Screw DIN 7971-B4,8X19 |
| 87 | 2910151244 | Hex Socket Head Cap Screw DIN 912-M8X25-10.9 |
| 89 | 2912061203 | Set screw DIN 916-M6X25-45H |
| 9 | 1609202028 | Stator 230V |
| 90 | 2914411056 | Thread-forming tap. Screw DIN 7500 CM 5X8 |
| 91 | 2912041162 | Set screw DIN 913-M5X20-45H |
| 92 | 2911061244 | Hex Screw DIN 933-M8X25-8.8 |
| 93 | 1609201870 | Socket head cap screw M5X15 MM |
| 94 | 2914411245 | Thread-forming tap. Screw DIN 7500-CM4X8-ST |
| 95 | 2910611420 | Dummy DIN 7981 ST 3,9X19-F-H |
| 96 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 97 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 98 | 2914411257 | Thread-forming tap. Screw DIN 7500-M5X10MM |
| 99 | 2910641201 | Oval-Head Screw M6X20 DIN 7985-4.8 |
