Bosch SHO 160

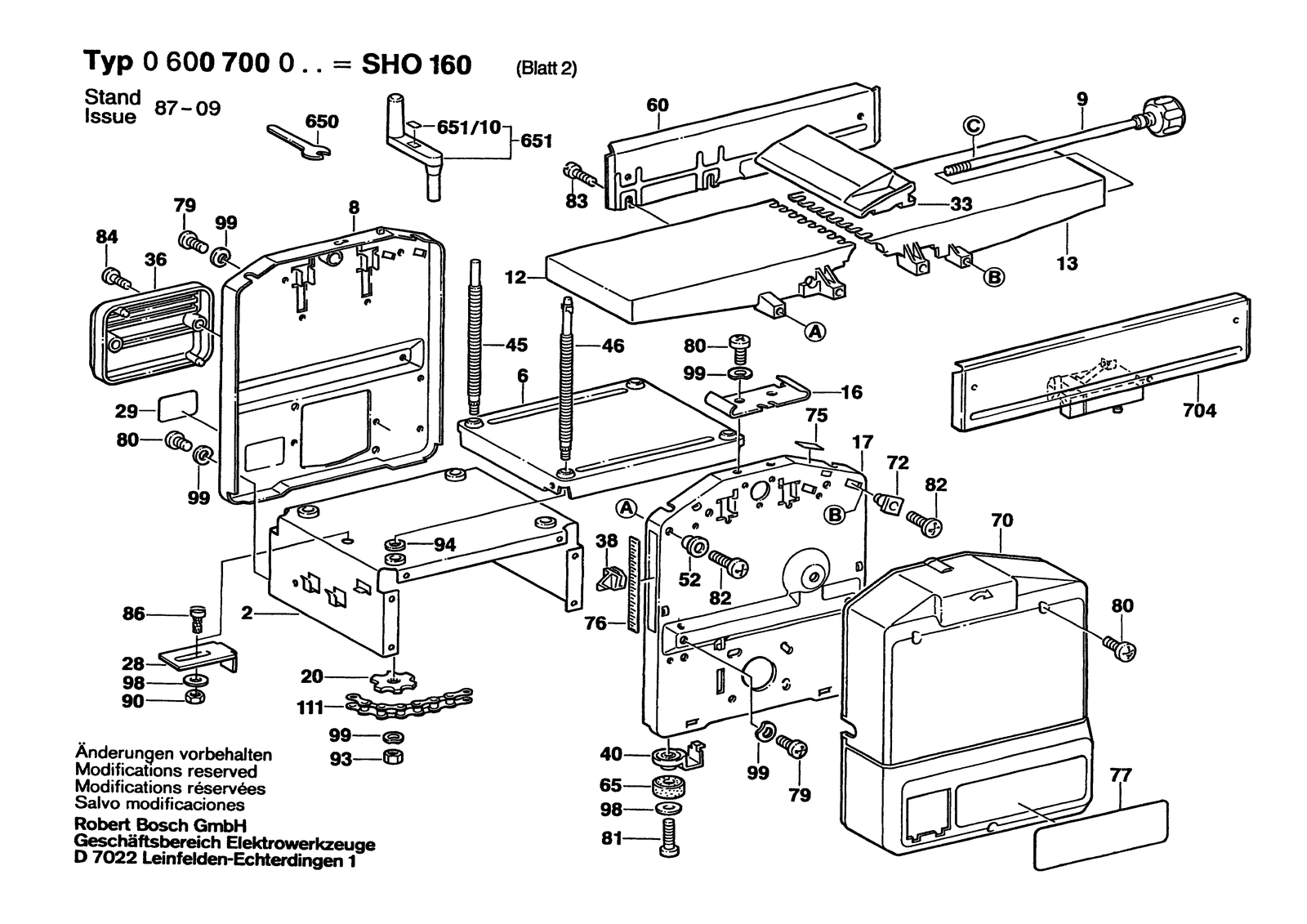

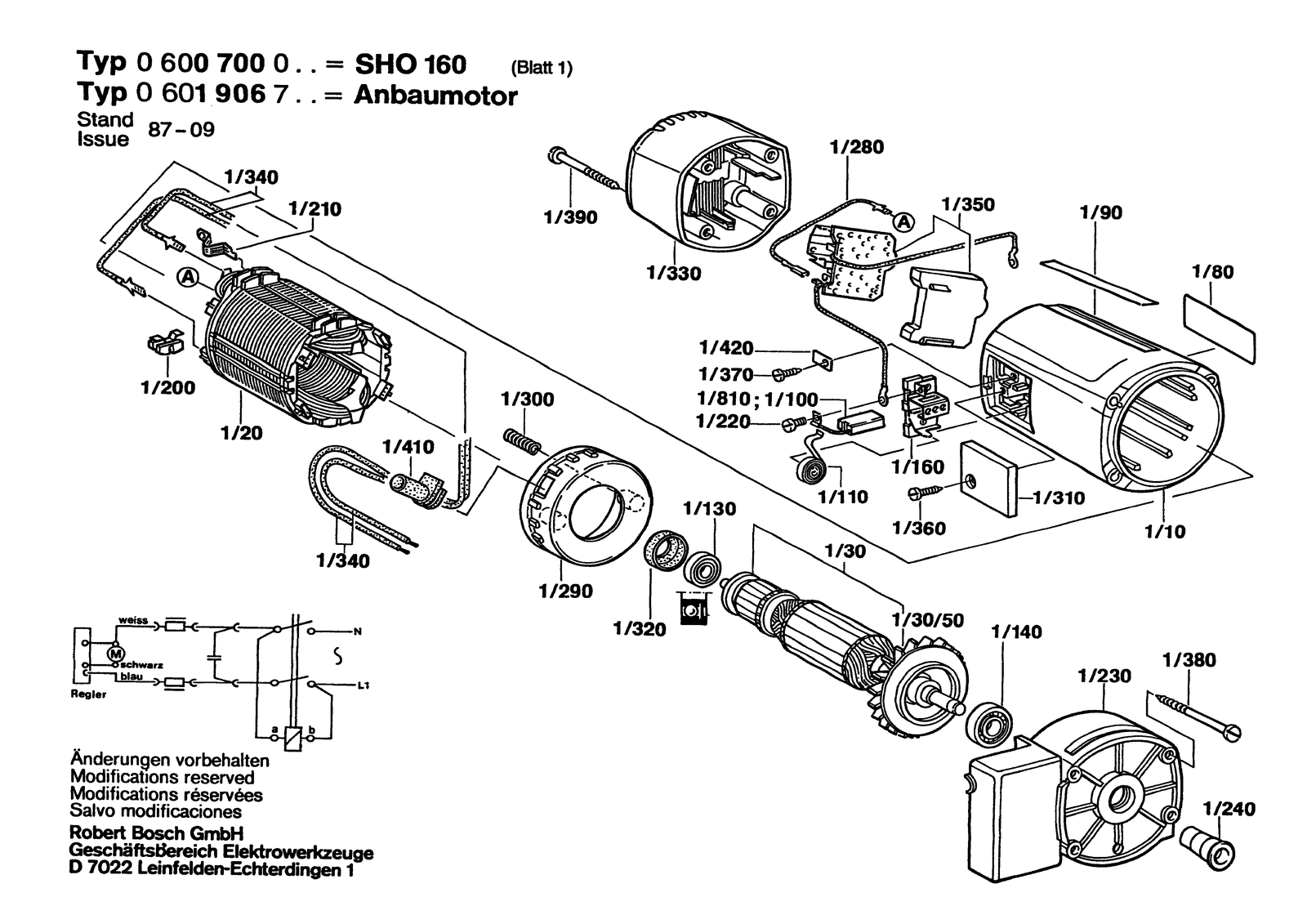

Bosch SHO 160 surface/thickness planer: exploded parts diagram, 3 sheets, 147 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SHO 160: 147 positions on 3 sheets
Bosch SHO 160 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 0601906603 | Un. Flange-Mtd. Motor |
| 1 | 0601906737 | Un. Flange-Mtd. Motor |
| 1 | 0601906742 | Un. Flange-Mtd. Motor |
| 1/10 | 3605108069 | Motor Housing Black |
| 1/110 | 1604652006 | Spiral Spring |
| 1/130 | 2600905032 | Ball Bearing 7X19X6 |
| 1/140 | 1610905009 | Groove ball bearing 9X26X8 |
| 1/160 | 3604336012 | Brush Holder |
| 1/20 | 1604220354 | Field 220-230V |
| 1/20 | 1604220356 | Field 240V |
| 1/200 | 3601025003 | Wire Guide |
| 1/210 | 1604477001 | Blade terminal |
| 1/220 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 1/230 | 3605700083 | Bearing Flange |
| 1/240 | 3600300022 | Pulley |
| 1/280 | 3604431017 | Connecting Cable |
| 1/290 | 1600502014 | Air-Deflector Ring |
| 1/30 | 3604010018 | Armature 220V |
| 1/30 | 3604010019 | Armature 240V |
| 1/30/50 | 1606610122 | Fan |
| 1/300 | 1604613006 | Compression Spring |
| 1/310 | 1605500089 | Sealing cap Blue |
| 1/320 | 1600502011 | Intermediate Ring |
| 1/330 | 3605500049 | Sealing cap |
| 1/340 | 1604438017 | Connecting Cable White L=290 MM |
| 1/350 | 3608300009 | Speed governor 230-240V |
| 1/360 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 1/370 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 1/380 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 1/390 | 3603415560 | Screw B 4,8X45 MM |
| 1/410 | 3600312005 | Grommet |
| 1/420 | 1601030022 | Tab Washer |
| 1/80 | 160111A3H3 | Nameplate |
| 1/80 | 3601106003 | Nameplate |
| 1/810 | 1607014125 | Carbon Brush |
| 1/90 | 1601110046 | Sticker |
| 1/90 | 1601110545 | Manufacturer's nameplate |
| 101 | 2916680035 | Spring Lock Washer DIN 127-A 8 |
| 102 | 2916640003 | Spring retaining ring DIN 471-6X0,7-FST |
| 103 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 104 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 106 | 1600910019 | Nozzle Socket |
| 107 | 1900905120 | Groove ball bearing 10X26X8 |
| 109 | 1609202236 | Chain |
| 110 | 1609202237 | Cable Clip |
| 111 | 1609201877 | Chain |
| 112 | 1609201878 | Chain |
| 113 | 1609201879 | Flat Belt 586X15 MM |
| 114 | 1609201880 | Flat Belt 160X10X3 MM |
| 115 | 1609202238 | Fastening Clamp |
| 116 | 1609201881 | Strain-Relief Clamp |
| 117 | 1609201882 | On-Off Switch |
| 117 | 1609201886 | On-Off Switch |
| 117 | 1609201887 | On-Off Switch |
| 117 | 1609201888 | On-Off Switch |
| 117 | 1609201889 | On-Off Switch |
| 117 | 1609201890 | On-Off Switch |
| 117/100 | 2910211234 | Tapping Screw DIN 7971-B4,8X19 |
| 118 | 1607328034 | Suppression Filter |
| 119 | 1609201883 | Socket-Terminal Strip |
| 12 | 1609201830 | Table top |
| 120 | 1609202282 | Grommet |
| 13 | 1609201831 | Table top |
| 16 | 1609201832 | Guide Rail |
| 16 | 1609202336 | Guide Rail |
| 17 | 1609201833 | Front Housing |
| 19 | 1609201834 | Sprocket wheel Z=7 |
| 2 | 1609201822 | Covering hood |
| 20 | 1609201835 | Sprocket wheel Z=6 |
| 21 | 1609201836 | Sprocket wheel Z=12 |
| 23 | 1609201837 | Shim washer |
| 24 | 1609201838 | Bearing Shell |
| 25 | 1609201839 | Guide-Plate |
| 26 | 1609201840 | Safety Catch |
| 27 | 1609202232 | Plain Washer |
| 28 | 1609202245 | Gusset |
| 3 | 1609201823 | Planer Shaft |
| 32 | 1609201841 | Bushing |
| 33 | 1609201842 | Protective Cover |
| 34 | 1609201843 | Pulley Z=16 |
| 35 | 1609201844 | Toothed Gear Z=86 |
| 36 | 1609201845 | Housing Cover |
| 38 | 1609201846 | Pointer |
| 39 | 1609201847 | Housing Cover |
| 4 | 1609201824 | Clamping jaws |
| 4/20 | 2917780116 | Slotted Spring Pin DIN 7346 5X8 |
| 4/30 | 1609201825 | Hex Screw |
| 4/40 | 1609202233 | Set screw 5X8 MM |
| 40 | 1609201848 | Pickup Clip |
| 45 | 1609201849 | Threaded Spindle TR 12X3 |
| 46 | 1609201850 | Threaded Spindle TR 12X3 |
| 47 | 1609201851 | Draw-In Roll |
| 48 | 1609201852 | Feed Roll |
| 49 | 1609201853 | Strut M5 |
| 50 | 1609201854 | Spacer Sleeve |
| 51 | 1609201855 | Axle |
| 52 | 1609201856 | Spacer Sleeve |
| 53 | 1609201857 | Retaining Pin |
| 54 | 1609201858 | Axle |
| 55 | 1609201859 | Spacer Sleeve |
| 6 | 1609201826 | Table top |
| 60 | 1609201860 | End stop 90° |
| 65 | 1609201862 | Rubber Buffer |
| 650 | 2607950504 | Single-Head Eng. Wrench |
| 651 | 1609201884 | Crank Handle |
| 651/10 | 1601110531 | Reference Plate |
| 652 | 1609201819 | Suction Device |
| 67 | 1609201863 | Extension Spring |
| 68 | 1609201864 | Extension Spring |
| 7 | 1609201827 | Tensioning Lever |
| 70 | 1609201865 | Protective Cover |
| 70 | 1609202339 | Protective Cover |
| 700 | 1609201819 | Suction Device |
| 701 | 1609201816 | Sliding Agents 100 Gr. |
| 702 | 1609201815 | Thrust Member |
| 703 | 1609201817 | Set of knives |
| 704 | 1609201821 | End stop 45-90° |
| 71 | 1609201866 | Pulley |
| 710 | 1609201814 | Base |
| 72 | 1609201867 | Guide Bushing |
| 75 | 1601110532 | Reference Plate |
| 76 | 1601110533 | Reference Plate |
| 77 | 1601110545 | Manufacturer's nameplate |
| 78 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 79 | 1609201868 | Socket head cap screw M5X5 |
| 8 | 1609201828 | Rear Housing Section |
| 80 | 2914411056 | Thread-forming tap. Screw DIN 7500 CM 5X8 |
| 81 | 2914411051 | Thread-forming tap. Screw DIN 7500 CM 4X20 |
| 82 | 2914411060 | Thread-forming tap. Screw DIN 7500 CM 5X16 |
| 83 | 2914401070 | Thread-forming tap. Screw DIN 7500 AM 6X10 |
| 84 | 2603435042 | Thread-forming tap. Screw |
| 85 | 2911061238 | Hex Screw DIN 933 8X16-8.8 |
| 86 | 2914411057 | Thread-forming tap. Screw DIN 7500-M5X10MM |
| 87 | 2910611420 | Dummy DIN 7981 ST 3,9X19-F-H |
| 88 | 2910611418 | Tapping Screw DIN 7981-ST 3,9X13-F-H |
| 89 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 9 | 1609201829 | Threaded Spindle M6 |
| 90 | 2915011006 | Hex Nut DIN 934-M 5-M-8 |
| 91 | 1609201873 | Hex Nut M5 |
| 92 | 2915051106 | Hex Nut DIN 439-AM6-04 |
| 93 | 1609202234 | Hex Nut |
| 94 | 1609202235 | Shim washer |
| 95 | 1609201874 | Shim ring |
| 96 | 2916011895 | Plain Washer DIN 9021-B 8,4-ST |
| 97 | 2916011017 | Plain Washer DIN 125-A10,5-ST |
| 98 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 99 | 1609202066 | Locking washer Ø5 MM |
