Bosch SH 5 VE
Bosch SH 5 VE demolition hammer: exploded parts diagram, 2 sheets, 194 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SH 5 VE: 194 positions on 2 sheets

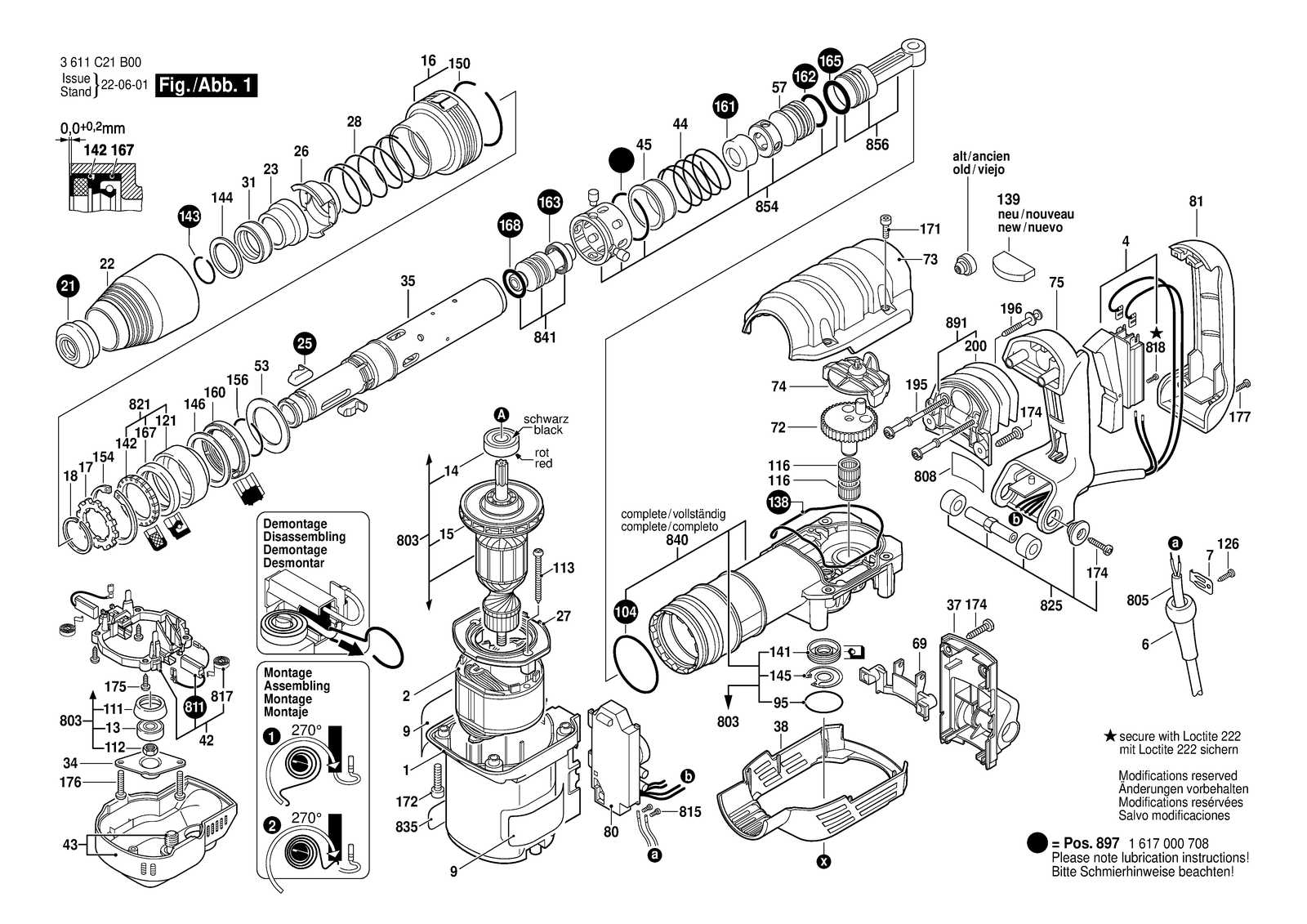

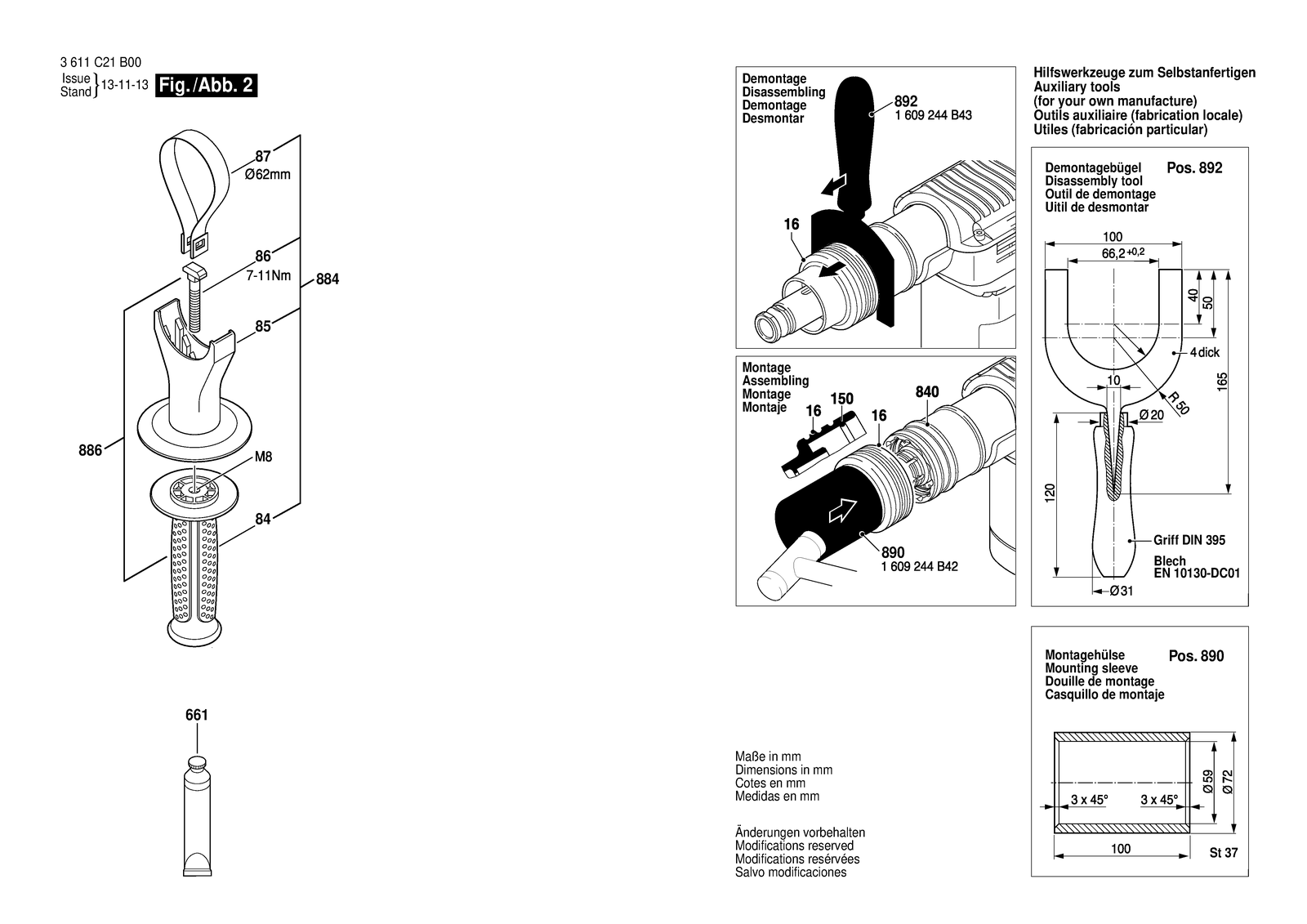

Bosch SH 5 VE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615102158 | Motor Housing Ultramarine Blue |
| 1 | 1615102157 | Motor Housing Orange |
| 104 | 1610210095 | O-Ring 55,0X2,0 MM |
| 104 | 1610210095 | O-Ring 55,0X2,0 MM |
| 111 | 1610290064 | Bushing |
| 111 | 1610290064 | Bushing |
| 112 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 112 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 116 | 1610913029 | Needle-Roller Assembly |
| 116 | 1610913029 | Needle-Roller Assembly |
| 121 | 1610328018 | Bushing |
| 121 | 1610328018 | Bushing |
| 126 | 2603490022 | Screw 4X16 |
| 126 | 2603490022 | Screw 4X16 |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 138 | 1611015050 | Sealing Frame |
| 138 | 1611015050 | Sealing Frame |
| 139 | 1600A018Z1 | Felt |
| 139 | 1600A018Z1 | Felt |
| 14 | 1610905041 | Groove ball bearing 12X32X10 |
| 14 | 1610905041 | Groove ball bearing 12X32X10 |
| 141 | 1610290066 | Rotary shaft lip seal |
| 141 | 1610290066 | Rotary shaft lip seal |
| 142 | 1610290061 | Rotary shaft lip seal |
| 142 | 1610290061 | Rotary shaft lip seal |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 144 | 1610251006 | Supporting Disc |
| 144 | 1610251006 | Supporting Disc |
| 145 | 1610119012 | Spring retaining ring |
| 145 | 1610119012 | Spring retaining ring |
| 146 | 1610113012 | Shim |
| 146 | 1610113012 | Shim |
| 15 | 1616610090 | Fan |
| 15 | 1616610090 | Fan |
| 150 | 1614601041 | Retaining ring |
| 150 | 1614601041 | Retaining ring |
| 154 | 2916660024 | Spring retaining ring 55X2MM, DIN 472 |
| 154 | 2916660024 | Spring retaining ring 55X2MM, DIN 472 |
| 156 | 1610224009 | Retaining ring |
| 156 | 1610224009 | Retaining ring |
| 16 | 1610499055 | Ratchet Sleeve |
| 16 | 1610499055 | Ratchet Sleeve |
| 160 | 1610210172 | Damping Ring |
| 160 | 1610210172 | Damping Ring |
| 161 | 1610290093 | Damping rubber |
| 161 | 1610290093 | Damping rubber |
| 162 | 1610210203 | O-Ring 24,5X4,0 MM |
| 162 | 1610210203 | O-Ring 24,5X4,0 MM |
| 163 | 1610290065 | Seal Ring |
| 163 | 1610290065 | Seal Ring |
| 165 | 1610210153 | O-Ring 25,0X4,0 MM |
| 165 | 1610210153 | O-Ring 25,0X4,0 MM |
| 167 | 1610290062 | Rotary shaft lip seal |
| 167 | 1610290062 | Rotary shaft lip seal |
| 168 | 1610210144 | O-Ring 22,0X3,0 MM |
| 168 | 1610210144 | O-Ring 22,0X3,0 MM |
| 17 | 1610241000 | Catch Disk |
| 17 | 1610241000 | Catch Disk |
| 171 | 1613435014 | Torx Oval-Head Screw Silver M5X16-TORX,T25 |
| 171 | 1613435014 | Torx Oval-Head Screw Silver M5X16-TORX,T25 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 176 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 176 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 177 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 177 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 18 | 1614601030 | Retaining ring |
| 18 | 1614601030 | Retaining ring |
| 195 | 1613490015 | Torx Oval-Head Screw |
| 195 | 1613490015 | Torx Oval-Head Screw |
| 196 | 1613435019 | Screw and washer assembly |
| 196 | 1613435019 | Screw and washer assembly |
| 2 | 1614220123 | Field 220-240V |
| 2 | 1614220123 | Field 220-240V |
| 200 | 1610284000 | Bellows |
| 200 | 1610284000 | Bellows |
| 21 | 1610508038 | Protective Cap |
| 21 | 1610508038 | Protective Cap |
| 22 | 1610591030 | Protection Sleeve |
| 22 | 1610591030 | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 25 | 1612300036 | Stopping Device |
| 25 | 1612300036 | Stopping Device |
| 26 | 1610290076 | Indexing Disk |
| 26 | 1610290076 | Indexing Disk |
| 27 | 1610591028 | Air-Deflector Ring |
| 27 | 1610591028 | Air-Deflector Ring |
| 28 | 1614621000 | Compression Spring |
| 28 | 1614621000 | Compression Spring |
| 31 | 1610290049 | Damping Ring |
| 31 | 1610290049 | Damping Ring |
| 34 | 1610516013 | Flange |
| 34 | 1610516013 | Flange |
| 35 | 1615806214 | Hammer Pipe |
| 35 | 1615806214 | Hammer Pipe |
| 37 | 1615500405 | Bearing Pedestal Blue |
| 37 | 1615500406 | Bearing Pedestal Orange |
| 38 | 1615190163 | Covering hood Blue |
| 38 | 1615190164 | Covering hood Orange |
| 4 | 1617200105 | Switch Light Grey |
| 4 | 1617200105 | Switch Light Grey |
| 42 | 1614336085 | Brush Holder |
| 42 | 1614336085 | Brush Holder |
| 43 | 1615500410 | Fan Cover Black |
| 43 | 1615500410 | Fan Cover Black |
| 44 | 1614621007 | Compression Spring |
| 44 | 1614621007 | Compression Spring |
| 45 | 1610499064 | Control Bushing |
| 45 | 1610499064 | Control Bushing |
| 53 | 1610102054 | Support Disc |
| 53 | 1610102054 | Support Disc |
| 57 | 1618710089 | Striker |
| 57 | 1618710089 | Striker |
| 6 | 1600703035 | Grommet Ø8,7-Ø9,6X66 MM |
| 6 | 1600703035 | Grommet Ø8,7-Ø9,6X66 MM |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 69 | 1610099005 | Retaining Bracket |
| 69 | 1610099005 | Retaining Bracket |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 72 | 1600A014S6 | Eccentric Cog Wheel |
| 72 | 1600A014S6 | Eccentric Cog Wheel |
| 73 | 16055002EP | Housing Cover |
| 73 | 16055002EP | Housing Cover |
| 74 | 1600A0073C | Holding-Down-Appliance |
| 74 | 1600A0073C | Holding-Down-Appliance |
| 75 | 1615132120 | Handle Blue |
| 75 | 1615132121 | Handle Orange |
| 80 | 1617233051 | Speed governor |
| 80 | 1617233051 | Speed governor |
| 803 | 1614011098 | Armature 220-240V |
| 803 | 1614011098 | Armature 220-240V |
| 805 | 1617000723 | Power supply cord |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3HD | Nameplate |
| 808 | 160111A3HD | Nameplate |
| 81 | 1615132088 | Handle Cover Black |
| 81 | 1615132088 | Handle Cover Black |
| 811 | 1617014144 | Carbon-Brush Set |
| 811 | 1617014144 | Carbon-Brush Set |
| 815 | 1609271281 | Socket head cap screw |
| 815 | 1609271281 | Socket head cap screw |
| 817 | 1614652004 | Spiral Spring |
| 817 | 1614652004 | Spiral Spring |
| 818 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 818 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 821 | 1617000835 | Bushing |
| 821 | 1617000835 | Bushing |
| 825 | 1617000706 | Bearing Shaft |
| 825 | 1617000706 | Bearing Shaft |
| 835 | 1611110H20 | Reference Plate |
| 835 | 1611110H20 | Reference Plate |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1617000898 | Impact Mechanism Housing |
| 840 | 1617000898 | Impact Mechanism Housing |
| 841 | 1617000899 | Striker Pin |
| 841 | 1617000899 | Striker Pin |
| 85 | 1618040074 | Support clamp |
| 85 | 1618040074 | Support clamp |
| 854 | 1617000707 | Guide Bushing |
| 854 | 1617000707 | Guide Bushing |
| 856 | 1617000A00 | Hammer Piston |
| 856 | 1617000A00 | Hammer Piston |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 884 | 1612025055 | Auxiliary Handle Black Ø62 MM |
| 884 | 1612025055 | Auxiliary Handle Black Ø62 MM |
| 886 | 1617000459 | Auxiliary Handle Black M8 |
| 886 | 1617000459 | Auxiliary Handle Black M8 |
| 890 | 1609244B42 | Mounting Sleeve |
| 890 | 1609244B42 | Mounting Sleeve |
| 891 | 1617000A27 | Spring Pack |
| 891 | 1617000A28 | Spring Pack |
| 892 | 1609244B43 | Bow |
| 892 | 1609244B43 | Bow |
| 897 | 1617000708 | Wear and Tear Part Set |
| 897 | 1617000708 | Wear and Tear Part Set |
| 9 | 1611110D67 | Manufacturer's nameplate |
| 9 | 1611110D68 | Manufacturer's nameplate |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
