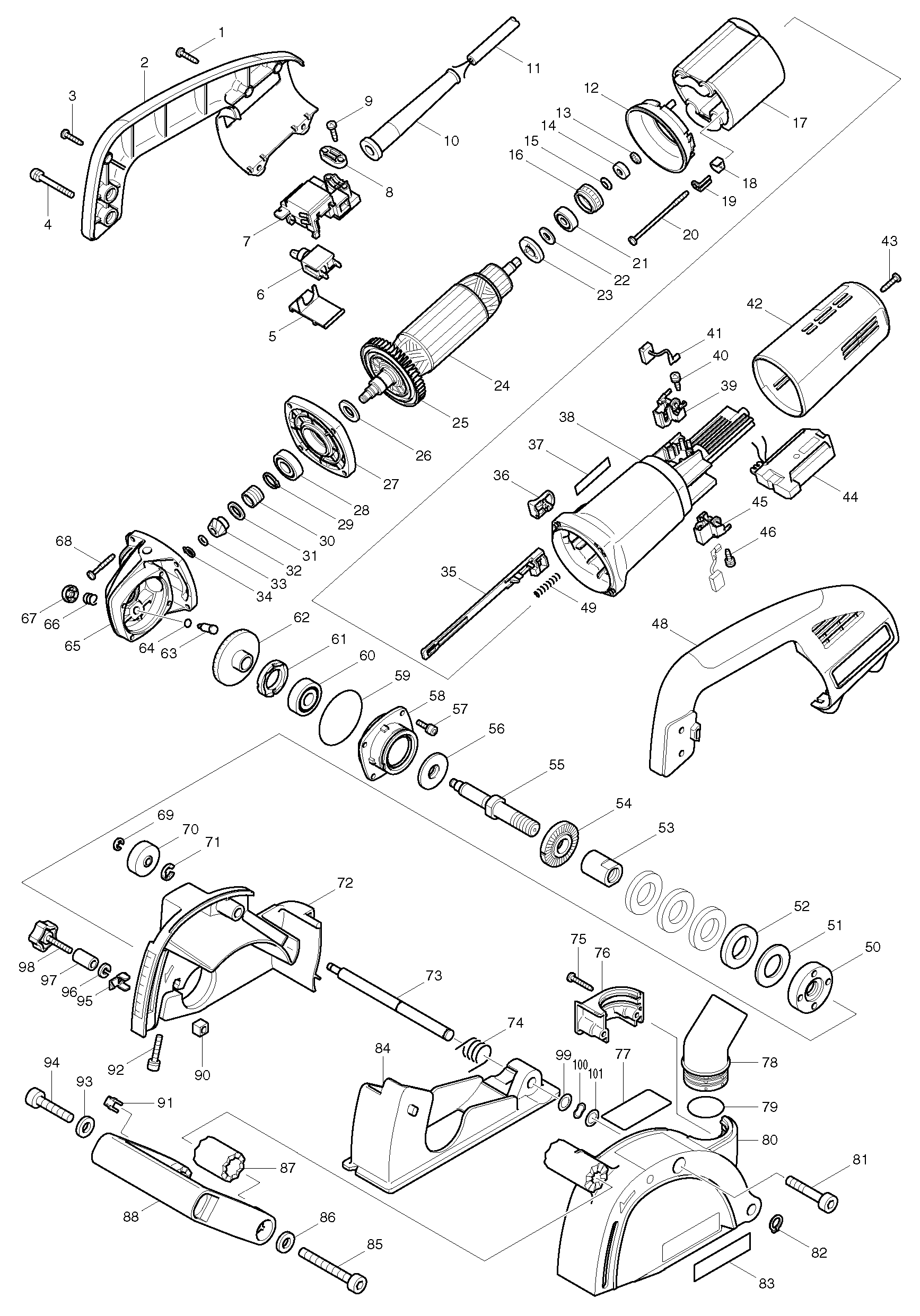

Sheet 1: Makita SG1250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 183692-1 | Makita 183692-1 HANDLE SET FOR SG1250 |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 5 | 687113-0 | Makita 687113-0 COVER |
| 6 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 7 | 632945-0 | Makita 632945-0 SWITCH BLOCK |
| 8 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 9 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 10 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 11 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 12 | 413076-2 | Makita 413076-2 BAFFLE PLATE |
| 13 | 259039-2 | Makita 259039-2 SELF LOCK 6 4340FTC |
| 14 | 688117-5 | Makita 688117-5 Magnet Sleeve for GD0800C GDO810C |
| 15 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
| 16 | 421738-8 | Makita 421738-8 LABYRINTH RUBBER RING 22 |
| 17 | 626503-2 | Makita 626503-2 Field 220-240V for 9564PCV 9565C 9565CV 9566C 9566CV |
| 18 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 19 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 20 | 266258-3 | Makita 266258-3 TAPPING SCREW 4X70 |
| 21 | 210027-4 | Makita 210027-4 BALL BEARING 627DDW |
| 22 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 23 | 681656-4 | Makita 681656-4 INSULATION WASHER |
| 24 | 515208-8 | Makita 515208-8 Armature Ass'y 220-240V for 9566C |
| 26 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 27 | 317359-1 | Makita 317359-1 GEAR HOUSING COVER |
| 28 | 211142-7 | Makita 211142-7 BALL BEARING 6001LLB |
| 29 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 30 | 233901-9 | Makita 233901-9 LOCK SPRING 12 |
| 31 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 32 | 227429-7 | Makita 227429-7 SPIRAL BEVEL GEAR 9 9566C |
| 33 | 253077-6 | Makita 253077-6 FLAT WASHER 6 |
| 34 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 35 | 417186-7 | Makita 417186-7 SWITCH LEVER |
| 36 | 417813-6 | Makita 417813-6 Switch Knob 9564 9565 BO6040 GD0800C SG1250 PW5000C |
| 37 | 819080-3 | |
| 38 | 183740-6 | Makita 183740-6 MOTOR HOUSING SG1250 |
| 39 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 40 | 266256-7 | Makita 266256-7 TAPPING SCREW PT3X10 |
| 41 | 191978-9 | Makita 191978-9 Carbon Brushes CB-318 for BO6040 GD0800C PW5000 |
| 42 | 417183-3 | Makita 417183-3 REAR COVER |
| 43 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 44 | 631492-8 | Makita 631492-8 CONTROLLER 9566C |
| 45 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 46 | 266256-7 | Makita 266256-7 TAPPING SCREW PT3X10 |
| 48 | 183692-1 | Makita 183692-1 HANDLE SET FOR SG1250 |
| 49 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 50 | 224577-3 | |
| 51 | 331661-8 | Makita 331661-8 SPACER 3 FOR SG1250 |
| 52 | 331662-6 | Makita 331662-6 SPACER 6 FOR SG1250 |
| 53 | 257732-2 | Makita 257732-2 SLEEVE 14 FOR SG1250 |
| 54 | 224298-7 | |
| 55 | 324393-4 | Makita 324393-4 SPINDLE SG1250 |
| 56 | 415300-9 | Makita 415300-9 LABYRINTH RING |
| 57 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 58 | 317570-5 | Makita 317570-5 LAAKERIPESÄ 9562C317570-5P=PAKETTI |
| 59 | 213673-2 | Makita 213673-2 O RING 52 |
| 60 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 61 | 285841-7 | Makita 285841-7 BEARING RETAINER 9565C |
| 62 | 227430-2 | Makita 227430-2 Bevel Gear for 9566C 9566CV SG1250 |
| 63 | 256459-1 | Makita 256459-1 PIN |
| 64 | 213048-5 | Makita 213048-5 O-Ring 6 |
| 65 | 153381-2 | Makita 153381-2 GEAR HOUSING COMP. 9562C |
| 66 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 67 | 417236-8 | Makita 417236-8 PIN CAP |
| 68 | 266257-5 | Makita 266257-5 TAPPING SCREW 4*28, 9565C |
| 69 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 70 | 257227-5 | Makita 257227-5 RING 6 |
| 71 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 72 | 153685-2 | Makita 153685-2 BLADE CASE COMPLETE FOR SG1250 |
| 73 | 324392-6 | Makita 324392-6 SHOULDER SHAFT FOR SG1250 |
| 74 | 231655-2 | Makita 231655-2 TORSION SPRING 11 FOR SG1250 |
| 75 | 266040-0 | Makita 266040-0 TAPPING SCREW CT 4X25 FOR PC1100 |
| 76 | 418390-1 | Makita 418390-1 DUST COVER FOR SG1250 |
| 77 | 850945-0 | Makita 850945-0 NAME PLATE SG1250 |
| 78 | 416741-2 | Makita 416741-2 Plastic Dust Nozzle Piece for SG1250 Bag Extractor |
| 79 | 213423-5 | Makita 213423-5 O RING 30 |
| 80 | 183718-9 | Makita 183718-9 COVER FOR SG1250 |
| 81 | 922466-3 | Makita 922466-3 HEX. SOCKET HEAD BOLT M8X |
| 82 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 83 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 84 | 317723-6 | Makita 317723-6 BASE FOR SG1250 |
| 85 | 922487-5 | Makita 922487-5 HEX. SOCKET HEAD BOLT M8X |
| 86 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 87 | 223145-9 | Makita 223145-9 CAM FOR SG1250 |
| 88 | 417665-5 | Makita 417665-5 FRONT GRIP SG1250 |
| 90 | 252185-0 | Makita 252185-0 SQUARE NUT M6 FOR SG1250 |
| 91 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
| 92 | 922251-4 | Makita 922251-4 HEX. SOCKET HEAD BOLT M5X |
| 93 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 94 | 922462-1 | Makita 922462-1 HEX. SOCKET HEAD BOLT M8X |
| 95 | 345364-8 | Makita 345364-8 INDICATOR FOR SG1250 |
| 96 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 97 | 257731-4 | Makita 257731-4 SLEEVE 7 FOR SG1250 |
| 98 | 251897-2 | Makita 251897-2 THUMB SCREW M6*33, LS0713 |
| 99 | 253310-6 | Makita 253310-6 THIN WASHER 10 |
| 100 | 267783-7 | Makita 267783-7 WAVE WASHER 10 FOR SG1250 |
| 101 | 253310-6 | Makita 253310-6 THIN WASHER 10 |
