Bosch SEC-ANGLEEXACT50-210

Bosch SEC-ANGLEEXACT50-210 cordless screw driver: exploded parts diagram, 1 sheet, 287 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SEC-ANGLEEXACT50-210: 287 positions on 1 sheet

Bosch SEC-ANGLEEXACT50-210 parts list (1 sheet)

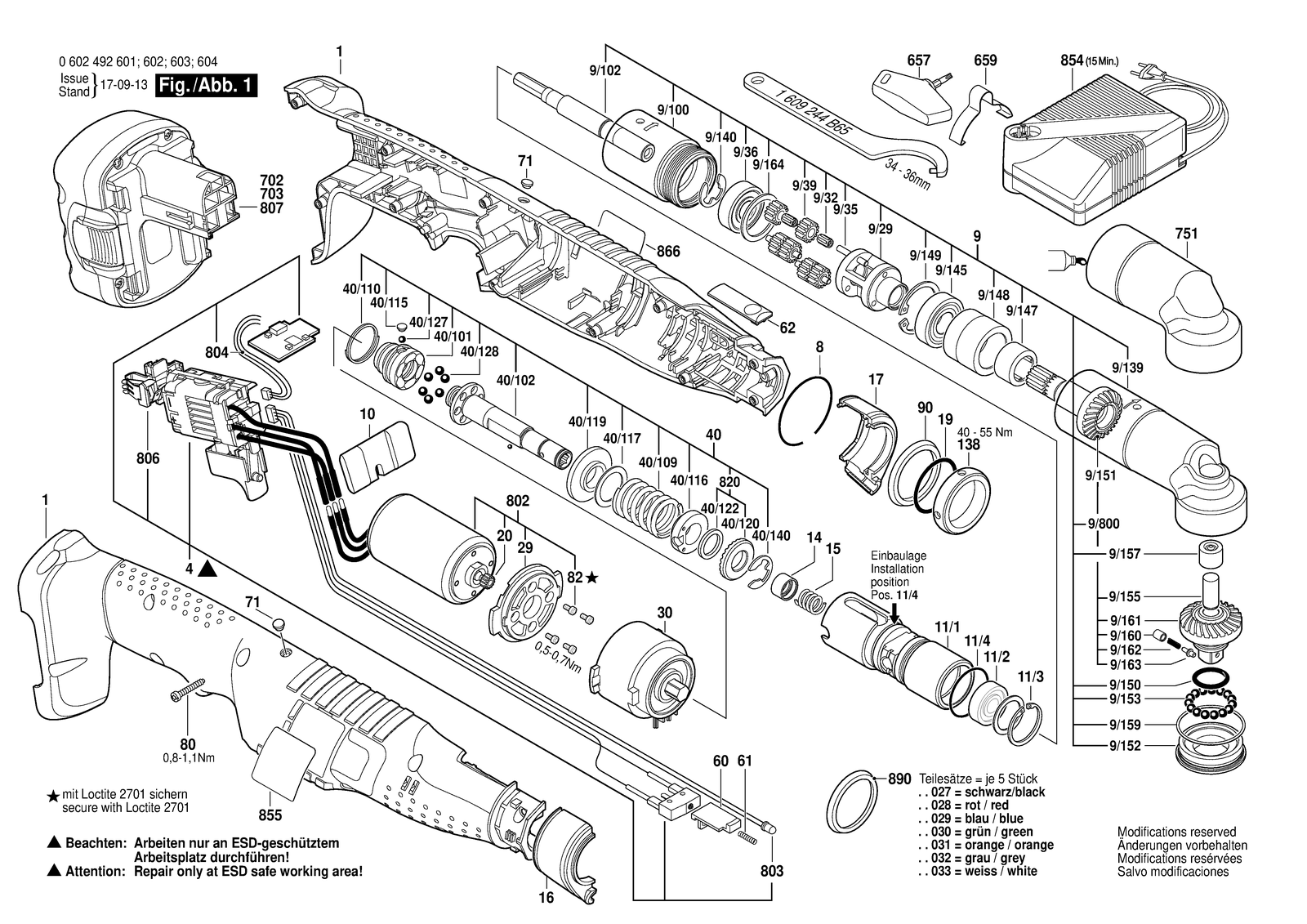

Bosch SEC-ANGLEEXACT50-210 parts diagram, sheet 1
No.Part numberPart name
13609202A34Housing Section Blue
13609202A34Housing Section Blue
13609202A34Housing Section Blue
103601099003Switch Slide
103601099003Switch Slide
103601099003Switch Slide
11/13609202A33Angle Flange
11/13609202A33Angle Flange
11/13609202A33Angle Flange
11/21900905029Ball Bearing 8X22X7
11/21900905029Ball Bearing 8X22X7
11/21900905029Ball Bearing 8X22X7
11/32600119000Spring retaining ring
11/32600119000Spring retaining ring
11/32600119000Spring retaining ring
11/43600210012O-Ring 20,0X1,0 MM
11/43600210012O-Ring 20,0X1,0 MM
11/43600210012O-Ring 20,0X1,0 MM
1383603344057Threaded Ring
1383603344057Threaded Ring
1383603344057Threaded Ring
143600423004Sleeve
143600423004Sleeve
143600423004Sleeve
153604611037Compression Spring
153604611037Compression Spring
153604611037Compression Spring
163605105019Led-Holder
163605105019Led-Holder
163605105019Led-Holder
173605105020Led-Holder
173605105020Led-Holder
173605105020Led-Holder
191900210125O-Ring 25X2,5 MM
191900210125O-Ring 25X2,5 MM
191900210125O-Ring 25X2,5 MM
203606309061Pinion
203606309061Pinion
203606309061Pinion
292605719011Intermediate Flange
292605719011Intermediate Flange
292605719011Intermediate Flange
303607030471Planetary Gear Train
303607030472Planetary Gear Train
303607030472Planetary Gear Train
303607030472Planetary Gear Train
43607200114Electronic Assembly
43607200114Electronic Assembly
43607200114Electronic Assembly
403607031567Assembly kit
403607031568Assembly kit
403607031567Assembly kit
403607031567Assembly kit
40/1013606445043Clutch Element
40/1013606445043Clutch Element
40/1013606445043Clutch Element
40/1023603124023Output Shaft
40/1023603124023Output Shaft
40/1023603124023Output Shaft
40/1093604619003Compression Spring
40/1093604619020Compression Spring Blue
40/1093604619020Compression Spring Blue
40/1093604619020Compression Spring Blue
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1153601023011Sealing plate
40/1153601023011Sealing plate
40/1153601023011Sealing plate
40/1163600134014Setting Ring
40/1163600134016Setting Ring
40/1163600134016Setting Ring
40/1163600134016Setting Ring
40/1171600101023Plain Washer Thick 0,5 MM
40/1171600101023Plain Washer Thick 0,5 MM
40/1171600101023Plain Washer Thick 0,5 MM
40/1193600190036Support Disc
40/1193600190036Support Disc
40/1193600190036Support Disc
40/1203603344046Catch Disk
40/1203603344047Catch Disk
40/1203603344046Catch Disk
40/1203603344046Catch Disk
40/1223600101052Shim washer
40/1223600101052Shim washer
40/1223600101052Shim washer
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1402916080012Locking washer DIN 6799-9-FST
40/1402916080012Locking washer DIN 6799-9-FST
40/1402916080012Locking washer DIN 6799-9-FST
603601923022Switching Element
603601923022Switching Element
603601923022Switching Element
613604611022Compression Spring
613604611022Compression Spring
613604611022Compression Spring
623601923029Pusher
623601923029Pusher
623601923029Pusher
6573607950027Screwdriver
6573607950027Screwdriver
6573607950027Screwdriver
6593601923024Suspension Loop
6593601923024Suspension Loop
6593601923024Suspension Loop
7022607335881Slide-In Accu Package
7022607335881Slide-In Accu Package
7022607335881Slide-In Accu Package
7032607335655Slide-In Accu Package 14,4V,2,4AH
7032607335655Slide-In Accu Package 14,4V,2,4AH
7032607335655Slide-In Accu Package 14,4V,2,4AH
713604460132Light Conductor
713604460132Light Conductor
713604460132Light Conductor
7513609202A29Protective Cap
7513609202A29Protective Cap
7513609202A29Protective Cap
81614601016Retaining ring Ø36,6XØ1,5
81614601016Retaining ring Ø36,6XØ1,5
81614601016Retaining ring Ø36,6XØ1,5
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
8023607031632DC motor 14,4V
8023607031632DC motor 14,4V
8023607031632DC motor 14,4V
8033609202B02Wiring Harness
8033609202B02Wiring Harness
8033609202B02Wiring Harness
8043609202B03Wiring Harness
8043609202B03Wiring Harness
8043609202B03Wiring Harness
8061609280416Contact retainer
8061609280416Contact retainer
8061609280416Contact retainer
8072607335655Slide-In Accu Package 14,4V,2,4AH
8072607335655Slide-In Accu Package 14,4V,2,4AH
8072607335655Slide-In Accu Package 14,4V,2,4AH
822603414048Torx SH cap screw M3X5-8.8-Z
822603414048Torx SH cap screw M3X5-8.8-Z
822603414048Torx SH cap screw M3X5-8.8-Z
8203603344047Catch Disk
8203603344047Catch Disk
8203603344047Catch Disk
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
85516070312BFNameplate
85516070312BGNameplate
85516070312BJNameplate
85516070312BJNameplate
8663601110519Manufacturer's nameplate
8663601110520Manufacturer's nameplate
8663601110522Manufacturer's nameplate
8663601110522Manufacturer's nameplate
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
93607020314Angle head
93607020315Angle head
93607020315Angle head
9/1003609202A32Housing
9/1003609202A32Housing
9/1003609202A32Housing
9/1023609202A36Drive Shaft
9/1023609202A98Drive Shaft
9/1023609202A98Drive Shaft
9/1393605106093Spindle Housing
9/1393605106093Spindle Housing
9/1393605106093Spindle Housing
9/1402916080012Locking washer DIN 6799-9-FST
9/1402916080012Locking washer DIN 6799-9-FST
9/1402916080012Locking washer DIN 6799-9-FST
9/1453600905015Groove ball bearing
9/1453600905015Groove ball bearing
9/1453600905015Groove ball bearing
9/1473600917020Needle bearing
9/1473600917020Needle bearing
9/1473600917020Needle bearing
9/1483608874921Spacer
9/1483608874921Spacer
9/1483608874921Spacer
9/1492916660011Spring retaining ring DIN 472-28X1,2 MM
9/1492916660011Spring retaining ring DIN 472-28X1,2 MM
9/1492916660011Spring retaining ring DIN 472-28X1,2 MM
9/1501610210116O-Ring 14,0X2,0 MM
9/1501610210116O-Ring 14,0X2,0 MM
9/1501610210116O-Ring 14,0X2,0 MM
9/1513606333079Bevel Gear
9/1513606333079Bevel Gear
9/1513606333079Bevel Gear
9/1523605700190Bearing Flange
9/1523605700190Bearing Flange
9/1523605700190Bearing Flange
9/1531903230008Ball 4,5 MM III DIN 5401-ST
9/1531903230008Ball 4,5 MM III DIN 5401-ST
9/1531903230008Ball 4,5 MM III DIN 5401-ST
9/1553603100000Straight Pin
9/1553603100000Straight Pin
9/1553603100000Straight Pin
9/1573608874669Needle bearing INA 8,00X12,00X10,00
9/1573608874669Needle bearing INA 8,00X12,00X10,00
9/1573608874669Needle bearing INA 8,00X12,00X10,00
9/1593608874923Shim 0,1
9/1593608874924Shim 0,05
9/1593608874923Shim 0,1
9/1593608874924Shim 0,05
9/1593608874923Shim 0,1
9/1593608874924Shim 0,05
9/1603600320016Guide Sleeve
9/1603600320016Guide Sleeve
9/1603600320016Guide Sleeve
9/1613606333078Crown Gear
9/1613606333078Crown Gear
9/1613606333078Crown Gear
9/1621604611004Compression Spring
9/1621604611004Compression Spring
9/1621604611004Compression Spring
9/1631603124060Pressure Spindle
9/1631603124060Pressure Spindle
9/1631603124060Pressure Spindle
9/1643600118006Spring retaining ring
9/1643600118006Spring retaining ring
9/1643600118006Spring retaining ring
9/293606337219Planetary-Gear Carrier
9/293606337221Planetary-Gear Carrier
9/293606337221Planetary-Gear Carrier
9/323600913000Needle-Roller Assembly Ina K3X5X7
9/323600913000Needle-Roller Assembly Ina K3X5X7
9/323600913000Needle-Roller Assembly Ina K3X5X7
9/352917530083Straight Pin DIN 6325-3M6X24
9/352917530083Straight Pin DIN 6325-3M6X24
9/352917530083Straight Pin DIN 6325-3M6X24
9/363600905023Groove ball bearing
9/363600905023Groove ball bearing
9/363600905023Groove ball bearing
9/393606316099Cylindrical Gear Z=16
9/393606316100Cylindrical Gear
9/393606316100Cylindrical Gear
9/8003609202B05Bevel gear
9/8003609202B05Bevel gear
9/8003609202B05Bevel gear
903600106020Ring Red
903600106021Ring Orange
903600106022Ring Black
903600106022Ring Black
