Bosch SE150/150W

Bosch SE150/150W eccentric disc grinder: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SE150/150W: 37 positions on 1 sheet

Bosch SE150/150W parts list (1 sheet)

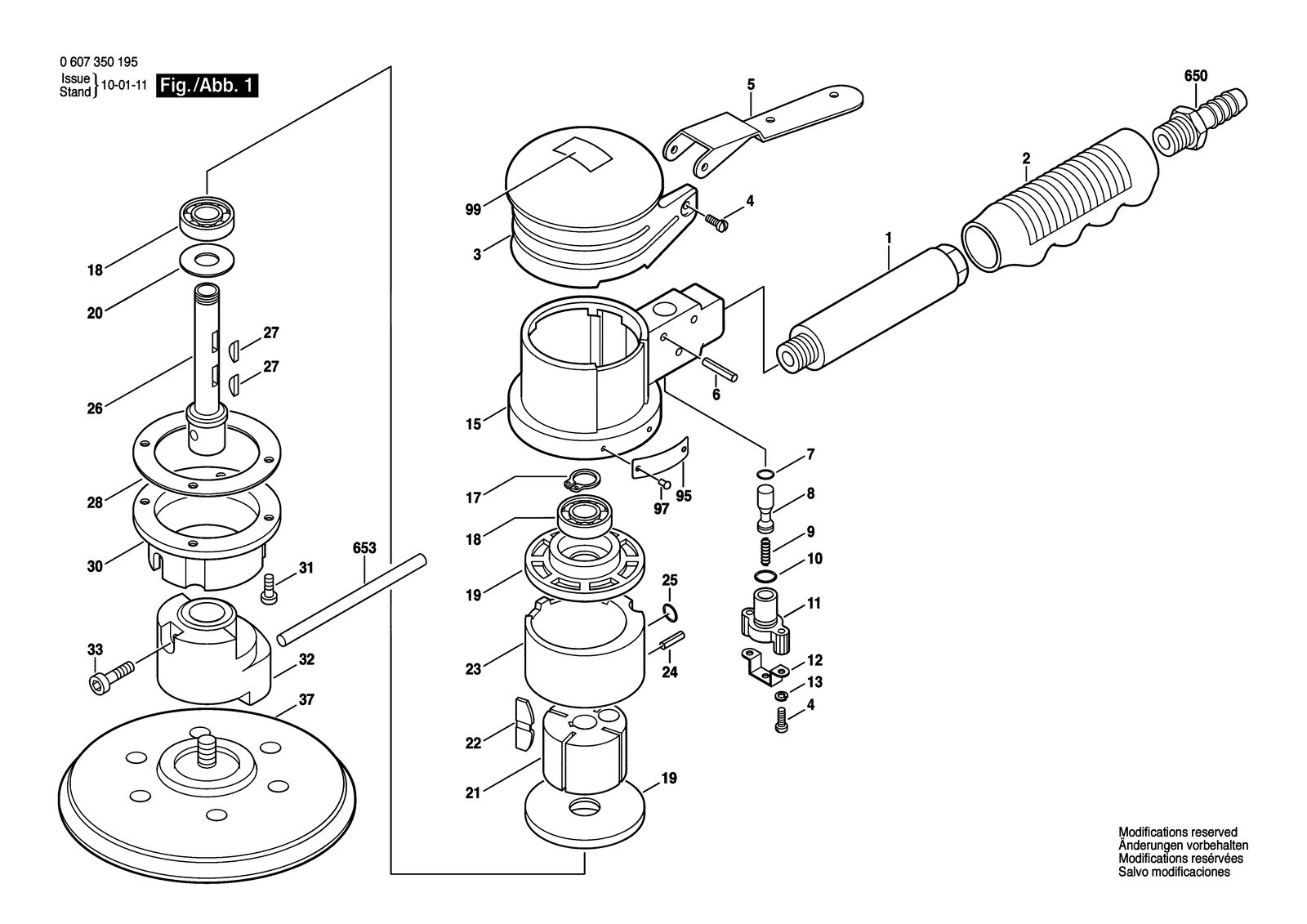

Bosch SE150/150W parts diagram, sheet 1
No.Part numberPart name
13609200269Connecting Pipe
103609200303O-Ring
113609200273Control Head
123609200274Mounting Bracket
133609200267Spring Lock Washer
153609200278Motor Housing
173609200305Spring retaining ring
183609200279Groove ball bearing
193609200292Bearing Flange
23609200270Handle
203609200312Cover Disc
213609202799Rotor
223609200290Rotor Lamella
233609200320Stator
243609200307Slotted Spring Pin
253609201046O-Ring
263609200296Rotor Shaft
273609200297Woodruff Key
283609200275Sealing disk
33609200271Protective Cap
303609200276Protective Housing
313609200280Oval-Head Screw
323609200268Flyweight
333609200281Hex Socket Head Cap Screw
373609200325Backing Pad
373609202475Backing Pad
43609200266Oval-Head Screw
53609200291Control Lever
63609200306Slotted Spring Pin
6503609200316Hose fitting
6533609200283Straight Pin
73609200300O-Ring
83609200272Valve piston
93609200299Compression Spring
953609200277Nameplate
973603133000Grooved Nail
993601119236Reference Plate
