Bosch SDI 120

Bosch SDI 120 batt-oper screwdriver: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SDI 120: 33 positions on 1 sheet

Bosch SDI 120 parts list (1 sheet)

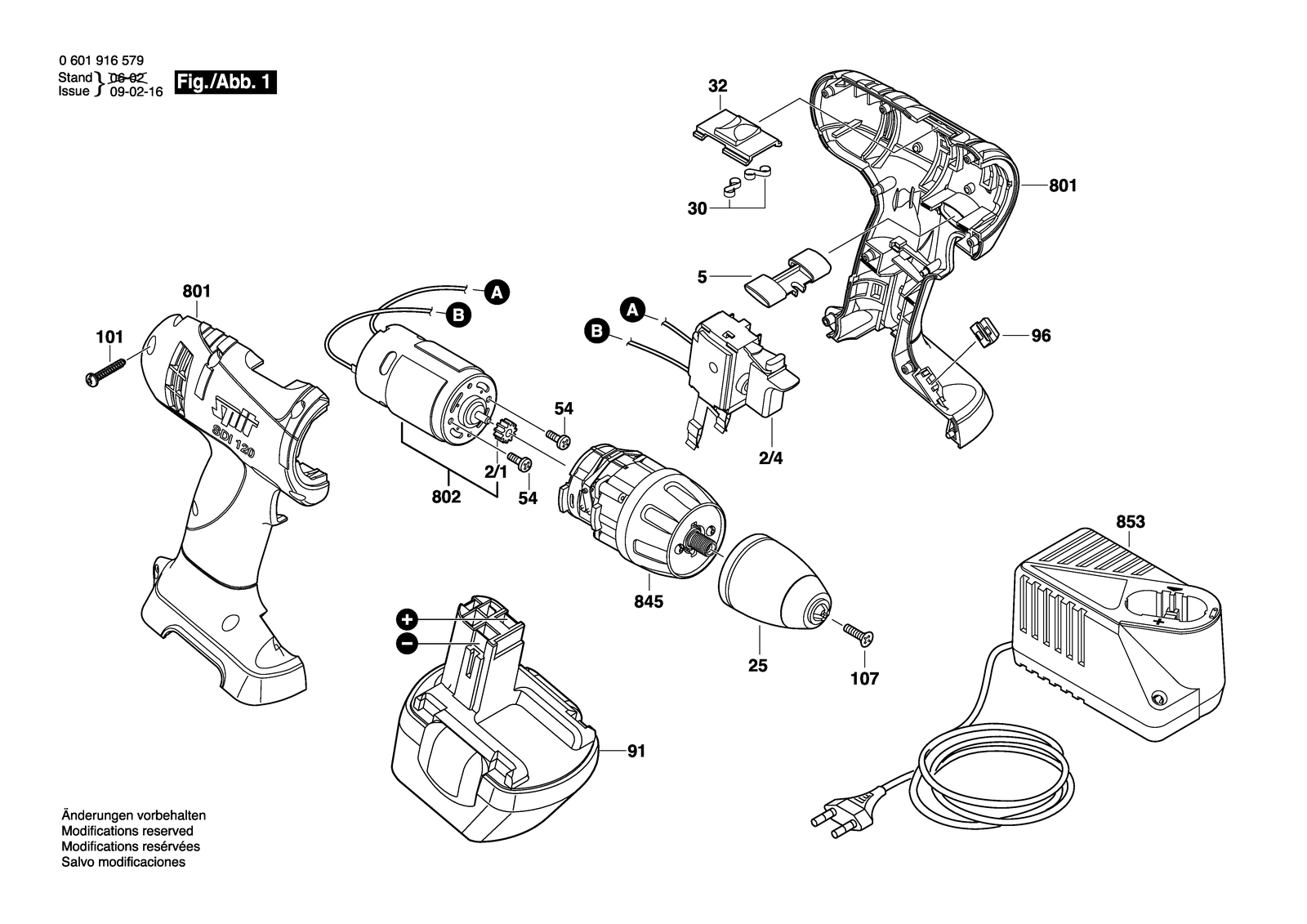

Bosch SDI 120 parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072609110721Countersunk-Head Screw M5X20
2/12606316226Pinion
2/12606316226Pinion
2/42607200481On-Off Switch
2/42607200481On-Off Switch
252608572201Keyless Chuck
252608572201Keyless Chuck
302604690022Leaf Spring
302604690022Leaf Spring
322601099131Adjusting Slide Black
322601099131Adjusting Slide Black
52601099130Adjusting Slide Black
52601099130Adjusting Slide Black
542603414049Torx SH cap screw M4X8-4,8-Z
542603414049Torx SH cap screw M4X8-4,8-Z
8012605105953Housing Section Black/orange
8012605105953Housing Section Black/orange
8022607022869DC motor 12-14,4V
8022607022869DC motor 12-14,4V
8452606200946Planetary Gear Train
8452606200942Planetary Gear Train
8452606200947Planetary Gear Train
8532607225005Fast Charger GB 230/7,2-14,4V,1H
8532607225401Fast Charger EU 230/7,2-24V,1H
8532607225005Fast Charger GB 230/7,2-14,4V,1H
8532607225401Fast Charger EU 230/7,2-24V,1H
912607335653Slide-In Accu Package 12V,1,5AH
912607335653Slide-In Accu Package 12V,1,5AH
962604690035Spring Element
962604690035Spring Element
