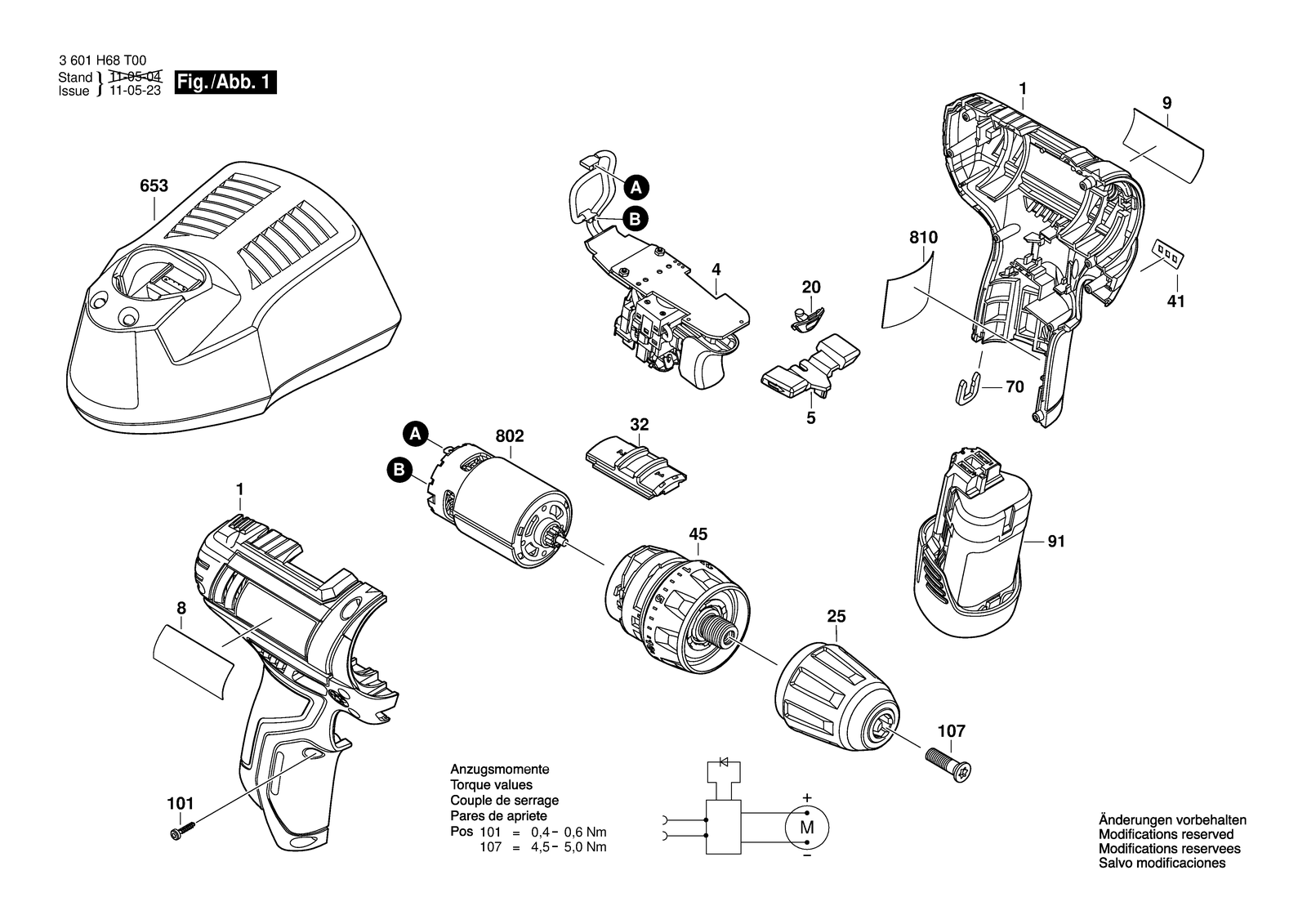

Bosch SDI 115 cordless screwdriver: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SDI 115: 18 positions on 1 sheet
Bosch SDI 115 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100971 | Housing Orange |
| 101 | 2609110883 | Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 20 | 2609100826 | Lens |
| 25 | 2609111245 | Keyless Chuck |
| 32 | 2609199353 | Switchover Unit |
| 4 | 1607233487 | Electronics Module |
| 41 | 2609132948 | Sticker |
| 45 | 2609199786 | Gear Box |
| 5 | 2609100975 | Changeover Lever |
| 653 | 2607225403 | Fast Charger EU 230/10,8V,30 Min. |
| 70 | 2609110537 | Clip |
| 8 | 2609133212 | Manufacturer's nameplate SDI 115 |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 810 | 2609133219 | Nameplate |
| 9 | 2609133213 | Manufacturer's nameplate SDI 115 |
| 91 | 2607336213 | Accumulator package 10,8V 1,3AH, LI |
| 91 | 2607336981 | Battery Pack 10,8V, 1,5AH, LI |
