Bosch SDI 108 cordless screw driver: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SDI 108: 36 positions on 1 sheet

Bosch SDI 108 parts list (1 sheet)

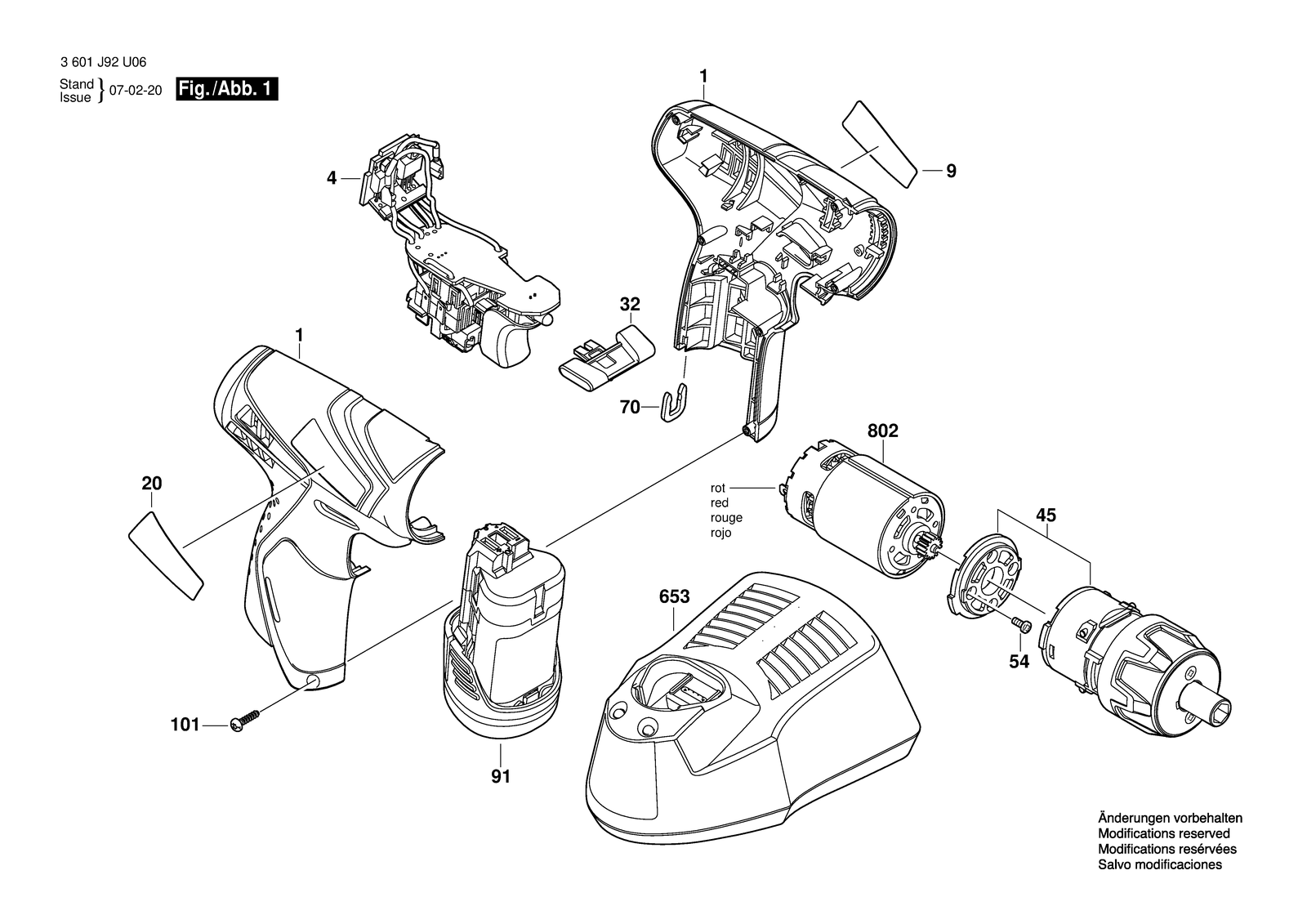

Bosch SDI 108 parts diagram, sheet 1
No.Part numberPart name
12605105121Housing Section Blue/black
12605105123Housing Section Black/orange
12605105123Housing Section Black/orange
1012603415206Torx Oval-Head Screw
1012603415206Torx Oval-Head Screw
1012603415206Torx Oval-Head Screw
202601115179Nameplate BACS 10,8V LI
202601115509Nameplate
202601115548Manufacturer's nameplate
322601099172Adjusting Slide Gray
322601099173Adjusting Slide Black
322601099173Adjusting Slide Black
41607233353Electronics Module
41607233354Electronics Module
41607233354Electronics Module
452606200186Planetary Gear Train
452606200186Planetary Gear Train
452606200186Planetary Gear Train
542603414048Torx SH cap screw M3X5-8.8-Z
542603414048Torx SH cap screw M3X5-8.8-Z
542603414048Torx SH cap screw M3X5-8.8-Z
6532607226381Fast Charger BBCF 12V 370468 10,8-12V 4A
6532607225297Fast Charger Bti EU 230/10,8 V, 30 Min.
6532607225403Fast Charger EU 230/10,8V,30 Min.
702601250009Pickup Clip
702601250009Pickup Clip
702601250009Pickup Clip
8022607022835DC motor 10,8V
8022607022835DC motor 10,8V
8022607022835DC motor 10,8V
92601115178Manufacturer's nameplate BACS 10,8V LI
92601115180Manufacturer's nameplate Bti-As 10,8V LI
92601115547Manufacturer's nameplate SDI 108
911607A350A6Battery Pack BBP 12 V 2,0 AH 343769
911607A350A4Battery Pack 12 V 2,0 AH 9 090230
912607336139Battery Pack 10,8 V, 1,3AH, LI
