Makita SC190D
Makita SC190D: exploded parts diagram, 1 sheet, 109 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SC190D: 109 positions on 1 sheet

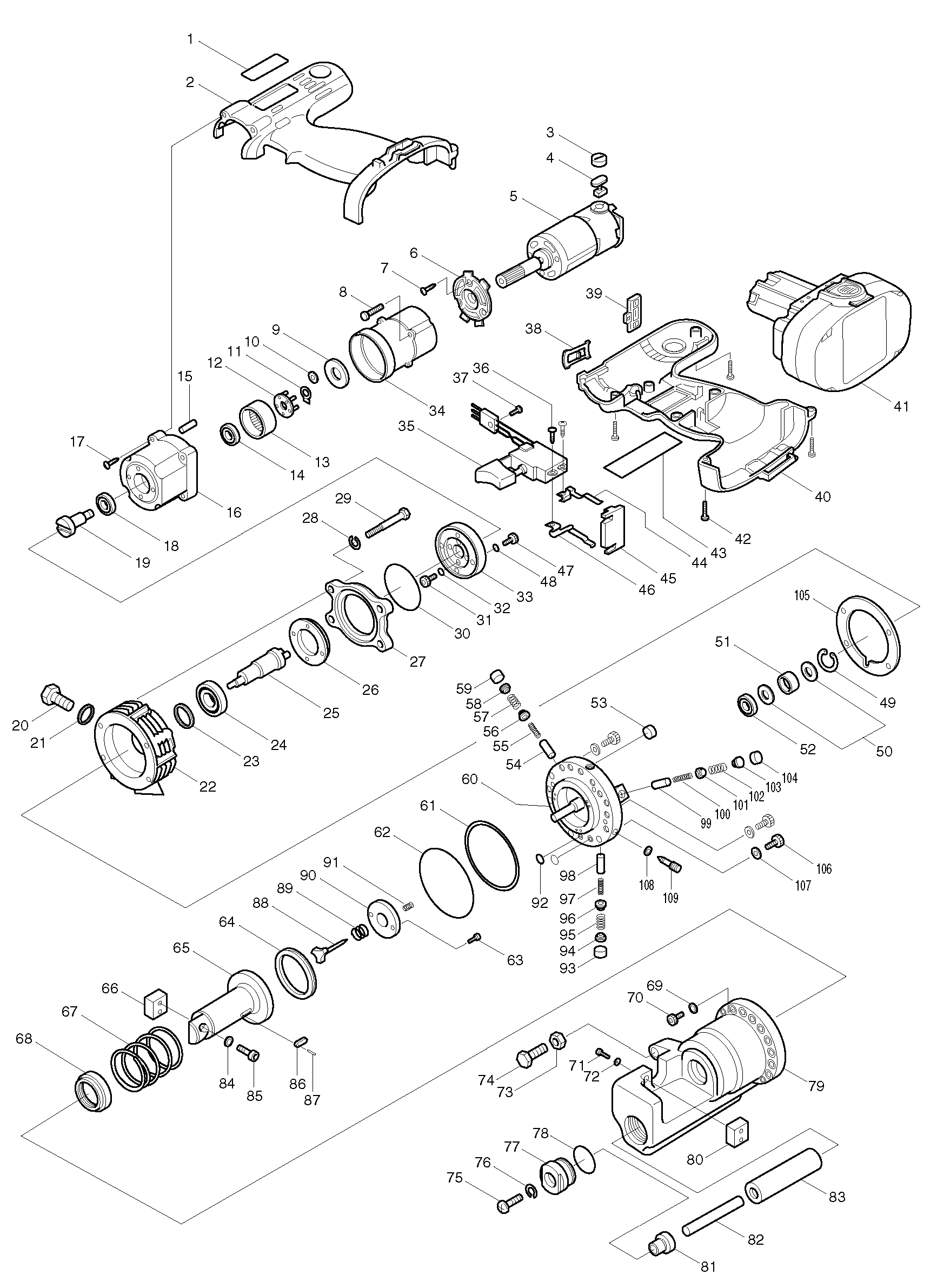

Sheet 1: Makita SC190D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | ||
| 2 | 183032-3 | Makita 183032-3 HOUSING SET |
| 3 | 643954-4 | Makita 643954-4 Holder Cap for BGA452 GA452D |
| 4 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 5 | 629743-1 | Makita 629743-1 DC MOTOR |
| 6 | 317069-0 | Makita 317069-0 MOTOR BRACKET SC190 |
| 7 | 266134-1 | Makita 266134-1 TAPPING SCREW ST 4X8 |
| 8 | 911017-7 | Makita 911017-7 PAN HEAD SCREW M3X12 |
| 9 | 267187-3 | |
| 10 | 226368-8 | |
| 11 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 12 | 152594-2 | |
| 13 | 226397-1 | |
| 14 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 15 | 256054-7 | Makita 256054-7 PIN 4, 4324 |
| 16 | 317324-0 | |
| 17 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 18 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 19 | 323970-9 | |
| 20 | 921522-6 | Makita 921522-6 HEX. BOLT M10X16 |
| 21 | SC00000056 | Makita SC00000056 SEALING WASHER |
| 22 | SC03213500 | Makita SC03213500 PUMP CASE |
| 23 | SC00000054 | Makita SC00000054 OIL SEAL |
| 24 | SC00000050 | Makita SC00000050 BALL BEARING 6002RU |
| 25 | SC03501390 | Makita SC03501390 ECCENTRIC SHAFT |
| 26 | SC03251400 | Makita SC03251400 THRUST FIXING FLANGE |
| 27 | SC03221700 | Makita SC03221700 MOTOR FLANGE |
| 28 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 29 | 922382-9 | Makita 922382-9 HEX. SOCKET HEAD BOLT M6X |
| 30 | SC06505500 | Makita SC06505500 O RING S60 |
| 31 | 922127-5 | Makita 922127-5 HEX. SOCKET HEAD BOLT M4X |
| 32 | 941052-1 | Makita 941052-1 FLAT WASHER 4 |
| 33 | SC03222300 | Makita SC03222300 MOTOR MOUNTING FLANGE |
| 34 | 416628-8 | Makita 416628-8 GEAR CASE A |
| 35 | 651968-9 | Makita 651968-9 SWITCH |
| 36 | 652038-7 | Makita 652038-7 PAN HEAD SCREW M3X8, 6226D |
| 37 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 38 | 417151-6 | Makita 417151-6 COVER |
| 39 | 417150-8 | Makita 417150-8 LOCK LEVER |
| 40 | 183032-3 | Makita 183032-3 HOUSING SET |
| 41 | 192827-3 | |
| 42 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 43 | ||
| 44 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 45 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 46 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 47 | 922127-5 | Makita 922127-5 HEX. SOCKET HEAD BOLT M4X |
| 48 | 941052-1 | Makita 941052-1 FLAT WASHER 4 |
| 49 | SC07411020 | Makita SC07411020 RETAINING RING RTW-26 |
| 50 | SC00000019 | Makita SC00000019 NEEDLE BEARING SUPPORTER |
| 51 | SC00000048 | Makita SC00000048 NEEDLE BEARING |
| 52 | SC00000049 | Makita SC00000049 BALL BEARING 608 |
| 53 | SC00000020 | |
| 54 | SC00000015 | Makita SC00000015 PISTON |
| 55 | SC00000022 | Makita SC00000022 PISTON RETURN SPRING |
| 56 | SC00000017 | Makita SC00000017 CHECK VALVE |
| 57 | SC00000021 | Makita SC00000021 CHECK VALVE SPRING |
| 58 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 59 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 60 | SC03206100 | Makita SC03206100 CYLINDER |
| 61 | SC06503260 | Makita SC06503260 BACK UP RING G70 |
| 62 | SC06505350 | Makita SC06505350 O RING FOR CYLINDER G70 |
| 63 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 64 | SC00000096 | Makita SC00000096 ROD PACKING |
| 65 | SC03112300 | Makita SC03112300 CUTTER ROD |
| 66 | SC00000580 | |
| 67 | SC04000050 | Makita SC04000050 RETURN SPRING FOR CUTTER ROD |
| 68 | SC06503510 | Makita SC06503510 DUST SEAL |
| 69 | SC07620040 | Makita SC07620040 WASHER HW8 |
| 70 | 922441-9 | Makita 922441-9 H.S.H BOLT M8*25, PC5001C |
| 71 | SC00000057 | Makita SC00000057 HEX. SOCKET HEAD BOLT 6X1 |
| 72 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 73 | 931601-2 | Makita 931601-2 HEX. NUT M12 |
| 74 | SC00000134 | Makita SC00000134 HOLD BOLT |
| 75 | SC00000034 | |
| 76 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 77 | SC03507010 | Makita SC03507010 BUSHING HOLDER |
| 78 | SC06505320 | Makita SC06505320 O RING P26 |
| 79 | SC03103200 | Makita SC03103200 BAR HOLDER |
| 80 | SC00000580 | |
| 81 | SC03507000 | Makita SC03507000 BUSHING |
| 82 | ||
| 83 | SC09004910 | Makita SC09004910 OIL LEVELER SACK |
| 84 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 85 | SC00000098 | Makita SC00000098 HEX. SOCKET HEAD BOLT 5X1 |
| 86 | SC00000030 | Makita SC00000030 KEY |
| 87 | SC00000070 | |
| 88 | SC03500310 | Makita SC03500310 RELEASE VALVE |
| 89 | SC00000032 | Makita SC00000032 VALVE RETURN SPRING |
| 90 | SC00000481 | Makita SC00000481 STOPPER PLATE Ä45423 |
| 91 | SC00000023 | Makita SC00000023 RELEASE VALVE SPRING |
| 92 | SC06505010 | Makita SC06505010 O RING P6 |
| 93 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 94 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 95 | SC00000021 | Makita SC00000021 CHECK VALVE SPRING |
| 96 | SC00000017 | Makita SC00000017 CHECK VALVE |
| 97 | SC00000022 | Makita SC00000022 PISTON RETURN SPRING |
| 98 | SC00000015 | Makita SC00000015 PISTON |
| 99 | SC00000015 | Makita SC00000015 PISTON |
| 100 | SC00000022 | Makita SC00000022 PISTON RETURN SPRING |
| 101 | SC00000017 | Makita SC00000017 CHECK VALVE |
| 102 | SC00000021 | Makita SC00000021 CHECK VALVE SPRING |
| 103 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 104 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 105 | SC04601470 | Makita SC04601470 LINER B |
| 106 | 922432-0 | Makita 922432-0 HEX. SOCKET HEAD BOLT M8X |
| 107 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
| 108 | SC06505300 | Makita SC06505300 O RING S4 |
| 109 | SC03501420 | Makita SC03501420 RETURN BULB |
