Makita SC161D
Makita SC161D: exploded parts diagram, 1 sheet, 110 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SC161D: 110 positions on 1 sheet

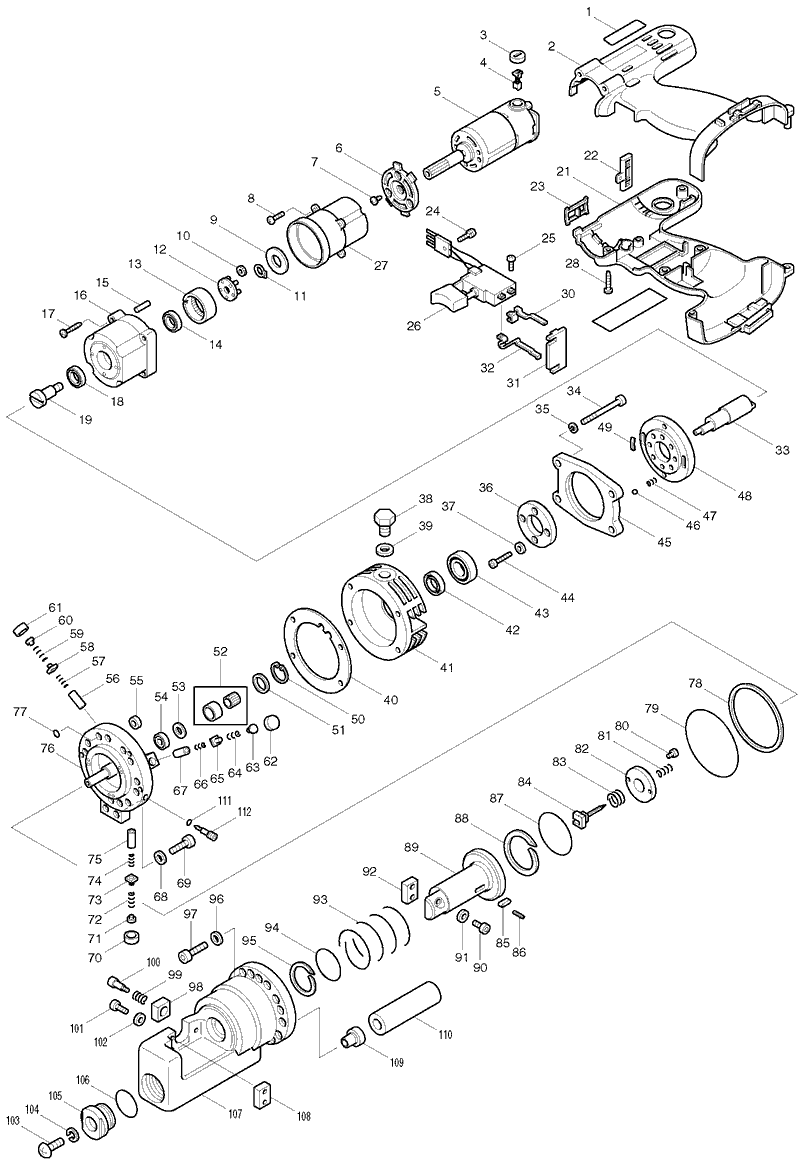

Sheet 1: Makita SC161D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 2 | 183032-3 | Makita 183032-3 HOUSING SET |
| 3 | 643954-4 | Makita 643954-4 Holder Cap for BGA452 GA452D |
| 4 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 5 | 629743-1 | Makita 629743-1 DC MOTOR |
| 6 | 317069-0 | Makita 317069-0 MOTOR BRACKET SC190 |
| 7 | 266134-1 | Makita 266134-1 TAPPING SCREW ST 4X8 |
| 8 | 911017-7 | Makita 911017-7 PAN HEAD SCREW M3X12 |
| 9 | 267187-3 | |
| 10 | 226368-8 | |
| 11 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 12 | 152594-2 | |
| 13 | 226397-1 | |
| 14 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 15 | 256054-7 | Makita 256054-7 PIN 4, 4324 |
| 16 | 317324-0 | |
| 17 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 18 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 19 | 323970-9 | |
| 21 | 183032-3 | Makita 183032-3 HOUSING SET |
| 22 | 417150-8 | Makita 417150-8 LOCK LEVER |
| 23 | 417151-6 | Makita 417151-6 COVER |
| 24 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 25 | 652038-7 | Makita 652038-7 PAN HEAD SCREW M3X8, 6226D |
| 26 | 651968-9 | Makita 651968-9 SWITCH |
| 27 | 416628-8 | Makita 416628-8 GEAR CASE A |
| 28 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 30 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 31 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 32 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 33 | SC03501140 | Makita SC03501140 ECCENTRIC SHAFTSC160D |
| 34 | SC07512110 | Makita SC07512110 BOLT HB5X50SC160D |
| 35 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 36 | SC03251180 | Makita SC03251180 FLANGESC160D |
| 37 | SC00000068 | Makita SC00000068 WASHER 4SC 161 |
| 38 | SC00000061 | Makita SC00000061 HEX. BOLT 10X15SC160D |
| 39 | SC00000489 | Makita SC00000489 SEAL WASHER WF10171.6 |
| 40 | SC04601440 | Makita SC04601440 LINER BSC160D |
| 41 | SC03212300 | Makita SC03212300 BEARING HOUSINGSC160D |
| 42 | SC00000484 | Makita SC00000484 OIL SEAL MSH15257 |
| 43 | SC00000050 | Makita SC00000050 BALL BEARING 6002RU |
| 44 | SC07511060 | Makita SC07511060 BOLT HB4X22SC160D |
| 45 | SC03221200 | Makita SC03221200 INTERMEDIATE HOUSINGSC160D |
| 46 | SC07900010 | Makita SC07900010 STEEL BALL S4SC160D |
| 47 | SC04007430 | Makita SC04007430 POSITION SPRINGSC160D |
| 48 | SC03222700 | Makita SC03222700 FLANGE SET PLATESC160D |
| 49 | SC04007620 | Makita SC04007620 LEAF SPRINGSC160D |
| 50 | SC00000487 | Makita SC00000487 STOP RING H19 |
| 51 | SC00000467 | Makita SC00000467 NEEDLE BEARING HOLDER B T |
| 52 | SC00000466 | Makita SC00000466 NEEDLE BEARING ÄRNAF81510 |
| 53 | SC00000465 | |
| 54 | 211007-3 | Makita 211007-3 BALL BEARING 625ZZ |
| 55 | SC00000020 | |
| 56 | SC03500390 | Makita SC03500390 PISTON |
| 57 | SC04003020 | Makita SC04003020 PISTON RETURN RING |
| 58 | SC00000464 | Makita SC00000464 CHECK VALVE ÄT43445N1 |
| 59 | SC00000468 | Makita SC00000468 SPRING Ä43449N2 |
| 60 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 61 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 62 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 63 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 64 | SC00000468 | Makita SC00000468 SPRING Ä43449N2 |
| 65 | SC00000464 | Makita SC00000464 CHECK VALVE ÄT43445N1 |
| 66 | SC04003020 | Makita SC04003020 PISTON RETURN RING |
| 67 | SC03500390 | Makita SC03500390 PISTON |
| 68 | SC00000066 | Makita SC00000066 WASHER 6 |
| 69 | SC00000097 | Makita SC00000097 HEX. SOCKET HEAD BOLSC160D |
| 70 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 71 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 72 | SC00000468 | Makita SC00000468 SPRING Ä43449N2 |
| 73 | SC00000464 | Makita SC00000464 CHECK VALVE ÄT43445N1 |
| 74 | SC04003020 | Makita SC04003020 PISTON RETURN RING |
| 75 | SC03500390 | Makita SC03500390 PISTON |
| 76 | SC03206500 | Makita SC03206500 CYLINDERSC160D |
| 77 | SC06505010 | Makita SC06505010 O RING P6 |
| 78 | SC06503240 | Makita SC06503240 BACK-UP RING G55SC160D |
| 79 | SC06505180 | Makita SC06505180 O RING G55SC160D |
| 80 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 81 | SC00000023 | Makita SC00000023 RELEASE VALVE SPRING |
| 82 | SC00000481 | Makita SC00000481 STOPPER PLATE Ä45423 |
| 83 | SC00000471 | Makita SC00000471 SPRING ÄT45378 |
| 84 | SC00000462 | Makita SC00000462 RELEASE VALVE ÄT45461 |
| 85 | SC00000480 | Makita SC00000480 KEY T45420 |
| 86 | SC00000070 | |
| 87 | SC06505280 | Makita SC06505280 O-RING P46 |
| 88 | SC06503230 | Makita SC06503230 BACK-UP RING P46 |
| 89 | SC03113600 | |
| 90 | SC00000059 | Makita SC00000059 HEX. SOCKET HEAD BOLSC160D |
| 91 | SC00000067 | Makita SC00000067 WASHER 5SC 161 |
| 92 | SC09002450 | Makita SC09002450 CUTTER BLADE SET FOR DSC162, SC160D |
| 93 | SC04000160 | Makita SC04000160 O RING P26 |
| 94 | SC06505320 | Makita SC06505320 O RING P26 |
| 95 | SC06503190 | Makita SC06503190 BACK-UP RING P26 |
| 96 | SC00000066 | Makita SC00000066 WASHER 6 |
| 97 | 922342-1 | Makita 922342-1 HEX. SOCKET HEAD BOLT M6X |
| 98 | SC03503890 | Makita SC03503890 STOPPER SC130DRA |
| 99 | SC00000469 | Makita SC00000469 SPRING ÄT45470 |
| 100 | SC03500990 | Makita SC03500990 BOLTSC160D |
| 101 | SC00000059 | Makita SC00000059 HEX. SOCKET HEAD BOLSC160D |
| 102 | SC00000067 | Makita SC00000067 WASHER 5SC 161 |
| 103 | SC00000034 | |
| 104 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 105 | SC03501400 | Makita SC03501400 BUSH HOLDERSC160D |
| 106 | SC06505310 | Makita SC06505310 O RING P22A |
| 107 | SC03104000 | |
| 108 | SC09002450 | Makita SC09002450 CUTTER BLADE SET FOR DSC162, SC160D |
| 109 | SC00000082 | Makita SC00000082 BUSH |
| 110 | SC09004910 | Makita SC09004910 OIL LEVELER SACK |
| 111 | SC06505300 | Makita SC06505300 O RING S4 |
| 112 | SC03501420 | Makita SC03501420 RETURN BULB |
