Makita SC120D
Makita SC120D: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SC120D: 71 positions on 1 sheet

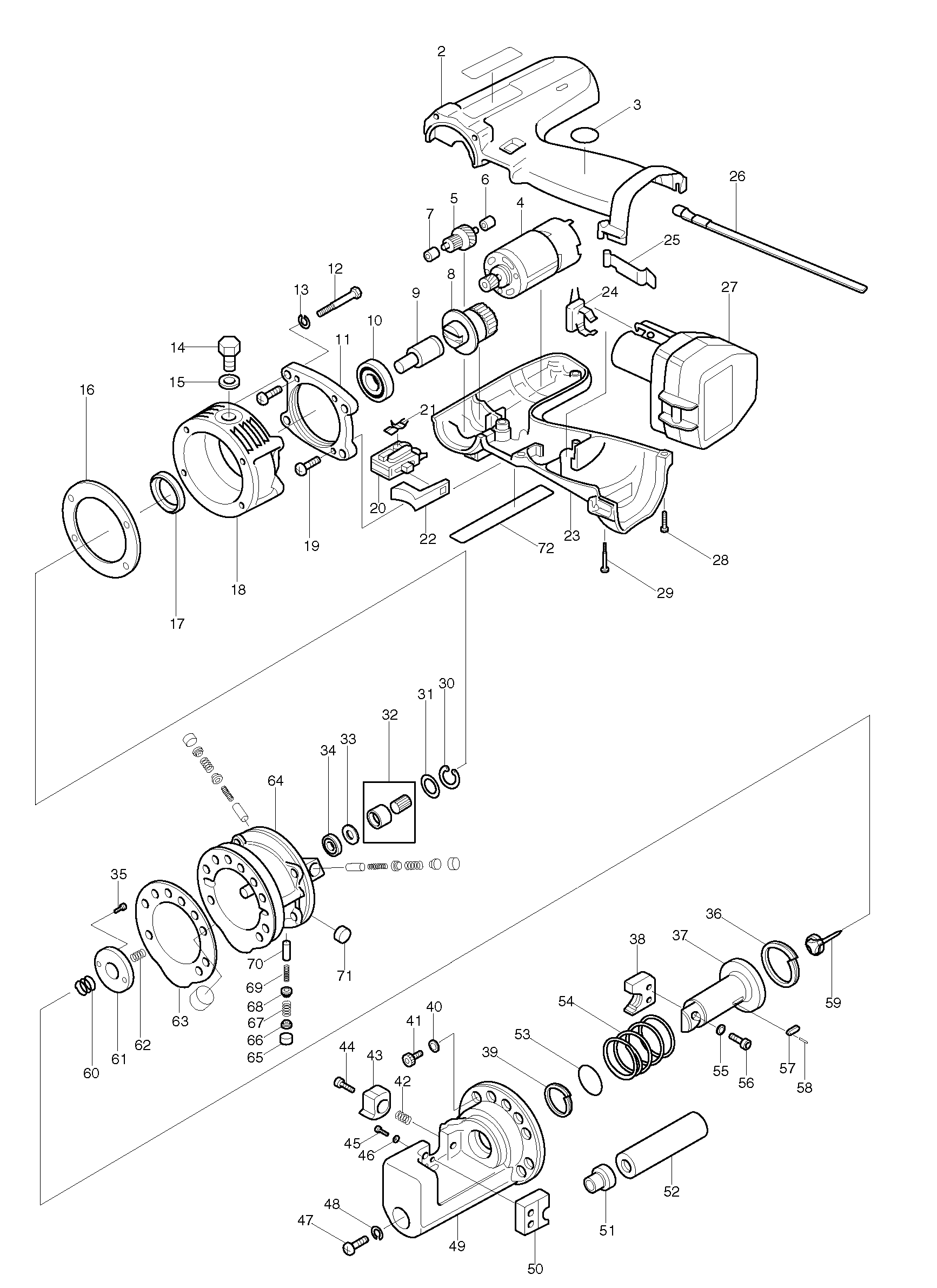

Sheet 1: Makita SC120D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 182637-6 | Makita 182637-6 HOUSING SET SC120DRA |
| 3 | 818057-5 | |
| 4 | 629638-8 | Makita 629638-8 DC MOTOR 12V 6911D SC120 |
| 5 | 226118-1 | |
| 6 | 214027-6 | Makita 214027-6 PLANE BEARING 4 |
| 7 | 214027-6 | Makita 214027-6 PLANE BEARING 4 |
| 8 | 153222-2 | |
| 9 | SC00000486 | |
| 10 | SC00000050 | Makita SC00000050 BALL BEARING 6002RU |
| 11 | SC00000491 | Makita SC00000491 INTERMEDIATE HOUSING T454 |
| 12 | SC00000488 | |
| 13 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 14 | 921522-6 | Makita 921522-6 HEX. BOLT M10X16 |
| 15 | SC00000489 | Makita SC00000489 SEAL WASHER WF10171.6 |
| 16 | SC00000478 | Makita SC00000478 LINER B ÄT45464 |
| 17 | SC00000484 | Makita SC00000484 OIL SEAL MSH15257 |
| 18 | SC00000460 | |
| 19 | 265925-7 | |
| 20 | 651909-5 | Makita 651909-5 SWITCH C3KE-8, 6221D |
| 21 | 414740-8 | Makita 414740-8 F/R CHANGE LEVER, 6222D |
| 22 | 415671-4 | Makita 415671-4 SWITCH LEVER, 6222D |
| 23 | 182637-6 | Makita 182637-6 HOUSING SET SC120DRA |
| 24 | 643918-8 | Makita 643918-8 BATTERY HOLDER *, 6390D |
| 25 | 343579-1 | |
| 26 | 163319-9 | Makita 163319-9 HAND STRAP |
| 27 | 192536-4 | |
| 28 | 265925-7 | |
| 29 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 30 | SC00000487 | Makita SC00000487 STOP RING H19 |
| 31 | SC00000467 | Makita SC00000467 NEEDLE BEARING HOLDER B T |
| 32 | SC00000466 | Makita SC00000466 NEEDLE BEARING ÄRNAF81510 |
| 33 | SC00000465 | |
| 34 | 211007-3 | Makita 211007-3 BALL BEARING 625ZZ |
| 35 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 36 | SC00000485 | Makita SC00000485 PACKING OSI50406 |
| 37 | SC00000461 | Makita SC00000461 CUTTER ROD ÄT45411 |
| 38 | SC00000508 | |
| 39 | SC00000482 | Makita SC00000482 BACK UP RING P25 |
| 40 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 41 | 922322-7 | |
| 42 | SC00000469 | Makita SC00000469 SPRING ÄT45470 |
| 43 | SC00000498 | Makita SC00000498 STOPPER FOR 6,8,10MM |
| 44 | SC00000474 | Makita SC00000474 BOLT ÄT45452 |
| 45 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 46 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 47 | SC00000034 | |
| 48 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 49 | SC00000458 | Makita SC00000458 CUTTER HEAD ÄT21336 |
| 50 | SC00000508 | |
| 51 | SC00000490 | |
| 52 | SC00000479 | Makita SC00000479 OIL LEVELER SACK T43693N1 |
| 53 | SC00000483 | Makita SC00000483 O RING P25 |
| 54 | SC00000470 | |
| 55 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 56 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 57 | SC00000480 | Makita SC00000480 KEY T45420 |
| 58 | SC00000070 | |
| 59 | SC00000462 | Makita SC00000462 RELEASE VALVE ÄT45461 |
| 60 | SC00000471 | Makita SC00000471 SPRING ÄT45378 |
| 61 | SC00000481 | Makita SC00000481 STOPPER PLATE Ä45423 |
| 62 | SC00000472 | Makita SC00000472 SPRING ÄT45468 |
| 63 | SC00000477 | Makita SC00000477 LINER A ÄT45463 |
| 64 | SC00000459 | Makita SC00000459 CYLINDER ÄT31811 |
| 65 | SC00000076 | Makita SC00000076 URETHAN PACKING SC160 |
| 66 | SC00000018 | Makita SC00000018 SPRING SUPPORTER |
| 67 | SC00000022 | Makita SC00000022 PISTON RETURN SPRING |
| 68 | SC00000464 | Makita SC00000464 CHECK VALVE ÄT43445N1 |
| 69 | SC00000468 | Makita SC00000468 SPRING Ä43449N2 |
| 70 | SC00000463 | Makita SC00000463 PISTON ÄT45159 |
| 71 | SC00000020 | |
| 72 | SC00000518 |
