Bosch SBS 18-A cordl reciprocating saw: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SBS 18-A: 51 positions on 1 sheet

Bosch SBS 18-A parts list (1 sheet)

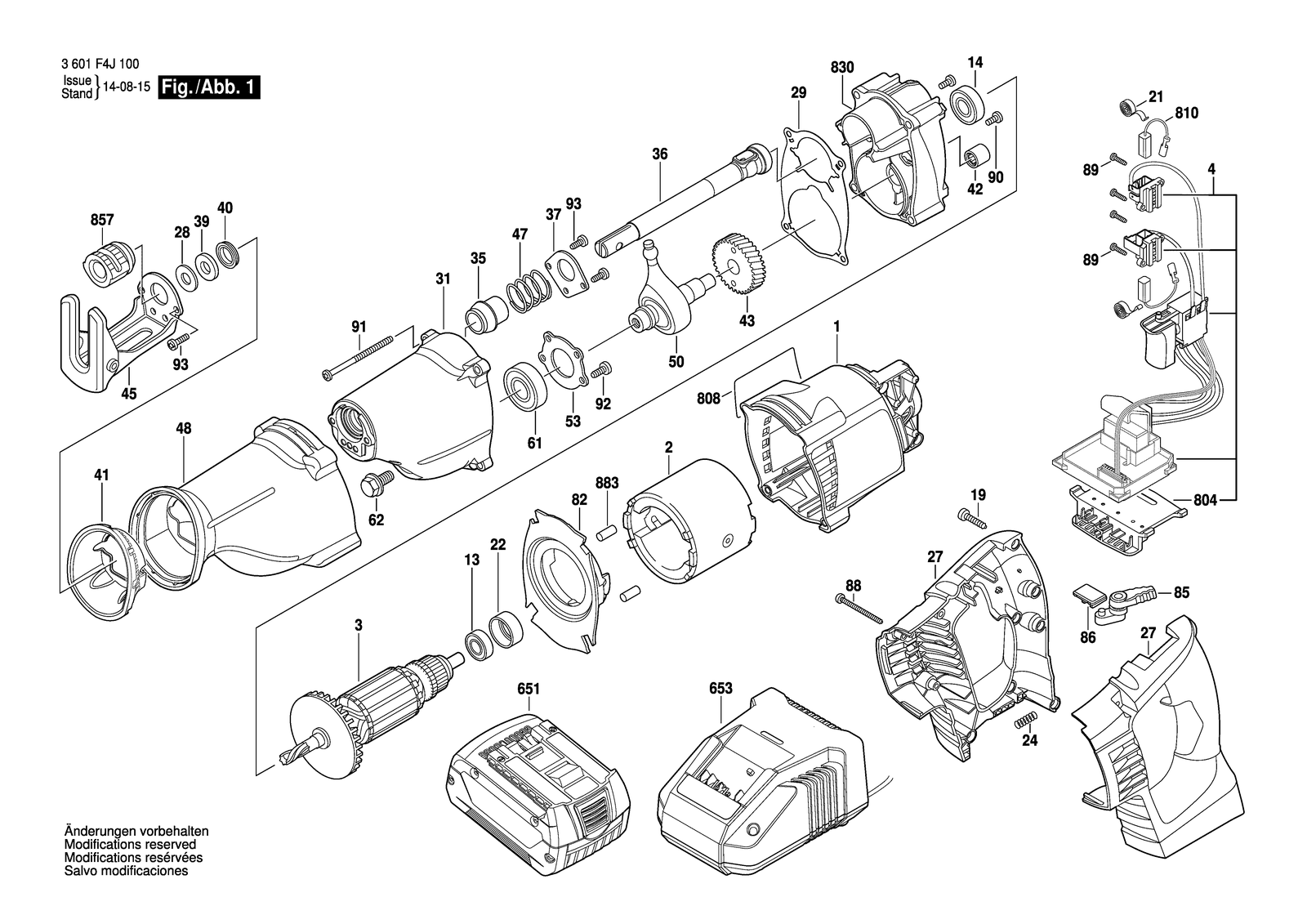

Bosch SBS 18-A parts diagram, sheet 1
No.Part numberPart name
11619P12156Motor Housing
131619P01511Ball Bearing
141900905173Groove ball bearing 6000-2RS DIN 625
192610315386Screw ST3,9X19
22610942109Pole housing 14;4-24V
211619P14306Spiral Spring
221619P01127Rubber Ring
242604690055Compression Spring
271619P12155Set Of Handles
282610908804Protective Washer
292610934995Mat seal
32610957808Armature 18V
312610935103Front Housing
352610934999Sintered-Metal Bushing
362610944393Spindle Assembly
372610935431Spring Retaining Plate
392610030004Felt Washer SP 14,0
41607233567Electronics Module
402610995815Shaft Seal
412610935004Plastic Collar
422610908698Bearing Shell
432610942118Conversion Gear
452610935005Supporting foot
472610937437Compression Spring
482610935008Insulating Sleeve
502610938887Wobble Plate
532610935010Retaining Plate
611900905162Groove ball bearing 15X32X9
622610918051Trunnion
6511607A350M0Battery Pack GBA 18V 4.0AH
6512607336975Battery Pack 18V, 4,0AH, LI
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225325Fast Charger AUS 230/10,8-18V, 30 Min
6532607225347Fast Charger EU 230/10,8-18V, 1H, AL 30-CV-LI
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225925Charger Aus GAL 1880 CV 230/14,4-18V
8041609280478Contact retainer
8081619P12174Nameplate
8102610943623Carbon-Brush Set
822610935014Baffle
8302610945335Bearing Plate
852610956664Selector Switch
8572610920684Toolholder
862610956683Sliding Plate
881619P01446Screw
8833602391503Rubber Buffer
891619P06252Torx Oval-Head Screw
901603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
911619P01932Screw Black
921619P01447Screw
931619P01931Screw Black
