Bosch SB 16 E

Bosch SB 16 E percussion drill: exploded parts diagram, 2 sheets, 108 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SB 16 E: 108 positions on 2 sheets

Bosch SB 16 E parts list (2 sheets)

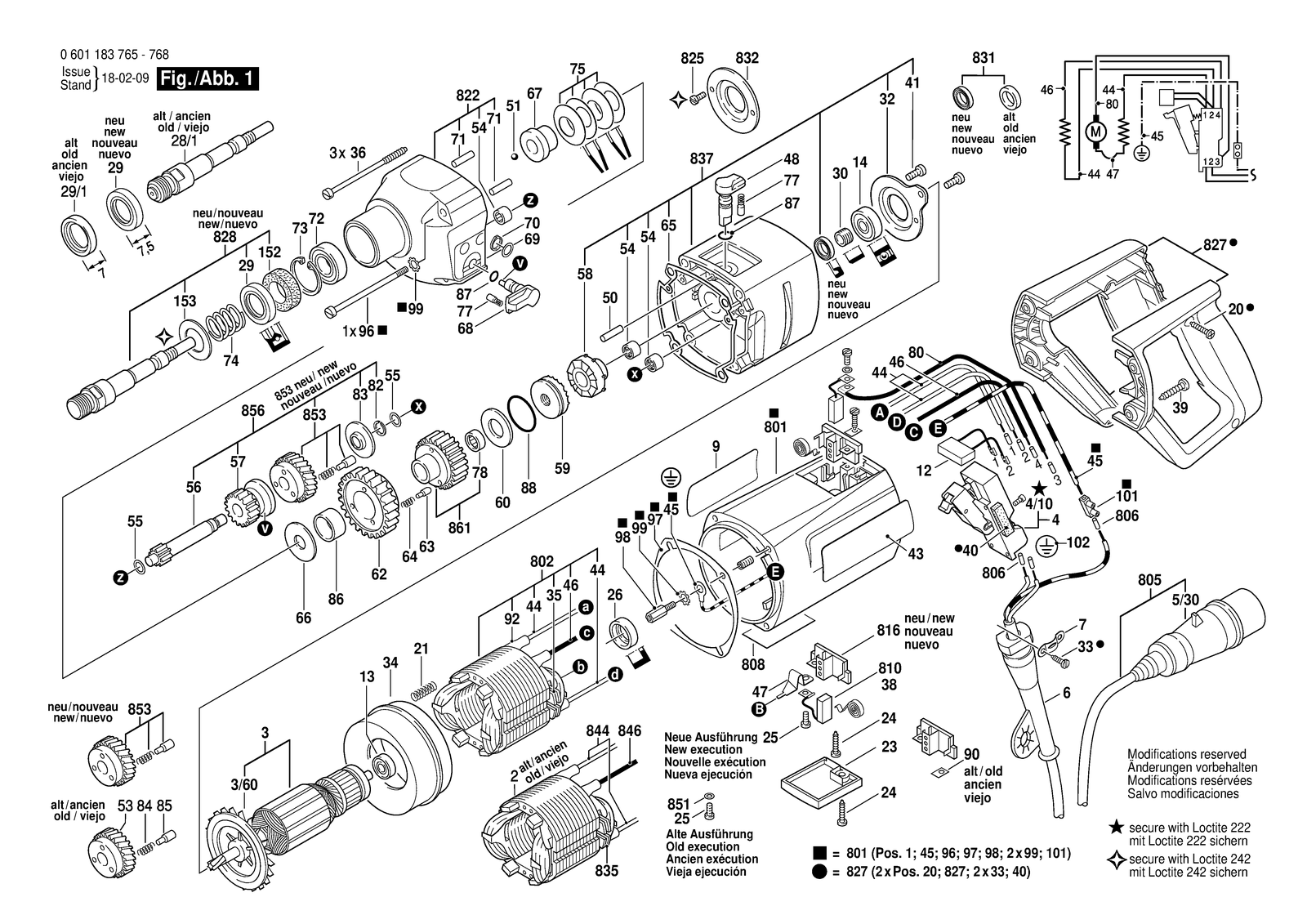

Bosch SB 16 E parts diagram, sheet 1Bosch SB 16 E parts diagram, sheet 2
No.Part numberPart name
1013602319041Socket-Terminal Strip 1X1,5 MM
1023601119070Reference Plate
121607328028Suppression Filter
132600905032Ball Bearing 7X19X6
143600905131Groove ball bearing 9X26X8
1523600200044Felt Washer
1533600150027Cover Disc
202914201507Torx Oval-Head Screw
211604613006Compression Spring
233605500090Sealing cap Black
242910211019Tapping Screw DIN 7971-ST3,9X16-F
252910021118Socket head cap screw DIN 84-AM4X8-8.8
261600502011Intermediate Ring
293600283043Rotary shaft lip seal
31619P13612Armature
3/601606610122Fan
301600300090Intermediate Ring
323605500156Bearing cover
332910211018Tapping Screw DIN 7971-ST3,9X13-F
343600499013Air-Deflector Ring
353601025003Wire Guide
363603435039Lens Head Screw
383604652001Spiral Spring
392914201527Torx Oval-Head Screw
41607200075Switch
4/102910011088Socket head cap screw DIN 84-AM3,5X12-5.8
401602381006Insulating Plate 20X20X50 MM
413604411040Thread-forming tap. Screw
433601119902Manufacturer's nameplate
443604460027Connecting Cable White L=360 MM
453604414049Earth Conductor L=415 MM
463604438027Connecting Cable L=375 MM
471604477001Blade terminal
483603231004Rotary Knob Black
5/303604483034Appliance inlet
502917550099Straight Pin DIN 6325-4M6X20
511903230010Ball DIN 5401-5,5MM-III-ST
541600910018Needle bearing Ø8XØ12X8 MM
551600100617Shim Thick 0,5 MM
563606309014Toothed Shaft Z=9
573606317024Cylindrical Gear Z=21
583600390015Locating Washer
593600190009Locating Washer
61600703022Grommet Ø7,9-Ø12,0X120 MM
603600101030Coupling Plate
623606317022Cylindrical Gear Z=43
633603126000Ball Pin
643604610026Compression Spring
653601015009Seal
6511608571083Key Chuck Ø3-16MM,5/8"
651/82607950011Chuck Wrench SG2
6521613001008Depth-Gauge SW 6X330 MM
6533602025012Auxiliary Handle Ø 43 MM
653/101612025019Auxiliary Handle M8
653/10/1160202507HAuxiliary Handle
653/201618040077Support clamp
653/301613521001Stud bolt M8
653/403601038048Clamping Band Ø43 MM
653/501613100012Straight Pin
663600101029Pressure Disk
673600320009Collar Sleeve
683603231005Rotary Knob Black
692600100575Shim 0,2 MM
692600100576Shim 0,3 MM
692600100577Shim 0,5 MM
71601302013Fastening Clamp
702916650001Spring retaining ring DIN 471-10X1MM-FST
712917500121Straight Pin 5 H 8X18 DIN 7
721900905162Groove ball bearing 15X32X9
732916660013Retaining clip DIN 472-32X1,2 MM
742604617000Compression Spring
753600550004Disc Spring
772600590006Ratchet Cap
783600913008Needle bearing
801604445006Connecting Cable Gray L=290 MM
8013605108176Motor Housing Black
8023604220129Field 230V
8053607000086Power supply cord
8061900452003End Splice DIN 46 228-A2,5-7
808160111A3HCNameplate
8103607014012Carbon-Brush Set
8163604336012Brush Holder
823600224008Retaining ring
8223605806179Spindle Housing
8252910021118Socket head cap screw DIN 84-AM4X8-8.8
8273605133017Handle Black
8283607030413Drilling Spindle 5/8", SW17
833600190010Holding Plate
8313600290070Rotary shaft lip seal
8323605500043Bearing cover
8353601025003Wire Guide
8373605820078Intermediate Bearing
8441604438012Connecting Cable White L=330 MM
8461604438013Connecting Cable Gray L=345 MM
8512916060005Spring Washer DIN 137-A 4-ST
8533607030411Cylindrical Gear
8563607031177Control Shaft
863600200011Bushing
8613607030274Cylindrical Gear Z=33
873600210028O-Ring 6,0X2,0 MM
883600210027O-Ring 27,0X3,0 MM
93601119129Manufacturer's nameplate
901601030022Tab Washer
923600707022Shrinkable Tube
963603414022Socket head cap screw M4X103 MM
973601016003Contact Sheet
983603100033Bolt
992916031006Toothed lock washer
