Bosch S 9

Bosch S 9 combi saw table: exploded parts diagram, 2 sheets, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch S 9: 28 positions on 2 sheets

Bosch S 9 parts list (2 sheets)

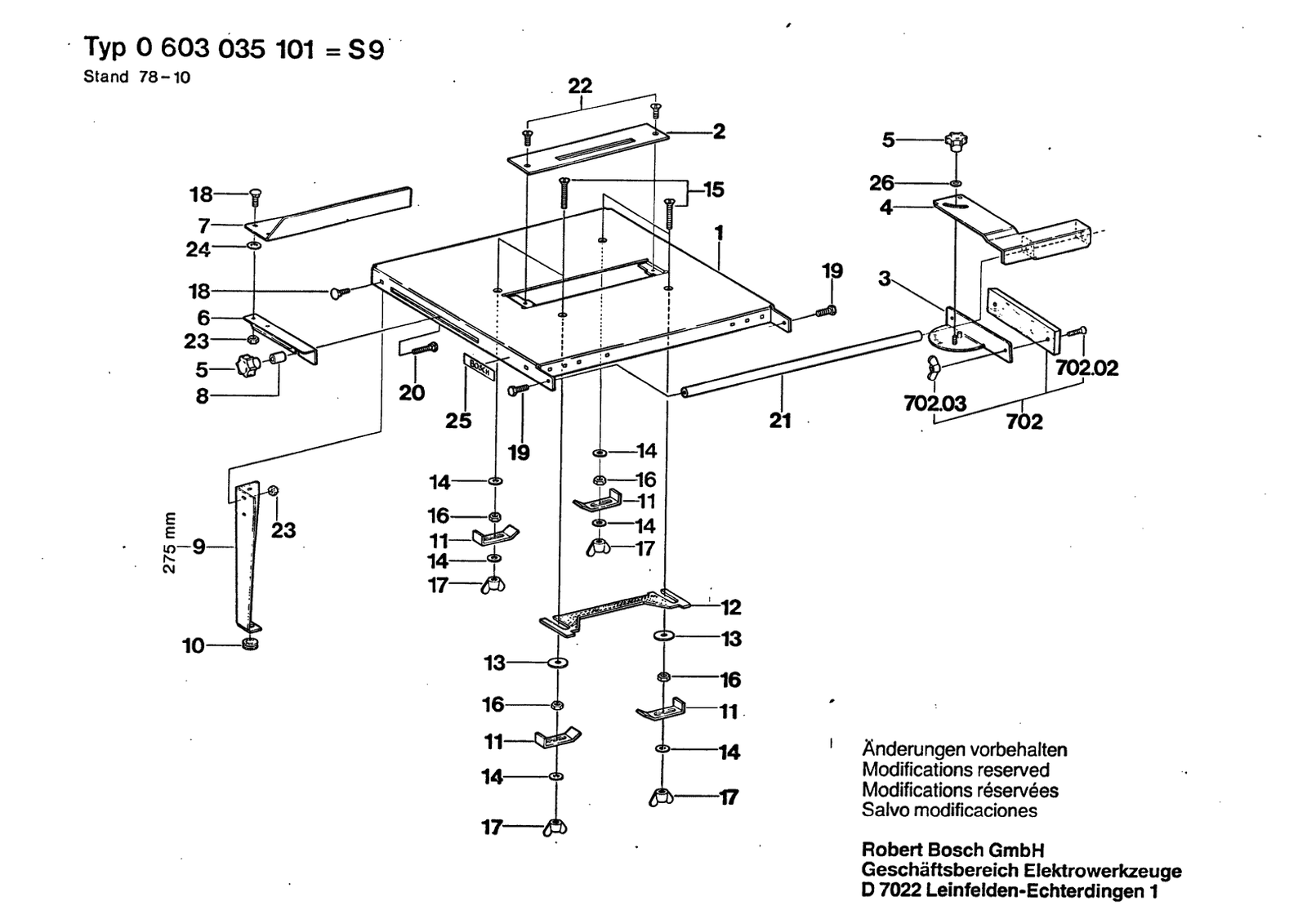

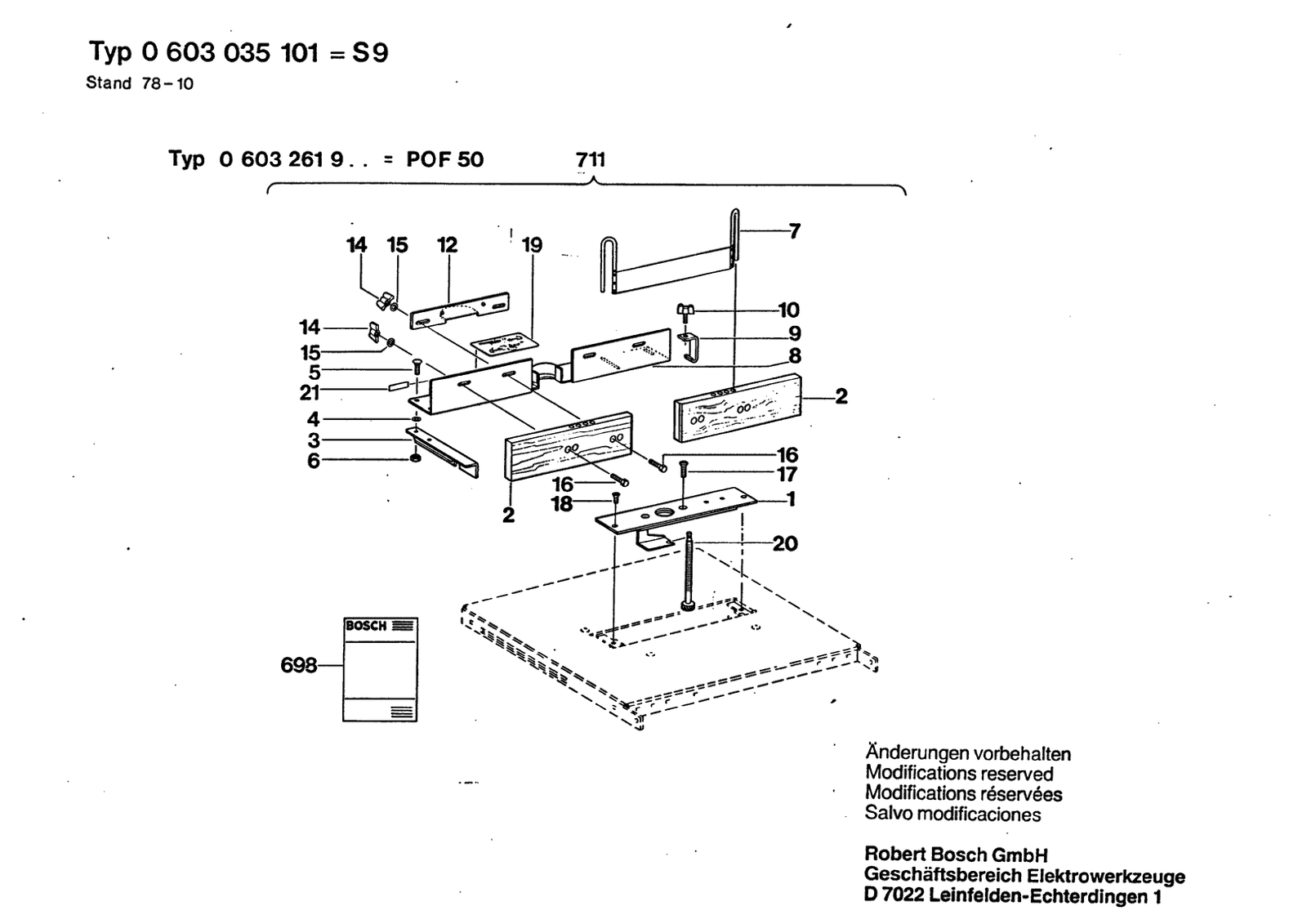

Bosch S 9 parts diagram, sheet 2Bosch S 9 parts diagram, sheet 3
No.Part numberPart name
11608000072Table top
101602380012Rubber Ring
111601321034Mounting Bracket
121601098004Guide
131600100022Plain Washer
142916011014Plain Washer DIN 125-A 6,4-ST
151603421000Countersunk-Head Screw
162915011007Hex Nut DIN 934-M6-8-A
172915191006Wing Nut M6 DIN 315-G-GTW-40
181603434004Round-Head Bolt M5X12 MM
192911052193Hex Screw M6X12 DIN 933-5.8
21608000069Cover Plate
202910261207Round-Head Bolt M6X3,5-DIN 603
211603052011Guide Rod
222910761116Countersunk-Head Screw DIN 963-M4X6-4.8
232915011006Hex Nut DIN 934-M 5-M-8
242916070232Locking washer
251601110481Manufacturer's nameplate Shadow Side
262916011884Plain Washer DIN 9021-A6,4-ST
31601334001Stop Bracket
41608000073Stop Bracket
51603349015Star Knob
61601332016Stop Bracket
71601334003Parallel-Guide
702/023603435051Torx Flat-Head Screw M4X20
702/032915191004Wing Nut DIN 315-M4-GT-C
81600300085Spacer Bushing
91601334002Table Leg
