Bosch S 10-A POWER cordless screw driver: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch S 10-A POWER: 12 positions on 1 sheet

Bosch S 10-A POWER parts list (1 sheet)

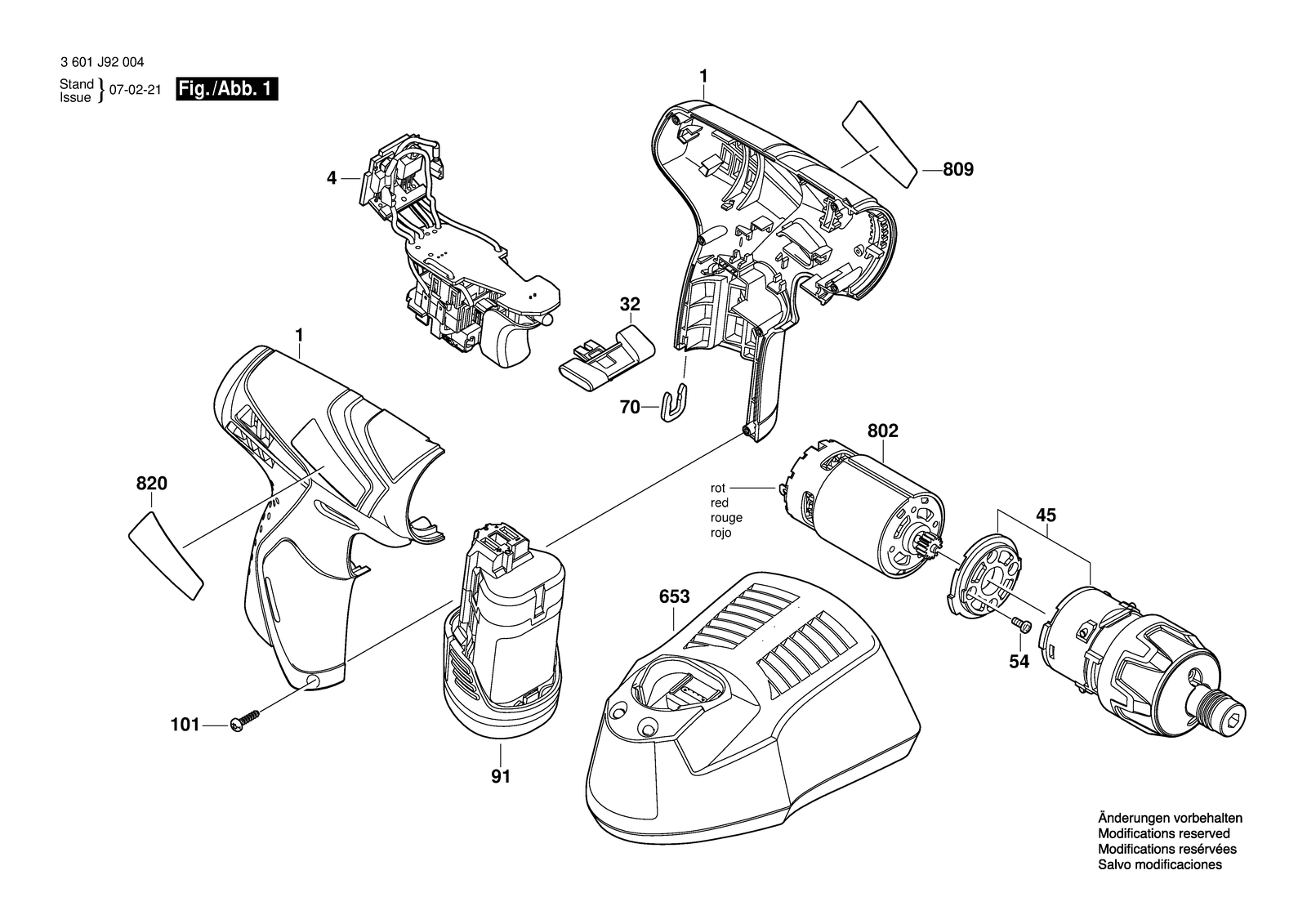

Bosch S 10-A POWER parts diagram, sheet 1
No.Part numberPart name
12605105109Housing Section Black
1012603415206Torx Oval-Head Screw
322601099153Adjusting Slide Red
41607233505Electronics Module
452606200229Planetary Gear Train
542603414048Torx SH cap screw M3X5-8.8-Z
6532607225197Fast Charger EU 10,8V, 30 Min. AL 30-LI Pl
702601250009Pickup Clip
8022607022838DC motor 10,8V
8092601115501Manufacturer's nameplate
8202601115507Nameplate
911607A350E9Battery Pack Master Li-Ion 12V/2,0 AH 5700139002
