All parts of Makita RT0700C: 47 positions on 1 sheet

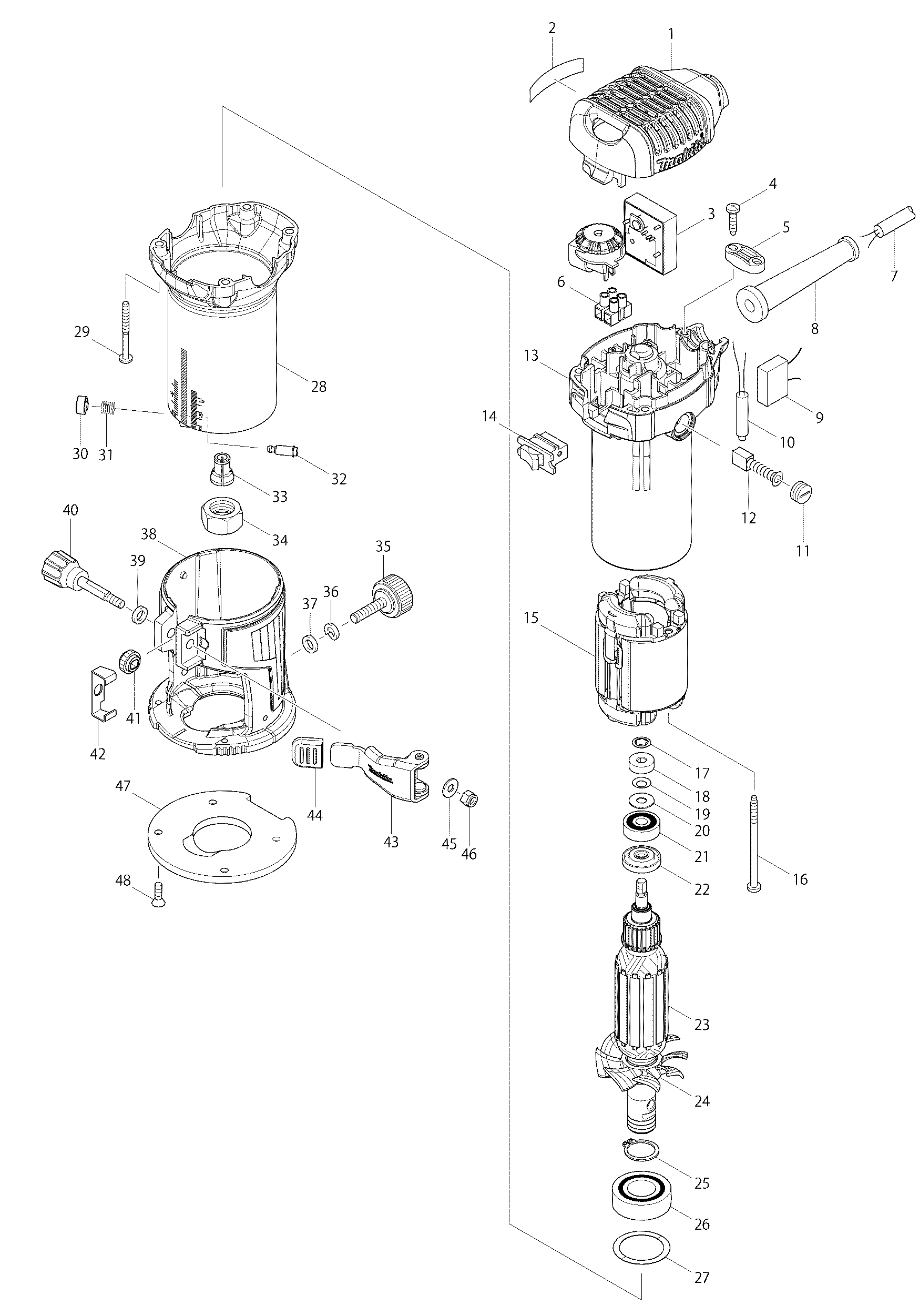

Sheet 1: Makita RT0700C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 452465-6 | Makita 452465-6 TOP COVER RT0700C |
| 2 | 869668-9 | |
| 3 | 620040-8 | Makita 620040-8 Controller 240v for RT0700C Router |
| 4 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 5 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 6 | 654542-2 | Makita 654542-2 TERMINAL BLOCK, 5007NB |
| 7 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 8 | 682569-2 | Makita 682569-2 Cord Guard |
| 9 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 10 | 646133-3 | Makita 646133-3 CHOKE COIL, HR2020 |
| 11 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 12 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 13 | 140736-0 | Makita 140736-0 BRACKET COMPLETE RT0700C |
| 14 | 651527-9 | Makita 651527-9 Switch AR01-13C-BB5B for MT920 BO4553 |
| 15 | 633769-7 | Makita 633769-7 FIELD RT0700C |
| 16 | 266340-8 | Makita 266340-8 TAPPING SCREW 4*65, MT370 |
| 17 | 259039-2 | Makita 259039-2 SELF LOCK 6 4340FTC |
| 18 | 688174-3 | Makita 688174-3 MAGNET SLEEVE RT0700C |
| 19 | 253332-6 | Makita 253332-6 THIN WASHER, MUH352 |
| 20 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
| 21 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 22 | 681668-7 | Makita 681668-7 INSULATION WASHER |
| 23 | 515844-0 | Makita 515844-0 Armature Assembly for RT0700C |
| 25 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 26 | 210301-0 | Makita 210301-0 BALL BEARING 6003DDW |
| 27 | 253906-3 | Makita 253906-3 WAVE WASHER 26 |
| 28 | 140735-2 | Makita 140735-2 OUTER HOUSING COMPLETE RT0700 |
| 29 | 266560-4 | Makita 266560-4 TAPPING SCREW 4X40 |
| 30 | 452468-0 | Makita 452468-0 PUSH BUTTON RT0700C |
| 31 | 233127-3 | Makita 233127-3 COMPRESSION SPRING 7, AN611 |
| 32 | 256437-1 | Makita 256437-1 SHOULDER PIN 4, 9524 |
| 33 | 763636-3 | Makita 763636-3 Collet Cone 6mm 3620 RP0900 RT0700 DRT50 |
| 34 | 763615-1 | Makita 763615-1 Collet Nut M362, 3620, 3608B, RT0700C, RP0900 |
| 35 | 265763-7 | Makita 265763-7 THUMB SCREW M6X25 |
| 36 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 37 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 38 | 140739-4 | Makita 140739-4 TRIMMER BASE COMPLETE RT0700C |
| 39 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 40 | 265792-0 | Makita 265792-0 THUMB SCREW M5X44 RT0700C |
| 41 | 227262-7 | Makita 227262-7 SPUR GEAR 16 |
| 42 | 346392-6 | Makita 346392-6 CAM PLATE RT0700C |
| 43 | 163524-8 | Makita 163524-8 LOCK LEVER COMPLETE RT0700C |
| 44 | 424396-9 | Makita 424396-9 RUBBER CAP RT0700C |
| 45 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 46 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 47 | 413149-1 | Makita 413149-1 BASE PROTECTOR RT0700C |
| 48 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
