Makita RST250
Makita RST250: exploded parts diagram, 3 sheets, 108 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita RST250: 108 positions on 3 sheets
Sheet 1: Makita RST250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 6161009000 | Makita 6161009000 FLEXIBLE PIPE PCE |
| 2 | 6161005031 | Makita 6161005031 FLEXIBLE SHAFT |
| 5 | 6165500601 | Makita 6165500601 LEVER |
| 6 | 6165500701 | Makita 6165500701 CONNECTOR |
| 7 | 6165009001 | Makita 6165009001 SWITCH COMPLETE |
| 8 | 0150049920 | Makita 0150049920 TAPPING SCREW |
| 9 | 0150049910 | Makita 0150049910 TAPPING SCREW |
| 10 | 6164002002 | Makita 6164002002 HANDLE COMPLETE |
| 11 | 6164500200 | Makita 6164500200 SPACER |
| 12 | 0017006450 | Makita 0017006450 BOLT M6X45 |
| 13 | 0023706000 | Makita 0023706000 FLANGE NUT M6 |
| 15 | 6168004001 | Makita 6168004001 PROTECTOR ASS Y |
| 16 | 6161005041 | Makita 6161005041 SPACER |
| 17 | 0630039900 | Makita 0630039900 CONTROL CABLE |
| 79 | 6163002021 | Makita 6163002021 CUTTER SHAFT |
| 80 | 6163002041 | Makita 6163002041 METAL BUSH |
| 81 | 6163002031 | Makita 6163002031 BALL BEARING 608LLU |
| 82 | 6163002051 | Makita 6163002051 WASHER |
| 83 | 6163002061 | Makita 6163002061 SPRING WASHER |
| 84 | 6168500800 | Makita 6168500800 RECEIVE WASHER |
| 85 | 6163002121 | Makita 6163002121 BOLT ASS Y |
| 86 | 0040151000 | |
| 109 | 6163003041 | Makita 6163003041 SPACER |
| 112 | 6161500901 | |
| 113 | 0150059940 | Makita 0150059940 TAPPING SCREW |

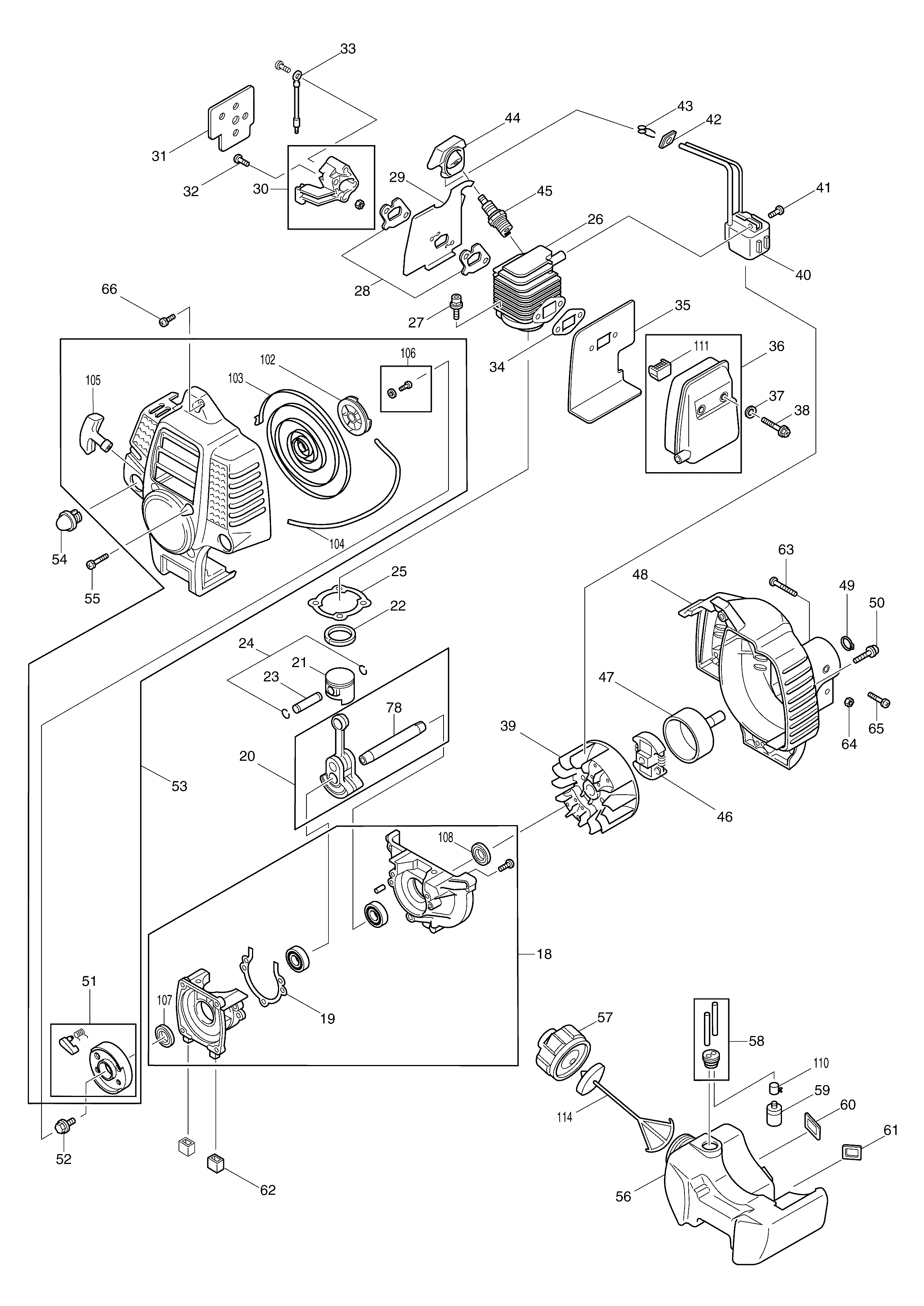

Sheet 2: Makita RST250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 19 | 5231502202 | Makita 5231502202 CRANKCASE GASKET |
| 20 | 5232015000 | Makita 5232015000 CRANKSHAFT COMPLETE |
| 21 | 5232501902 | Makita 5232501902 PISTON |
| 22 | 5242500701 | Makita 5242500701 PISTON RING RBC250 |
| 23 | 5232502600 | Makita 5232502600 PISTON PINBHX2500/PB-250.4 |
| 24 | 0565089970 | Makita 0565089970 CLIPBHX2500/PB-250.4 |
| 25 | 5231502302 | |
| 26 | 5231501802 | Makita 5231501802 CYLINDER |
| 27 | 0119059730 | Makita 0119059730 SOCKET HEAD BOLT M5X20 |
| 28 | 5233503902 | Makita 5233503902 INSULATOR GASKET |
| 29 | 5233504001 | Makita 5233504001 CARBURETOR INSULATOR |
| 30 | 5233038001 | Makita 5233038001 INSULATOR COMPLETE |
| 31 | 5233504102 | |
| 32 | 0140059520 | Makita 0140059520 SCREW M5X25 |
| 33 | 6165501200 | Makita 6165501200 WIRE |
| 34 | 5233504302 | Makita 5233504302 MUFFLER GASKET |
| 35 | 5233504402 | Makita 5233504402 MUFFLER INSULATOR |
| 37 | 0031005000 | Makita 0031005000 WASHER M5 |
| 38 | 0119059650 | Makita 0119059650 SOCKET HEAD BOLT |
| 39 | 5237031010 | Makita 5237031010 FLYWHEEL |
| 40 | 5237031022 | |
| 41 | 0043304200 | |
| 42 | 5237503202 | Makita 5237503202 GROMMET |
| 43 | 0654009940 | Makita 0654009940 PLUG CAP SPRING |
| 44 | 5237503301 | Makita 5237503301 PLUG CAP |
| 45 | 0650149721 | Makita 0650149721 SPARK PLUG |
| 46 | 6162005002 | Makita 6162005002 CLUTCH ASS Y |
| 47 | 6162004002 | Makita 6162004002 CLUTCH DRUM COMPLETE |
| 48 | 5235020001 | Makita 5235020001 ENGINE COVER COMPLETE |
| 49 | 0031510000 | DISC Genuine Makita 0031510000 OUTER SNAP RING 10 |
| 50 | 0140059510 | Makita 0140059510 SCREW M5X20 |
| 51 | 5215003002 | Makita 5215003002 PULLEY |
| 52 | 5235504700 | Makita 5235504700 BOLT ASS Y |
| 53 | 5235021000 | |
| 54 | 5236504300 | Makita 5236504300 PUMP |
| 55 | 0043605180 | Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4 |
| 56 | 5236504101 | Makita 5236504101 FUEL TANK |
| 57 | 5316011000 | Makita 5316011000 FUEL TANK CAP ASS Y |
| 58 | 5236048001 | |
| 59 | 5236503900 | Makita 5236503900 FILTERBHX2500/PB-250.4 |
| 60 | 5036500300 | Makita 5036500300 PLATEBCX3400 |
| 61 | 5036500200 | Makita 5036500200 PLATEBCX3400 |
| 62 | 5216500200 | Makita 5216500200 DAMPER |
| 63 | 0043605300 | Makita 0043605300 SCREW ASS Y |
| 64 | 0022705000 | Makita 0022705000 NUT M5 |
| 65 | 0150059950 | Makita 0150059950 TAPPING SCREW M5X8 |
| 66 | 5235504600 | Makita 5235504600 TAPPING SCREW |
| 78 | 5232502402 | |
| 102 | 5215002020 | Makita 5215002020 REEL |
| 103 | 5215002030 | Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4 |
| 104 | 5215002060 | Makita 5215002060 STARTER ROPE |
| 105 | 5225004020 | Makita 5225004020 HANDLEBHX2500/PB-250.4 |
| 106 | 5425003010 | Makita 5425003010 SET SCREW |
| 107 | 0440129970 | Makita 0440129970 OIL SEAL |
| 108 | 0440129970 | Makita 0440129970 OIL SEAL |
| 110 | ||
| 111 | 5233506600 | |
| 114 | 6255021001 | Makita 6255021001 STRAP PCE |

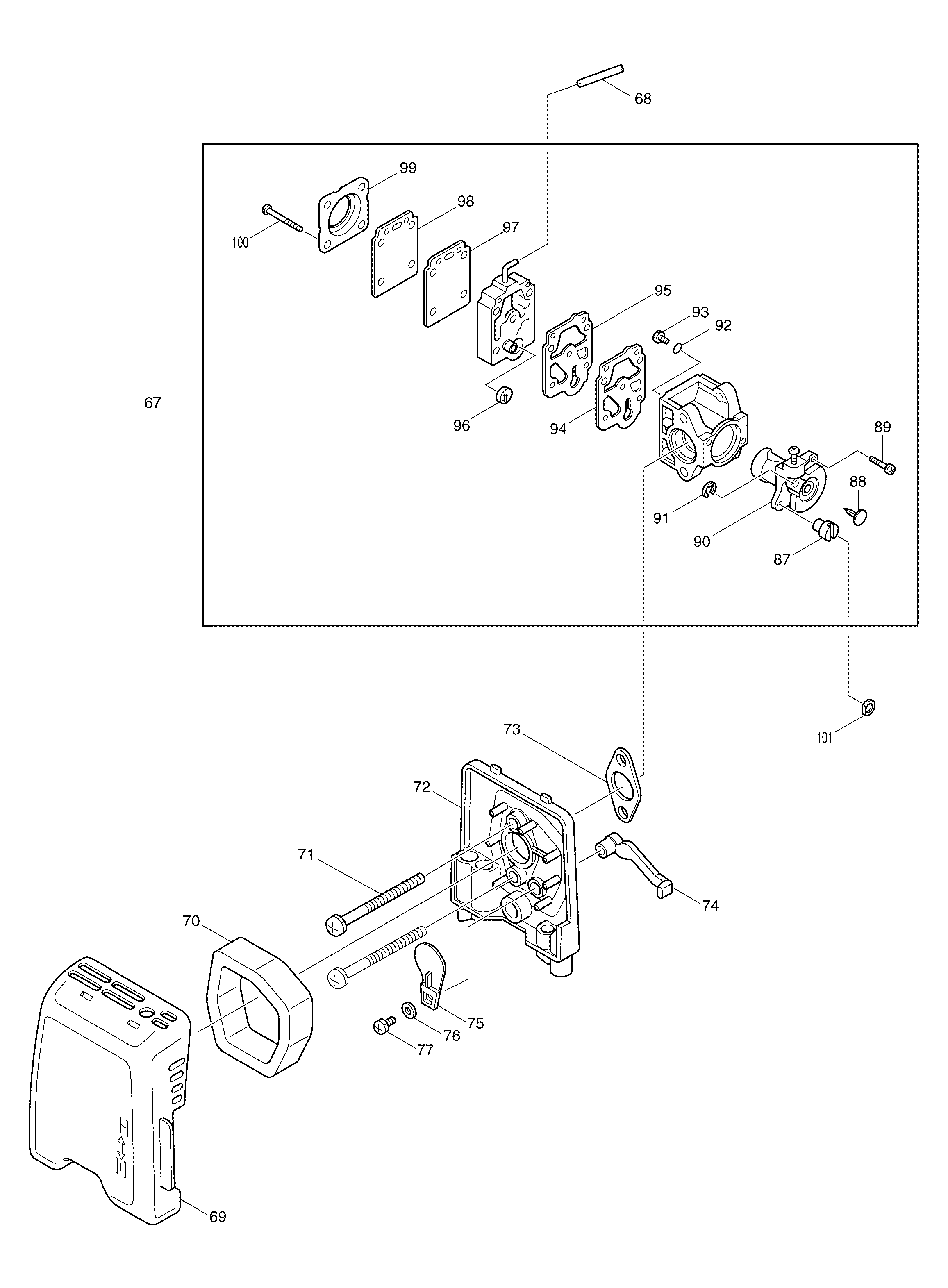

Sheet 3: Makita RST250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 68 | 5236504601 | |
| 69 | 5233504602 | Makita 5233504602 AIR CLEANER CASE |
| 70 | 5233504700 | Makita 5233504700 AIR CLEANER ELEMENT |
| 71 | 0043605650 | Makita 0043605650 SCREW ASS Y M5X65 |
| 72 | 5233504502 | Makita 5233504502 CLEANER PLATE |
| 73 | 5233504200 | Makita 5233504200 CARBURETOR GASKET |
| 74 | 5233504801 | Makita 5233504801 CHOKE LEVER |
| 75 | 5233505002 | Makita 5233505002 CHOKE PLATE |
| 76 | 0031104000 | Makita 0031104000 WASHER |
| 77 | 0150049980 | Makita 0150049980 TAPPING SCREW M4X8 |
| 87 | 5236018040 | Makita 5236018040 SWIVELBHX2500/PB-250.4 |
| 88 | 5206008110 | |
| 89 | 5206008030 | Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4 |
| 90 | 5236047022 | Makita 5236047022 THROTTLE VALVE ASS Y |
| 91 | 5316005120 | Makita 5316005120 RINGBHX2500/PB-250.4 |
| 92 | 5246001010 | Makita 5246001010 O RINGBHX2500/PB-250.4 |
| 93 | 5236029010 | Makita 5236029010 JET |
| 94 | 5246001030 | Makita 5246001030 PUMP GASKET |
| 95 | 5246001040 | Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4 |
| 96 | 5016004010 | Makita 5016004010 INLET SCREENBHX2500/PB-250.4 |
| 97 | 5016004130 | Makita 5016004130 GASKET |
| 98 | 5316005250 | Makita 5316005250 METERING DIAPHRAGM ASS Y |
| 99 | 5316005030 | Makita 5316005030 PRIMER PUMP COVER |
| 100 | 5216002020 | Makita 5216002020 PAN HEAD SCREW |
| 101 | 5219500000 | Makita 5219500000 HOLDER |
