Bosch RS5

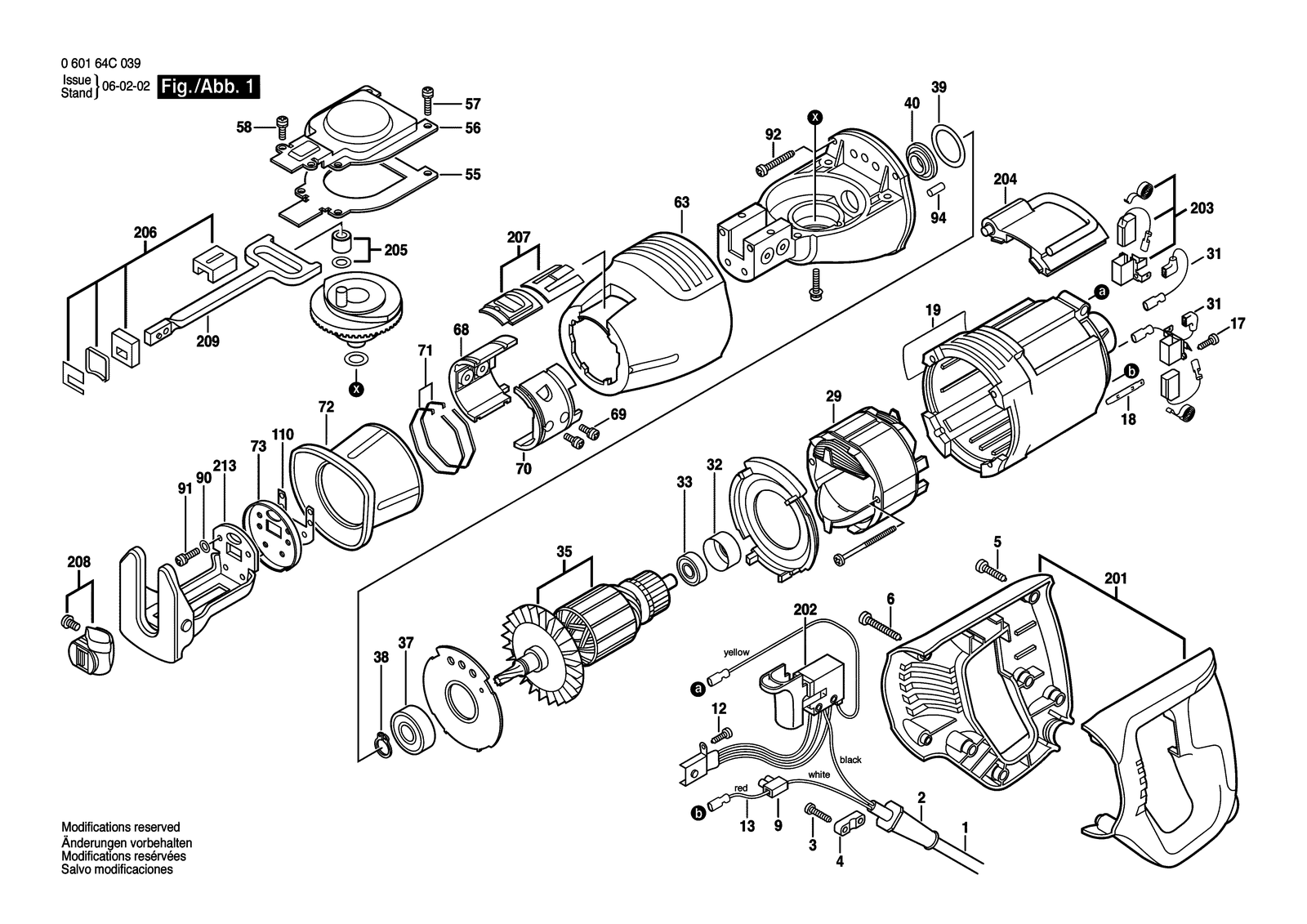

Bosch RS5 reciprocating saw: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch RS5: 47 positions on 1 sheet
Bosch RS5 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610921075 | Cord |
| 110 | 2610941383 | Shim Plate |
| 12 | 2610998574 | Screw |
| 13 | 2610921102 | Cable |
| 17 | 2610923223 | Screw |
| 18 | 2610921103 | Connector |
| 19 | 2610921070 | Nameplate |
| 2 | 2610938453 | Grommet |
| 201 | 2610921083 | Handle |
| 202 | 2610921074 | On-Off Switch |
| 203 | 2610921078 | Carbon-Brush Set |
| 204 | 2610921104 | Hook |
| 205 | 2610921086 | Needle-Roller Assembly |
| 206 | 2610921090 | Seal Bushing |
| 207 | 2610921092 | Locking Lever |
| 208 | 2610921098 | Blade Holder |
| 209 | 2610921099 | Plunger Bar |
| 213 | 2610933676 | Supporting foot |
| 29 | 2610921072 | Field 100V |
| 3 | 2610923220 | Screw |
| 31 | 2610921081 | Lead Wire |
| 32 | 2610921082 | Rubber Bushing |
| 33 | 2610921079 | Ball Bearing |
| 35 | 2610921073 | Armature 100V |
| 37 | 2610921080 | Ball Bearing |
| 38 | 2610380120 | Retaining snap ring |
| 39 | 2610921084 | Washer |
| 4 | 2610921077 | Clamp |
| 40 | 2610921085 | Seal |
| 5 | 2610923221 | Screw |
| 55 | 2610921088 | Base Plate |
| 56 | 2610921089 | Cover Plate |
| 57 | 2610923217 | Screw |
| 58 | 2610923218 | Screw |
| 6 | 2610923222 | Screw |
| 63 | 2610921091 | Cover |
| 68 | 2610921093 | Collar |
| 69 | 2610923216 | Screw |
| 70 | 2610921094 | Collar |
| 71 | 2610921095 | Locating ring |
| 72 | 2610921096 | Collar |
| 73 | 2610921097 | End Plate |
| 9 | 2610353428 | Connecting terminal |
| 90 | 2610921101 | Washer |
| 91 | 2610923219 | Screw |
| 92 | 2610923222 | Screw |
| 94 | 2610923225 | Rubber Plug |
