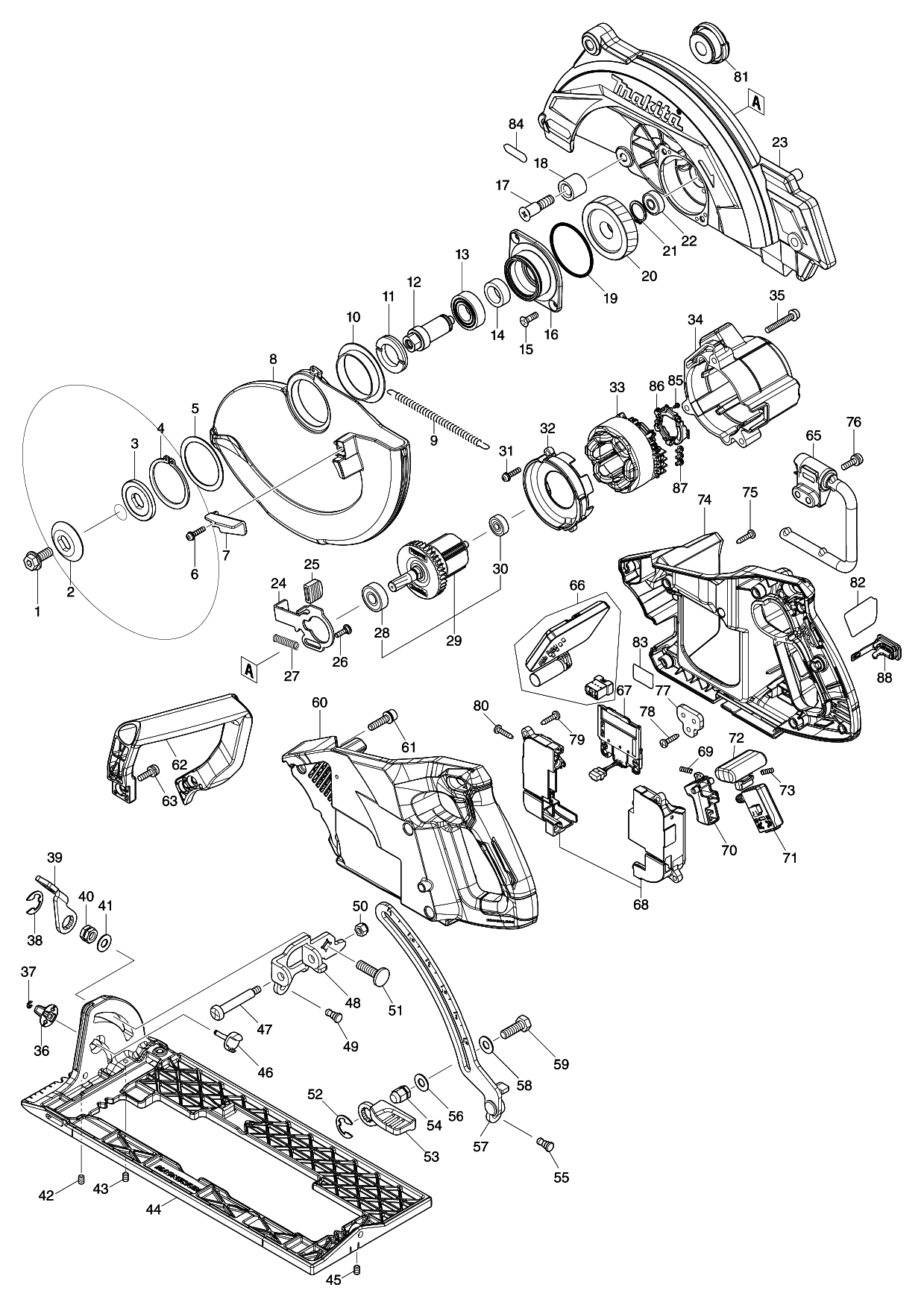

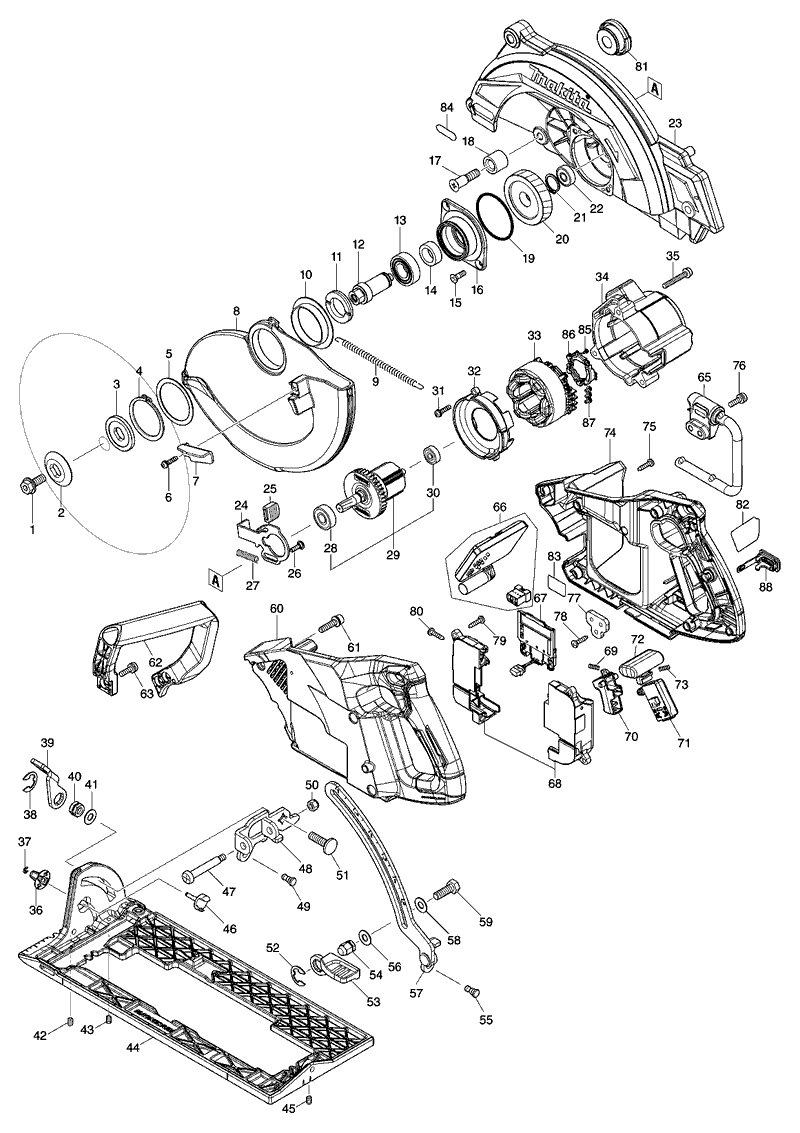

Sheet 1: Makita RS002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266400-6 | Makita 266400-6 HEX.SOCKET HET BOLT M8X20, DRS780 |
| 2 | 224613-5 | |
| 3 | 224360-8 | Makita 224360-8 INNER FLANCE 40 FOR |
| 4 | 961202-2 | Makita 961202-2 RETAINING RING S-42, N5900B |
| 5 | 267219-6 | Makita 267219-6 FLAT WASHER 45 |
| 6 | 911531-3 | Makita 911531-3 P.H.SCREW M4*18 WITH WRM |
| 7 | 271467-1 | |
| 8 | 312A93-4 | |
| 9 | 232675-9 | |
| 10 | 413356-6 | |
| 11 | 285809-3 | Makita 285809-3 BEARING RETAINER 23-36, N5900B |
| 12 | 326941-5 | Makita 326941-5 SPINDLE, DRS780 |
| 13 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 14 | 257024-9 | Makita 257024-9 RING 17 |
| 15 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 16 | 312A94-2 | |
| 17 | 265B77-6 | |
| 18 | 262200-2 | |
| 19 | 213676-6 | Makita 213676-6 O-RING 53, HS0600 |
| 20 | 227873-8 | |
| 21 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 22 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 23 | 140Y58-8 | |
| 24 | 347168-4 | Makita 347168-4 SHAFT LOCK, DRS780 |
| 25 | 286039-9 | |
| 26 | 251529-1 | |
| 27 | 232381-6 | |
| 28 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 29 | 519667-8 | |
| 30 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 31 | 911531-3 | Makita 911531-3 P.H.SCREW M4*18 WITH WRM |
| 32 | 413359-0 | |
| 33 | 629A40-1 | |
| 34 | 140Y63-5 | |
| 35 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 36 | 457963-5 | |
| 37 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 38 | 257953-6 | Makita 257953-6 BOWSTOP RING E-12, 5007MG |
| 39 | 271468-9 | |
| 40 | 264006-4 | |
| 41 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 42 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 43 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 44 | 312A92-6 | |
| 45 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 46 | 327760-2 | |
| 47 | 251221-9 | Makita 251221-9 PAN HEAD SCREW M6, N5900B |
| 48 | 347169-2 | |
| 49 | 256511-5 | Makita 256511-5 SHOULDER PIN 6-7, MT581 |
| 50 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
| 51 | 266227-4 | |
| 52 | 257953-6 | Makita 257953-6 BOWSTOP RING E-12, 5007MG |
| 53 | 271433-8 | Makita 271433-8 LEVER 59, DRS780 |
| 54 | 252240-8 | |
| 55 | 256511-5 | Makita 256511-5 SHOULDER PIN 6-7, MT581 |
| 56 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 57 | 162958-2 | |
| 58 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 59 | 251538-0 | |
| 60 | 183S81-4 | |
| 61 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 62 | 413355-8 | |
| 63 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 65 | 127771-5 | |
| 66 | 620E67-8 | |
| 67 | 632P65-6 | Makita 632P65-6 TERMINAL UNIT |
| 68 | 183S18-1 | |
| 69 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 70 | 457432-6 | |
| 71 | 651083-9 | Makita 651083-9 SWITCH |
| 72 | 457431-8 | |
| 73 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 74 | 183S81-4 | |
| 75 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 76 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 77 | 347805-0 | |
| 78 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 79 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 80 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 81 | 286045-4 | |
| 82 | 858E57-3 | |
| 83 | 858E64-6 | |
| 84 | 8012U4-2 | |
| 85 | 652093-9 | |
| 86 | 632R96-7 | |
| 87 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 88 | 140G30-2 |
