All parts of Makita RP1110C: 90 positions on 1 sheet

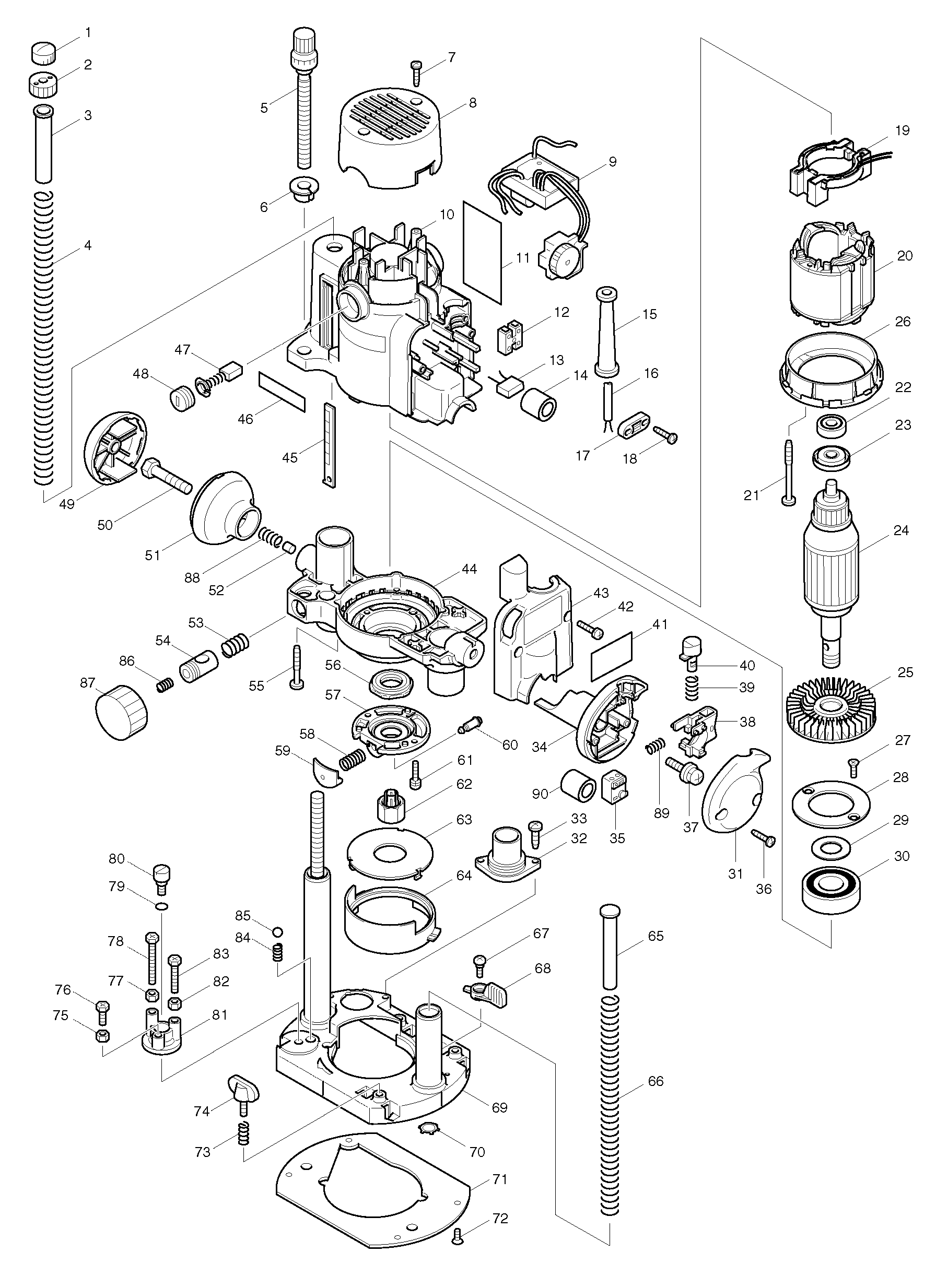

Sheet 1: Makita RP1110C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 252643-6 | Makita 252643-6 WING NUT M10 |
| 2 | 410129-8 | Makita 410129-8 NYLON NUT M10 |
| 3 | 417320-9 | Makita 417320-9 SILENT POLE |
| 4 | 233287-1 | Makita 233287-1 COMPRESSION SPRING 13 |
| 5 | 265739-4 | Makita 265739-4 THUMB SCREW M10X90 |
| 6 | 417247-3 | Makita 417247-3 DEPTH POINTER |
| 7 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 8 | 417239-2 | Makita 417239-2 REAR COVER |
| 9 | 631406-7 | Makita 631406-7 CONTROLLER |
| 10 | 152618-4 | Makita 152618-4 MOTOR HOUSING COMPLETE |
| 11 | 852315-9 | Makita 852315-9 NAME PLATE RP1110C |
| 12 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 13 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 14 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 15 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 16 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 17 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 18 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 19 | 638000-6 | Makita 638000-6 SUPPORT COMPLETE |
| 20 | 634363-8 | Makita 634363-8 FIELD 220-240V |
| 21 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 22 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 23 | 681650-6 | Makita 681650-6 Insulation Washer for HR3000C HR4000C |
| 24 | 516398-0 | Makita 516398-0 Armature Ass*y 220-240V for RP1100C |
| 25 | 240034-3 | Makita 240034-3 FAN 70 |
| 26 | 413078-8 | Makita 413078-8 BAFFLE PLATE |
| 27 | 251295-0 | Makita 251295-0 + COUNTERSUNK HEAD SCREW M4X14 |
| 28 | 285657-0 | Makita 285657-0 BEARING RETAINER 50 |
| 29 | 267114-0 | Makita 267114-0 FLAT WASHER 17, RP0900 |
| 30 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 31 | 417251-2 | Makita 417251-2 KNOB COVER R |
| 32 | 417256-2 | Makita 417256-2 NOZZLE JOINT |
| 33 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 34 | 417250-4 | Makita 417250-4 KNOB R |
| 35 | 651834-0 | Makita 651834-0 SWITCH SP115C |
| 36 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 37 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 38 | 417254-6 | Makita 417254-6 TRIGGER |
| 39 | 233288-9 | Makita 233288-9 COMPRESSION SPRING 8 |
| 40 | 417255-4 | Makita 417255-4 LOCK-OFF BUTTON |
| 41 | 816361-6 | Makita 816361-6 OPERATION INDICATION LABE L |
| 42 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 43 | 417240-7 | |
| 44 | 152619-2 | Makita 152619-2 MOTOR BRACKET COMPLETE |
| 45 | 816792-9 | Makita 816792-9 SCALE PLATE |
| 46 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 47 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 48 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 49 | 417249-9 | Makita 417249-9 KNOB COVER |
| 50 | 265479-4 | Makita 265479-4 HEX. BOLT M8X35 |
| 51 | 417248-1 | Makita 417248-1 KNOB |
| 52 | 323856-7 | Makita 323856-7 LOCK PIN |
| 53 | 231231-2 | Makita 231231-2 COMPRESSION SPRING 12 |
| 54 | 323858-3 | Makita 323858-3 HALF NUT |
| 55 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 56 | 285701-3 | Makita 285701-3 RETAINER |
| 57 | 317365-6 | Makita 317365-6 RETAINER COVER |
| 58 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 59 | 417253-8 | Makita 417253-8 PUSH BUTTON |
| 60 | 256437-1 | Makita 256437-1 SHOULDER PIN 4, 9524 |
| 61 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 62 | 193178-7 | Makita 193178-7 Collet Cone 8mm for Router RP1110C |
| 63 | 417246-5 | Makita 417246-5 DUST GUIDE CAP |
| 64 | 417245-7 | Makita 417245-7 DUST GUIDE |
| 65 | 417252-0 | Makita 417252-0 POLE |
| 66 | 233286-3 | Makita 233286-3 COMPRESSION SPRING 11 |
| 67 | 265028-7 | Makita 265028-7 + PAN HEAD SCREW M4X11 |
| 68 | 417257-0 | Makita 417257-0 LOCK LEVER |
| 69 | 152617-6 | Makita 152617-6 BASE COMPLETE |
| 70 | 259037-6 | Makita 259037-6 SELF LOCK 16 |
| 71 | 413079-6 | Makita 413079-6 BASE PLATE |
| 72 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 73 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 74 | 265740-9 | Makita 265740-9 SCREW M5X15 |
| 75 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 76 | 265333-2 | Makita 265333-2 HEX. BOLT M5X16 |
| 77 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 78 | 265336-6 | Makita 265336-6 HEX. BOLT M5X40 |
| 79 | 213030-4 | Makita 213030-4 O RING 8 |
| 80 | 251467-7 | Makita 251467-7 FLAT HEAD SCREW M6 |
| 81 | 315931-3 | Makita 315931-3 STOPPER, RP0900 |
| 82 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 83 | 265335-8 | Makita 265335-8 HEX. BOLT M5X28 |
| 84 | 231419-4 | Makita 231419-4 COMPRESSION SPRING 5 |
| 85 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 86 | 231419-4 | Makita 231419-4 COMPRESSION SPRING 5 |
| 87 | 252644-4 | Makita 252644-4 THUMB NUT M14 |
| 88 | 233288-9 | Makita 233288-9 COMPRESSION SPRING 8 |
| 89 | 233127-3 | Makita 233127-3 COMPRESSION SPRING 7, AN611 |
| 90 | 685722-9 | Makita 685722-9 SPONGE SHEET |
