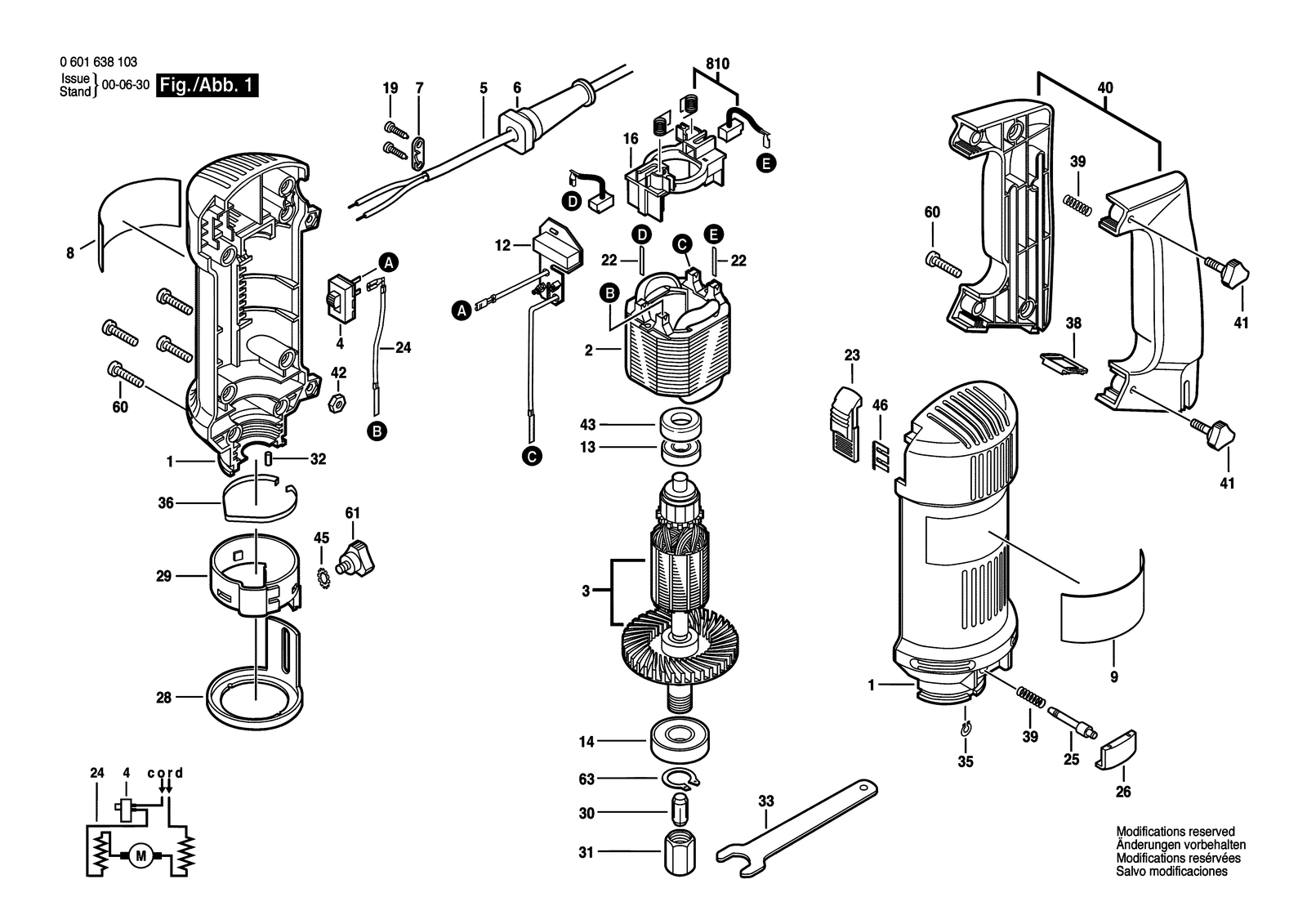

Bosch ROTOCUT rotocut: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTOCUT: 56 positions on 1 sheet
Bosch ROTOCUT parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610907409 | Housing |
| 12 | 2610907415 | Printed Circuit Board |
| 13 | 2610351861 | Ball Bearing |
| 14 | 2610968044 | Ball Bearing |
| 16 | 2610910144 | Brush Holder |
| 19 | 2610323769 | Screw |
| 2 | 2610907410 | Field 230-240V |
| 2 | 2610907604 | Field 100V |
| 2 | 2610996226 | Field 110-115V |
| 22 | 2610911982 | Connecting terminal |
| 23 | 2610909204 | Switch Button |
| 24 | 2610907753 | Lead Wire |
| 25 | 2610909200 | Detent Pin |
| 26 | 2610909249 | Push-Button |
| 28 | 2610905506 | Plate |
| 29 | 2610905507 | Bracket Holder |
| 3 | 2610907411 | Armature 230-240V |
| 3 | 2610907605 | Armature 100V |
| 3 | 2610996225 | Armature 110-115V |
| 30 | 2615295093 | Collet 1/8" |
| 31 | 2610909214 | Nut |
| 32 | 2610350103 | Pin |
| 33 | 2610909215 | Adjusting Wrench |
| 35 | 2610909201 | Locating ring |
| 36 | 2610909219 | Spring |
| 38 | 2610996695 | Cover |
| 39 | 2610909202 | Compression Spring |
| 4 | 2610996245 | On-Off Switch |
| 40 | 2610907416 | Auxiliary Handle |
| 41 | 2610909237 | Knob |
| 42 | 2610909248 | Nut |
| 43 | 2610968477 | Sleeve |
| 45 | 2615308007 | Locking washer |
| 46 | 2610907758 | Support |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460185 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460173 | Power supply cord J 5M 2 X 0,75MM Pvc |
| 5 | 2604460228 | Power supply cord SAM 4,15M 2 X 082MM SJ 18/2 |
| 5 | 2610907607 | Power supply cord GB 4,25M 2 X 1,00MM H005 Rn-F |
| 6 | 2610313327 | Grommet |
| 60 | 1619X00504 | Screw |
| 61 | 2610909218 | Knob |
| 63 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 7 | 2610064973 | Fastening Clamp |
| 8 | 2610907413 | Nameplate |
| 8 | 2610907600 | Nameplate |
| 8 | 2610907601 | Nameplate |
| 8 | 2610907602 | Nameplate |
| 8 | 2610907603 | Nameplate |
| 8 | 2610907606 | Nameplate |
| 8 | 2610907608 | Nameplate |
| 8 | 2610907609 | Nameplate |
| 810 | 2610995905 | Carbon-Brush Set |
| 9 | 2610907414 | Reference Plate |
