Bosch ROTAK 43 LI

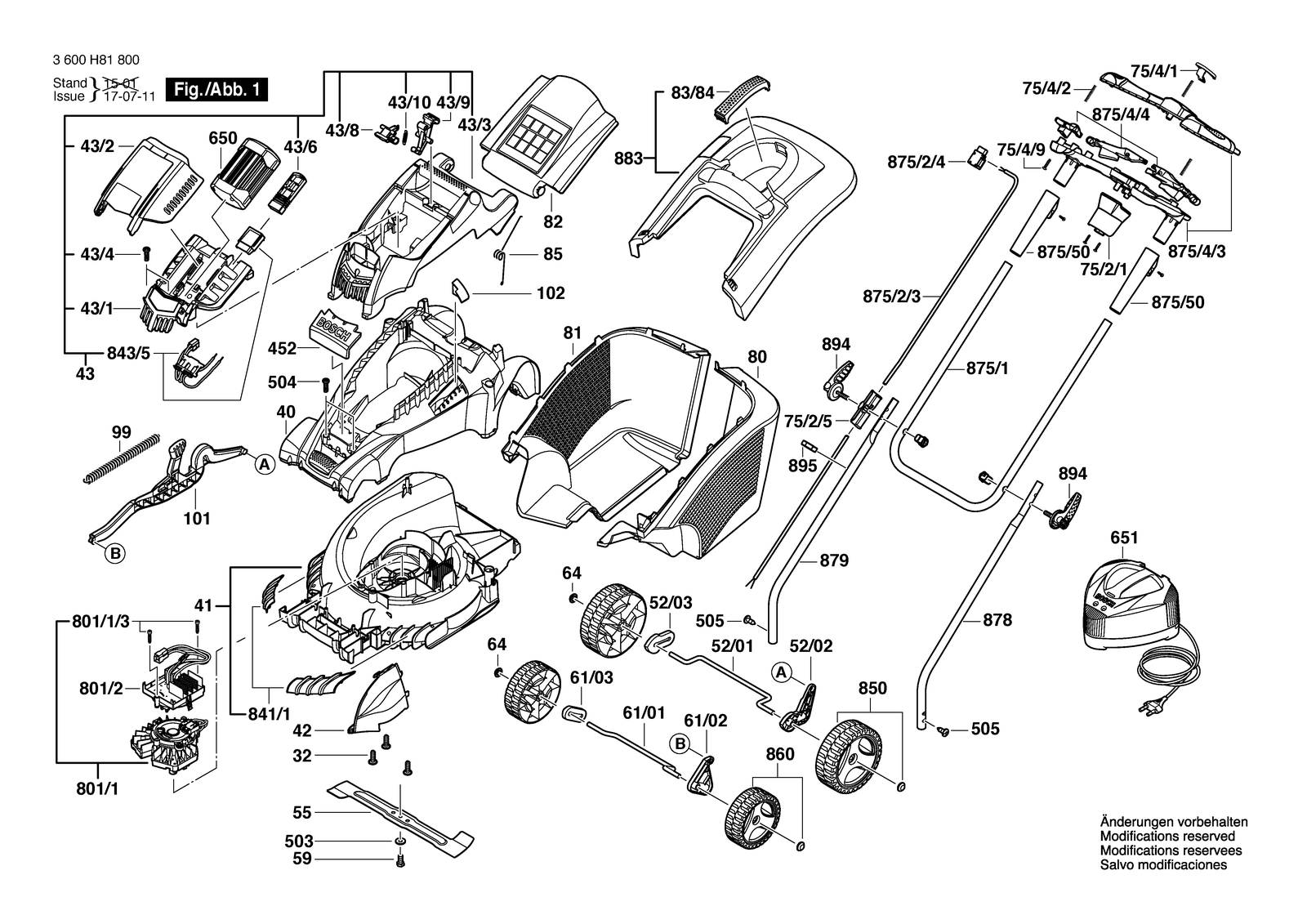

Bosch ROTAK 43 LI lawnmower: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 43 LI: 60 positions on 1 sheet
Bosch ROTAK 43 LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | F016L65971 | Link Piece |
| 102 | F016L66111 | Restrictor |
| 32 | F016L66162 | Screw |
| 40 | F016L66159 | Mower deck |
| 41 | F016L65989 | Housing |
| 42 | F016L66041 | Cover Panel |
| 43 | F016L66780 | Motor Hood |
| 43/1 | F016L65952 | Battery Tray |
| 43/10 | F016L66108 | Spring |
| 43/2 | F016L66663 | Battery Cover |
| 43/3 | F016L66779 | Motor Hood |
| 43/4 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 43/6 | F016L66669 | Insulator |
| 43/8 | F016L66107 | Release Lever |
| 43/9 | F016L65988 | Locking Device |
| 452 | F016L66288 | Company Logo Rotak 43 LI |
| 503 | F016L66173 | Spring Washer 1/2" |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 505 | F016L65803 | Screw |
| 52/01 | F016L66467 | Axle |
| 52/02 | F016L90582 | Lever |
| 52/03 | F016L90583 | Spacer |
| 55 | F016L65957 | Cutter Blade |
| 59 | F016L66141 | Bolt M10X30 |
| 61/01 | F016L66466 | Axle |
| 61/02 | F016L90581 | Lever |
| 61/03 | F016L90585 | Spacer |
| 64 | F016F05700 | Ratchet Cap |
| 650 | 1607A350R2 | Battery Pack GBA 36V 4,0AH H-c |
| 651 | 2607226457 | Charger EU GAL 3680 CV 230/14,4-36V |
| 75/2/1 | F016L67218 | Connector Housing |
| 75/2/5 | F016104213 | Cable Guide |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/9 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 801/1 | F016104031 | DC motor |
| 801/1/3 | F016L66662 | Screw für Metall Deckel M4X35 |
| 801/1/3 | F016L69251 | Pan head screw für Kunstoff Deckel 4X35 |
| 801/2 | F016104888 | Printed-Board Assembly |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 82 | F016L66137 | Guard Flap |
| 83/84 | F016L66441 | Handle Black |
| 841/1 | F016104318 | Cover |
| 843/5 | F016104244 | Wiring Harness |
| 85 | F016L66165 | Spring |
| 850 | F016103992 | Wheel |
| 860 | F016103994 | Wheel |
| 875/1 | F016L90608 | Handle |
| 875/2/3 | F016104165 | Connecting Cable |
| 875/2/4 | F016104163 | Switch Kit |
| 875/4/3 | F016104159 | Housing Set |
| 875/4/4 | F016104160 | Switch Segment |
| 875/50 | F016104161 | Sleeve |
| 878 | F016L67209 | Bottom handle |
| 879 | F016L67210 | Bottom handle |
| 883 | F016103608 | Cover |
| 894 | F016L67530 | Clamping Lever |
| 895 | F016L66895 | Cable Clip Rotak II |
| 99 | F016L59327 | Spring |
