Bosch ROTAK 43 (ERGOFLEX)

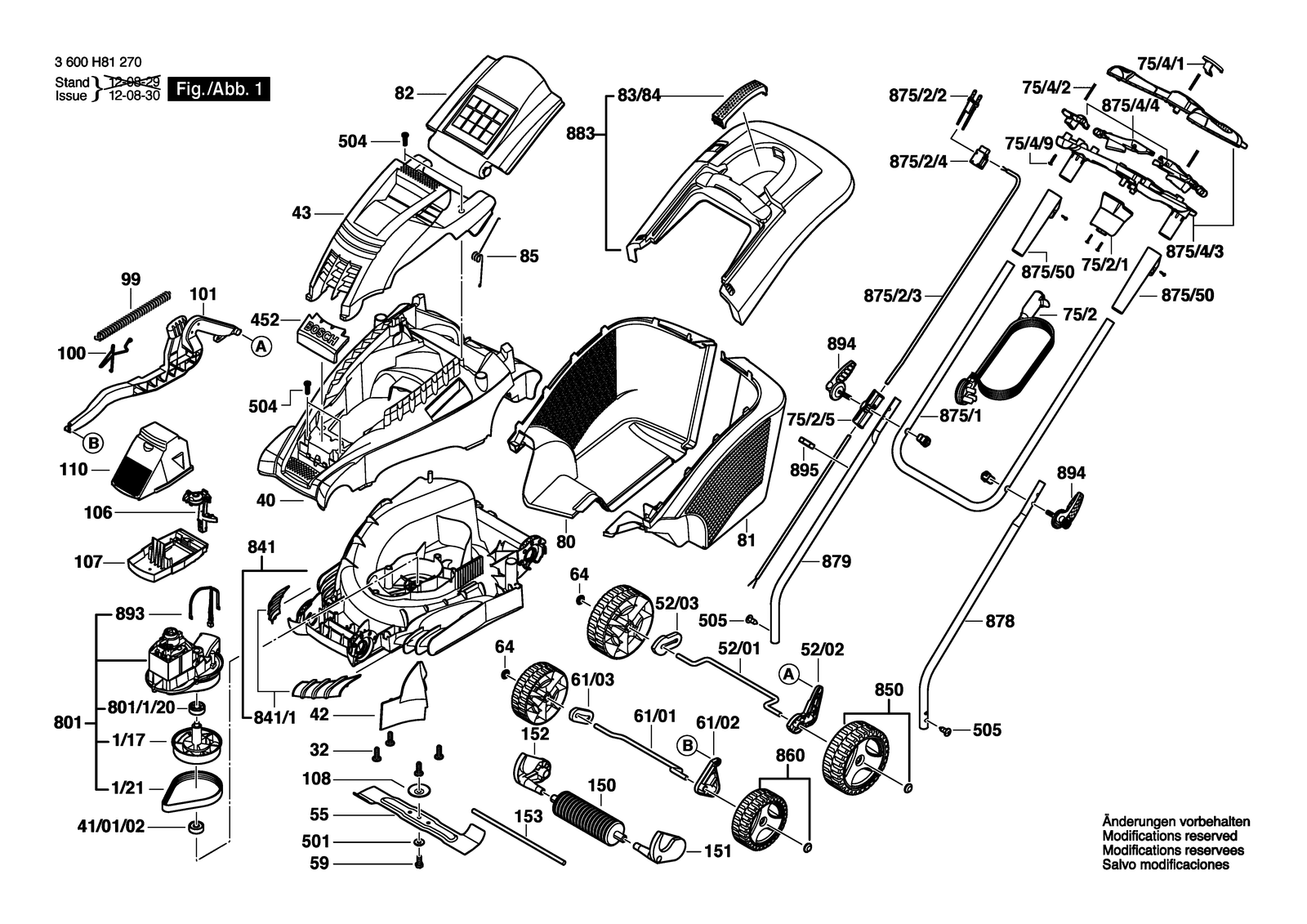

Bosch ROTAK 43 (ERGOFLEX) lawnmower: exploded parts diagram, 1 sheet, 122 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 43 (ERGOFLEX): 122 positions on 1 sheet
Bosch ROTAK 43 (ERGOFLEX) parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 100 | F016L65790 | Spring |
| 100 | F016L65790 | Spring |
| 101 | F016L65971 | Link Piece |
| 101 | F016L65971 | Link Piece |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 107 | F016L65539 | Filter Housing |
| 107 | F016L65539 | Filter Housing |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 110 | F016L65709 | Filter Housing |
| 110 | F016L65709 | Filter Housing |
| 150 | F016L66175 | Roller Drum |
| 150 | F016L66175 | Roller Drum |
| 151 | F016L64900 | Bracket |
| 151 | F016L64900 | Bracket |
| 152 | F016L64901 | Bracket |
| 152 | F016L64901 | Bracket |
| 153 | F016L65870 | Spindle |
| 153 | F016L65870 | Spindle |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 40 | F016L66159 | Mower deck |
| 40 | F016L66159 | Mower deck |
| 41/01/02 | F016L64387 | Bearing 6003-ZZ |
| 41/01/02 | F016L64387 | Bearing 6003-ZZ |
| 42 | F016L66040 | Cover Panel |
| 42 | F016L66041 | Cover Panel |
| 43 | F016L65159 | Motor Hood |
| 43 | F016L65159 | Motor Hood |
| 452 | F016L67588 | Company Logo Rotak 40 (ergoflex) |
| 452 | F016L67589 | Company Logo Rotak 43 (ergoflex) |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 505 | F016L65803 | Screw |
| 505 | F016L36542 | Screw M5X8 Csk Hd. |
| 52/01 | F016L66467 | Axle |
| 52/01 | F016L66467 | Axle |
| 52/02 | F016L90582 | Lever |
| 52/02 | F016L90582 | Lever |
| 52/03 | F016L90583 | Spacer |
| 52/03 | F016L90583 | Spacer |
| 55 | F016L65923 | Cutter Blade |
| 55 | F016L65924 | Cutter Blade |
| 59 | F016104350 | Screw and washer assembly |
| 59 | F016104350 | Screw and washer assembly |
| 61/01 | F016L66466 | Axle |
| 61/01 | F016L66466 | Axle |
| 61/02 | F016L90581 | Lever |
| 61/02 | F016L90581 | Lever |
| 61/03 | F016L90585 | Spacer |
| 61/03 | F016L90585 | Spacer |
| 64 | F016F05700 | Ratchet Cap |
| 64 | F016F05700 | Ratchet Cap |
| 75/2 | F016104170 | Power supply cord |
| 75/2 | F016104170 | Power supply cord |
| 75/2/1 | F016L67180 | Switch Housing |
| 75/2/1 | F016L67180 | Switch Housing |
| 75/2/5 | F016104213 | Cable Guide |
| 75/2/5 | F016104213 | Cable Guide |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/9 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/4/9 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 83/84 | F016L66441 | Handle Black |
| 83/84 | F016L66441 | Handle Black |
| 841 | F016103599 | Housing |
| 841 | F016103600 | Housing |
| 841/1 | F016104317 | Cover |
| 841/1 | F016104318 | Cover |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 850 | F016103992 | Wheel |
| 850 | F016103992 | Wheel |
| 860 | F016103994 | Wheel |
| 860 | F016103994 | Wheel |
| 875/1 | F016L90608 | Handle |
| 875/1 | F016L90608 | Handle |
| 875/2/2 | F016104169 | Power supply cord Gb |
| 875/2/2 | F016104169 | Power supply cord Gb |
| 875/2/3 | F016104164 | Connecting Cable |
| 875/2/3 | F016104164 | Connecting Cable |
| 875/2/4 | F016104162 | Switch Kit |
| 875/2/4 | F016104162 | Switch Kit |
| 875/4/3 | F016104159 | Housing Set |
| 875/4/3 | F016104159 | Housing Set |
| 875/4/4 | F016104160 | Switch Segment |
| 875/4/4 | F016104160 | Switch Segment |
| 875/50 | F016104161 | Sleeve |
| 875/50 | F016104161 | Sleeve |
| 878 | F016L67209 | Bottom handle |
| 878 | F016L67209 | Bottom handle |
| 879 | F016L67210 | Bottom handle |
| 879 | F016L67210 | Bottom handle |
| 883 | F016103608 | Cover |
| 883 | F016103608 | Cover |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 894 | F016L67530 | Clamping Lever |
| 894 | F016L67530 | Clamping Lever |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
