Bosch Rotak 400 ER

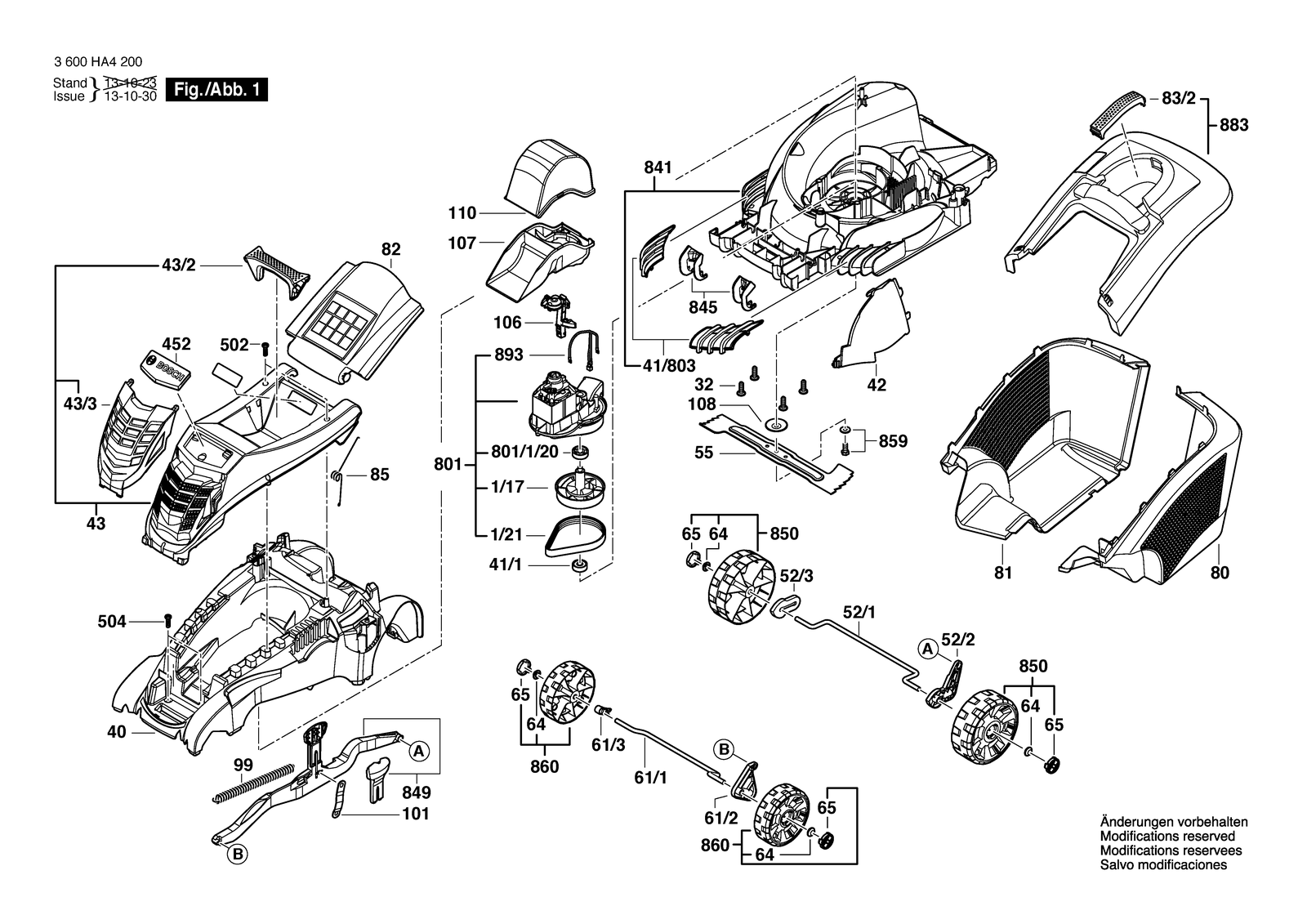

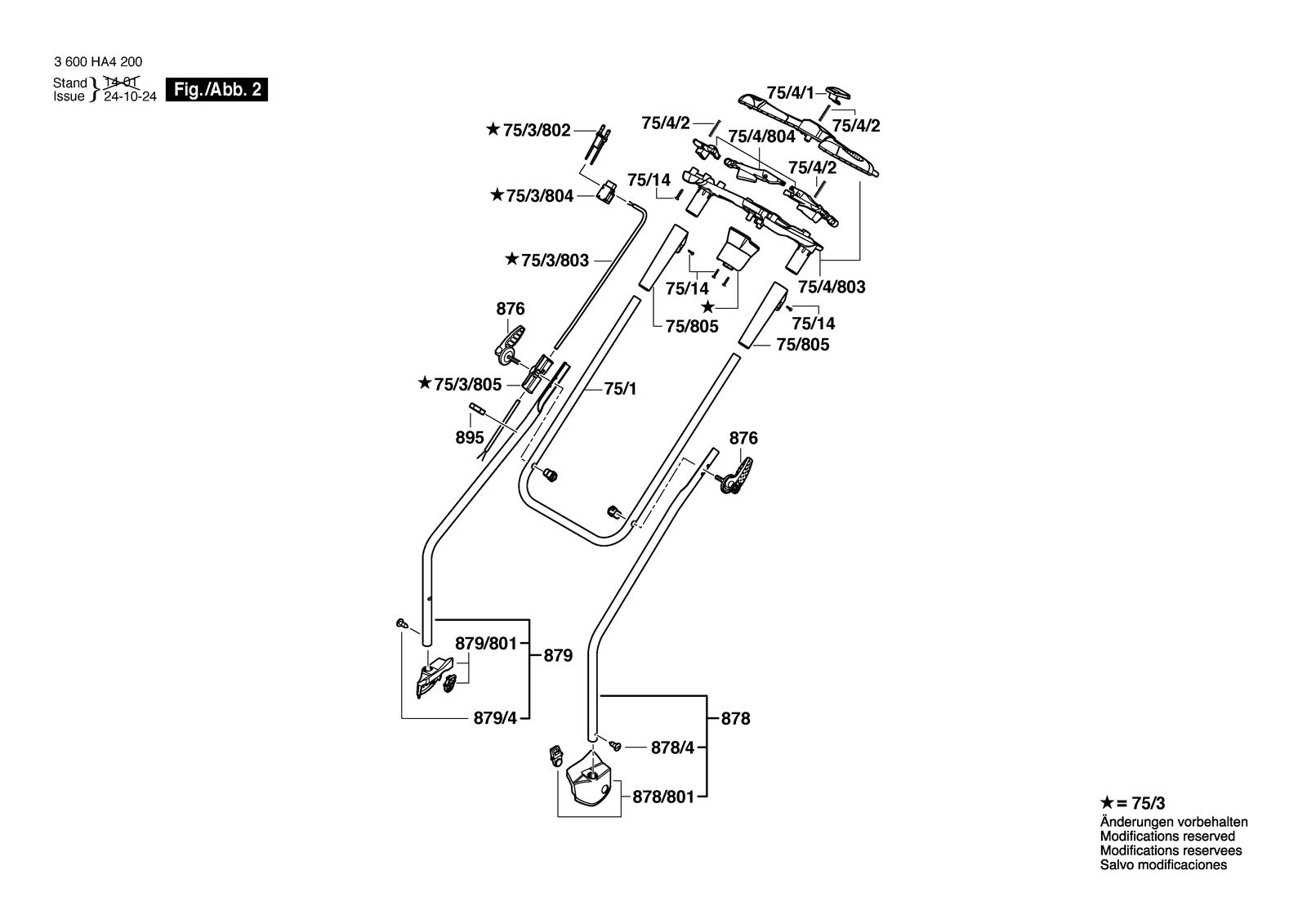

Bosch Rotak 400 ER lawnmower: exploded parts diagram, 2 sheets, 621 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Rotak 400 ER: 621 positions on 2 sheets
Bosch Rotak 400 ER parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/17 | F016L65108 | Drive Shaft |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 1/21 | F016L65109 | Drive Belt |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 101 | F016L68117 | Leaf Spring |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 106 | F016L90579 | Wire Guide |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 107 | F016L68501 | Baffle |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 40 | F016104925 | Mower deck |
| 40 | F016104925 | Mower deck |
| 40 | F016L69463 | Mower deck |
| 40 | F016104925 | Mower deck |
| 40 | F016L69542 | Mower deck Green |
| 40 | F016L69562 | Mower deck Black |
| 40 | F016L69542 | Mower deck Green |
| 40 | F016104925 | Mower deck |
| 40 | F016104925 | Mower deck |
| 40 | F016L69463 | Mower deck |
| 40 | F016104925 | Mower deck |
| 40 | F016L69542 | Mower deck Green |
| 40 | F016L69562 | Mower deck Black |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/1 | F016L64387 | Bearing 6003-ZZ |
| 41/803 | F016104404 | Cover Panel |
| 41/803 | F016104404 | Cover Panel |
| 41/803 | F016104911 | Comb |
| 41/803 | F016104404 | Cover Panel |
| 41/803 | F016104404 | Cover Panel |
| 41/803 | F016104911 | Comb |
| 41/803 | F016104404 | Cover Panel |
| 41/803 | F016104304 | Cover Panel |
| 41/803 | F016104304 | Cover Panel |
| 41/803 | F016104912 | Comb |
| 41/803 | F016104304 | Cover Panel |
| 41/803 | F016104304 | Cover Panel |
| 41/803 | F016104912 | Comb |
| 42 | F016L66040 | Cover Panel |
| 42 | F016L66040 | Cover Panel |
| 42 | F016L66040 | Cover Panel |
| 42 | F016L66040 | Cover Panel |
| 42 | F016L66040 | Cover Panel |
| 42 | F016L66041 | Cover Panel |
| 42 | F016L66041 | Cover Panel |
| 42 | F016L66041 | Cover Panel |
| 42 | F016L66041 | Cover Panel |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 452 | F016L90660 | Company Logo |
| 452 | F016L68213 | Company Logo Rotak 39 |
| 452 | F016L69533 | Company Logo Rotak 40 S |
| 452 | F016L68212 | Company Logo Rotak 40 M |
| 452 | F016L68212 | Company Logo Rotak 40 M |
| 452 | F016L68213 | Company Logo Rotak 39 |
| 452 | F016L69533 | Company Logo Rotak 40 S |
| 452 | F016L90660 | Company Logo |
| 452 | F016L90588 | Company Logo Rotak 400 Er |
| 452 | F016L68222 | Company Logo Rotak 43 |
| 452 | F016L69528 | Company Logo Rotak 43 S |
| 452 | F016L90668 | Company Logo |
| 452 | F016L68223 | Company Logo Rotak 43 M |
| 452 | F016L68222 | Company Logo Rotak 43 |
| 452 | F016L68223 | Company Logo Rotak 43 M |
| 452 | F016L69528 | Company Logo Rotak 43 S |
| 452 | F016L90668 | Company Logo |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/1 | F016L68529 | Axle |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 55 | F016L68215 | Cutter Blade |
| 55 | F016L68215 | Cutter Blade |
| 55 | F016L68215 | Cutter Blade |
| 55 | F016L68215 | Cutter Blade |
| 55 | F016L68215 | Cutter Blade |
| 55 | F016L68216 | Cutter Blade |
| 55 | F016L68216 | Cutter Blade |
| 55 | F016L68216 | Cutter Blade |
| 55 | F016L68216 | Cutter Blade |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/1 | F016L68528 | Axle |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/3 | 1617S01XR4 | Wiring unit |
| 75/3 | 1617S01XR4 | Wiring unit |
| 75/3 | 1617S01YC4 | Wiring unit |
| 75/3 | 1617S01XR4 | Wiring unit |
| 75/3 | 1617S01YC4 | Wiring unit |
| 75/3/1 | 1617S01XR4 | Wiring unit |
| 75/3/1 | 1617S01XR4 | Wiring unit |
| 75/3/1 | 1617S01XR4 | Wiring unit |
| 75/3/1 | 1617S01XR4 | Wiring unit |
| 75/3/1 | F016L67498 | Connector Housing |
| 75/3/1 | 1617S01XR4 | Wiring unit |
| 75/3/1 | 1617S01XR4 | Wiring unit |
| 75/3/1 | F016L67498 | Connector Housing |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104216 | Power supply cord Ch |
| 75/3/802 | F016104245 | Connecting Cable Aus |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104216 | Power supply cord Ch |
| 75/3/802 | F016104245 | Connecting Cable Aus |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L69086 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L69086 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L69086 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 80 | F016L69086 | Collector Box Bottom L/h |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801 | F016103596 | Motor |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L69087 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L69087 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L69087 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 81 | F016L69087 | Collector Box Bottom R/h |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 841 | F016104399 | Housing |
| 841 | F016104399 | Housing |
| 841 | F016L69525 | Housing |
| 841 | F016104399 | Housing |
| 841 | F016104399 | Housing |
| 841 | F016L69525 | Housing |
| 841 | F016104399 | Housing |
| 841 | F016104400 | Housing |
| 841 | F016104400 | Housing |
| 841 | F016104916 | Housing |
| 841 | F016104400 | Housing |
| 841 | F016104400 | Housing |
| 845 | F016104425 | Cover Panel |
| 845 | F016104425 | Cover Panel |
| 845 | F016104913 | Comb |
| 845 | F016104425 | Cover Panel |
| 845 | F016104425 | Cover Panel |
| 845 | F016104913 | Comb |
| 845 | F016104425 | Cover Panel |
| 845 | F016104425 | Cover Panel |
| 845 | F016104425 | Cover Panel |
| 845 | F016104913 | Comb |
| 845 | F016104425 | Cover Panel |
| 845 | F016104425 | Cover Panel |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 849 | F016104303 | Linkage part |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 859 | F016104350 | Screw and washer assembly |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104919 | Bottom handle |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104928 | Bottom handle |
| 878 | F016104933 | Bottom handle Black |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104919 | Bottom handle |
| 878 | F016104579 | Bottom handle Green |
| 878 | F016104928 | Bottom handle |
| 878 | F016104933 | Bottom handle Black |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104914 | Mounting Bracket |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104926 | Mounting Bracket Green |
| 878/801 | F016104931 | Mounting Bracket Black |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104914 | Mounting Bracket |
| 878/801 | F016104426 | Mounting Bracket Green |
| 878/801 | F016104926 | Mounting Bracket Green |
| 878/801 | F016104931 | Mounting Bracket Black |
| 879 | F016104580 | Bottom handle |
| 879 | F016104580 | Bottom handle |
| 879 | F016104920 | Bottom handle |
| 879 | F016104580 | Bottom handle |
| 879 | F016104929 | Bottom handle Green |
| 879 | F016104934 | Bottom handle Black |
| 879 | F016104929 | Bottom handle Green |
| 879 | F016104580 | Bottom handle |
| 879 | F016104580 | Bottom handle |
| 879 | F016104920 | Bottom handle |
| 879 | F016104580 | Bottom handle |
| 879 | F016104929 | Bottom handle Green |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104915 | Mounting Bracket |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104927 | Mounting Bracket Green |
| 879/801 | F016104932 | Mounting Bracket Black |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104915 | Mounting Bracket |
| 879/801 | F016104427 | Mounting Bracket Green |
| 879/801 | F016104927 | Mounting Bracket Green |
| 879/801 | F016104932 | Mounting Bracket Black |
| 883 | F016103608 | Cover |
| 883 | F016104362 | Collector Box Top Black |
| 883 | F016103608 | Cover |
| 883 | F016103608 | Cover |
| 883 | F016104362 | Collector Box Top Black |
| 883 | F016104362 | Collector Box Top Black |
| 883 | F016103608 | Cover |
| 883 | F016104362 | Collector Box Top Black |
| 883 | F016103608 | Cover |
| 883 | F016103608 | Cover |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 893 | F016103605 | Thermal protector |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
Selected parts0
