Bosch ROTAK 40 C

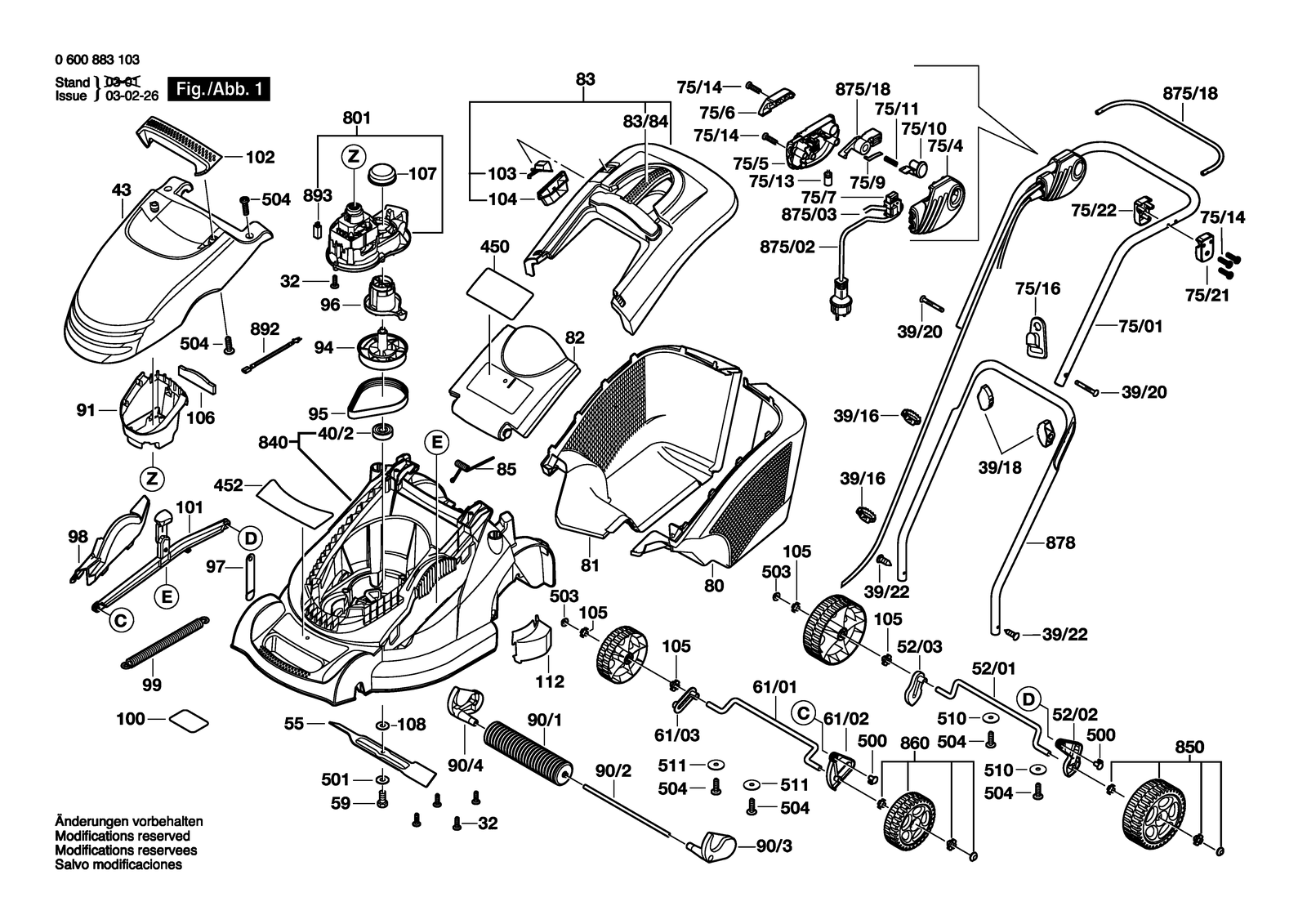

Bosch ROTAK 40 C lawnmower: exploded parts diagram, 1 sheet, 75 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 40 C: 75 positions on 1 sheet
Bosch ROTAK 40 C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | F016L64308 | Linkage part |
| 102 | F016L63709 | Handle |
| 103 | F016L59150 | Indicator Holder |
| 104 | F016L64795 | Indicator Holder |
| 105 | F016L64226 | Bushing |
| 106 | F016L64398 | Filter Element |
| 107 | F016L64126 | Sealing cap |
| 108 | F016L67627 | Bearing cover |
| 112 | F016L64467 | Protection cover |
| 32 | F016L37433 | Self-Cutting Screw |
| 39/16 | F016L11580 | Cable Cleat |
| 39/18 | F016L66136 | Wing Nut |
| 39/20 | F016L59277 | Bolt M6X50 |
| 39/22 | F016L36542 | Screw M5X8 Csk Hd. |
| 40/2 | F016L64387 | Bearing 6003-ZZ |
| 43 | F016L63659 | Motor Hood |
| 450 | F016L63011 | Sticker |
| 452 | F016L64366 | Sticker |
| 500 | F016L63654 | Bolt |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 503 | F016L63953 | Cover |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 510 | F016L57338 | Plain Washer |
| 511 | F016L64199 | Washer |
| 52/01 | F016L64303 | Axle |
| 52/02 | F016L59324 | Lever |
| 52/03 | F016L59373 | Spacer |
| 55 | F016L64302 | Cutter Blade |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 61/01 | F016L64303 | Axle |
| 61/02 | F016L59323 | Lever |
| 61/03 | F016L59325 | Spacer |
| 75/01 | F016L63712 | Handle |
| 75/10 | F016F05705 | Push-Button |
| 75/11 | F016L62860 | Spring |
| 75/13 | F016L36952 | Condenser |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/21 | F016T49629 | Holder |
| 75/22 | F016T49628 | Holder |
| 75/4 | F016L65739 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/6 | F016T49630 | Clamping Piece |
| 75/7 | F016F05717 | On-Off Switch |
| 75/9 | F016T49633 | Spiral Spring |
| 80 | F016L64304 | Collector Box Bottom L/h |
| 801 | F016103804 | Motor |
| 81 | F016L64338 | Collector Box Bottom R/h |
| 82 | F016L64785 | Guard Flap |
| 83 | F016L64189 | Cover |
| 83/84 | F016L64394 | Handle |
| 840 | F016103171 | Housing |
| 85 | F016L64523 | Torsion Spring |
| 850 | F016103172 | Wheel |
| 860 | F016103173 | Wheel |
| 875/02 | F016102381 | Power supply cord |
| 875/02 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 875/02 | F016104086 | Power supply cord EU |
| 875/02 | F016104359 | Power supply cord Ch |
| 875/03 | F016103168 | Connecting Cable |
| 875/18 | F016102996 | Control Bar |
| 878 | F016102946 | Handle |
| 892 | F016103169 | Connecting Cable |
| 893 | F016103170 | Thermoswitch |
| 90/1 | F016L64318 | Roller |
| 90/2 | F016L64319 | Spindle |
| 90/3 | F016L59332 | Bracket L/h |
| 90/4 | F016L61433 | Bracket R/h |
| 91 | F016L64305 | Housing |
| 94 | F016L64511 | Drive Shaft |
| 95 | F016L65250 | Drive Belt Z=11 |
| 96 | F016104211 | Belt Tensioner |
| 97 | F016L63734 | Leaf Spring |
| 98 | F016L64382 | Sealing cap |
| 99 | F016L59327 | Spring |
