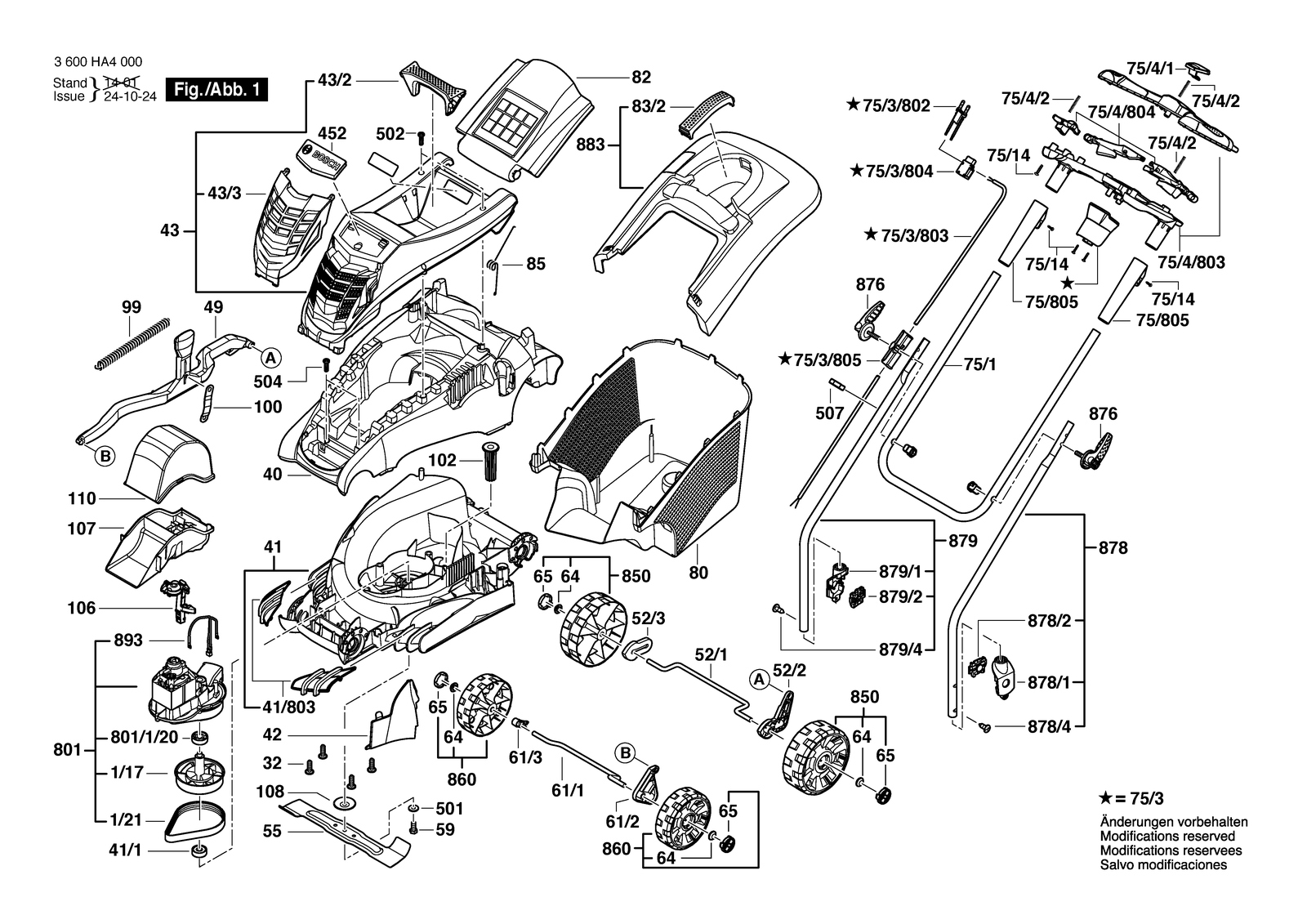

Bosch Rotak 37 lawnmower: exploded parts diagram, 1 sheet, 208 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Rotak 37: 208 positions on 1 sheet
Bosch Rotak 37 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1/17 | F016103758 | Drive Shaft |
| 1/17 | F016103758 | Drive Shaft |
| 1/17 | F016103758 | Drive Shaft |
| 1/21 | F016L65351 | Drive Belt |
| 1/21 | F016L65351 | Drive Belt |
| 1/21 | F016L65351 | Drive Belt |
| 100 | F016L68117 | Leaf Spring |
| 100 | F016L68117 | Leaf Spring |
| 100 | F016L68117 | Leaf Spring |
| 102 | F016L68536 | Holding plug |
| 102 | F016L68536 | Holding plug |
| 102 | F016L68536 | Holding plug |
| 106 | F016L90584 | Wire Guide |
| 106 | F016L90584 | Wire Guide |
| 106 | F016L90584 | Wire Guide |
| 107 | F016L68449 | Baffle |
| 107 | F016L68449 | Baffle |
| 107 | F016L68449 | Baffle |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 110 | F016L68448 | Baffle |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 40 | F016L68101 | Mower deck |
| 40 | F016L69451 | Mower deck |
| 40 | F016L68101 | Mower deck |
| 40 | F016L68101 | Mower deck |
| 41 | F016L69520 | Housing |
| 41 | F016Z68099 | Housing |
| 41 | F016Z68099 | Housing |
| 41 | F016Z68099 | Housing |
| 41/1 | F016L67442 | Bearing 6002-2RS |
| 41/1 | F016L67442 | Bearing 6002-2RS |
| 41/1 | F016L67442 | Bearing 6002-2RS |
| 41/803 | F016104420 | Cover Panel |
| 41/803 | F016104910 | Comb |
| 41/803 | F016104420 | Cover Panel |
| 41/803 | F016104420 | Cover Panel |
| 42 | F016L66039 | Cover Panel |
| 42 | F016L66039 | Cover Panel |
| 42 | F016L66039 | Cover Panel |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43 | F016L68149 | Motor Hood |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/2 | F016L68084 | Carrying Handle |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 43/3 | F016L68150 | Grille Silver |
| 452 | F016L68175 | Company Logo Rotak 37 |
| 452 | F016L69523 | Company Logo Rotak 37 S |
| 452 | F016L68159 | Company Logo Rotak 36 |
| 452 | F016L68176 | Company Logo Rotak 37 M |
| 49 | F016L68111 | Linkage part |
| 49 | F016L68111 | Linkage part |
| 49 | F016L68111 | Linkage part |
| 501 | F016T40590 | Plain Washer Ø8,15 MM |
| 501 | F016T40590 | Plain Washer Ø8,15 MM |
| 501 | F016T40590 | Plain Washer Ø8,15 MM |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 502 | F016L68124 | Torx head screw |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016L36542 | Screw M5X8 Csk Hd. |
| 507 | F016L66895 | Cable Clip Rotak II |
| 507 | F016L66895 | Cable Clip Rotak II |
| 507 | F016L66895 | Cable Clip Rotak II |
| 52/1 | F016L68527 | Axle |
| 52/1 | F016L68527 | Axle |
| 52/1 | F016L68527 | Axle |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/2 | F016L90582 | Lever |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 52/3 | F016L90583 | Spacer |
| 55 | F016L65400 | Cutter Blade |
| 55 | F016L65400 | Cutter Blade |
| 55 | F016L65400 | Cutter Blade |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 61/1 | F016L68526 | Axle |
| 61/1 | F016L68526 | Axle |
| 61/1 | F016L68526 | Axle |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/2 | F016L90581 | Lever |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 61/3 | F016L90585 | Spacer |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 64 | F016L68095 | Ratchet Cap |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 65 | F016L68116 | Cover |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/1 | F016L90608 | Handle |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/3 | 1617S01XR4 | Wiring unit |
| 75/3 | 1617S01YC4 | Wiring unit |
| 75/3 | 1617S01XR4 | Wiring unit |
| 75/3 | 1617S01XR4 | Wiring unit |
| 75/3/1 | F016L67498 | Connector Housing |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104216 | Power supply cord Ch |
| 75/3/802 | F016104245 | Connecting Cable Aus |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/802 | F016104214 | Connecting Cable EU |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/803 | F016104164 | Connecting Cable |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/805 | F016104213 | Cable Guide |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/2 | F016L67151 | Button Spring |
| 75/4/803 | F016104159 | Housing Set |
| 75/4/803 | F016104360 | Housing Set |
| 75/4/803 | F016104159 | Housing Set |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/4/804 | F016104160 | Switch Segment |
| 75/805 | F016104161 | Sleeve |
| 75/805 | F016104361 | Sleeve |
| 75/805 | F016104161 | Sleeve |
| 80 | F016L65674 | Collector Box Bottom Black |
| 80 | F016L68118 | Collector Box Bottom Green |
| 80 | F016L65674 | Collector Box Bottom Black |
| 80 | F016L65674 | Collector Box Bottom Black |
| 801 | F016103595 | Motor |
| 801 | F016103595 | Motor |
| 801 | F016103595 | Motor |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 83/2 | F016L66441 | Handle Black |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 850 | F016104422 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 860 | F016104421 | Wheel |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 876 | F016L67530 | Clamping Lever |
| 878 | F016104581 | Bottom handle |
| 878 | F016104917 | Bottom handle |
| 878 | F016104581 | Bottom handle |
| 878 | F016104581 | Bottom handle |
| 878/1 | F016L68102 | Mounting Bracket |
| 878/1 | F016L69450 | Mounting Bracket |
| 878/1 | F016L68102 | Mounting Bracket |
| 878/1 | F016L68102 | Mounting Bracket |
| 878/2 | F016L68103 | Push-Button |
| 878/2 | F016L68103 | Push-Button |
| 878/2 | F016L68103 | Push-Button |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 878/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879 | F016104582 | Bottom handle |
| 879 | F016104918 | Bottom handle |
| 879 | F016104582 | Bottom handle |
| 879 | F016104582 | Bottom handle |
| 879/1 | F016L68102 | Mounting Bracket |
| 879/1 | F016L69450 | Mounting Bracket |
| 879/1 | F016L68102 | Mounting Bracket |
| 879/1 | F016L68102 | Mounting Bracket |
| 879/2 | F016L68103 | Push-Button |
| 879/2 | F016L68103 | Push-Button |
| 879/2 | F016L68103 | Push-Button |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 879/4 | F016L36542 | Screw M5X8 Csk Hd. |
| 883 | F016104465 | Collector Box Top |
| 883 | F016104362 | Collector Box Top Black |
| 883 | F016104465 | Collector Box Top |
| 893 | F016103604 | Thermal protector |
| 893 | F016103604 | Thermal protector |
| 893 | F016103604 | Thermal protector |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
