Bosch ROTAK 34 LI

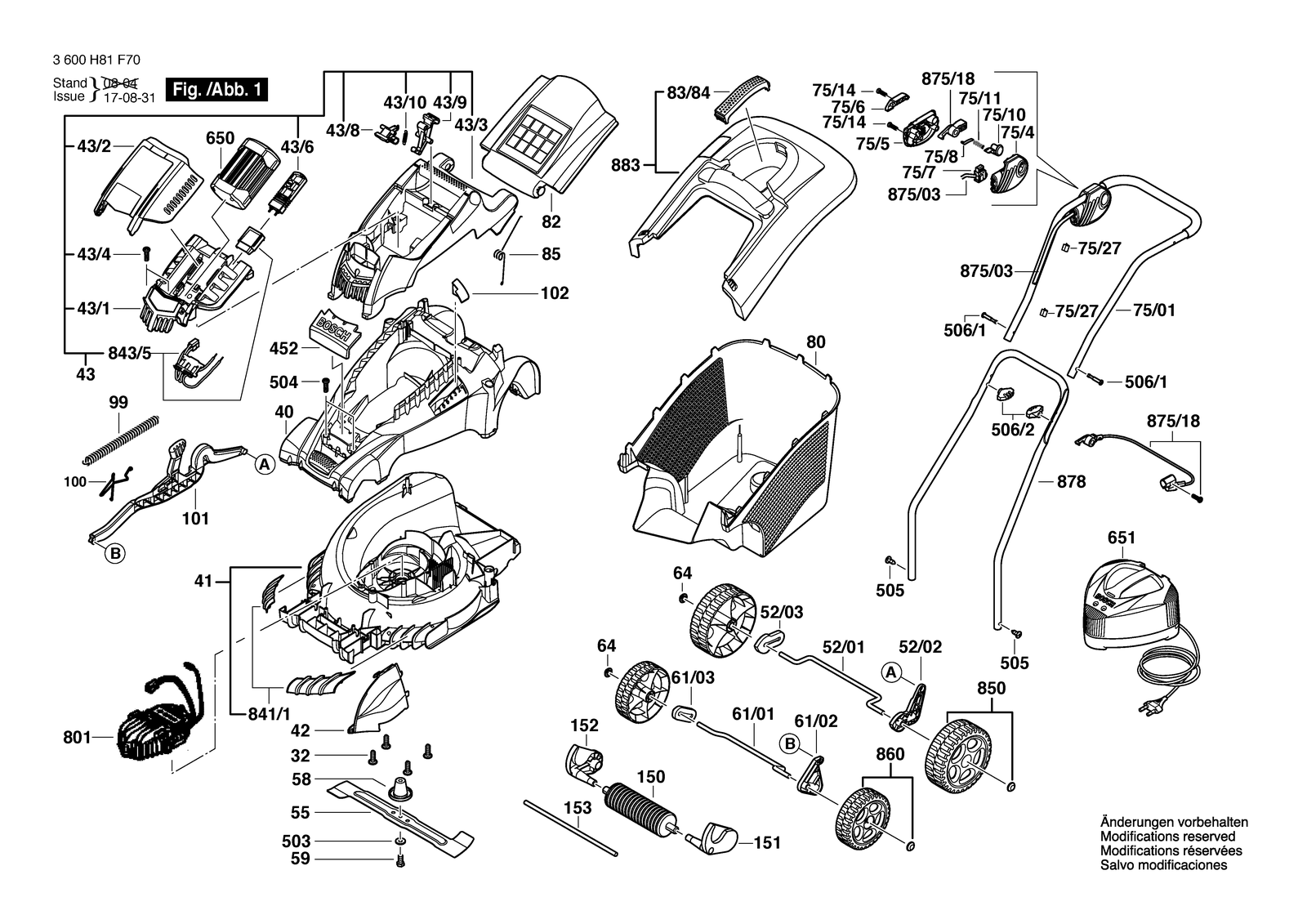

Bosch ROTAK 34 LI lawnmower: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 34 LI: 63 positions on 1 sheet
Bosch ROTAK 34 LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | F016L65790 | Spring |
| 101 | F016L67260 | Linkage part |
| 102 | F016L66111 | Restrictor |
| 150 | F016L65871 | Roller Drum |
| 151 | F016L64900 | Bracket |
| 152 | F016L64901 | Bracket |
| 153 | F016L65869 | Spindle |
| 32 | F016L66162 | Screw |
| 40 | F016L66158 | Mower deck |
| 41 | F016L66003 | Housing |
| 42 | F016L66039 | Cover Panel |
| 43 | F016L66780 | Motor Hood |
| 43/1 | F016L65952 | Battery Tray |
| 43/10 | F016L66108 | Spring |
| 43/2 | F016L65954 | Battery Cover |
| 43/3 | F016L65953 | Motor Hood |
| 43/4 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 43/6 | F016L66669 | Insulator |
| 43/8 | F016L66107 | Release Lever |
| 43/9 | F016L65988 | Locking Device |
| 452 | F016L66286 | Company Logo Rotak 37 LI |
| 503 | F016L66173 | Spring Washer 1/2" |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 505 | F016L65803 | Screw |
| 506/1 | F016L59277 | Bolt M6X50 |
| 506/2 | F016L66136 | Wing Nut |
| 52/01 | F016L65929 | Axle |
| 52/02 | F016L90582 | Lever |
| 52/03 | F016L90583 | Spacer |
| 55 | F016L66005 | Cutter Blade |
| 58 | F016L66115 | Adapter |
| 59 | F016L66141 | Bolt M10X30 |
| 61/01 | F016L65928 | Axle |
| 61/02 | F016L90581 | Lever |
| 61/03 | F016L90585 | Spacer |
| 64 | F016F05700 | Ratchet Cap |
| 650 | 1607A350R2 | Battery Pack GBA 36V 4,0AH H-c |
| 651 | 2607225909 | Fast Charger J GAL 3680 CV 100/14,4-36V |
| 651 | 2607226459 | Charger Gb GAL 3680 CV 230/14,4-26V |
| 75/01 | F016L66182 | Handle |
| 75/10 | F016F05705 | Push-Button |
| 75/11 | F016L66240 | Compression Spring |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/27 | F016L90575 | Cable Clip |
| 75/4 | F016L65739 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/6 | F016T49630 | Clamping Piece |
| 75/7 | F016104163 | Switch Kit |
| 75/8 | F016L66416 | Leaf Spring |
| 80 | F016L65674 | Collector Box Bottom Black |
| 801 | F016104248 | Motor assembly |
| 82 | F016L66137 | Guard Flap |
| 83/84 | F016L66441 | Handle Black |
| 841/1 | F016104316 | Cover |
| 843/5 | F016104244 | Wiring Harness |
| 85 | F016L66165 | Spring |
| 850 | F016103992 | Wheel |
| 860 | F016103994 | Wheel |
| 875/03 | F016103675 | Connecting Cable |
| 875/18 | F016103601 | Control Bar |
| 878 | F016L65571 | Bottom handle |
| 883 | F016103608 | Cover |
| 99 | F016L59327 | Spring |
