Bosch ROTAK 34

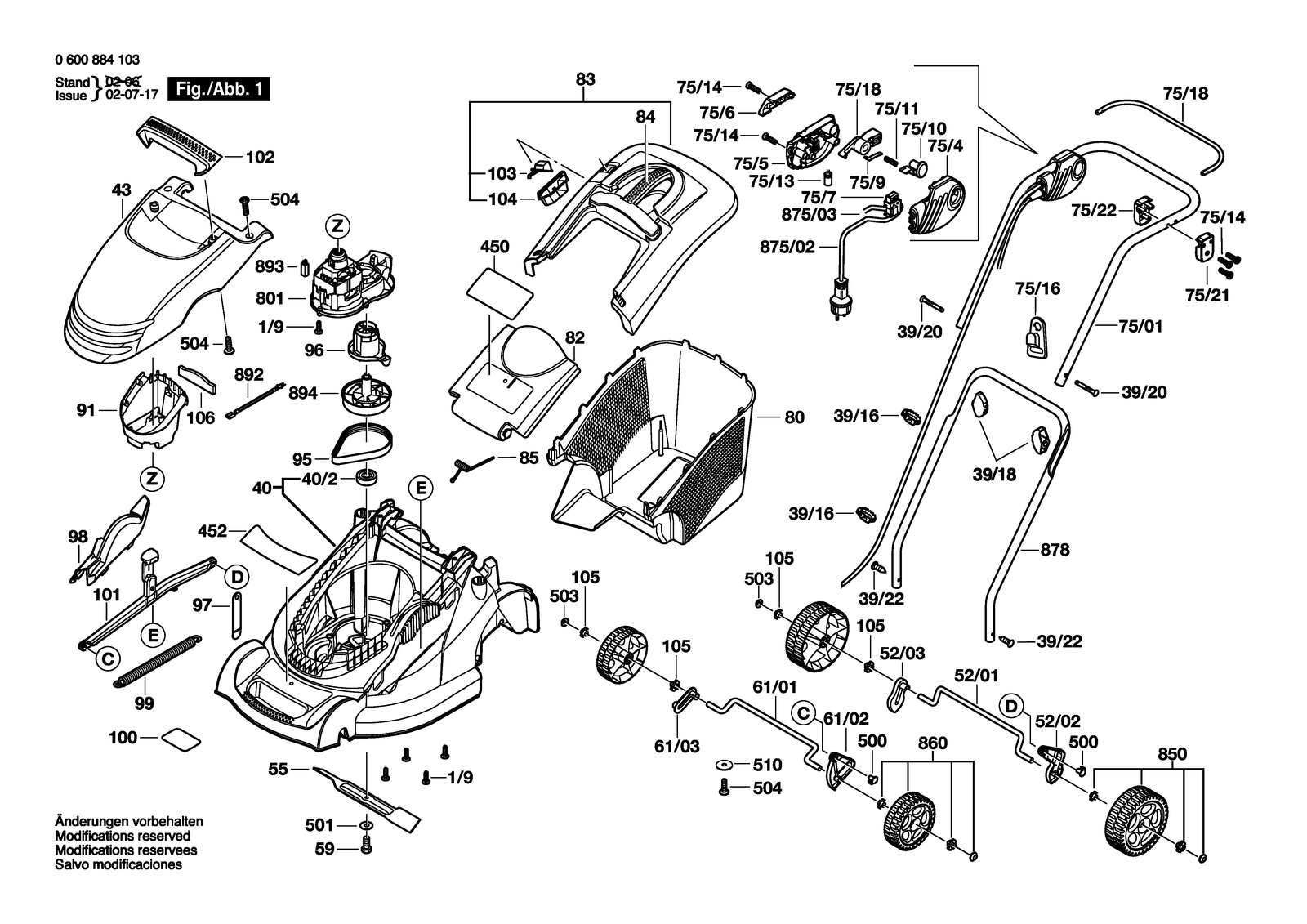

Bosch ROTAK 34 lawnmower: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 34: 67 positions on 1 sheet
Bosch ROTAK 34 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1/9 | F016L37433 | Self-Cutting Screw |
| 100 | F016L63829 | Balance Weights |
| 101 | F016L63653 | Linkage part |
| 102 | F016L63709 | Handle |
| 103 | F016L59150 | Indicator Holder |
| 104 | F016L64795 | Indicator Holder |
| 105 | F016L59372 | Bushing |
| 106 | F016L64075 | Filter Element |
| 39/16 | F016L11580 | Cable Cleat |
| 39/18 | F016L66136 | Wing Nut |
| 39/20 | F016L59277 | Bolt M6X50 |
| 39/22 | F016L36542 | Screw M5X8 Csk Hd. |
| 40 | F016103143 | Housing |
| 40/2 | F016L67442 | Bearing 6002-2RS |
| 43 | F016L63659 | Motor Hood |
| 450 | F016L63011 | Sticker |
| 452 | F016L63720 | Sticker |
| 500 | F016L63654 | Bolt |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 503 | F016L63953 | Cover |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 510 | F016L57338 | Plain Washer |
| 52/01 | F016L63633 | Axle |
| 52/02 | F016L59324 | Lever |
| 52/03 | F016L59373 | Spacer |
| 55 | F016L64190 | Cutter Blade |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 61/01 | F016L63633 | Axle |
| 61/02 | F016L59323 | Lever |
| 61/03 | F016L59325 | Spacer |
| 75/01 | F016L63712 | Handle |
| 75/10 | F016F05705 | Push-Button |
| 75/11 | F016L62860 | Spring |
| 75/13 | F016L36952 | Condenser |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/18 | F016102996 | Control Bar |
| 75/21 | F016T49629 | Holder |
| 75/22 | F016T49628 | Holder |
| 75/4 | F016L65739 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/6 | F016T49630 | Clamping Piece |
| 75/7 | F016F05717 | On-Off Switch |
| 75/9 | F016T49633 | Spiral Spring |
| 80 | F016L63630 | Catcher Container |
| 801 | F016103429 | Motor |
| 82 | F016L64785 | Guard Flap |
| 83 | F016102950 | Cover |
| 84 | F016L66441 | Handle Black |
| 85 | F016L64523 | Torsion Spring |
| 850 | F016102948 | Wheel |
| 860 | F016102949 | Wheel |
| 875/02 | F016102381 | Power supply cord |
| 875/02 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 875/02 | F016104086 | Power supply cord EU |
| 875/03 | F016102936 | Connecting Cable |
| 875/03 | F016104359 | Power supply cord Ch |
| 878 | F016102946 | Handle |
| 892 | F016102938 | Connecting Cable |
| 893 | F016102947 | Thermoswitch |
| 894 | F016103135 | Drive Shaft 115 MM |
| 91 | F016L64388 | Housing |
| 95 | F016L64219 | Drive Belt Green Z=8 |
| 96 | F016104211 | Belt Tensioner |
| 97 | F016L63734 | Leaf Spring |
| 98 | F016L63708 | Sealing cap |
| 99 | F016L59327 | Spring |
