Bosch ROTAK 320

Bosch ROTAK 320 lawnmower: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 320: 45 positions on 1 sheet

Bosch ROTAK 320 parts list (1 sheet)

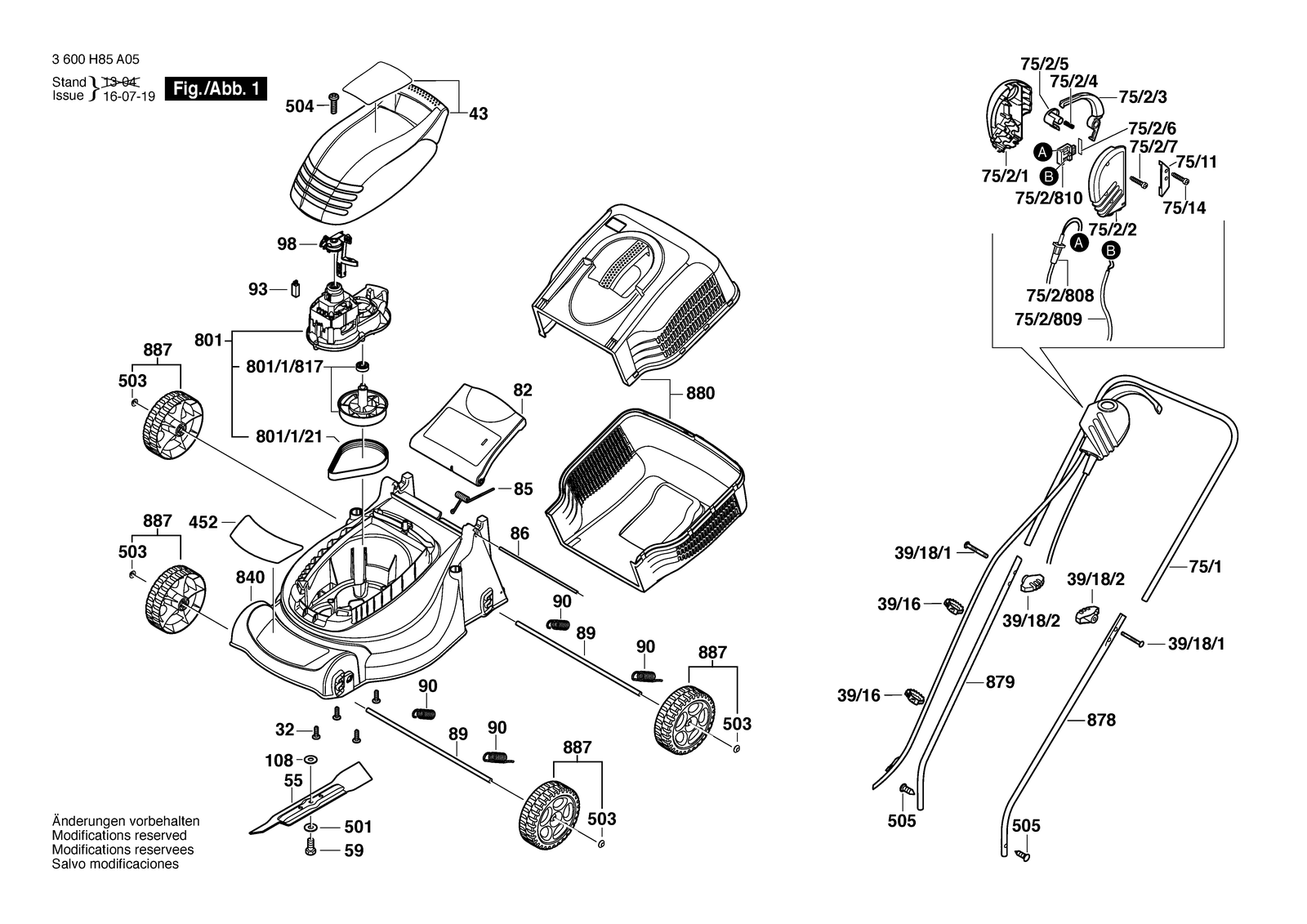

Bosch ROTAK 320 parts diagram, sheet 1
No.Part numberPart name
108F016L67627Bearing cover
32F016L37433Self-Cutting Screw
39/16F016L11580Cable Cleat
39/18/1F016L59277Bolt M6X50
39/18/2F016L66136Wing Nut
43F016L65009Motor Hood
452F016L65014Sticker Rotak 320
452F016L65238Sticker Rotak 3200
452F016L66608Sticker Rotak 1000
501F016T48185Plain Washer Black Ø8,15
503F016T48990Securing Cap Black Ø8 MM
504F016T49429Self-Cutting Screw 4X19 MM
505F016L36542Screw M5X8 Csk Hd.
551600A025F8Cutter Blade
59F016T48547Hex Screw M8X20 MM
75/1F016L62792Handle
75/11F016T56180Clamping Piece
75/14F016T49429Self-Cutting Screw 4X19 MM
75/2/1F016L66234Switch Housing
75/2/2F016L66235Switch Housing
75/2/3F016L66238Positioning Lever
75/2/4F016L66240Compression Spring
75/2/5F016F05705Push-Button
75/2/6F016T49845Leaf Spring
75/2/7F016T49429Self-Cutting Screw 4X19 MM
75/2/808F016104085Power supply cord GB 22M 2 X 0,75MM Without Plug
75/2/808F016104086Power supply cord EU
75/2/808F016104087Power supply cord CH 2 X 1,0MM H05 Vv-F
75/2/809F016103302Connecting Cable
75/2/810F016F05717On-Off Switch
801F016103298Motor
801/1/21F016L63607Drive Belt Z=7"
801/1/817F016103299Drive Shaft
82F016L65236Guard Flap
840F016103301Housing
85F016L63964Torsion Spring
86F016L36504Hinge Rod
878F016L66682Handle Bar Black
879F016L66655Handle Bar Black
880F016104018Collection box
887F016102937Wheel
89F016L90584Wire Guide
90F016L65773Spring
93F016L65199Thermal protector
98F016L90584Wire Guide
