Bosch ROTAK 32 LI lawnmower: exploded parts diagram, 2 sheets, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move

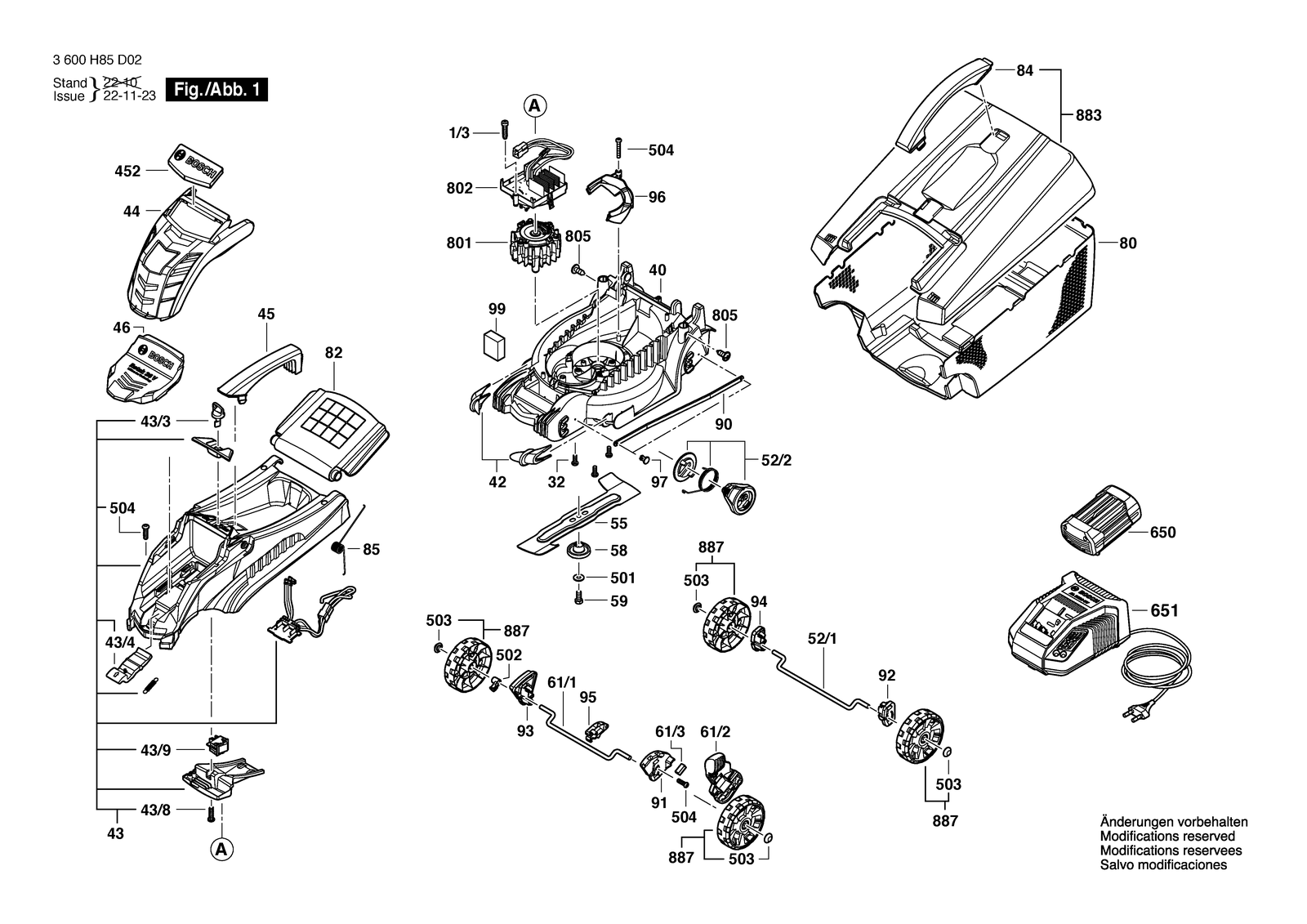

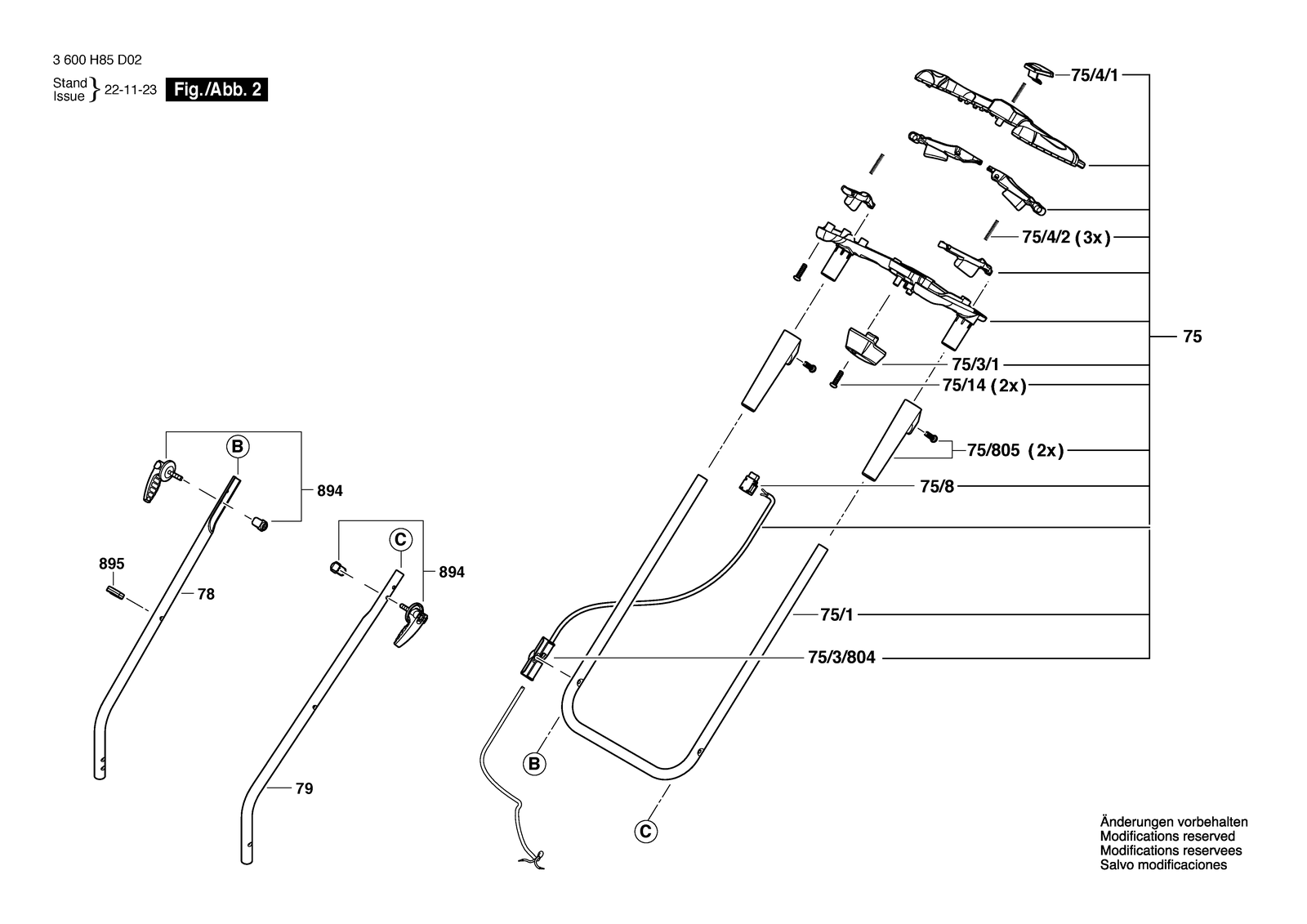

All parts on this sheet0
All parts of Bosch ROTAK 32 LI: 69 positions on 2 sheets
Bosch ROTAK 32 LI parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/3 | F016L66662 | Screw für Metall Deckel M4X35 |
| 32 | F016L66162 | Screw |
| 40 | 1600A00J5V | Mower deck Turquoise |
| 40 | F016L68051 | Mower deck Black |
| 42 | 1600A00J5T | Comb Silver |
| 42 | F016L66697 | Comb Red |
| 43 | 1600A00J64 | Motor Hood |
| 43 | F016L68000 | Motor Hood |
| 43/3 | F016L68003 | Key |
| 43/4 | F016L68004 | Release Lever |
| 43/8 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 43/9 | F016104250 | Switch |
| 44 | F016L68005 | Grille Silver |
| 44 | F016L68075 | Grille Black |
| 45 | F016L66654 | Carrying Handle |
| 452 | 1600A00K1Y | Company Logo |
| 452 | F016L68022 | Company Logo Rotak 32 LI |
| 452 | F016L68241 | Company Logo Rotak 32 LI High Power |
| 46 | F016L68006 | Battery Cover |
| 501 | F016T40590 | Plain Washer Ø8,15 MM |
| 502 | F016L68015 | Spacer Ø8,15 MM |
| 503 | F016T48990 | Securing Cap Black Ø8 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 52/1 | F016L68031 | Axle |
| 52/2 | F016L68050 | Lever |
| 55 | 1600A025F8 | Cutter Blade |
| 58 | F016L68024 | Adaptor plate |
| 59 | 160343508F | Hex Screw |
| 59 | F016L64679 | Trunnion |
| 61/1 | F016L68029 | Axle |
| 61/2 | F016L68012 | Lever |
| 61/3 | F016L68027 | Spring |
| 650 | 1607A350R2 | Battery Pack GBA 36V 4,0AH H-c |
| 650 | 2607336913 | Battery Pack 36V 2,0 Ah LI |
| 651 | 2607226273 | Fast Charger EU AL 36V-20/36V |
| 75 | F016L68053 | Handle top assembly |
| 75/1 | F016L68054 | Handle |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/3/1 | F016L67218 | Connector Housing |
| 75/3/804 | F016104213 | Cable Guide |
| 75/4/1 | F016L67150 | Push-Button |
| 75/4/2 | F016L67151 | Button Spring |
| 75/8 | F016104163 | Switch Kit |
| 75/805 | F016104161 | Sleeve |
| 78 | F016L66682 | Handle Bar Black |
| 79 | F016L66655 | Handle Bar Black |
| 80 | 1600A00J68 | Collector Box Bottom |
| 80 | F016L66683 | Collector Box Bottom |
| 801 | F016104219 | DC motor |
| 802 | F016104596 | Printed-Board Assembly |
| 805 | F016L36542 | Screw M5X8 Csk Hd. |
| 82 | 1600A00MY9 | Guard Flap |
| 82 | F016L66686 | Guard Flap |
| 84 | F016L66685 | Carrying Handle |
| 85 | F016L66687 | Closing spring |
| 883 | F016104032 | Collector Box Top |
| 883 | F016104370 | Collector Box Top |
| 887 | F016104220 | Wheel |
| 894 | F016L67530 | Clamping Lever |
| 895 | F016L66895 | Cable Clip Rotak II |
| 90 | F016L68025 | Linkage part |
| 91 | F016L68007 | Insert |
| 92 | F016L68008 | Insert |
| 93 | F016L68009 | Insert |
| 94 | F016L68010 | Insert |
| 95 | F016L68011 | Insert |
| 96 | F016L68018 | Grille |
| 97 | F016L68014 | Clip |
| 99 | F016L68034 | Balance Weights |
