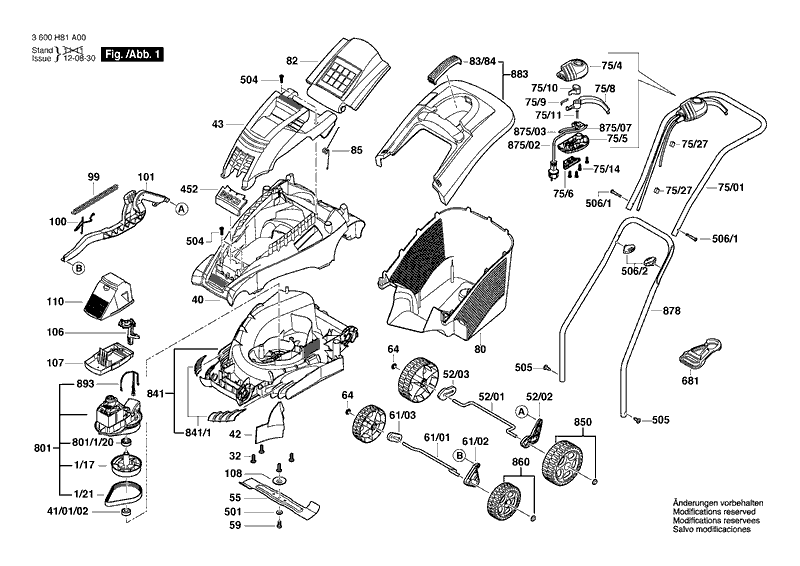

Bosch ROTAK 1400 lawnmower: exploded parts diagram, 1 sheet, 227 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROTAK 1400: 227 positions on 1 sheet
Bosch ROTAK 1400 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1/17 | F016103758 | Drive Shaft |
| 1/17 | F016103758 | Drive Shaft |
| 1/17 | F016103758 | Drive Shaft |
| 1/17 | F016103758 | Drive Shaft |
| 1/21 | F016L65351 | Drive Belt |
| 1/21 | F016L65351 | Drive Belt |
| 1/21 | F016L65351 | Drive Belt |
| 1/21 | F016L65351 | Drive Belt |
| 100 | F016L65790 | Spring |
| 100 | F016L65790 | Spring |
| 100 | F016L65790 | Spring |
| 100 | F016L65790 | Spring |
| 101 | F016L67260 | Linkage part |
| 101 | F016L67260 | Linkage part |
| 101 | F016L67260 | Linkage part |
| 101 | F016L67260 | Linkage part |
| 106 | F016L90584 | Wire Guide |
| 106 | F016L90584 | Wire Guide |
| 106 | F016L90584 | Wire Guide |
| 106 | F016L90584 | Wire Guide |
| 107 | F016L65538 | Filter Housing |
| 107 | F016L65539 | Filter Housing |
| 107 | F016L65539 | Filter Housing |
| 107 | F016L65539 | Filter Housing |
| 107 | F016L65538 | Filter Housing |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 110 | F016L65709 | Filter Housing |
| 110 | F016L65709 | Filter Housing |
| 110 | F016L65709 | Filter Housing |
| 110 | F016L65709 | Filter Housing |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 32 | F016L37433 | Self-Cutting Screw |
| 40 | F016L66158 | Mower deck |
| 40 | F016L66158 | Mower deck |
| 40 | F016L66158 | Mower deck |
| 40 | F016L66158 | Mower deck |
| 41/01/02 | F016L67442 | Bearing 6002-2RS |
| 41/01/02 | F016L67442 | Bearing 6002-2RS |
| 41/01/02 | F016L67442 | Bearing 6002-2RS |
| 41/01/02 | F016L67442 | Bearing 6002-2RS |
| 42 | F016L66038 | Cover Panel |
| 42 | F016L66038 | Cover Panel |
| 42 | F016L65497 | Cover Panel |
| 42 | F016L65497 | Cover Panel |
| 43 | F016L65159 | Motor Hood |
| 43 | F016L65159 | Motor Hood |
| 43 | F016L65159 | Motor Hood |
| 43 | F016L65159 | Motor Hood |
| 452 | F016L65123 | Insert Jacket |
| 452 | F016L66278 | Company Logo Rotak 1400 |
| 452 | F016L66271 | Company Logo Rotak 36 |
| 452 | F016L68312 | Company Logo Rotak 370 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 505 | F016L65803 | Screw |
| 505 | F016L65803 | Screw |
| 505 | F016L65803 | Screw |
| 505 | F016L65803 | Screw |
| 506/1 | F016L59277 | Bolt M6X50 |
| 506/1 | F016L59277 | Bolt M6X50 |
| 506/1 | F016L59277 | Bolt M6X50 |
| 506/1 | F016L59277 | Bolt M6X50 |
| 506/2 | F016L66136 | Wing Nut |
| 506/2 | F016L66136 | Wing Nut |
| 506/2 | F016L66136 | Wing Nut |
| 506/2 | F016L66136 | Wing Nut |
| 52/01 | F016L65706 | Axle |
| 52/01 | F016L65706 | Axle |
| 52/01 | F016L65706 | Axle |
| 52/01 | F016L65706 | Axle |
| 52/02 | F016L90582 | Lever |
| 52/02 | F016L90582 | Lever |
| 52/02 | F016L90582 | Lever |
| 52/02 | F016L90582 | Lever |
| 52/03 | F016L90583 | Spacer |
| 52/03 | F016L90583 | Spacer |
| 52/03 | F016L90583 | Spacer |
| 52/03 | F016L90583 | Spacer |
| 55 | F016L65157 | Cutter Blade 34 CM |
| 55 | F016L65157 | Cutter Blade 34 CM |
| 55 | F016L65400 | Cutter Blade |
| 55 | F016L65400 | Cutter Blade |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 61/01 | F016L65705 | Axle |
| 61/01 | F016L65705 | Axle |
| 61/01 | F016L65705 | Axle |
| 61/01 | F016L65705 | Axle |
| 61/02 | F016L90581 | Lever |
| 61/02 | F016L90581 | Lever |
| 61/02 | F016L90581 | Lever |
| 61/02 | F016L90581 | Lever |
| 61/03 | F016L90585 | Spacer |
| 61/03 | F016L90585 | Spacer |
| 61/03 | F016L90585 | Spacer |
| 61/03 | F016L90585 | Spacer |
| 64 | F016F05700 | Ratchet Cap |
| 64 | F016F05700 | Ratchet Cap |
| 64 | F016F05700 | Ratchet Cap |
| 64 | F016F05700 | Ratchet Cap |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 681 | 3601398000 | Strain-Relief Clamp |
| 75/01 | F016L66131 | Handle |
| 75/01 | F016L66131 | Handle |
| 75/01 | F016L66131 | Handle |
| 75/01 | F016L66131 | Handle |
| 75/10 | F016F05705 | Push-Button |
| 75/10 | F016F05705 | Push-Button |
| 75/10 | F016F05705 | Push-Button |
| 75/10 | F016F05705 | Push-Button |
| 75/11 | F016T49226 | Compression Spring |
| 75/11 | F016T49226 | Compression Spring |
| 75/11 | F016T49226 | Compression Spring |
| 75/11 | F016T49226 | Compression Spring |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/27 | F016L90575 | Cable Clip |
| 75/27 | F016L90575 | Cable Clip |
| 75/27 | F016L90575 | Cable Clip |
| 75/27 | F016L90575 | Cable Clip |
| 75/4 | F016L65739 | Switch Housing |
| 75/4 | F016L65739 | Switch Housing |
| 75/4 | F016L65739 | Switch Housing |
| 75/4 | F016L65739 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/6 | F016T49630 | Clamping Piece |
| 75/6 | F016T49630 | Clamping Piece |
| 75/6 | F016T49630 | Clamping Piece |
| 75/6 | F016T49630 | Clamping Piece |
| 75/8 | F016L66238 | Positioning Lever |
| 75/8 | F016L66238 | Positioning Lever |
| 75/8 | F016L66238 | Positioning Lever |
| 75/8 | F016L66238 | Positioning Lever |
| 75/9 | F016T49845 | Leaf Spring |
| 75/9 | F016T49845 | Leaf Spring |
| 75/9 | F016T49845 | Leaf Spring |
| 75/9 | F016T49845 | Leaf Spring |
| 80 | F016L65674 | Collector Box Bottom Black |
| 80 | F016L65674 | Collector Box Bottom Black |
| 80 | F016L65674 | Collector Box Bottom Black |
| 80 | F016L65674 | Collector Box Bottom Black |
| 801 | F016103595 | Motor |
| 801 | F016103595 | Motor |
| 801 | F016103595 | Motor |
| 801 | F016103595 | Motor |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 801/1/20 | F016L64594 | Bearing |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 82 | F016L66137 | Guard Flap |
| 83/84 | F016L66441 | Handle Black |
| 83/84 | F016L66441 | Handle Black |
| 83/84 | F016L66441 | Handle Black |
| 83/84 | F016L66441 | Handle Black |
| 841 | F016103597 | Housing |
| 841 | F016103597 | Housing |
| 841 | F016103598 | Housing |
| 841 | F016103598 | Housing |
| 841/1 | F016104315 | Cover |
| 841/1 | F016104316 | Cover |
| 841/1 | F016104316 | Cover |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 85 | F016L66165 | Spring |
| 850 | F016103662 | Wheel |
| 850 | F016103662 | Wheel |
| 850 | F016103662 | Wheel |
| 850 | F016103662 | Wheel |
| 860 | F016103663 | Wheel |
| 860 | F016103663 | Wheel |
| 860 | F016103663 | Wheel |
| 860 | F016103663 | Wheel |
| 875/02 | F016104086 | Power supply cord EU |
| 875/02 | F016104359 | Power supply cord Ch |
| 875/02 | F016L66967 | Power supply cord |
| 875/02 | F016104086 | Power supply cord EU |
| 875/02 | F016104086 | Power supply cord EU |
| 875/02 | F016104359 | Power supply cord Ch |
| 875/02 | F016104086 | Power supply cord EU |
| 875/03 | F016103602 | Connecting Cable |
| 875/03 | F016103602 | Connecting Cable |
| 875/03 | F016103602 | Connecting Cable |
| 875/03 | F016103602 | Connecting Cable |
| 875/07 | F016F05717 | On-Off Switch |
| 875/07 | F016F05717 | On-Off Switch |
| 875/07 | F016F05717 | On-Off Switch |
| 875/07 | F016F05717 | On-Off Switch |
| 878 | F016L65166 | Bottom handle |
| 878 | F016L65166 | Bottom handle |
| 878 | F016L65166 | Bottom handle |
| 878 | F016L65166 | Bottom handle |
| 883 | F016103608 | Cover |
| 883 | F016103608 | Cover |
| 883 | F016103608 | Cover |
| 883 | F016103608 | Cover |
| 893 | F016103604 | Thermal protector |
| 893 | F016103604 | Thermal protector |
| 893 | F016103604 | Thermal protector |
| 893 | F016103604 | Thermal protector |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
| 99 | F016L59327 | Spring |
