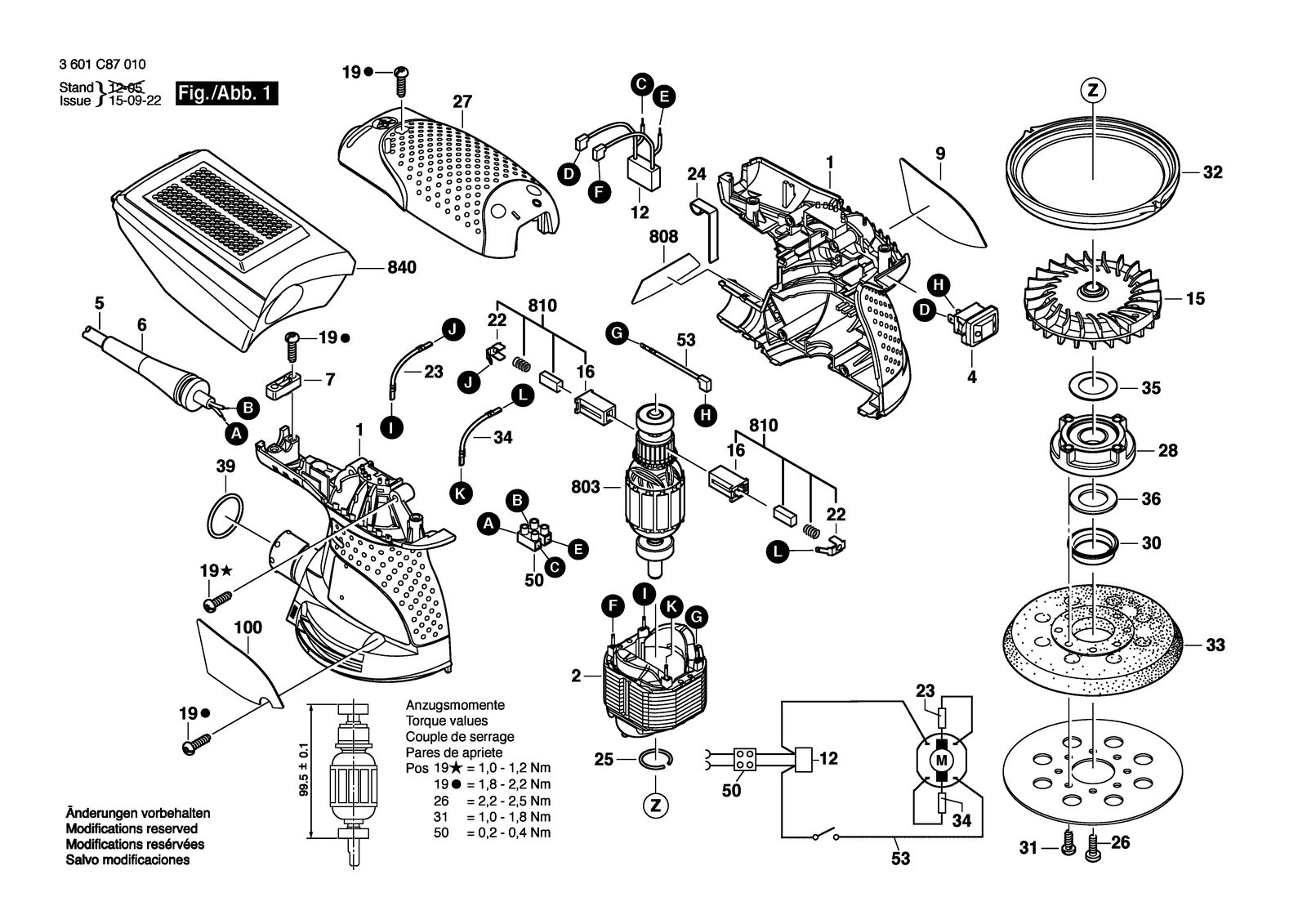

Bosch ROS 10 random orbital sander: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ROS 10: 33 positions on 1 sheet
Bosch ROS 10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100614 | Housing |
| 100 | 2609131561 | Warning Label |
| 12 | 2609120298 | Suppression Filter |
| 15 | 2609110637 | Fan |
| 16 | 2610320548 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609120195 | Stator 120V |
| 22 | 2610329896 | Connecting terminal |
| 23 | 2609120396 | Connecting Cable |
| 24 | 2601329043 | Contact Strap |
| 25 | 2916540005 | Retaining ring DIN 7993-A8 |
| 26 | 2610918116 | Torx Oval-Head Screw |
| 27 | 2609100616 | Housing Cover |
| 28 | 2609100862 | Bearing Flange |
| 30 | 2609100633 | Cover |
| 31 | 2610915161 | Screw |
| 32 | 2609170071 | Friction Ring |
| 33 | 1600A01CU1 | Rubber Backing Pad |
| 34 | 2609120396 | Connecting Cable |
| 35 | 2609110724 | Washer |
| 36 | 2609170084 | Felt |
| 39 | 1610210045 | O-Ring 23,0X3,0 MM |
| 4 | 1607200190 | Switch |
| 5 | 2604460186 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 50 | 2610910009 | Connection Block |
| 53 | 2609120284 | Connecting Cable |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 7 | 2601035001 | Cable Clip |
| 803 | 2609199166 | Armature 120V |
| 808 | 160111A5SD | Nameplate |
| 810 | 2609120199 | Carbon-Brush Set |
| 840 | 2609199179 | Dust container |
| 9 | 2609131386 | Label |
