Bosch RHS181

Bosch RHS181 cordless rotary hammer: exploded parts diagram, 2 sheets, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch RHS181: 49 positions on 2 sheets

Bosch RHS181 parts list (2 sheets)

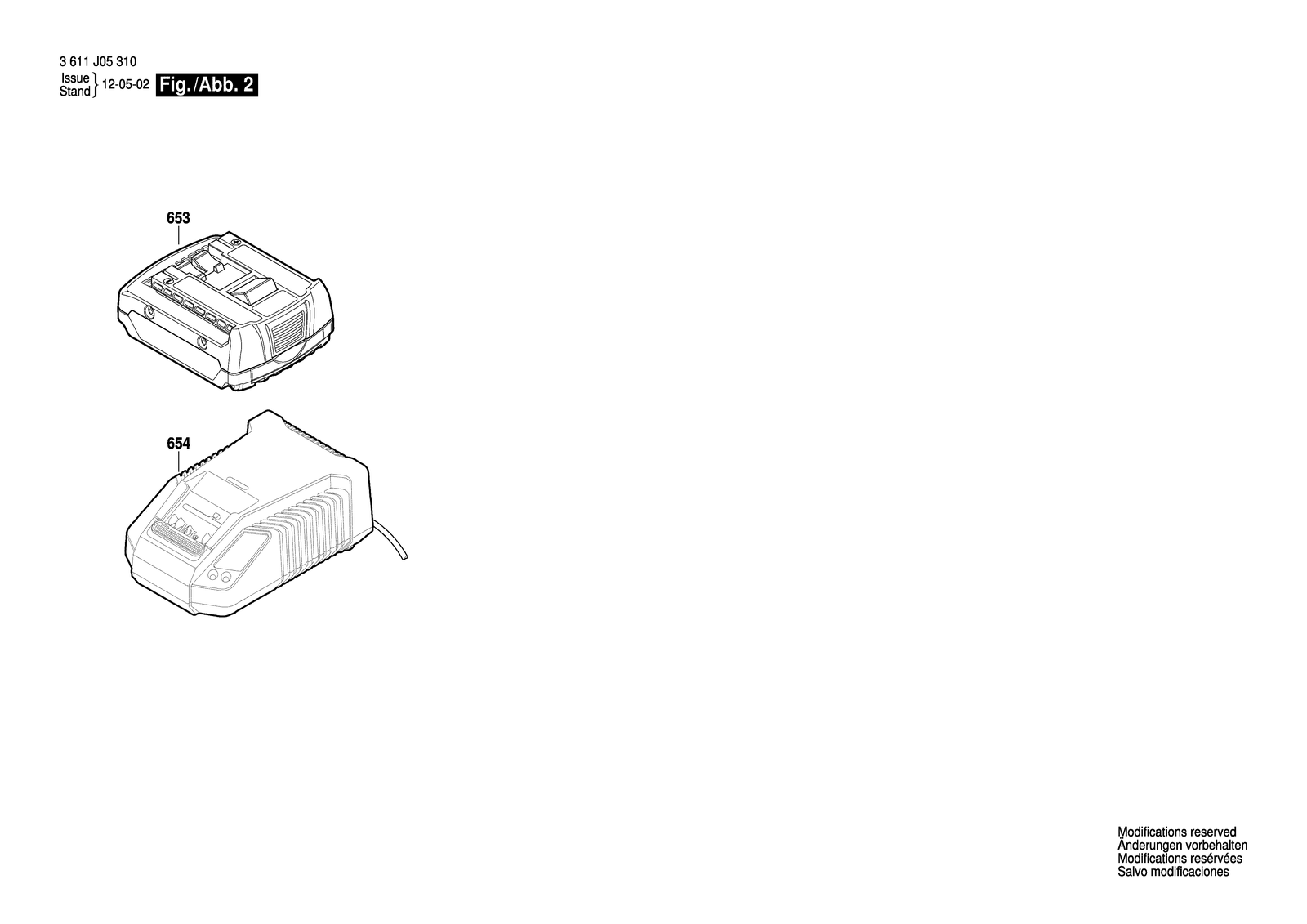

Bosch RHS181 parts diagram, sheet 1Bosch RHS181 parts diagram, sheet 2
No.Part numberPart name
11615104164Housing Section
101611110W35Manufacturer's nameplate
161610210243O-Ring 32,0X1,5 MM
191610210231O-Ring 14,2X2,0 MM
21/231616312013Cylindrical Gear
21/281613124107Striker Pin
21/311614601075Retaining ring
21/341610210113O-Ring 11,3X4,75 MM
21/391614601076Retaining ring
21/451610283048Shaft Seal
21/461614601054Retaining ring
21/471610910071Needle bearing
21/501610400047Guide Bushing
21/511610100025Supporting Disc Thick 1,0 MM
251613160017Jack Shaft
25/121610913024Thrust Needle Rim
25/131610100024Support Disc
32/11610210233O-Ring 12,0X2,0 MM
326/291613100039Piston Pin
326/381610100608Shim washer Thick 1,2 MM
326/561610210232O-Ring 13,0X2,5 MM
351611329032Pressure Lever
361613101015Adjusting Pin
372600917003Needle-Roller Bearing Ø8X8 MM
41607233412Electronics Module
421611031008Brake Plate
431610499080Protection Sleeve
441610508052Protective Cap
481610913027Needle-Roller Assembly
491610102617Support Disc Thick 1,0 MM
51609280477Compression Spring
591610102045Friction Washer Thick 1,0 MM
6532607336819Battery Pack Usa BAT620 18V 4,0AH
71611320001U-Sheet 0,9 MM
71611320002U-Sheet 0,7 MM
71611320003U-Sheet 0,8 MM
701903230013Ball DIN 5401-Ø7MM-III-ST
711613490028Torx Oval-Head Screw
80216170006CWDC motor
8081611110W55Nameplate
82016170006CXIntermediate Flange
8211615806252Hammer Pipe
82716170006D0Hammer Piston
83316170006D1Clamp Handle
841613231029Switch Slide
84416170006D3Protection Sleeve
873600224038Spring retaining ring
8911609280478Contact retainer
901600A000LELens
