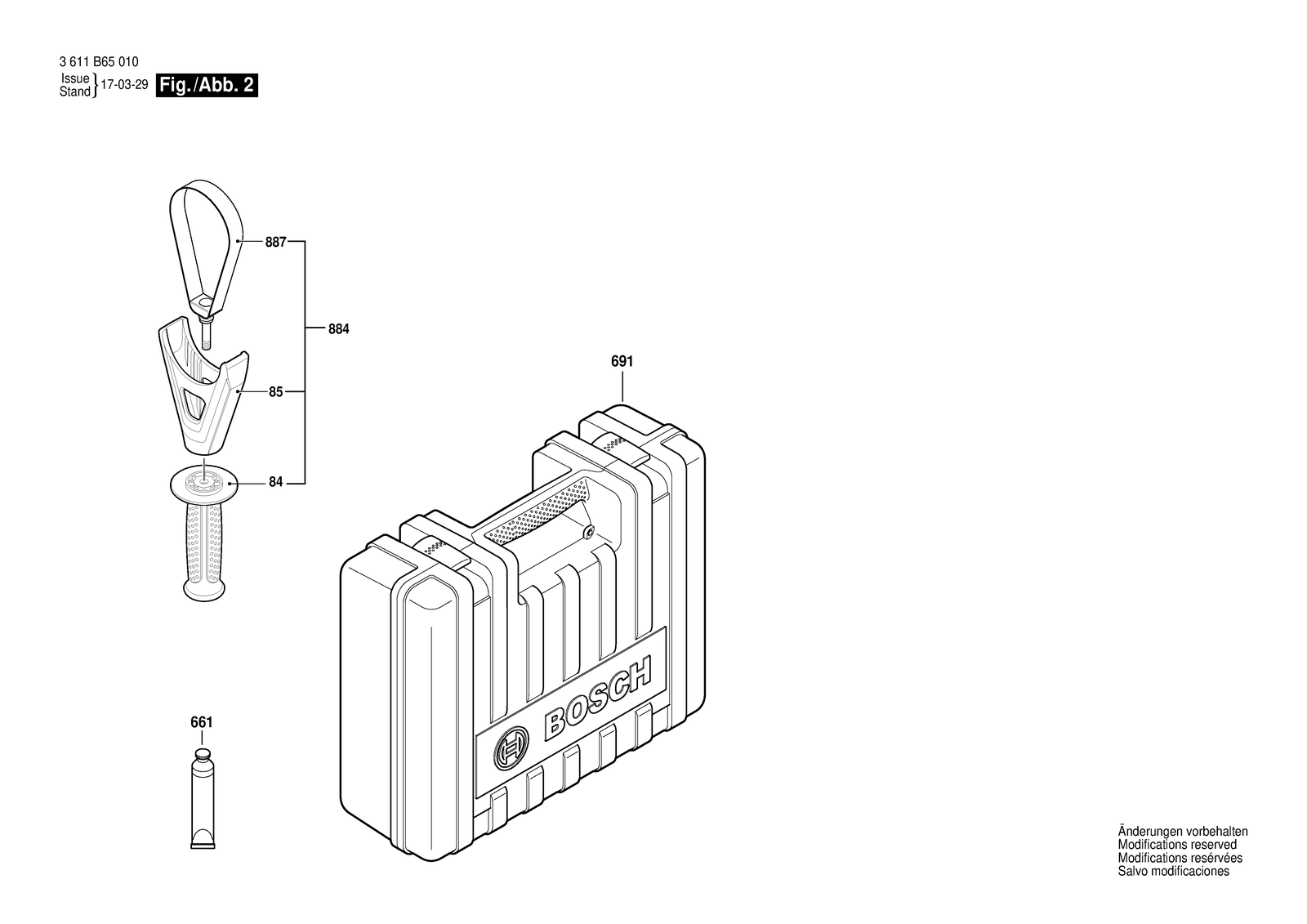

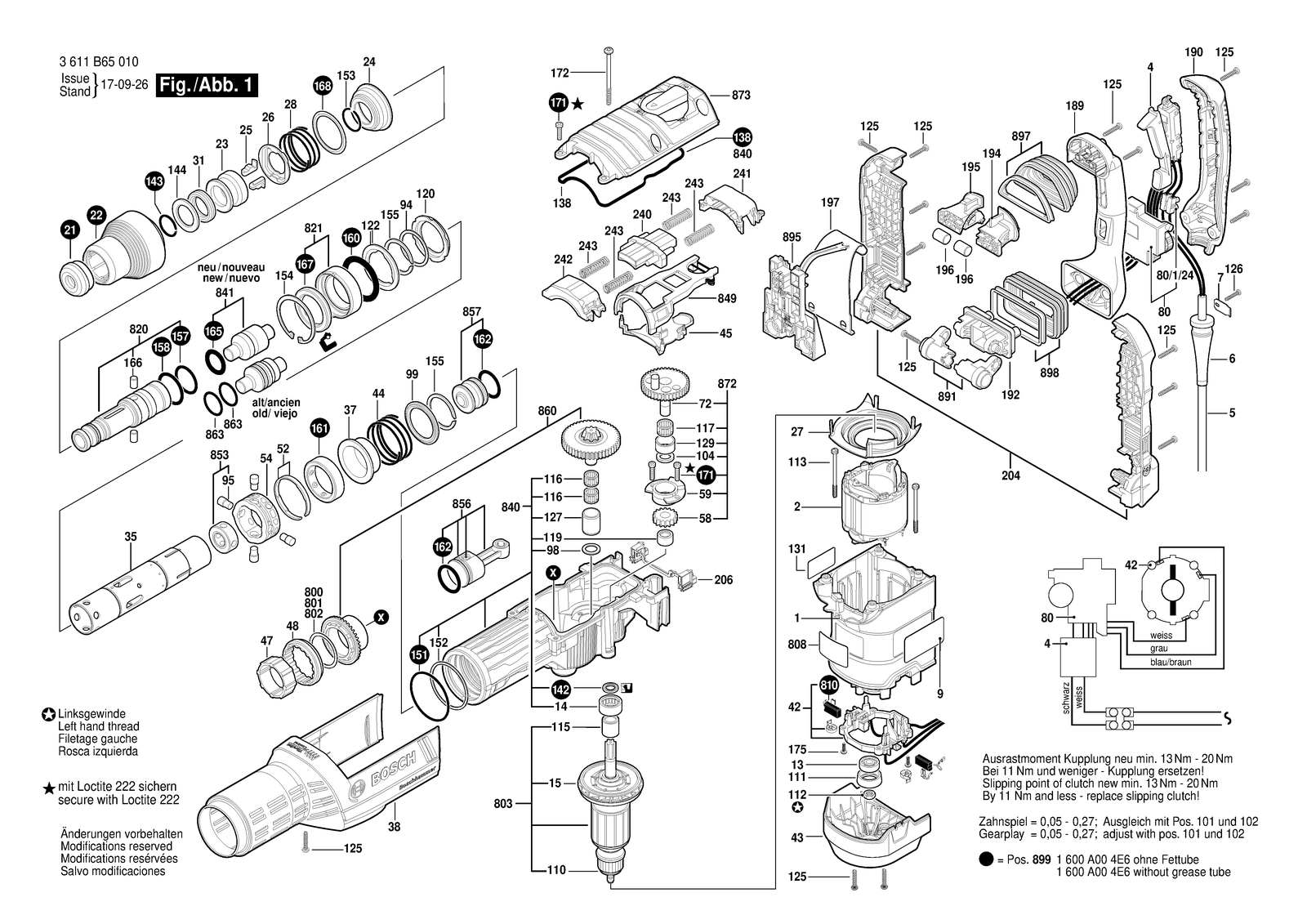

Bosch RH850VC
Bosch RH850VC rotary hammer: exploded parts diagram, 2 sheets, 232 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch RH850VC: 232 positions on 2 sheets
Bosch RH850VC parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108165 | Motor Housing |
| 1 | 1615108165 | Motor Housing |
| 104 | 1610190027 | Stop Disc |
| 104 | 1610190027 | Stop Disc |
| 110 | 1610190073 | Seal Ring |
| 110 | 1610190073 | Seal Ring |
| 111 | 1610290046 | Bushing |
| 111 | 1610290046 | Bushing |
| 112 | 1613300007 | Hex Nut |
| 112 | 1613300007 | Hex Nut |
| 113 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 113 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 115 | 1610300086 | Bushing |
| 115 | 1610300086 | Bushing |
| 116 | 1610913029 | Needle-Roller Assembly |
| 116 | 1610913029 | Needle-Roller Assembly |
| 117 | 1610913023 | Needle-Roller Assembly |
| 117 | 1610913023 | Needle-Roller Assembly |
| 119 | 1610910081 | Needle-Roller Bearing |
| 119 | 1610910081 | Needle-Roller Bearing |
| 120 | 1610190080 | Spacer Tube |
| 120 | 1610190080 | Spacer Tube |
| 122 | 1610290128 | Spacer Ring |
| 122 | 1610290128 | Spacer Ring |
| 125 | 1613435040 | Torx Oval-Head Screw |
| 125 | 1613435040 | Torx Oval-Head Screw |
| 126 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 126 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 127 | 1610300079 | Bushing |
| 127 | 1610300079 | Bushing |
| 129 | 1610300080 | Bushing |
| 129 | 1610300080 | Bushing |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 131 | 161111A084 | Warning Plate |
| 131 | 161111A084 | Warning Plate |
| 138 | 1611015064 | Sealing Frame |
| 138 | 1611015064 | Sealing Frame |
| 14 | 1610910096 | Needle-Roller Bearing |
| 14 | 1610910096 | Needle-Roller Bearing |
| 142 | 1610290112 | Rotary shaft lip seal |
| 142 | 1610290112 | Rotary shaft lip seal |
| 143 | 1614601072 | Retaining ring |
| 143 | 1614601072 | Retaining ring |
| 144 | 1610103025 | Supporting Disc |
| 144 | 1610103025 | Supporting Disc |
| 15 | 1616610109 | Fan |
| 15 | 1616610109 | Fan |
| 151 | 1610210222 | O-Ring |
| 151 | 1610210222 | O-Ring |
| 152 | 1614601073 | Retaining ring |
| 152 | 1614601073 | Retaining ring |
| 153 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 153 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 154 | 2916660027 | Spring retaining ring DIN 472 62X2 MM |
| 154 | 2916660027 | Spring retaining ring DIN 472 62X2 MM |
| 155 | 1614601074 | Retaining ring |
| 155 | 1614601074 | Retaining ring |
| 157 | 1610210103 | O-Ring 33,0X2,0 MM |
| 157 | 1610210103 | O-Ring 33,0X2,0 MM |
| 158 | 1610210224 | O-Ring |
| 158 | 1610210224 | O-Ring |
| 160 | 1610210246 | O-Ring |
| 160 | 1610210246 | O-Ring |
| 161 | 1610210227 | Damping Ring |
| 161 | 1610210227 | Damping Ring |
| 162 | 1600210080 | O-Ring |
| 162 | 1600210080 | O-Ring |
| 165 | 1610290125 | Seal Ring |
| 165 | 1610290125 | Seal Ring |
| 166 | 1613200020 | Cylindrical Roller |
| 166 | 1613200020 | Cylindrical Roller |
| 167 | 161029012A | Rotary shaft lip seal |
| 167 | 161029012A | Rotary shaft lip seal |
| 168 | 1610206027 | Packing Washer |
| 168 | 1610206027 | Packing Washer |
| 171 | 1613414026 | Torx socket button screw |
| 171 | 1613414026 | Torx socket button screw |
| 172 | 1613435041 | Torx Oval-Head Screw |
| 172 | 1613435041 | Torx Oval-Head Screw |
| 175 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 175 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 189 | 1615133038 | Handle |
| 189 | 1615133038 | Handle |
| 190 | 1615500438 | Handle Cover |
| 190 | 1615500438 | Handle Cover |
| 192 | 1614611028 | Rocker Foot |
| 192 | 1614611028 | Rocker Foot |
| 194 | 1610099018 | Screw Plate |
| 194 | 1610099018 | Screw Plate |
| 195 | 1610099019 | Screw Plate |
| 195 | 1610099019 | Screw Plate |
| 196 | 1610026004 | Damping rubber |
| 196 | 1610026004 | Damping rubber |
| 197 | 1616232000 | Leaf Spring |
| 197 | 1616232000 | Leaf Spring |
| 2 | 1614220141 | Field 110-120V |
| 2 | 1614220141 | Field 110-120V |
| 204 | 1615102162 | Rear Housing Section |
| 204 | 1615102162 | Rear Housing Section |
| 206 | 1612386006 | Holding strip |
| 206 | 1612386006 | Holding strip |
| 21 | 1610508038 | Protective Cap |
| 21 | 1610508038 | Protective Cap |
| 22 | 1610591051 | Protection Sleeve |
| 22 | 1610591051 | Protection Sleeve |
| 23 | 1610520006 | Stop Sleeve |
| 23 | 1610520006 | Stop Sleeve |
| 24 | 1610500025 | Headed Bush |
| 24 | 1610500025 | Headed Bush |
| 240 | 1600A000K3 | Counterweight |
| 240 | 1600A000K3 | Counterweight |
| 241 | 1615190181 | Guide Piece |
| 241 | 1615190181 | Guide Piece |
| 242 | 1615190182 | Guide Piece |
| 242 | 1615190182 | Guide Piece |
| 243 | 1614621013 | Compression Spring |
| 243 | 1614621013 | Compression Spring |
| 25 | 1612300027 | Stopping Device |
| 25 | 1612300027 | Stopping Device |
| 26 | 1600A019WL | Indexing Disk |
| 26 | 1600A019WL | Indexing Disk |
| 27 | 160059105C | Air-Deflector Ring |
| 27 | 160059105C | Air-Deflector Ring |
| 28 | 1614621010 | Compression Spring |
| 28 | 1614621010 | Compression Spring |
| 31 | 1610290129 | Damping Ring |
| 31 | 1610290129 | Damping Ring |
| 35 | 1615806249 | Hammer Pipe |
| 35 | 1615806249 | Hammer Pipe |
| 37 | 1610322018 | Control Bushing |
| 37 | 1610322018 | Control Bushing |
| 38 | 1615190177 | Covering hood |
| 38 | 1615190177 | Covering hood |
| 4 | 1617200130 | Switch |
| 4 | 1617200130 | Switch |
| 42 | 1614336090 | Brush Holder |
| 42 | 1614336090 | Brush Holder |
| 43 | 1615500435 | Brush-Cover |
| 43 | 1615500435 | Brush-Cover |
| 44 | 1614621020 | Compression Spring |
| 44 | 1614621020 | Compression Spring |
| 45 | 1610591052 | Holding-Down-Appliance |
| 45 | 1610591052 | Holding-Down-Appliance |
| 47 | 1610300076 | Gear Sleeve |
| 47 | 1610300076 | Gear Sleeve |
| 48 | 1619990177 | Clutch Sleeve |
| 48 | 1619990177 | Clutch Sleeve |
| 5 | 1614460101 | Power supply cord |
| 5 | 1614460101 | Power supply cord |
| 52 | 1610224015 | Retaining snap ring |
| 52 | 1610224015 | Retaining snap ring |
| 54 | 1600A019Z4 | Spacer Tube |
| 54 | 1600A019Z4 | Spacer Tube |
| 58 | 1616317620 | Cylindrical Gear |
| 58 | 1616317620 | Cylindrical Gear |
| 59 | 1615805074 | Bearing Pedestal |
| 59 | 1615805074 | Bearing Pedestal |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 72 | 1616317090 | Eccentric Cog Wheel |
| 72 | 1616317090 | Eccentric Cog Wheel |
| 80 | 16072335R3 | Speed governor |
| 80 | 16072335R3 | Speed governor |
| 80/1/24 | 1611091006 | Connecting terminal 2-POLE |
| 80/1/24 | 1611091006 | Connecting terminal 2-POLE |
| 801 | 1610102096 | Shim 0,45 MM |
| 801 | 1610102096 | Shim 0,45 MM |
| 802 | 1610102095 | Shim 0,30 MM |
| 802 | 1610102095 | Shim 0,30 MM |
| 803 | 1614010280 | Armature With Fan 120V |
| 803 | 1614010280 | Armature With Fan 120V |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3H5 | Nameplate |
| 810 | 1617014145 | Carbon-Brush Set |
| 810 | 1617014145 | Carbon-Brush Set |
| 820 | 1618597102 | Toolholder |
| 820 | 1618597102 | Toolholder |
| 821 | 1610508058 | Plain bearing |
| 821 | 1610508058 | Plain bearing |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1617000A29 | Impact Mechanism Housing |
| 840 | 1617000A29 | Impact Mechanism Housing |
| 841 | 1617000A4R | Striker Pin |
| 841 | 1617000A4R | Striker Pin |
| 849 | 1617000A31 | Control Fork |
| 849 | 1617000A31 | Control Fork |
| 85 | 1618040095 | Support clamp |
| 85 | 1618040095 | Support clamp |
| 853 | 1610231004 | Guide Bushing |
| 853 | 1610231004 | Guide Bushing |
| 856 | 1617000A32 | Hammer Piston |
| 856 | 1617000A32 | Hammer Piston |
| 857 | 1617000A33 | Striker |
| 857 | 1617000A33 | Striker |
| 860 | 1607000EL4 | Spur Wheel Clutch |
| 860 | 1607000EL4 | Spur Wheel Clutch |
| 863 | 1610210229 | O-Ring |
| 863 | 1610210229 | O-Ring |
| 872 | 1617000A35 | Eccentric |
| 872 | 1617000A35 | Eccentric |
| 873 | 1617000A36 | Housing Cover |
| 873 | 1617000A36 | Housing Cover |
| 884 | 1612025004 | Auxiliary Handle |
| 884 | 1612025004 | Auxiliary Handle |
| 887 | 1617000807 | Clamping Band Ø87 MM |
| 887 | 1617000807 | Clamping Band Ø87 MM |
| 891 | 1612099005 | Rocker Arm |
| 891 | 1612099005 | Rocker Arm |
| 895 | 1613120024 | Diaphragm |
| 895 | 1613120024 | Diaphragm |
| 897 | 1610415005 | Bellows |
| 897 | 1610415005 | Bellows |
| 898 | 1610415004 | Bellows |
| 898 | 1610415004 | Bellows |
| 899 | 1600A004E6 | Service package |
| 899 | 1600A004E6 | Service package |
| 9 | 161111A083 | Sticker RH850VC |
| 9 | 161111A083 | Sticker RH850VC |
| 94 | 1610290111 | Supporting Disc |
| 94 | 1610290111 | Supporting Disc |
| 95 | 1613120023 | Driving Pin |
| 95 | 1613120023 | Driving Pin |
| 98 | 1610101015 | Shim ring Thick 1,0 MM |
| 98 | 1610101015 | Shim ring Thick 1,0 MM |
| 99 | 1600220029 | Backup ring |
| 99 | 1600220029 | Backup ring |
