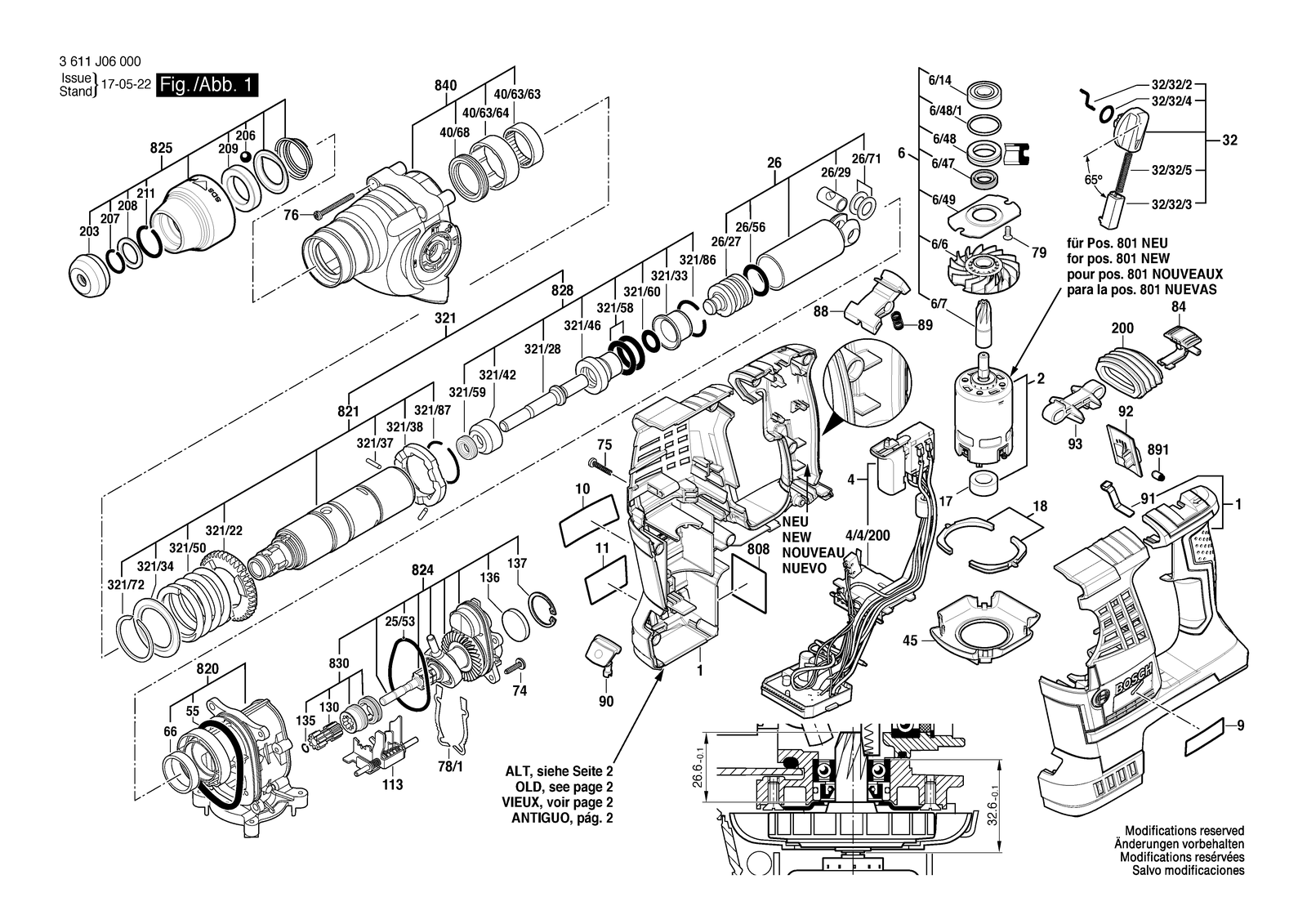

Bosch RH328 VC-36 cordless rotary hammer: exploded parts diagram, 2 sheets, 205 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch RH328 VC-36: 205 positions on 2 sheets
Bosch RH328 VC-36 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082GT | Housing Section |
| 1 | 16051082GT | Housing Section |
| 10 | 160111C1CN | Manufacturer's nameplate |
| 10 | 60829427VX | Warning Plate |
| 11 | 161111C02G | Reference Plate |
| 11 | 161111C037 | Reference Plate |
| 113 | 1616325002 | Switching Panel |
| 113 | 1616325002 | Switching Panel |
| 120 | 160202508Y | Auxiliary Handle |
| 120 | 160202508Y | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490001 | T-Head Bolt M8X80 MM |
| 120/125 | 1613490001 | T-Head Bolt M8X80 MM |
| 120/802 | 1617000685 | Support clamp |
| 120/802 | 1617000685 | Support clamp |
| 130 | 1616333049 | Gear Sleeve |
| 130 | 1616333049 | Gear Sleeve |
| 135 | 1614601067 | Retaining ring |
| 135 | 1614601067 | Retaining ring |
| 136 | 1610205017 | Felt Disc |
| 136 | 1610205017 | Felt Disc |
| 137 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 137 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 17 | 1600A001HK | Bearing Ring |
| 17 | 1600A001HK | Bearing Ring |
| 18 | 1600A001FP | Motor Bearing |
| 18 | 1600A001FP | Motor Bearing |
| 2 | 1607022662 | DC motor |
| 2 | 1607022662 | DC motor |
| 200 | 1600A001CL | Bellows |
| 200 | 1600A001CL | Bellows |
| 203 | 1610508047 | Protective Cap |
| 203 | 1610508047 | Protective Cap |
| 206 | 1613230003 | Ball Ø7,3 MM |
| 206 | 1613230003 | Ball Ø7,3 MM |
| 207 | 1614601027 | Retaining ring |
| 207 | 1614601027 | Retaining ring |
| 208 | 1610101629 | Retaining Washer |
| 208 | 1610101629 | Retaining Washer |
| 209 | 1610102638 | Friction Washer |
| 209 | 1610102638 | Friction Washer |
| 211 | 2916540012 | Retaining ring DIN 7993-A22 |
| 211 | 2916540012 | Retaining ring DIN 7993-A22 |
| 25/53 | 1610210245 | O-Ring |
| 25/53 | 1610210245 | O-Ring |
| 26 | 16170006A5 | Hammer Piston |
| 26 | 16170006A5 | Hammer Piston |
| 26/27 | 1610311019 | Striker |
| 26/27 | 1610311019 | Striker |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/56 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 26/56 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 26/71 | 1610100016 | Guide Disc |
| 26/71 | 1610100016 | Guide Disc |
| 32 | 1612026151 | Clamp Handle Black |
| 32 | 1612026151 | Clamp Handle Black |
| 32/32/2 | 1614690009 | Driver Pin |
| 32/32/2 | 1614690009 | Driver Pin |
| 32/32/3 | 1612026035 | Switch Button Red |
| 32/32/3 | 1612026035 | Switch Button Red |
| 32/32/4 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/32/4 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/32/5 | 1614611006 | Compression Spring |
| 32/32/5 | 1614611006 | Compression Spring |
| 321 | 16170006CA | Toolholder |
| 321 | 16170006CA | Toolholder |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124098 | Striker Pin |
| 321/28 | 1613124098 | Striker Pin |
| 321/33 | 1610590020 | Holding Jacket |
| 321/33 | 1610590020 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102084 | Thrust Ring |
| 321/42 | 1610102084 | Thrust Ring |
| 321/46 | 1610390068 | Guide Bushing |
| 321/46 | 1610390068 | Guide Bushing |
| 321/50 | 1614615008 | Compression Spring |
| 321/50 | 1614615008 | Compression Spring |
| 321/58 | 1610210105 | O-Ring 18,0X3,5 MM |
| 321/58 | 1610210105 | O-Ring 18,0X3,5 MM |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/60 | 1610210209 | O-Ring 9,5X3,5 MM |
| 321/60 | 1610210209 | O-Ring 9,5X3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/72 | 1604601027 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 4 | 1600A00A4B | Electronics Module |
| 4 | 1600A00A4B | Electronics Module |
| 4/4/200 | 1609280A56 | Contact retainer |
| 40/63/63 | 1600A001CN | Needle bearing |
| 40/63/63 | 1600A001CN | Needle bearing |
| 40/63/64 | 1610390069 | Bushing |
| 40/63/64 | 1610390069 | Bushing |
| 40/68 | 1610283036 | Rotary shaft lip seal |
| 40/68 | 1610283036 | Rotary shaft lip seal |
| 45 | 1610591055 | Air-Deflector Ring |
| 45 | 1610591055 | Air-Deflector Ring |
| 55 | 1610210206 | Seal Ring 63,0X5,0 MM |
| 55 | 1610210206 | Seal Ring 63,0X5,0 MM |
| 6 | 1617000A5F | Drive pinion |
| 6 | 1617000A5F | Drive pinion |
| 6/14 | 1610905044 | Groove ball bearing |
| 6/14 | 1610905044 | Groove ball bearing |
| 6/47 | 1610283047 | Rotary shaft lip seal |
| 6/47 | 1610283047 | Rotary shaft lip seal |
| 6/48 | 1610290102 | Bearing Ring |
| 6/48 | 1610290102 | Bearing Ring |
| 6/48/1 | 1610210208 | O-Ring 24,0X2,0 MM |
| 6/48/1 | 1610210208 | O-Ring 24,0X2,0 MM |
| 6/49 | 1615700044 | End Shield |
| 6/49 | 1615700044 | End Shield |
| 6/6 | 1616610157 | Fan |
| 6/6 | 1616610157 | Fan |
| 6/7 | 1600A01143 | Drive pinion |
| 6/7 | 1600A01143 | Drive pinion |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 653 | 1607A3504R | Battery Pack J GBA 36V 6.0AH |
| 653 | 1607A3504S | Battery Pack Kr, 36V, 6.0AH, LI |
| 653 | 1607A350R2 | Battery Pack GBA 36V 4,0AH H-c |
| 653 | 1607A350R4 | Battery Pack GBA 36V 4,0AH H-c Japan |
| 653 | 1607A350RC | Battery Pack GBA 36V 6.0AH H-c |
| 653 | 1607A350RD | Battery Pack GBA 36V 6,0AH H-c Japan |
| 653 | 2607336891 | Slide-In Accu Package BAT838 36V 4,0AH |
| 654 | 2607225903 | Fast Charger Au GAL 3680 CV 240/14,4-36V |
| 654 | 2607225907 | Fast Charger Sam/mex GAL 3680 CV 115/14,4-36V |
| 654 | 2607225909 | Fast Charger J GAL 3680 CV 100/14,4-36V |
| 654 | 2607225913 | Fast Charger Brasilien GAL 3680 CV 220/14,4-36V |
| 654 | 2607225915 | Fast Charger Cn GAL 3680 CV 220/14,4-36V |
| 654 | 2607226031 | Fast Charger Tj GAL 3680 CV 115/14,4-36V |
| 654 | 2607226457 | Charger EU GAL 3680 CV 230/14,4-36V |
| 654 | 2607226459 | Charger Gb GAL 3680 CV 230/14,4-26V |
| 654 | 2607226461 | Charger Gb GAL 3680 CV 230/14,4-36V |
| 654 | 2607225905 | Fast Charger Usa/cnd GAL 3680 CV 120/14,4-36V |
| 66 | 1610202021 | Plain bearing |
| 66 | 1610202021 | Plain bearing |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 74 | 160343000V | Torx Oval-Head Screw |
| 74 | 160343000V | Torx Oval-Head Screw |
| 75 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 75 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 76 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 76 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 78/1 | 1600A003TA | Shim 0,3 MM |
| 78/1 | 1600A004FU | Shim 0,15 MM |
| 78/1 | 1600A004FV | Shim 0,45 MM |
| 78/1 | 1600A003TA | Shim 0,3 MM |
| 78/1 | 1600A004FU | Shim 0,15 MM |
| 78/1 | 1600A004FV | Shim 0,45 MM |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 801 | 16051082FG | Housing Section |
| 801 | 16051082D9 | Housing Section |
| 802 | 1617000A5H | DC motor |
| 802 | 1617000A5H | DC motor |
| 804 | 1600A011GZ | Electronics Module |
| 804 | 1600A011GZ | Electronics Module |
| 808 | 160111A3H9 | Nameplate |
| 808 | 160111A3H9 | Nameplate |
| 820 | 1617000A5J | Intermediate Flange |
| 820 | 1617000A5J | Intermediate Flange |
| 821 | 16170006C9 | Tool Holding Fixture |
| 821 | 16170006C9 | Tool Holding Fixture |
| 824 | 1617000A5K | Jack Shaft |
| 824 | 1617000A5K | Jack Shaft |
| 825 | 16170006CB | Tool Holding Fixture |
| 825 | 16170006CB | Tool Holding Fixture |
| 828 | 1617000697 | Striker Pin |
| 828 | 1617000697 | Striker Pin |
| 830 | 1617000698 | Gear Sleeve |
| 830 | 1617000698 | Gear Sleeve |
| 84 | 1600A001E5 | Switch Slide |
| 84 | 1600A001E5 | Switch Slide |
| 840 | 1617000699 | Impact Mechanism Housing Black |
| 840 | 1617000699 | Impact Mechanism Housing Black |
| 88 | 1600A001CM | Push-Button |
| 88 | 1600A001CM | Push-Button |
| 89 | 1604612007 | Compression Spring |
| 89 | 1604612007 | Compression Spring |
| 891 | 1600A007JV | Thrust Member |
| 9 | 160111C1CP | Manufacturer's nameplate |
| 9 | 161111C036 | Manufacturer's nameplate |
| 90 | 1600A001E3 | Lens |
| 90 | 1600A001E3 | Lens |
| 91 | 1601200006 | Leaf Spring |
| 91 | 1601200006 | Leaf Spring |
| 92 | 1600A001ED | Control Element |
| 92 | 1600A001ED | Control Element |
| 93 | 1600A0022Y | Guide Piece |
| 93 | 1600A0022Y | Guide Piece |
