Bosch RH1255VC

Bosch RH1255VC rotary hammer: exploded parts diagram, 2 sheets, 122 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch RH1255VC: 122 positions on 2 sheets

Bosch RH1255VC parts list (2 sheets)

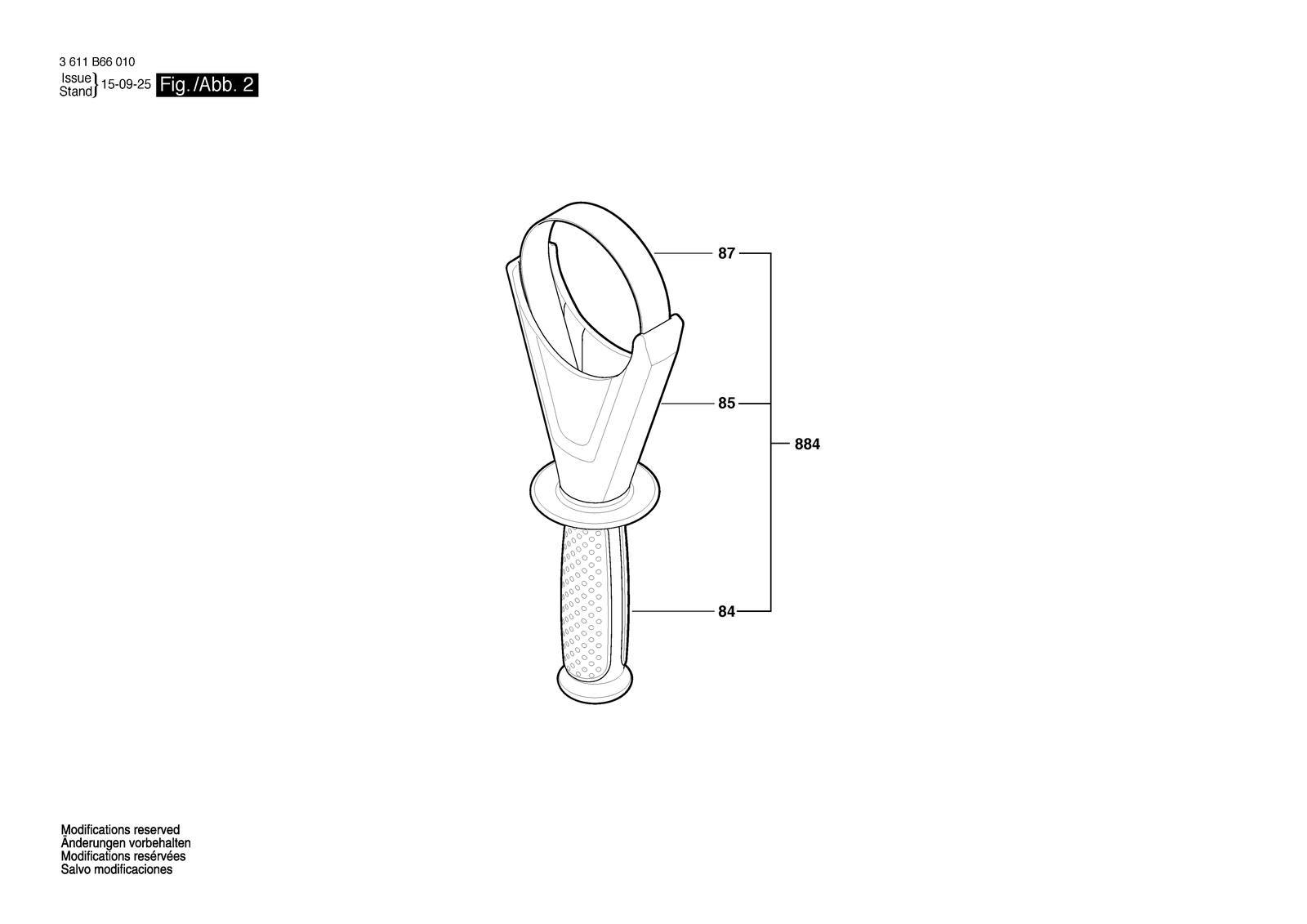

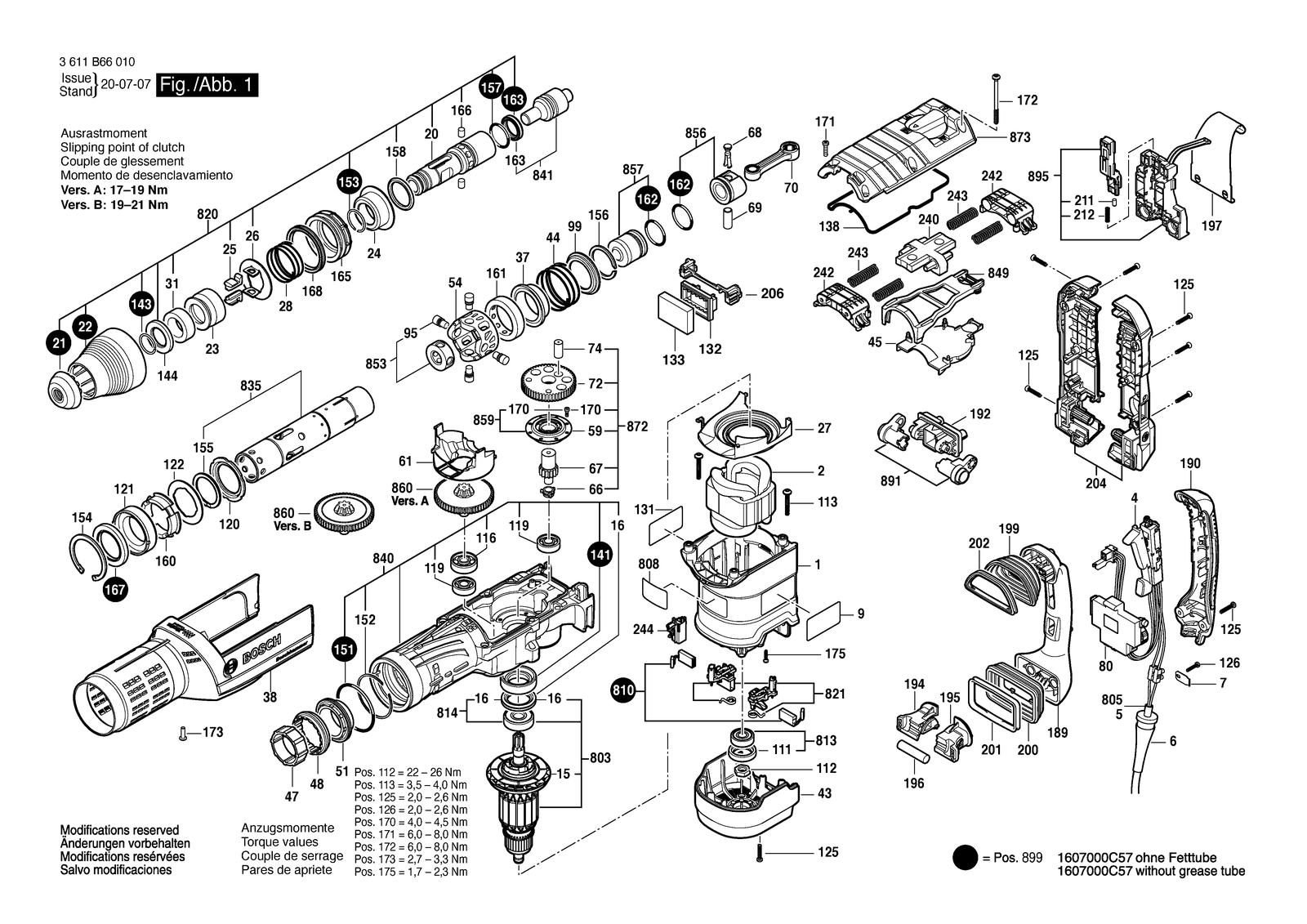

Bosch RH1255VC parts diagram, sheet 1Bosch RH1255VC parts diagram, sheet 2
No.Part numberPart name
11615108172Motor Housing
1111615801027Bushing
1121613300009Hex Nut
113160343507ATorx Oval-Head Screw
1161600905035Groove ball bearing 12X37X12
1191600900041Groove ball bearing
1201610190078Spacer bushing
1211615805080Plain bearing
1221610290122Spacer Ring
1251613435040Torx Oval-Head Screw
1262603490023Torx Oval-Head Screw 4X20
131161111A084Warning Plate
132160550044MCover
1331610205016Felt
1381611015065Sealing Frame
1411610290119Shaft Seal
1431614601071Retaining ring
1441610101023Supporting Disc
151616610114Fan
1511610210236O-Ring
1521614601022Retaining ring
1532916540018Retaining ring DIN 7993-A32
1542916660040Spring retaining ring DIN 472-68X2,5MM
1551614601080Spring retaining ring
156160015001VSpring retaining ring
1571610210238O-Ring
1581610210239Rubber Ring
161600A0015DClamp ring
1601610210240Damping Ring
1611610210241Damping Ring
1621610210237O-Ring
1631610210242Seal Ring
1651600A000XUSeal Fastener
1661613200022Cylindrical Roller
1671610290124Rotary shaft lip seal
1681600A001XDSeal Ring
1701600A0015HTorx socket button screw
1711613414026Torx socket button screw
1721613435041Torx Oval-Head Screw
1731613490024Torx Oval-Head Screw M5X20
175160343507DTorx Oval-Head Screw
1891615133038Handle
1901615500438Handle Cover
1921614611028Rocker Foot
1941600A001XEScrew Plate
1951600A001XFScrew Plate
1961600A002PCDamping rubber
1971616232000Leaf Spring
1991610284012Bellows
2160422023RField
201618597105Toolholder
2001610284013Bellows
2011610209015Clamping element
2021610209016Clamping element
2041615102164Rear Housing Section
2061612386007Retaining Part
211600A001XCProtective Cap
2111600A008ABMagnet
2121614621012Compression Spring
221610591054Protection Sleeve
231610520007Stop Sleeve
241610500026Headed Bush
2401600A000XVCounterweight
2421615190187Guide Piece
2431614621018Compression Spring
2441600A0013JPlug Housing
251612300025Stopping Device
261610290027Indexing Disk
271600591056Air-Deflector Ring
281614621017Compression Spring
311610290123Damping Ring
371610322019Control Bushing
381615190186Covering hood
41617200130Switch
431615500447Brush-Cover
441614621016Compression Spring
451610591053Holding-Down-Appliance
471610300082Gear Sleeve
481619990179Clutch Sleeve
51614460101Power supply cord
511616333053Crown Gear
541600A00218Spacer Tube
591615805079Bearing Pedestal
61610703053Grommet Ø9,7-Ø12X89 MM
611600A0015EGrease distributor
661600210246Rubber Ring
671600A000XSEccentric Shaft
681600A0015FPickup Clip
691613100040Piston Pin
71601302018Fastening Clamp
701600A001Y6Connecting Rod
721616317622Eccentric Cog Wheel
741600A000XTEccentric Bolt
801607233460Speed governor
8031607000C55Armature assembly
808160111A3H5Nameplate
8101607000C56Carbon-Brush Set
8131607000C40Groove ball bearing
8141607000C41Groove ball bearing
8201607000C42Tool Holder Set
8211607000C5JBrush Holder
8351607000C43Hammer Pipe
84160202507HAuxiliary Handle
8401607000C44Impact Mechanism Housing
8411607000C45Striker Pin
8491607000C46Control Fork
851618040097Support clamp
8531607000C47Guide Bushing
8561607000C48Hammer Piston
8571607000C49Striker
8591607000C4ABearing Pedestal
8601607000C4BSpur Wheel Clutch
871611316038Clamping Band
8721607000C4CEccentric
8731607000C4DHousing Cover
8841607000C4EAuxiliary Handle
8911612099005Rocker Arm
8951607000C4FDiaphragm
8991607000C57Service package
9160111C067Sticker
951613120025Driving Pin
991600A005BDSupporting Disc
