Makita RBL500

Makita RBL500: exploded parts diagram, 5 sheets, 151 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita RBL500: 151 positions on 5 sheets

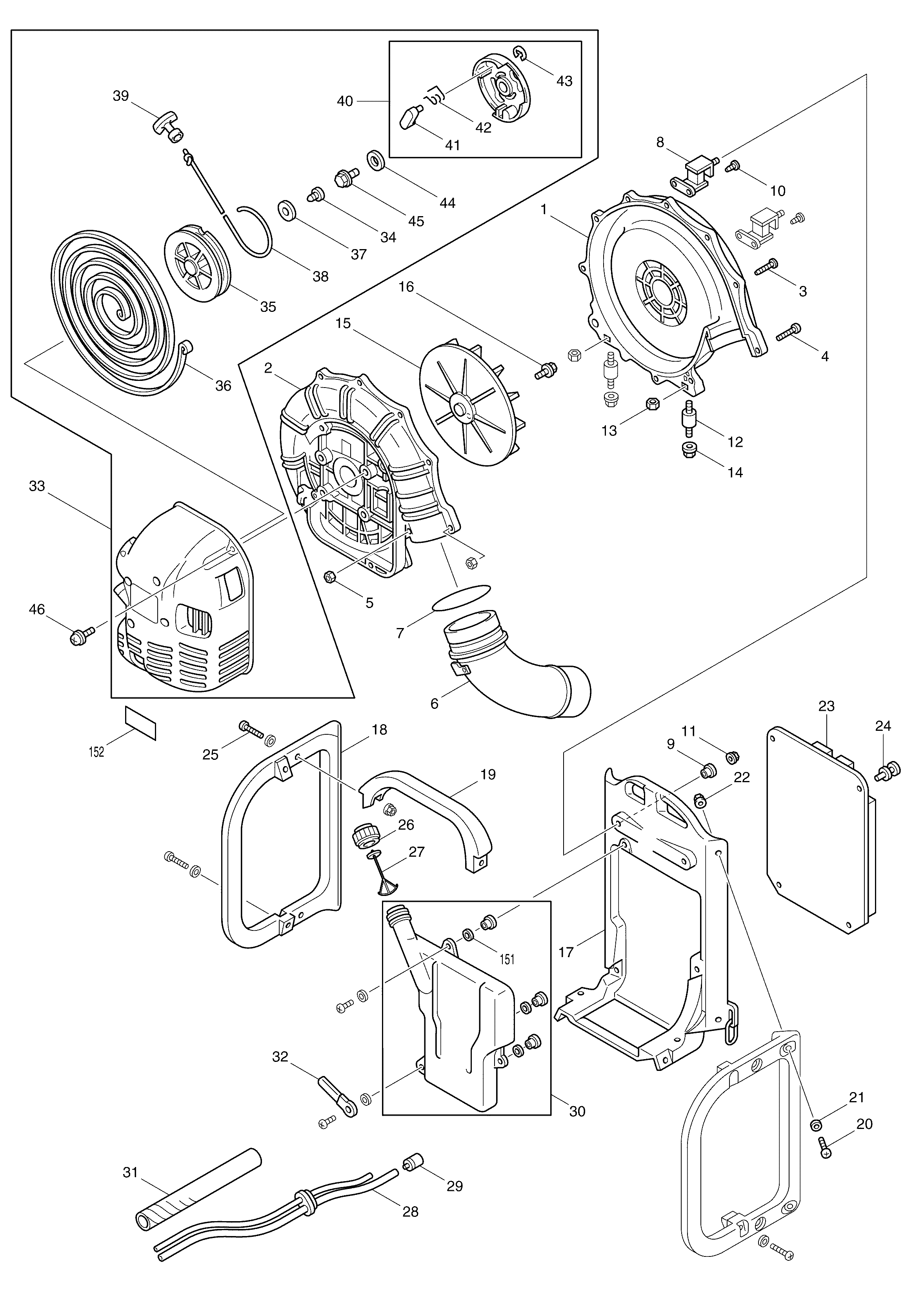

Sheet 1: Makita RBL500 parts diagram

Makita RBL500 parts diagram, sheet 1
No.Part numberPart name
16621500201Makita 6621500201 VOLUTE CASE 1
26621004001Makita 6621004001 VOLUTE CASE 2 COMPLETE
30150059870Makita 0150059870 TAPPING SCREW M5X25
40043605250Makita 0043605250 PAN HEAD SCREW M5X25
50021705000Makita 0021705000 NUT M5
66621006001Makita 6621006001 ELBOW COMPLETE
70062630850Makita 0062630850 O RING
86621005000Makita 6621005000 BRACKET COMPLETERBL500
96621500300Makita 6621500300 SPACER
100150059910Makita 0150059910 TAPPING SCREW M5X10
110023705000Makita 0023705000 FLANGE NUT M5
126621500401Makita 6621500401 DAMPER
130021706000Makita 0021706000 NUT M6
140023706000Makita 0023706000 FLANGE NUT M6
156821500201Makita 6821500201 IMPELLER
160011306250Makita 0011306250 BOLT & WASHER ASS Y
176622008001Makita 6622008001 FRAME COMPLETE
186622500600Makita 6622500600 SIDE FRAME
196622500701Makita 6622500701 KNOB
200043105200Makita 0043105200 PAN HEAD SCREW M5X20
210031205000Makita 0031205000 WASHER
220023705000Makita 0023705000 FLANGE NUT M5
236622010000Makita 6622010000 CUSHION
246822500200Makita 6822500200 LOCK RIVET
250043605250Makita 0043605250 PAN HEAD SCREW M5X25
265316014000Makita 5316014000 FUEL TANK CAP COMPLETE
276255021001Makita 6255021001 STRAP PCE
286623003001Makita 6623003001 TUBE
295236503900Makita 5236503900 FILTERBHX2500/PB-250.4
306623500300Makita 6623500300 FUEL TANK
318558502200Makita 8558502200 SPIRAL TUBE L=170
328558501100Makita 8558501100 CLAMP M6XL=73
345105015110
355415003010Makita 5415003010 REEL
365415003020Makita 5415003020 SPIRAL SPRING
375415003030Makita 5415003030 WASHER
385415001140Makita 5415001140 STARTER ROPE
395305002110Makita 5305002110 STARTER KNOB
415415011010Makita 5415011010 RATCHET
425415011020Makita 5415011020 RETURN SPRING
435215003040Makita 5215003040 E RING
440200069920Makita 0200069920 WASHER M6
450011306160Makita 0011306160 BOLT ASS Y
460043606200Makita 0043606200 SCREW M6X20
1510200069920Makita 0200069920 WASHER M6
1526629508600

Sheet 2: Makita RBL500 parts diagram

Makita RBL500 parts diagram, sheet 2
No.Part numberPart name
480440179930Makita 0440179930 OIL SEAL
490440159971Makita 0440159971 OIL SEAL
500600179830Makita 0600179830 BALL BEARING 6203C3
510600159880Makita 0600159880 BALL BEARING 6202C3
525411501200Makita 5411501200 CRANK CASE GASKET
535411501800Makita 5411501800 CYLINDER
545411500500Makita 5411500500 CYLINDER GASKET
550119069990Makita 0119069990 HEX. SOCKET HEAD BOLT M6X18
560119059940Makita 0119059940 HEX. SOCKET HEAD BOLT M5X30
575412024000Makita 5412024000 CRANKSHAFT COMPLETE
585412500700Makita 5412500700 PISTON
595602501100Makita 5602501100 PISTON PIN
605602500900Makita 5602500900 PISTON RING
610610129950Makita 0610129950 NEEDLE ROLLER BEARING
620565119990Makita 0565119990 CLIP
630053203101Makita 0053203101 WOODRUFF KEY
645413045001Makita 5413045001 EXHAUST MUFFLER
655413046001Makita 5413046001 INSULATER COMPLETE
665413501700Makita 5413501700 MUFFLER GASKET
675413502001Makita 5413502001 BOLT M6X13
680200099990Makita 0200099990 WASHER M6
690011506160Makita 0011506160 BOLT M6X16
705413036000Makita 5413036000 LEAD VALVE ASS Y
715413502800Makita 5413502800 BRACKET GASKET
725403500600Makita 5403500600 INSULATER GASKET
730119059630Makita 0119059630 SOCKET HEAD BOLT M5X20
745417021010Makita 5417021010 FLYWHEEL
755417024021Makita 5417024021 COIL
760655009940Makita 0655009940 PLUG CAP
770654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
780650149661Makita 0650149661 SPARK PLUG
790011308160Makita 0011308160 BOLT & WASHER ASS Y
800031108000Makita 0031108000 WASHER
810119059790Makita 0119059790 HEX. SOCKET HEAD BOLT M5X22
820011306250Makita 0011306250 BOLT & WASHER ASS Y
836628003000Makita 6628003000 WIRE COMPLETE
1540140059920Makita 0140059920 SCREW M5X8
1555413506001

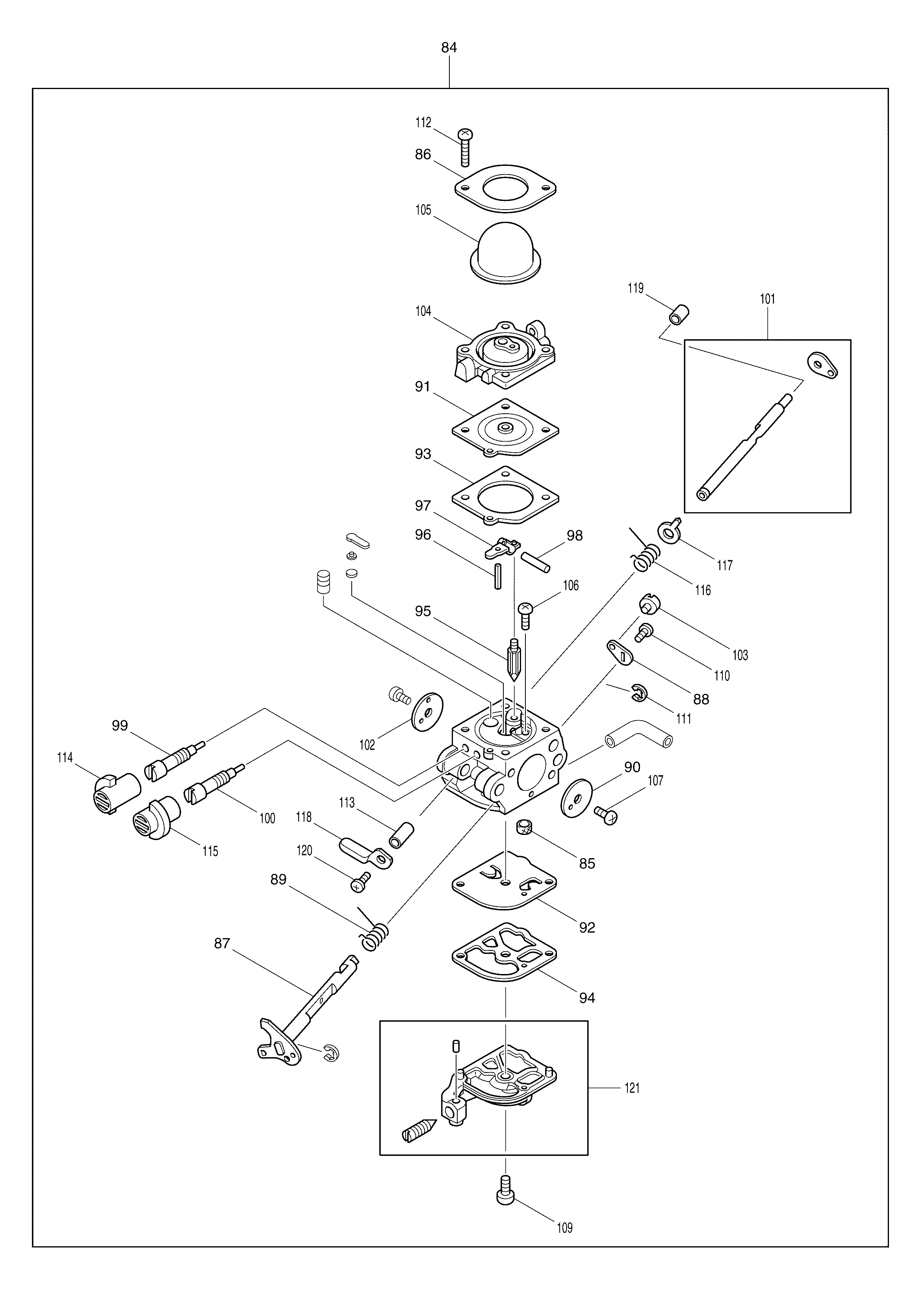

Sheet 3: Makita RBL500 parts diagram

Makita RBL500 parts diagram, sheet 3
No.Part numberPart name
855416043430Makita 5416043430 STRAINER
865416043460Makita 5416043460 RETAINER
875416043020Makita 5416043020 THROTTLE SHAFT ASS Y
885416043520Makita 5416043520 THROTTLE LEVER
895416043030Makita 5416043030 THROTTLE RETURN SPRING
905416043040Makita 5416043040 THROTTLE VALVE
915416043260Makita 5416043260 DIAPHRAGM ASS Y
925416043110Makita 5416043110 PUMP DIAPHRAGM
935416043310Makita 5416043310 METERING CHAMBER GASKET
945416043120Makita 5416043120 PUMP GASKET
955416043210Makita 5416043210 INLET NEEDLE VALVE
965416043220Makita 5416043220 METERING LEVER SPRING
975416043230Makita 5416043230 METERING LEVER
985416043240Makita 5416043240 PIN
995416043350Makita 5416043350 MAIN MIXTURE SCREW
1005416043360Makita 5416043360 IDLE MIXTURE SCREW
1015416043550Makita 5416043550 CHOKE SHAFT ASS Y
1025416043620Makita 5416043620 CHOKE VALVE
1035416043540Makita 5416043540 POST
1045416043320Makita 5416043320 PRIMER BASE ASS Y
1055416043510Makita 5416043510 SYRINGE
1065416043250Makita 5416043250 SCREW
1075416043050Makita 5416043050 SCREW
1095416043160Makita 5416043160 SCREW
1105416043530Makita 5416043530 SCREW
1115416043060Makita 5416043060 E RING
1125416043330Makita 5416043330 RETAINER SCREW
1135416043720Makita 5416043720 E RING
1145416043760Makita 5416043760 TAMPER RESIST LIMITER (R)
1155416043810Makita 5416043810 TAMPER RESIST LIMITER (W)
1165416043640Makita 5416043640 CHOKE RETURN SPRING
1175416043560Makita 5416043560 CHOKE CONTROL LEVER
1185416043660Makita 5416043660 CHOKE LEVER
1195416043610Makita 5416043610 CHOKE SHAFT COLLAR
1205416043710Makita 5416043710 CHOKE LEVER SCREW
1215416043820Makita 5416043820 PUMP COVER KIT

Sheet 4: Makita RBL500 parts diagram

Makita RBL500 parts diagram, sheet 4
No.Part numberPart name
1225413048001Makita 5413048001 CLEANER PLATE ASS Y
1235413507001Makita 5413507001 AIR CLEANER CASE
1245413507101Makita 5413507101 Air Cleaner Element for RBL500 PB500R
1255413507200Makita 5413507200 AIR CLEANER GASKET
1260043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
1275416504302Makita 5416504302 CARBURETOR GASKET
1280043605550Makita 0043605550 SCREW
1295416504600Makita 5416504600 CABLE BRACKET
1305216008010Makita 5216008010 CABLE ADJUST SCREW
1310022706000Makita 0022706000 NUT M6
1325413507900Makita 5413507900 CARBURETOR GASKET
1335413507800Makita 5413507800 PLATE
1530736409430

Sheet 5: Makita RBL500 parts diagram

Makita RBL500 parts diagram, sheet 5
No.Part numberPart name
1356625500500Makita 6625500500 CASE COVER
1366625003001Makita 6625003001 SWITCH COMPLETE
1376625500601Makita 6625500601 THROTTLE LEVER 1
1386625500701Makita 6625500701 THROTTLE LEVER 2
1396625004000Makita 6625004000 PLATE COMPLETE
1406625500901Makita 6625500901 TORSION SPRING
1410630139901Makita 0630139901 CONTROL CABLE
1426625501001Makita 6625501001 CABLE TUBE
1436625501700Makita 6625501700 SOCKET HEAD BOLT M6X30
1440150049970Makita 0150049970 TAPPING SCREW
1450031106000Makita 0031106000 WASHER
1460032206000Makita 0032206000 WAVE WASHER
1470022706000Makita 0022706000 NUT M6
1480150049940Makita 0150049940 TAPPING SCREW M4X16
1490043605250Makita 0043605250 PAN HEAD SCREW M5X25
1500043105200Makita 0043105200 PAN HEAD SCREW M5X20
1566625500802
1576625005002
