Makita RBL250
Makita RBL250: exploded parts diagram, 2 sheets, 103 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita RBL250: 103 positions on 2 sheets

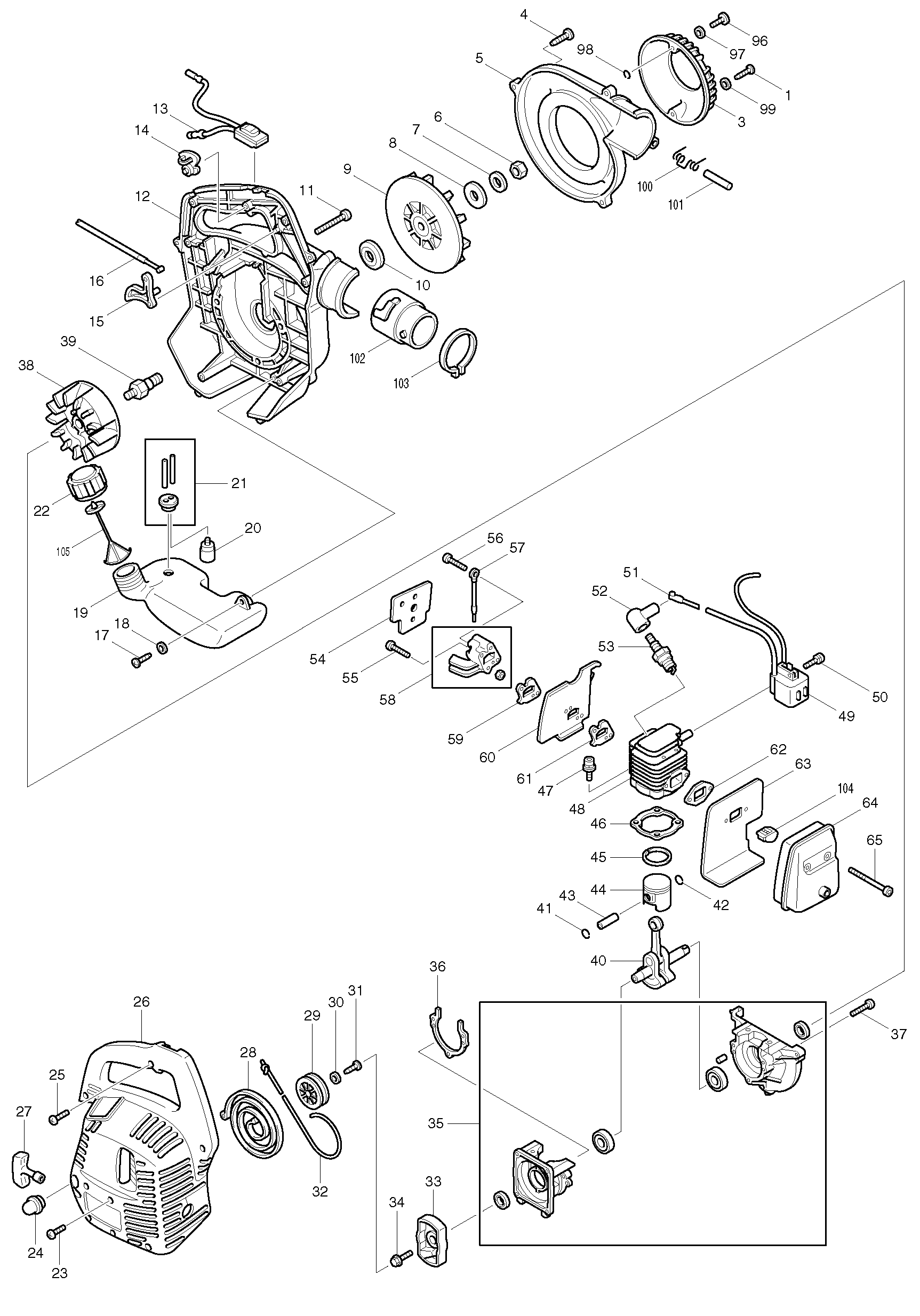

Sheet 1: Makita RBL250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 6601500500 | Makita 6601500500 Tapping Screw |
| 3 | 6601501200 | Makita 6601501200 PROTECTOR |
| 4 | 6601501300 | Makita 6601501300 TAPPING SCREW M5X20 |
| 5 | 6601015000 | |
| 6 | 0021708000 | Makita 0021708000 NUT |
| 7 | 0200089850 | Makita 0200089850 WASHER |
| 8 | 0031208000 | Makita 0031208000 WASHER |
| 9 | 6601502501 | |
| 10 | 0031208000 | Makita 0031208000 WASHER |
| 11 | 0043605350 | Makita 0043605350 SCREW M5X35 |
| 12 | 6601016001 | Makita 6601016001 VOLUTE CASE 2 COMPLETE |
| 13 | 6605010001 | |
| 14 | 6605502101 | Makita 6605502101 STOPPER |
| 15 | 6605502001 | Makita 6605502001 THROTTLE LEVER |
| 16 | 0630049930 | Makita 0630049930 CONTROL CABLE |
| 17 | 5235504600 | Makita 5235504600 TAPPING SCREW |
| 18 | 0031005000 | Makita 0031005000 WASHER M5 |
| 19 | 6603500101 | Makita 6603500101 FUEL TANK |
| 20 | 5236503900 | Makita 5236503900 FILTERBHX2500/PB-250.4 |
| 21 | 6603001000 | Makita 6603001000 TUBE |
| 22 | 5316014000 | Makita 5316014000 FUEL TANK CAP COMPLETE |
| 23 | 0043605180 | Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4 |
| 24 | 5236504300 | Makita 5236504300 PUMP |
| 25 | 5235504600 | Makita 5235504600 TAPPING SCREW |
| 26 | 6608001001 | Makita 6608001001 ENGINE COVER COMPLETE |
| 27 | 6608001050 | Makita 6608001050 STARTER KNOB |
| 28 | 6608001040 | Makita 6608001040 SPIRAL SPRING |
| 29 | 6608001030 | Makita 6608001030 REEL |
| 30 | 6608001020 | Makita 6608001020 WASHER |
| 31 | 6608001010 | Makita 6608001010 TAPPING SCREW |
| 32 | 6608001060 | Makita 6608001060 KÄYNNISTINNARU 3,5MM/870M |
| 33 | 5235025001 | Makita 5235025001 PULLEY |
| 34 | 5235504700 | Makita 5235504700 BOLT ASS Y |
| 35 | 5231011000 | Makita 5231011000 CRANKCASE COMPLETE |
| 36 | 5231502202 | Makita 5231502202 CRANKCASE GASKET |
| 37 | 0140059520 | Makita 0140059520 SCREW M5X25 |
| 38 | 5237034012 | Makita 5237034012 FLYWHEEL |
| 39 | 6605502202 | Makita 6605502202 SHAFT |
| 40 | 5232018000 | Makita 5232018000 CRANKSHAFT COMPLETE |
| 41 | 0565089970 | Makita 0565089970 CLIPBHX2500/PB-250.4 |
| 42 | 0565089970 | Makita 0565089970 CLIPBHX2500/PB-250.4 |
| 43 | 5232502600 | Makita 5232502600 PISTON PINBHX2500/PB-250.4 |
| 44 | 5232501902 | Makita 5232501902 PISTON |
| 45 | 5242500701 | Makita 5242500701 PISTON RING RBC250 |
| 46 | 5231502304 | Makita 5231502304 CYLINDER GASKET |
| 47 | 0119059730 | Makita 0119059730 SOCKET HEAD BOLT M5X20 |
| 48 | 5231501803 | Makita 5231501803 CYLINDER |
| 49 | 5237034021 | Makita 5237034021 COIL |
| 50 | 0140049920 | Makita 0140049920 SCREW ASS Y M4X20 |
| 51 | 0654009931 | Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4 |
| 52 | 0655009940 | Makita 0655009940 PLUG CAP |
| 53 | 0650149810 | Makita 0650149810 SPARK PLUG |
| 54 | 5233504103 | Makita 5233504103 INSULATOR GASKET |
| 55 | 0140059500 | Makita 0140059500 SCREW M5X25 |
| 56 | 0140059500 | Makita 0140059500 SCREW M5X25 |
| 57 | 6165501200 | Makita 6165501200 WIRE |
| 58 | 5233038001 | Makita 5233038001 INSULATOR COMPLETE |
| 59 | 5233503902 | Makita 5233503902 INSULATOR GASKET |
| 60 | 5233505201 | Makita 5233505201 CARBURETOR INSULATOR |
| 61 | 5233503902 | Makita 5233503902 INSULATOR GASKET |
| 62 | 5233504302 | Makita 5233504302 MUFFLER GASKET |
| 63 | 5253500400 | Makita 5253500400 MUFFLER INSULATOR |
| 64 | 5253002001 | Makita 5253002001 EXHAUST MUFFLER |
| 65 | 0119059670 | Makita 0119059670 SOCKET HEAD BOLT M5X55 |
| 96 | 6601503201 | Makita 6601503201 SCREW |
| 97 | 6601503500 | Makita 6601503500 RUBBER WASHER |
| 98 | 6601503400 | Makita 6601503400 OUTER SNAPRING |
| 99 | 0031205000 | Makita 0031205000 WASHER |
| 100 | 6601503001 | Makita 6601503001 SPRING |
| 101 | 6601503100 | Makita 6601503100 SHAFT |
| 102 | 6609508400 | Makita 6609508400 EXTENSION PIPE |
| 103 | 6609508500 | Makita 6609508500 HOSE CLAMP |
| 104 | 5253002130 | |
| 105 | 6255021001 | Makita 6255021001 STRAP PCE |
Sheet 2: Makita RBL250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 66 | 0851139962 | Makita 0851139962 TUBE |
| 67 | 5219500000 | Makita 5219500000 HOLDER |
| 69 | 5236018040 | Makita 5236018040 SWIVELBHX2500/PB-250.4 |
| 70 | 5206008110 | |
| 71 | 5206008030 | Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4 |
| 72 | 5236047022 | Makita 5236047022 THROTTLE VALVE ASS Y |
| 73 | 5316005120 | Makita 5316005120 RINGBHX2500/PB-250.4 |
| 74 | 5246001010 | Makita 5246001010 O RINGBHX2500/PB-250.4 |
| 75 | 5236046030 | Makita 5236046030 JET |
| 76 | 5246001030 | Makita 5246001030 PUMP GASKET |
| 77 | 5246001040 | Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4 |
| 78 | 5016004010 | Makita 5016004010 INLET SCREENBHX2500/PB-250.4 |
| 79 | 5016004130 | Makita 5016004130 GASKET |
| 80 | 5316005250 | Makita 5316005250 METERING DIAPHRAGM ASS Y |
| 81 | 5316005030 | Makita 5316005030 PRIMER PUMP COVER |
| 82 | 5216002020 | Makita 5216002020 PAN HEAD SCREW |
| 83 | 5233504602 | Makita 5233504602 AIR CLEANER CASE |
| 84 | 5233504700 | Makita 5233504700 AIR CLEANER ELEMENT |
| 85 | 0043605650 | Makita 0043605650 SCREW ASS Y M5X65 |
| 86 | 5233048001 | Makita 5233048001 CLEANER PLATE |
| 87 | 5233504200 | Makita 5233504200 CARBURETOR GASKET |
| 88 | 5233504801 | Makita 5233504801 CHOKE LEVER |
| 89 | 5233505002 | Makita 5233505002 CHOKE PLATE |
| 90 | 0031104000 | Makita 0031104000 WASHER |
| 91 | 0150049980 | Makita 0150049980 TAPPING SCREW M4X8 |
| 92 | 5256500800 | |
| 93 | 0021704000 | Makita 0021704000 NUT |
| 94 | 5256500700 | Makita 5256500700 THROTTLE STOPPER |
| 95 | 5233504200 | Makita 5233504200 CARBURETOR GASKET |
