Makita RBC410

Makita RBC410: exploded parts diagram, 3 sheets, 159 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita RBC410: 159 positions on 3 sheets

Sheet 1: Makita RBC410 parts diagram

Makita RBC410 parts diagram, sheet 1
No.Part numberPart name
16404502400Makita 6404502400 GRIP
26414500600Makita 6414500600 HANDLE
46414005000Makita 6414005000 HANDLE ASS Y HOLDER
76411502600Makita 6411502600 CLUTCH CASE
126301501600Makita 6301501600 WASHER
130031435000Makita 0031435000 INNER SNAP RING
140031517000Makita 0031517000 OUTER SNAP RING
150119069910Makita 0119069910 HEX. SOCKET HEAD BOLT M6X18
166202500400Makita 6202500400 BOLT
176202500600Makita 6202500600 WASHER
186412006000Makita 6412006000 CLUTCH DRUM COMPLETE
190600179850Makita 0600179850 BALL BEARING 6003DD
206411008000Makita 6411008000 DAMPER
216411009001Makita 6411009001 SHAFT COMPLETE
256411026000Makita 6411026000 SHAFT PIPE COMPLETE
266415011001Makita 6415011001 CONTROL LEVER ASS Y
286418500200Makita 6418500200 GUARD
290031005000Makita 0031005000 WASHER M5
300119059900Makita 0119059900 SOCKET HEAD BOLT M5X12
316308503100Makita 6308503100 CLAMP WASHER
326308503200Makita 6308503200 NUT
336308503300Makita 6308503300 NUT
346407003001
366257500100Makita 6257500100 CUSHION
1336413003000Makita 6413003000 CUTTER SHAFT SET
1346418500101Makita 6418500101 RECEIVE WASHER
1356413500600Makita 6413500600 OIL BOLT
1360600129980Makita 0600129980 BALL BEARING 6001ZZ
1376413500500Makita 6413500500 SPACER
1386413500400Makita 6413500400 OIL SEAL
1396253500200Makita 6253500200 BALL BEARING 627
1400011306140Makita 0011306140 BOLT ASS Y
1410011306320Makita 0011306320 BOLT ASS Y
1420031428000Makita 0031428000 INNER SNAP RING
1430031432000Makita 0031432000 INNER SNAP RING
1440031512000Makita 0031512000 OUTER SNAP RING
1500011706300Makita 0011706300 BOLT M6X30
1516418500302Makita 6418500302 PROTECTER CLAMP
1540022706000Makita 0022706000 NUT M6
1550043406350Makita 0043406350 SCREW
1576407006001
1586411502101Makita 6411502101 STOPPER
1596401503002Makita 6401503002 STOPPER
1600016706500Makita 0016706500 BOLT
1610230069970Makita 0230069970 SPACER
1626411501300Makita 6411501300 WING BOLT
1630037108000Makita 0037108000 FIBER GASKET
1640150059940Makita 0150059940 TAPPING SCREW

Sheet 2: Makita RBC410 parts diagram

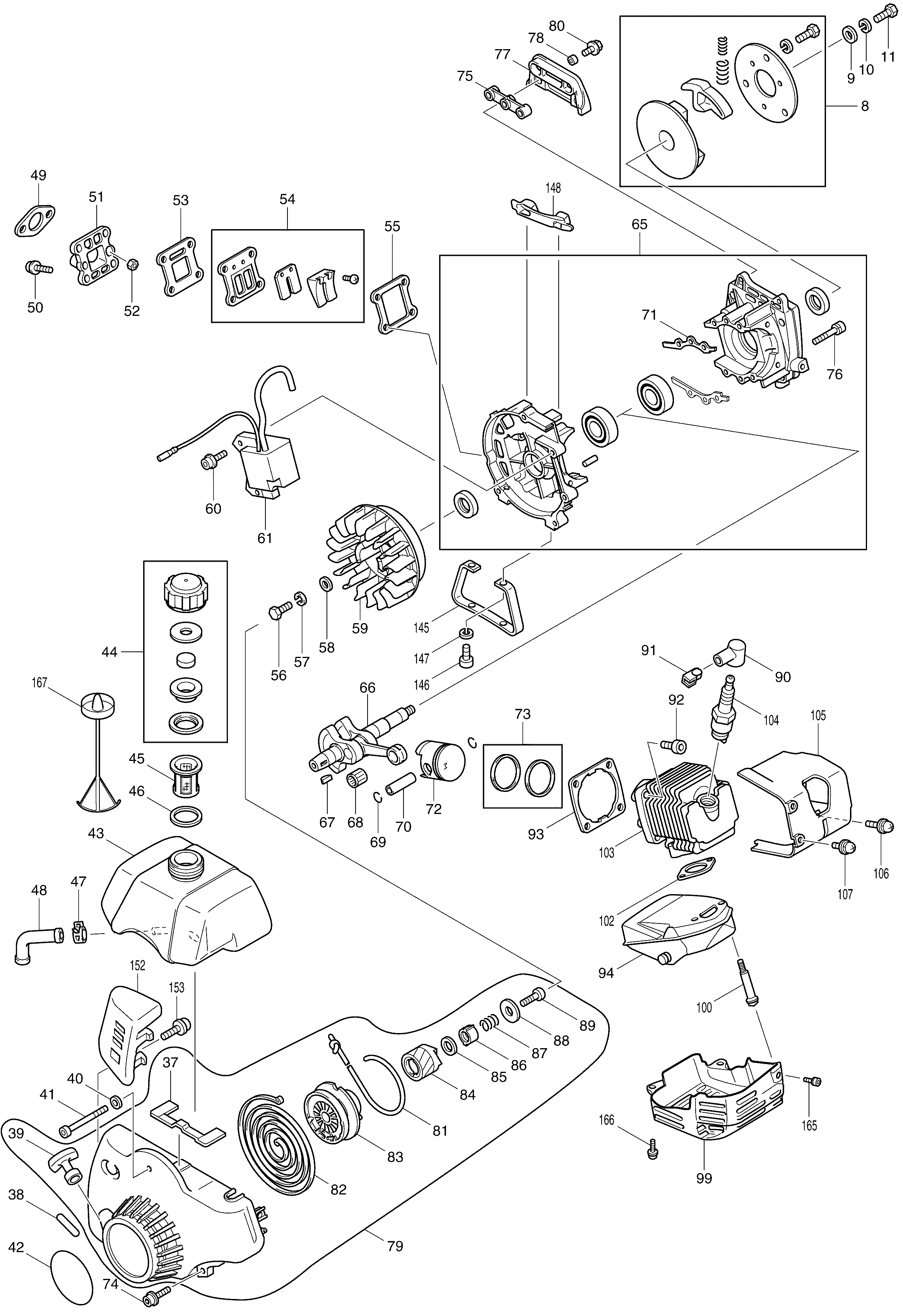

Makita RBC410 parts diagram, sheet 2
No.Part numberPart name
86412004000Makita 6412004000 CLUTCH
96202500600Makita 6202500600 WASHER
100032006000Makita 0032006000 SPRING WASHER
116202500400Makita 6202500400 BOLT
375416501900Makita 5416501900 DAMPER
386419504300Makita 6419504300 CHOKE LABEL
395305002110Makita 5305002110 STARTER KNOB
400031005000Makita 0031005000 WASHER M5
410119059810Makita 0119059810 HEX. SOCKET HEAD BOLT M5X50
426419503300Makita 6419503300 LABEL RBC410
435416501200Makita 5416501200 FUEL TANK
446255016001Makita 6255016001 FUEL TANK CAP ASS Y
450641279990Makita 0641279990 Filter
465516500500Makita 5516500500 GASKET
470561139982Makita 0561139982 HOSE CLAMP
485416500200Makita 5416500200 TUBE
495416501300Makita 5416501300 CARBURETOR GASKET
500043705200Makita 0043705200 PAN HEAD SCREW M5X20
515413501100Makita 5413501100 INSULATOR
520021705000Makita 0021705000 NUT M5
535413501200Makita 5413501200 INSULATOR GASKET
545413007000Makita 5413007000 VALVE REED ASS Y
555413502800Makita 5413502800 BRACKET GASKET
560016706160Makita 0016706160 BOLT M6X16
570032006000Makita 0032006000 SPRING WASHER
580200069920Makita 0200069920 WASHER M6
595417001010Makita 5417001010 FLYWHEEL
600119059790Makita 0119059790 HEX. SOCKET HEAD BOLT M5X22
615327002021Makita 5327002021 IGNITION COIL
665412001000Makita 5412001000 CRANK SHAFT COMPLETE
670053203101Makita 0053203101 WOODRUFF KEY
685412501300Makita 5412501300 NEEDLE ROLLER BEARING
690565099990Makita 0565099990 CLIP
705412500300Makita 5412500300 PISTON PIN
715411501200Makita 5411501200 CRANK CASE GASKET
725412500800Makita 5412500800 PISTON
735402500600Makita 5402500600 PISTON RING
740119059790Makita 0119059790 HEX. SOCKET HEAD BOLT M5X22
755416501100Makita 5416501100 DAMPER
760119059940Makita 0119059940 HEX. SOCKET HEAD BOLT M5X30
775416500300Makita 5416500300 FUEL TANK BRACKET
780230059990Makita 0230059990 SPACER
800043405140Makita 0043405140 PAN HEAD SCREW M5X14
815415001140Makita 5415001140 STARTER ROPE
825415001030Makita 5415001030 SPIRAL SPRING
835415001010Makita 5415001010 REEL
845415001020Makita 5415001020 RATCHET
855415001220Makita 5415001220 THRUST WASHER
865415001040Makita 5415001040 RATCHET GUIDE
875415001050Makita 5415001050 FRICTION SPRING
885415001060Makita 5415001060 WASHER
895245001010Makita 5245001010 BIND SCREW
900655009940Makita 0655009940 PLUG CAP
910654009940Makita 0654009940 PLUG CAP SPRING
920119069990Makita 0119069990 HEX. SOCKET HEAD BOLT M6X18
935411500500Makita 5411500500 CYLINDER GASKET
945323006000Makita 5323006000 EXHAUST MUFFLER
995413500100Makita 5413500100 MUFFLER COVER
1000119069860Makita 0119069860 HEX. SOCKET HEAD BOLT M6X55
1025323500200Makita 5323500200 MUFFLER GASKET
1035411500300Makita 5411500300 CYLINDER
1040650149710Makita 0650149710 SPARK PLUG
1055415504600Makita 5415504600 CYLINDER COVER
1060043705200Makita 0043705200 PAN HEAD SCREW M5X20
1070043705140Makita 0043705140 PAN HEAD SCREW M5X14
1456415500000Makita 6415500000 STAND STAND
1460119069900Makita 0119069900 SOCKET HEAD BOLT M6X14
1470032006000Makita 0032006000 SPRING WASHER
1485416503600Makita 5416503600 DAMPER(U)
1525415504500Makita 5415504500 STARTER COVER
1536218501500Makita 6218501500 SCREW
1650043706160
1660043705140Makita 0043705140 PAN HEAD SCREW M5X14
1676255021001Makita 6255021001 STRAP PCE

Sheet 3: Makita RBC410 parts diagram

Makita RBC410 parts diagram, sheet 3
No.Part numberPart name
1080043405140Makita 0043405140 PAN HEAD SCREW M5X14
1090230059990Makita 0230059990 SPACER
1100043605580Makita 0043605580 PAN HEAD SCREW M5X58
1115413503501
1125413500900Makita 5413500900 ELEMENT
1135413503900Makita 5413503900 AIR CLEANER CASE
1145413503100Makita 5413503100 AIR CLEANER GASKET
1158046001530Makita 8046001530 PAN HEAD SCREW
1165416001020Makita 5416001020 COCK BODY ASS Y
1175306009210Makita 5306009210 GASKET
1185306009050Makita 5306009050 FILTER
1195416016040Makita 5416016040 HOSE
1205306009020Makita 5306009020 FLOAT
1215306009160Makita 5306009160 STRAIGHT PIN
1225306009230Makita 5306009230 FLOAT ARM
1235306009150Makita 5306009150 NEEDLE ASS Y
1245306018020Makita 5306018020 MAIN JET
1265416001110Makita 5416001110 SPRING
1275416001060Makita 5416001060 ADJUST SCREW
1285306009220Makita 5306009220 GASKET
1295306002410Makita 5306002410 O RING
1305306002240Makita 5306002240 SCREW
1315416016030Makita 5416016030 PLATE
1325306009510Makita 5306009510 PAN HEAD SCREW
1565306008010Makita 5306008010 FLOAT BODY
1705416001010Makita 5416001010 CAP
1715306009310Makita 5306009310 ADJUSTER CABLE
1725306009460Makita 5306009460 NUT
1735416001030Makita 5416001030 CABLE GUIDE
1745306009250Makita 5306009250 GAP
1755306009260Makita 5306009260 MIXING CAP
1765306009240Makita 5306009240 SPRING
1775306009120Makita 5306009120 SPRING PLATE
1785416001040Makita 5416001040 PACKING
1795306009450Makita 5306009450 E-RING
1805416019010Makita 5416019010 JET NEEDLE
1815416008021Makita 5416008021 PISTON VALVE
