Makita RBC220

Makita RBC220: exploded parts diagram, 3 sheets, 119 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita RBC220: 119 positions on 3 sheets

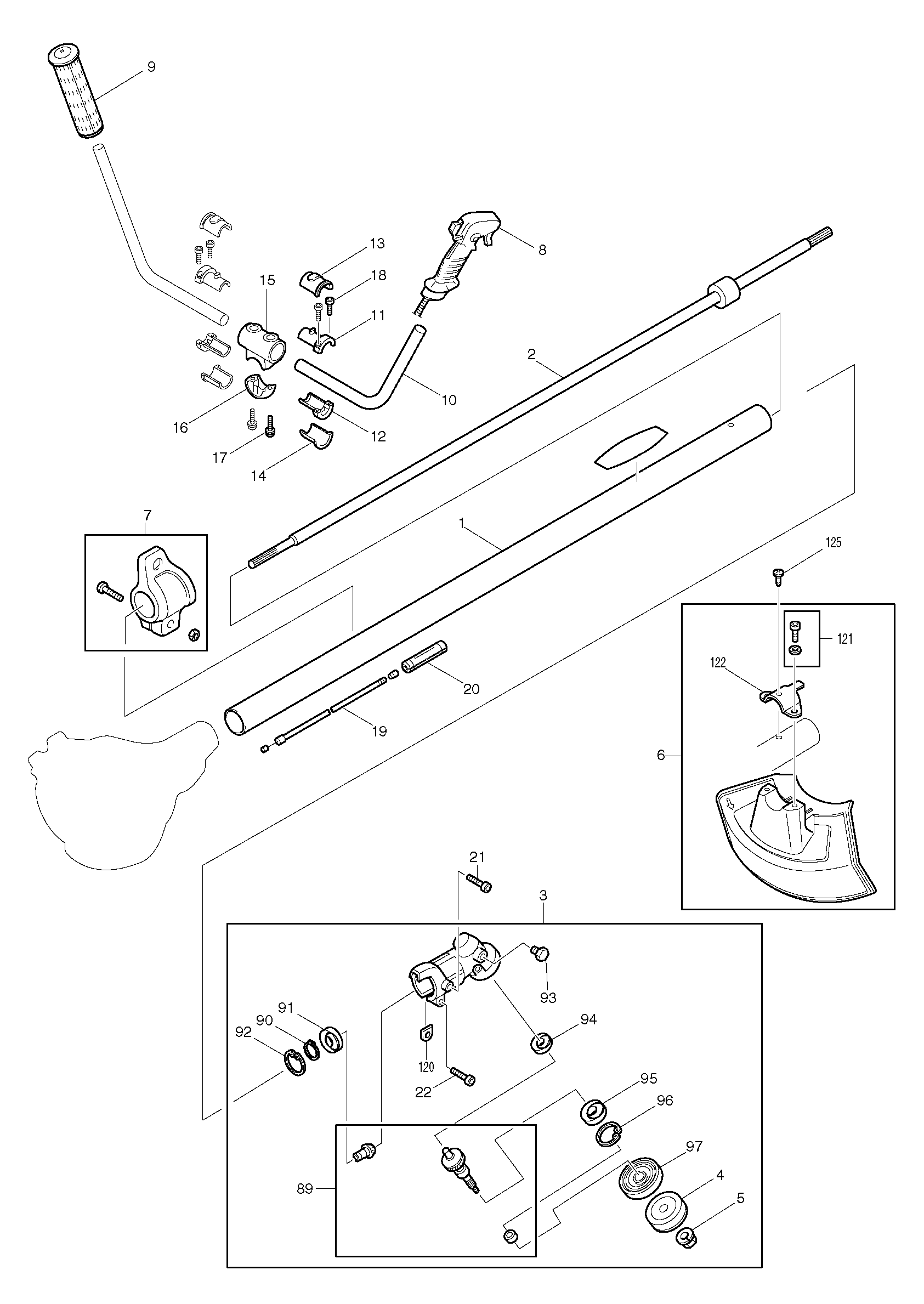

Sheet 1: Makita RBC220 parts diagram

Makita RBC220 parts diagram, sheet 1
No.Part numberPart name
16251028001Makita 6251028001 PIPE SHAFT COMPLETE
26251506301Makita 6251506301 SHAFT
46258504500Makita 6258504500 CLAMP WASHER
56253011021
76254019000Makita 6254019000 HANGER ASS Y
86255048001Makita 6255048001 CONTROL LEVER ASS Y
96254500000Makita 6254500000 GRIP
106254502802Makita 6254502802 HANDLE
116254502401Makita 6254502401 HANDLE BRACKET (1)
126254502501Makita 6254502501 HANDLE BRACKET (2)
136254502601Makita 6254502601 HANDLE DAMPER (1)
146254502701Makita 6254502701 HANDLE DAMPER (2)
156254502200Makita 6254502200 HANDLE HOLDER (1)
166254502300Makita 6254502300 HANDLE HOLDER (2)
170119059950Makita 0119059950 SOCKET HEAD BOLT M5X18
180119059950Makita 0119059950 SOCKET HEAD BOLT M5X18
196255052001Makita 6255052001 CONTROL CABLE
206115503700Makita 6115503700 CONNECTOR CASE
210119059900Makita 0119059900 SOCKET HEAD BOLT M5X12
220119059890Makita 0119059890 SOCKET HEAD BOLT M5X25
896253013000Makita 6253013000 GEAR SET
900031509000Makita 0031509000 OUTER SNAP RING
916212500300Makita 6212500300 BALL BEARING 609ZZ
920031424000Makita 0031424000 INNER SNAP RING
936253011011Makita 6253011011 BOLT
946213500900Makita 6213500900 BALL BEARING 626
956253503700Makita 6253503700 BALL BEARING 608LLU
960031422000Makita 0031422000 INNER SNAP RING
976258504400Makita 6258504400 RECIEVE WASHER
1200037106000Makita 0037106000 FIBER GASKET
1210011706300Makita 0011706300 BOLT M6X30
1226418500302Makita 6418500302 PROTECTER CLAMP
1250150059940Makita 0150059940 TAPPING SCREW

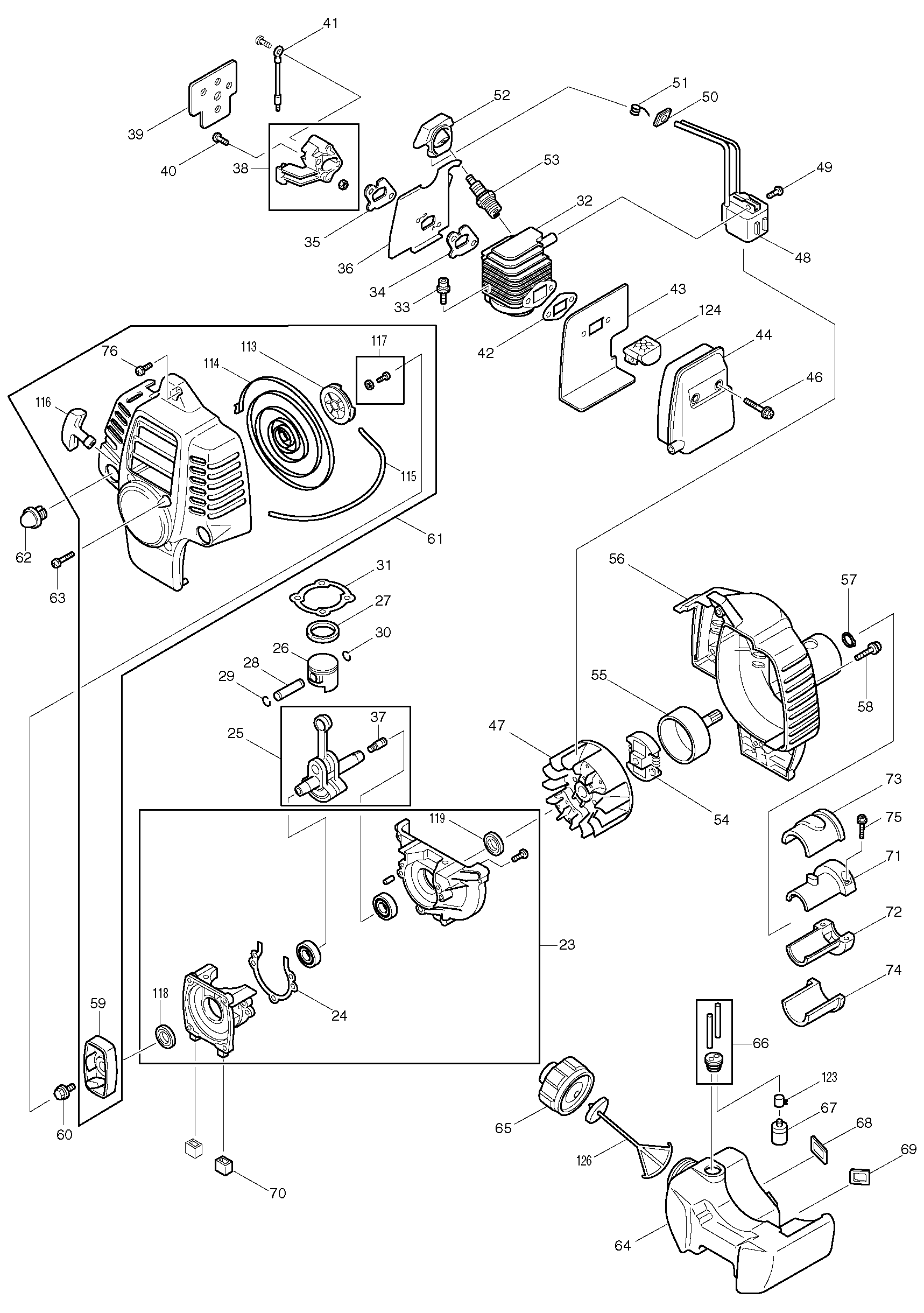

Sheet 2: Makita RBC220 parts diagram

Makita RBC220 parts diagram, sheet 2
No.Part numberPart name
245231502202Makita 5231502202 CRANKCASE GASKET
265212500700Makita 5212500700 PISTON
275982500000Makita 5982500000 PISTON RING
285212500801Makita 5212500801 PISTON PIN
290565089970Makita 0565089970 CLIPBHX2500/PB-250.4
300565089970Makita 0565089970 CLIPBHX2500/PB-250.4
315231502302
325211501200
330119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
345233503902Makita 5233503902 INSULATOR GASKET
355233503902Makita 5233503902 INSULATOR GASKET
365233505201Makita 5233505201 CARBURETOR INSULATOR
375232502402
385233038001Makita 5233038001 INSULATOR COMPLETE
395233504102
400140059520Makita 0140059520 SCREW M5X25
416165501200Makita 6165501200 WIRE
425233504302Makita 5233504302 MUFFLER GASKET
435233505301Makita 5233505301 MUFFLER INSULATOR
445233041001Makita 5233041001 EXHAUST MUFFLER
460119059750
475237031010Makita 5237031010 FLYWHEEL
485237031022
490043304200
505237503202Makita 5237503202 GROMMET
510654009940Makita 0654009940 PLUG CAP SPRING
525237503301Makita 5237503301 PLUG CAP
530650149810Makita 0650149810 SPARK PLUG
546162005002Makita 6162005002 CLUTCH ASS Y
556252014000
565235029001
570031512000Makita 0031512000 OUTER SNAP RING
580140059510Makita 0140059510 SCREW M5X20
595235025001Makita 5235025001 PULLEY
605235504700Makita 5235504700 BOLT ASS Y
625236504300Makita 5236504300 PUMP
630043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
645236504101Makita 5236504101 FUEL TANK
655316002003Makita 5316002003 FUEL TANK CAP ASS Y
665236048001
675236503900Makita 5236503900 FILTERBHX2500/PB-250.4
685036500300Makita 5036500300 PLATEBCX3400
695036500200Makita 5036500200 PLATEBCX3400
705216500200Makita 5216500200 DAMPER
716251506800
726251506901Makita 6251506901 PIPE BRACKET (2)
736251506601Makita 6251506601 PIPE DAMPER (1)
746251506701Makita 6251506701 PIPE DAMPER (2)
750119059950Makita 0119059950 SOCKET HEAD BOLT M5X18
765235504600Makita 5235504600 TAPPING SCREW
1135235024012Makita 5235024012 REEL
1145235024032Makita 5235024032 SPIRAL SPRING
1155235024022Makita 5235024022 STARTER ROPE
1165215002110Makita 5215002110 STARTER KNOB
1175425003010Makita 5425003010 SET SCREW
1180440129970Makita 0440129970 OIL SEAL
1190440129970Makita 0440129970 OIL SEAL
1230561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
1245233506600
1265256067000Makita 5256067000 STRAPEPH1000

Sheet 3: Makita RBC220 parts diagram

Makita RBC220 parts diagram, sheet 3
No.Part numberPart name
785236504601
795233505503Makita 5233505503 AIR CLEANER CASE
805233504700Makita 5233504700 AIR CLEANER ELEMENT
810043605650Makita 0043605650 SCREW ASS Y M5X65
825233505701Makita 5233505701 CLEANER PLATE
835233504200Makita 5233504200 CARBURETOR GASKET
845233504801Makita 5233504801 CHOKE LEVER
855233505002Makita 5233505002 CHOKE PLATE
860031104000Makita 0031104000 WASHER
870150049980Makita 0150049980 TAPPING SCREW M4X8
880043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
985236018040Makita 5236018040 SWIVELBHX2500/PB-250.4
995206008110
1005206008030Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4
1015236047022Makita 5236047022 THROTTLE VALVE ASS Y
1025316005120Makita 5316005120 RINGBHX2500/PB-250.4
1035246001010Makita 5246001010 O RINGBHX2500/PB-250.4
1045236029010Makita 5236029010 JET
1055246001030Makita 5246001030 PUMP GASKET
1065246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4
1075016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
1085016004130Makita 5016004130 GASKET
1095316005250Makita 5316005250 METERING DIAPHRAGM ASS Y
1105316005030Makita 5316005030 PRIMER PUMP COVER
1115216002020Makita 5216002020 PAN HEAD SCREW
1125219500000Makita 5219500000 HOLDER
