Bosch RA1200
Bosch RA1200 routing table: exploded parts diagram, 2 sheets, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move

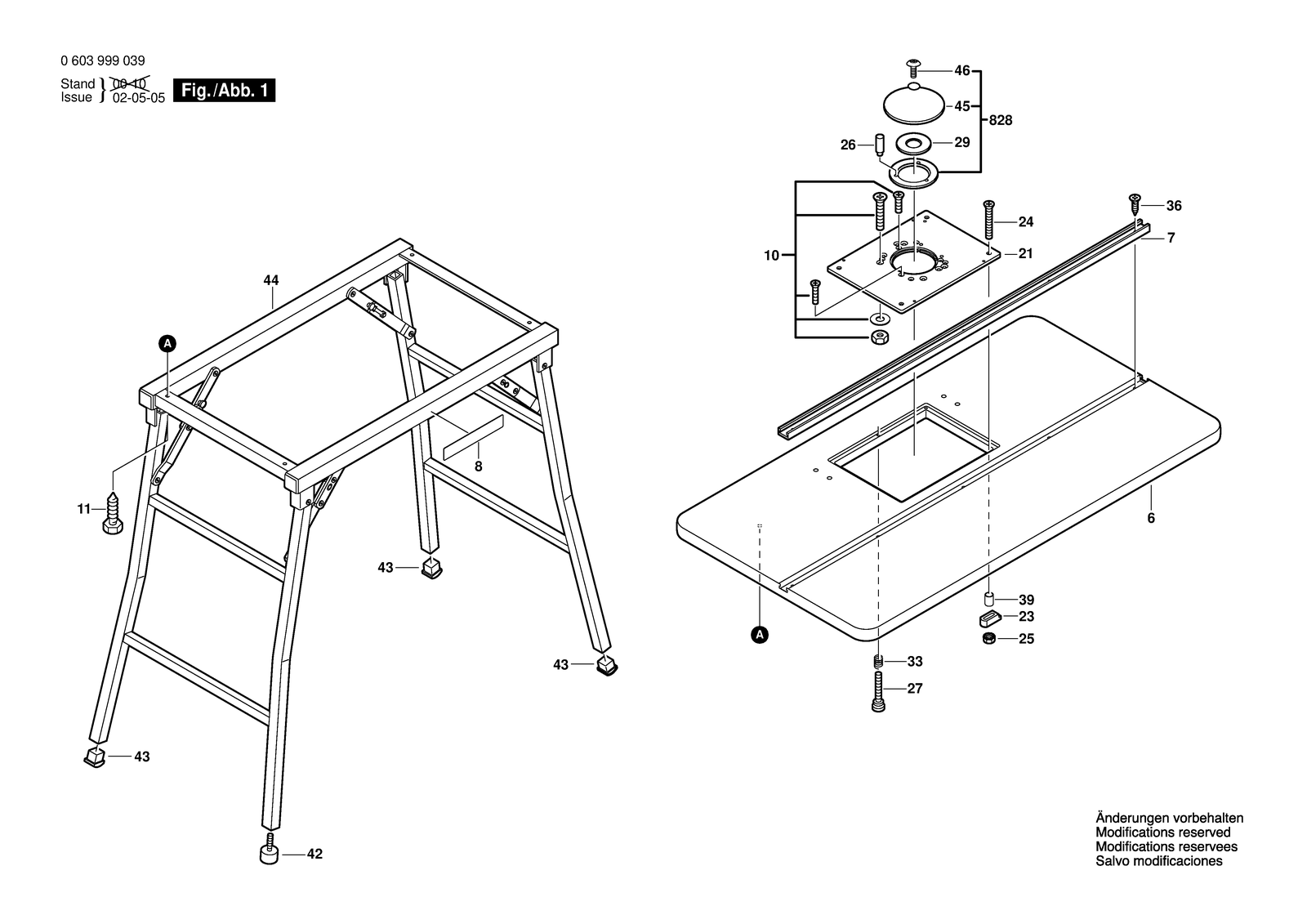

All parts on this sheet0
All parts of Bosch RA1200: 53 positions on 2 sheets
Bosch RA1200 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610907916 | Work Board |
| 10 | 2610910863 | Assembly kit |
| 11 | 2610912395 | Dummy |
| 12 | 2610907918 | Motor Guard |
| 13 | 2610907919 | Mitre Fence |
| 14 | 2610907917 | Dummy |
| 15 | 2610909096 | Mitre Fence |
| 16 | 2610912396 | Dummy |
| 17 | 2610909288 | Knurled Nut |
| 18 | 2610909247 | Dummy |
| 19 | 2610004135 | Washer |
| 2 | 2610937443 | Board |
| 20 | 2610004126 | Dummy |
| 21 | 2610909545 | Mounting Plate |
| 22 | 2610901673 | Screw |
| 23 | 2610909297 | Screw |
| 24 | 2610912397 | Dummy |
| 25 | 2610909283 | Nut |
| 26 | 2610909301 | Guiding bolt |
| 27 | 2610909642 | Adjusting Screw |
| 29 | 2610909612 | Adapter Ring |
| 30 | 2610909143 | Knob |
| 31 | 2610912398 | Tapping Screw |
| 32 | 2610912399 | Dummy |
| 33 | 2610991371 | Spring |
| 34 | 2610907922 | Warning Label |
| 35 | 2610907923 | Warning Label |
| 36 | 2610909621 | Wood Screw |
| 37 | 2610909073 | Warning Label |
| 38 | 2610910450 | Dummy |
| 39 | 2610910959 | Sleeve |
| 4/1 | 2610907969 | Packaging Instructions |
| 4/2 | 2610907920 | Bracket |
| 4/3 | 2610909510 | Socket |
| 4/4 | 2610996892 | On-Off Switch |
| 4/5 | 2610909494 | Cord |
| 4/6 | 2610909533 | Clamp |
| 4/7 | 2610997294 | Screw |
| 4/8 | 2610909569 | Dummy |
| 4/9 | 2610909558 | Dummy |
| 40 | 2610909618 | Shim |
| 40 | 2610909619 | Shim |
| 42 | 2610911812 | Adjusting Screw |
| 43 | 2610911813 | Dummy |
| 44 | 2610909643 | Table Leg |
| 45 | 2610915134 | Protective Guard |
| 46 | 2610915151 | Set Of Gears |
| 5 | 2610909095 | Star Knob |
| 6 | 2610909584 | Table |
| 7 | 2610909593 | Guide Track |
| 8 | 2610907921 | Label |
| 828 | 2610915902 | Parts Set |
| 9 | 2610907924 | Warning Label |
