Bosch PWS 9-125 CE

Bosch PWS 9-125 CE angle grinder: exploded parts diagram, 1 sheet, 110 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 9-125 CE: 110 positions on 1 sheet

Bosch PWS 9-125 CE parts list (1 sheet)

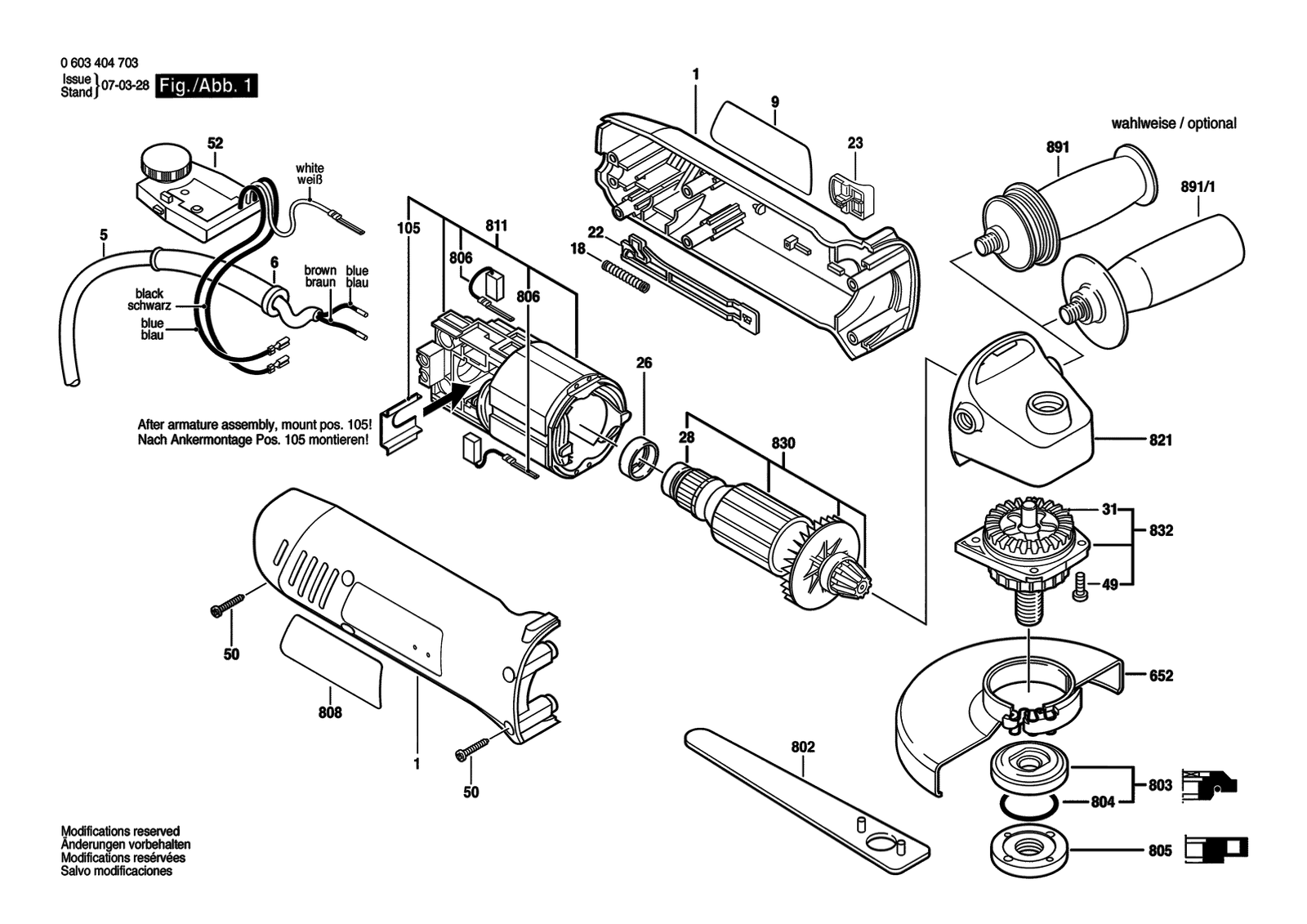

Bosch PWS 9-125 CE parts diagram, sheet 1
No.Part numberPart name
11605108227Housing Section
11605108227Housing Section
11605108227Housing Section
11605108227Housing Section
1051600591034Intermediate Plate
1051600591034Intermediate Plate
1051600591034Intermediate Plate
1051600591034Intermediate Plate
181604611026Compression Spring
181604611026Compression Spring
181604611026Compression Spring
181604611026Compression Spring
221602319014Adjusting Slide
221602319014Adjusting Slide
221602319014Adjusting Slide
221602319014Adjusting Slide
231602026077Switch Handle Black
231602026077Switch Handle Black
231602026077Switch Handle Black
231602026077Switch Handle Black
261600502020Rubber Bushing
261600502020Rubber Bushing
261600502020Rubber Bushing
261600502020Rubber Bushing
281600905021Ball Bearing
281600905021Ball Bearing
281600905021Ball Bearing
281600905021Ball Bearing
311606333624Crown Gear
311606333624Crown Gear
311606333624Crown Gear
311606333624Crown Gear
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
51604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
51607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
51607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
51607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
501619P00105Torx Oval-Head Screw 4X20
501619P00105Torx Oval-Head Screw 4X20
501619P00105Torx Oval-Head Screw 4X20
501619P00105Torx Oval-Head Screw 4X20
521607233158Speed governor Red 230-240V
521607233158Speed governor Red 230-240V
521607233158Speed governor Red 230-240V
521607233158Speed governor Red 230-240V
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
6521605510307Protective Cover Ø 125 MM
6521605510307Protective Cover Ø 125 MM
6521605510307Protective Cover Ø 125 MM
6521605510307Protective Cover Ø 125 MM
8021619P08927Pin-Type Face-Wrench
8021607950052Pin-Type Face-Wrench
8021607950052Pin-Type Face-Wrench
8021607950052Pin-Type Face-Wrench
8032605703014Clamping Flange Ø22,3XØ42 MM
8032605703014Clamping Flange Ø22,3XØ42 MM
8032605703014Clamping Flange Ø22,3XØ42 MM
8032605703014Clamping Flange Ø22,3XØ42 MM
8041600210039O-Ring 20,35X1,78 MM
8041600210039O-Ring 20,35X1,78 MM
8041600210039O-Ring 20,35X1,78 MM
8041600210039O-Ring 20,35X1,78 MM
8051603345043Round Nut M14
8051603345043Round Nut M14
8051603345043Round Nut M14
8051603345043Round Nut M14
8061607000352Carbon-Brush Set
8061607000352Carbon-Brush Set
8061607000352Carbon-Brush Set
8061607000352Carbon-Brush Set
8081619P00538Nameplate
8081619P00539Nameplate
808160111A3H3Nameplate
808160111A3H3Nameplate
808160111A3H3Nameplate
8111607000726Field 230V
8111607000726Field 230V
8111607000726Field 230V
8111607000726Field 230V
8211607000995Gear Housing
8211607000995Gear Housing
8211607000995Gear Housing
8211607000995Gear Housing
8301607000991Armature System 230V
8301607000991Armature System 230V
8301607000991Armature System 230V
8301607000991Armature System 230V
8321607000719Grinding Spindle
8321607000719Grinding Spindle
8321607000719Grinding Spindle
8321607000719Grinding Spindle
89116020250A0Auxiliary Handle
89116020250A0Auxiliary Handle
89116020250A0Auxiliary Handle
89116020250A0Auxiliary Handle
891/1160202509TAuxiliary Handle
891/1160202509TAuxiliary Handle
891/1160202509TAuxiliary Handle
891/1160202509TAuxiliary Handle
91601118857Manufacturer's nameplate
91601118857Manufacturer's nameplate
91601118858Manufacturer's nameplate
91601118C19Manufacturer's nameplate
