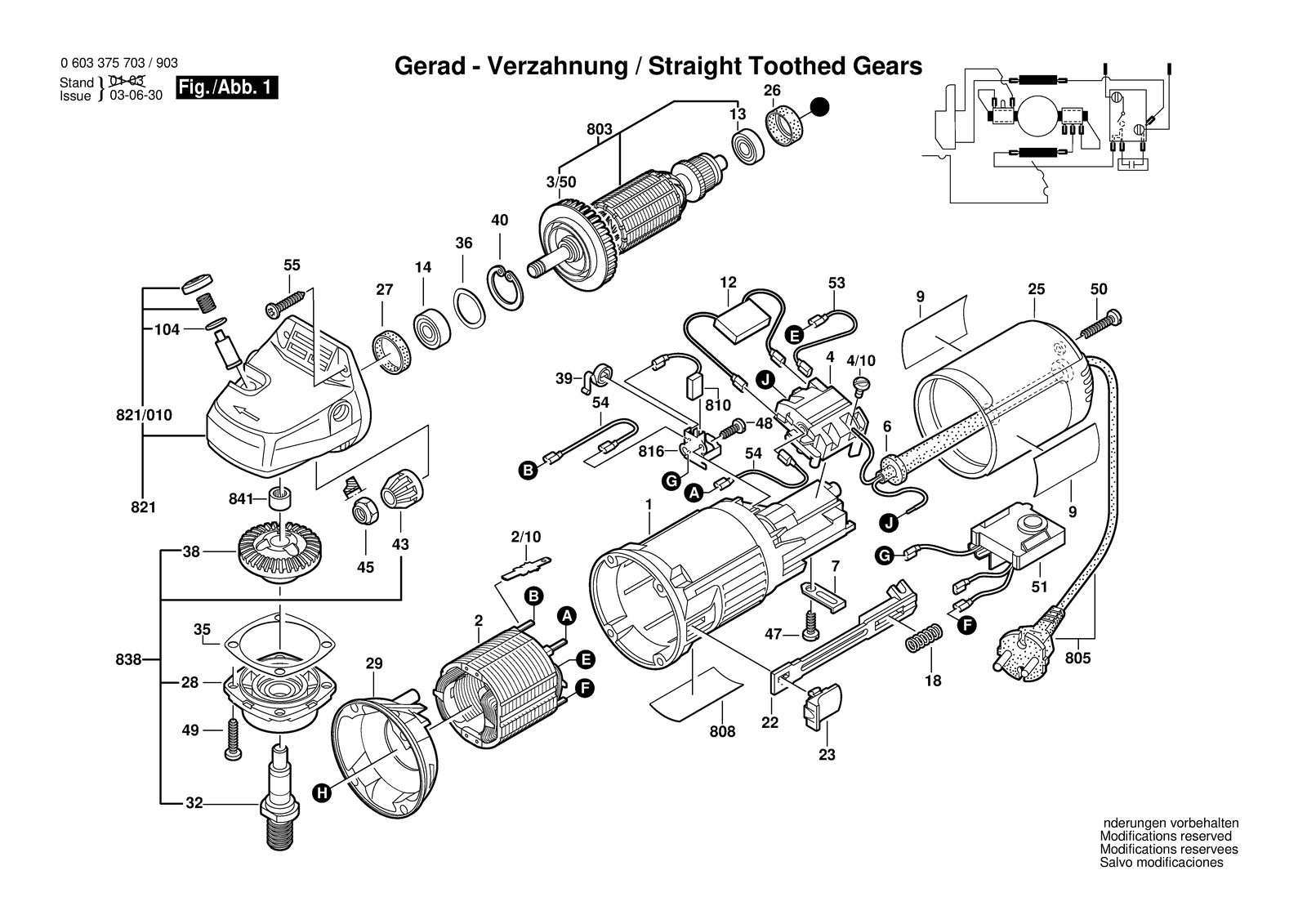

Bosch PWS 8-125 CE angle grinder: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 8-125 CE: 59 positions on 2 sheets
Bosch PWS 8-125 CE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108189 | Motor Housing Green |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 12 | 1607328029 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905011 | Groove ball bearing 8X22X7 |
| 18 | 1604611026 | Compression Spring |
| 2 | 2609000764 | Field 220-230V |
| 2/10 | 1604477011 | Blade terminal |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle Black |
| 25 | 1600508009 | Housing Cover Green |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 28 | 1605805061 | Bearing Flange |
| 29 | 1601328005 | Air-Deflector Ring |
| 3/50 | 1606610121 | Fan |
| 32 | 1607000D6A | Grinding Spindle |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 36 | 1600150011 | Spring Washer |
| 38 | 1606333606 | Crown Gear Z=36 |
| 39 | 1604652013 | Spiral Spring |
| 4 | 1607200086 | On-Off Switch |
| 4/10 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 43 | 1606333605 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 48 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 49 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 51 | 1607233020 | Speed governor 230V |
| 53 | 1604448015 | Connecting Cable |
| 54 | 1604448016 | Connecting Cable |
| 55 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 652/20 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 652/20 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 7 | 1601302017 | Fastening Clamp |
| 750/10 | 160202509T | Auxiliary Handle |
| 750/20 | 1603340040 | Clamping Nut M14 |
| 750/30 | 1607950043 | Pin-Type Face-Wrench |
| 750/50 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 752 | 1605510117 | Protective Cover Ø 125 MM (5") |
| 753 | 1600A016PP | Fast Locking Flange |
| 803 | 1604010248 | Armature With Fan 220-230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014116 | Carbon-Brush Set |
| 816 | 1600A003G4 | Brush Holder |
| 821 | 1605806483 | Gear Housing |
| 821/010 | 1607000253 | Push-Button Black |
| 838 | 1607000943 | Crown Gear |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 9 | 1601118712 | Reference Plate |
