Bosch PWS 750-125

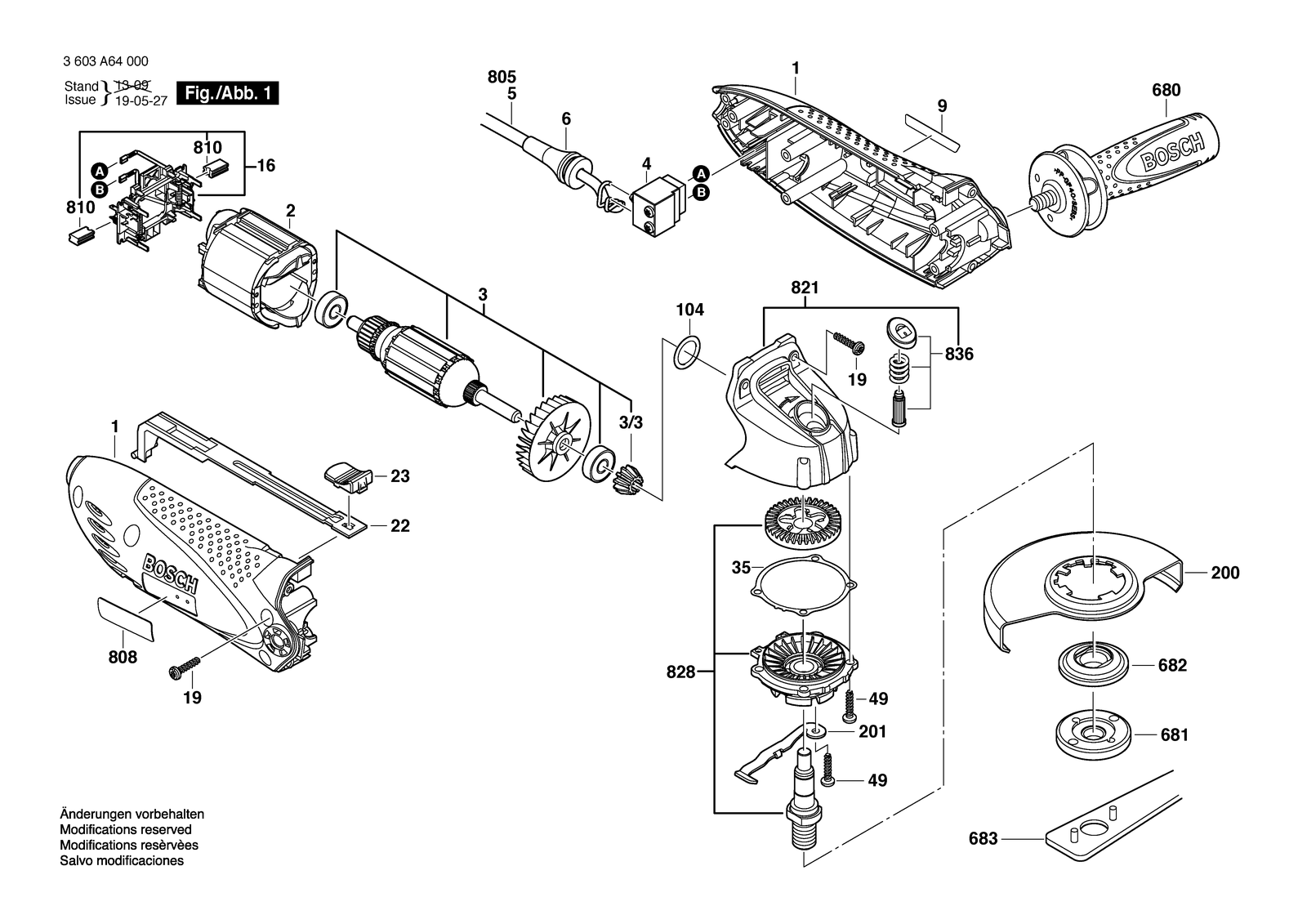

Bosch PWS 750-125 angle grinder: exploded parts diagram, 1 sheet, 122 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 750-125: 122 positions on 1 sheet
Bosch PWS 750-125 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609002197 | Housing Green |
| 1 | 2609002197 | Housing Green |
| 1 | 2609002197 | Housing Green |
| 1 | 2609002197 | Housing Green |
| 104 | 2609002454 | O-Ring Ø22X2 MM |
| 104 | 2609002454 | O-Ring Ø22X2 MM |
| 104 | 2609002454 | O-Ring Ø22X2 MM |
| 104 | 2609002454 | O-Ring Ø22X2 MM |
| 16 | 2609006427 | Brush Holder |
| 16 | 2609006427 | Brush Holder |
| 16 | 2609006427 | Brush Holder |
| 16 | 2609006427 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609002175 | Field 220-230V |
| 2 | 2609002176 | Field 230V |
| 2 | 2609002175 | Field 220-230V |
| 2 | 2609002175 | Field 220-230V |
| 200 | 2609002203 | Protective Cover Ø115 MM |
| 200 | 2609002204 | Protective Cover Ø125 MM |
| 200 | 2609002203 | Protective Cover Ø115 MM |
| 200 | 2609002203 | Protective Cover Ø115 MM |
| 201 | 2609002205 | Leaf Spring |
| 201 | 2609002205 | Leaf Spring |
| 201 | 2609002205 | Leaf Spring |
| 201 | 2609002205 | Leaf Spring |
| 22 | 2609002202 | Lever |
| 22 | 2609002202 | Lever |
| 22 | 2609002202 | Lever |
| 22 | 2609002202 | Lever |
| 23 | 2609002368 | Switch Button Black |
| 23 | 2609002368 | Switch Button Black |
| 23 | 2609002368 | Switch Button Black |
| 23 | 2609002368 | Switch Button Black |
| 3 | 2609002408 | Armature 220-230V |
| 3 | 2609002409 | Armature 230V |
| 3 | 2609002408 | Armature 220-230V |
| 3 | 2609002408 | Armature 220-230V |
| 3/3 | 16063332CN | Pinion |
| 3/3 | 16063332CN | Pinion |
| 3/3 | 16063332CN | Pinion |
| 3/3 | 16063332CN | Pinion |
| 35 | 2609002208 | Shim 0,1 MM |
| 35 | 2609002209 | Shim 0,2 MM |
| 35 | 2609002210 | Shim 0,3 MM |
| 35 | 2609002208 | Shim 0,1 MM |
| 35 | 2609002209 | Shim 0,2 MM |
| 35 | 2609002210 | Shim 0,3 MM |
| 35 | 2609002208 | Shim 0,1 MM |
| 35 | 2609002209 | Shim 0,2 MM |
| 35 | 2609002210 | Shim 0,3 MM |
| 35 | 2609002208 | Shim 0,1 MM |
| 35 | 2609002209 | Shim 0,2 MM |
| 35 | 2609002210 | Shim 0,3 MM |
| 4 | 2607200673 | Switch |
| 4 | 2607200673 | Switch |
| 4 | 2607200673 | Switch |
| 4 | 2607200673 | Switch |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460423 | Power supply cord CH 2,75M 2 X 1,0MM H05 Vv-F |
| 5 | 2609002907 | Power supply cord EU 2,65M 2X0,75 H05 Vv-F |
| 5 | 2609003026 | Power supply cord EU 2,65M 2X0,75 H05 Vv-F |
| 5 | 1604460423 | Power supply cord CH 2,75M 2 X 1,0MM H05 Vv-F |
| 5 | 2609002907 | Power supply cord EU 2,65M 2X0,75 H05 Vv-F |
| 5 | 2609002907 | Power supply cord EU 2,65M 2X0,75 H05 Vv-F |
| 5 | 2609002907 | Power supply cord EU 2,65M 2X0,75 H05 Vv-F |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 680 | 2609002892 | Handle |
| 680 | 2609002892 | Handle |
| 680 | 2609002892 | Handle |
| 680 | 2609002892 | Handle |
| 681 | 1603345043 | Round Nut M14 |
| 681 | 1603345043 | Round Nut M14 |
| 681 | 1603345043 | Round Nut M14 |
| 681 | 1603345043 | Round Nut M14 |
| 682 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 682 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 682 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 682 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 683 | 1619P08927 | Pin-Type Face-Wrench |
| 683 | 1619P08927 | Pin-Type Face-Wrench |
| 683 | 1619P08927 | Pin-Type Face-Wrench |
| 683 | 1619P08927 | Pin-Type Face-Wrench |
| 805 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 808 | 2609002448 | Nameplate |
| 808 | 2609002449 | Nameplate |
| 808 | 2609002450 | Nameplate |
| 808 | 2609002495 | Nameplate |
| 808 | 2609002451 | Nameplate |
| 808 | 2609002452 | Nameplate |
| 808 | 2609002641 | Nameplate |
| 808 | 2609002642 | Nameplate |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 821 | 2609002443 | Gear Housing |
| 821 | 2609002443 | Gear Housing |
| 821 | 2609002443 | Gear Housing |
| 821 | 2609002443 | Gear Housing |
| 828 | 2609002444 | Bearing Flange |
| 828 | 2609002444 | Bearing Flange |
| 828 | 2609002444 | Bearing Flange |
| 828 | 2609002444 | Bearing Flange |
| 836 | 2609002634 | Push-Button |
| 836 | 2609002634 | Push-Button |
| 836 | 2609002634 | Push-Button |
| 836 | 2609002634 | Push-Button |
| 9 | 2609002446 | Manufacturer's nameplate PWS 720-115 |
| 9 | 2609005765 | Manufacturer's nameplate PWS 7000 |
| 9 | 2609002447 | Manufacturer's nameplate PWS 750-125 |
| 9 | 2609003078 | Manufacturer's nameplate PWS 7500 |
| 9 | 2609002635 | Manufacturer's nameplate PWS 750-115 |
| 9 | 2609002636 | Manufacturer's nameplate PWS 700-115 |
