Bosch PWS 700-115 angle grinder: exploded parts diagram, 2 sheets, 100 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 700-115: 100 positions on 2 sheets

Bosch PWS 700-115 parts list (2 sheets)

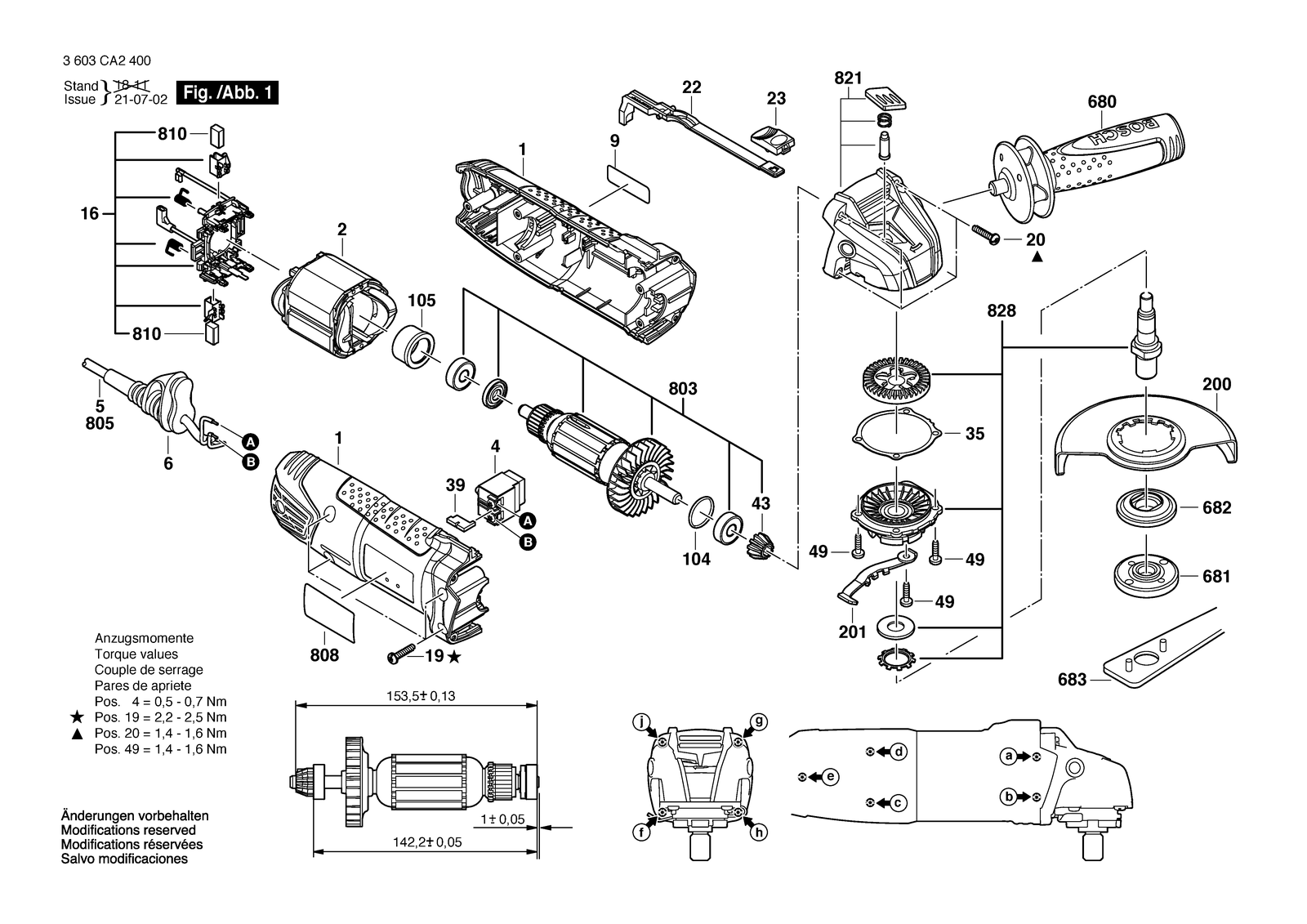

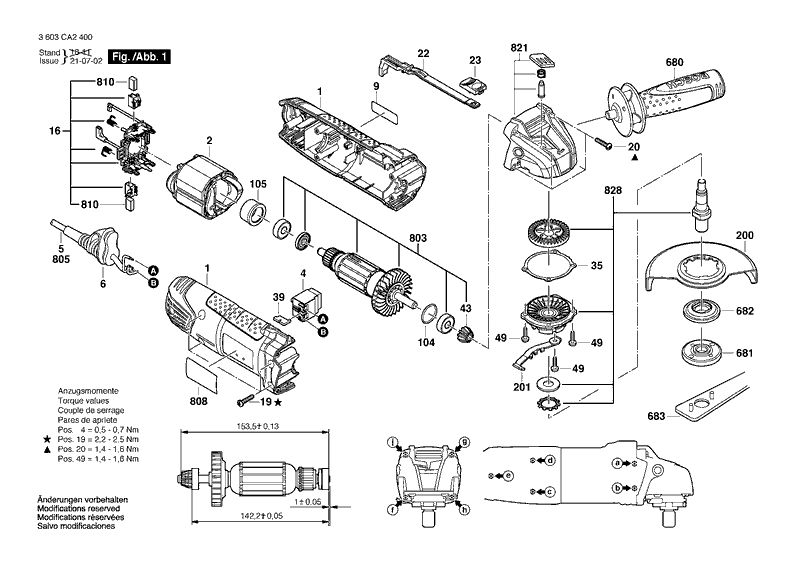

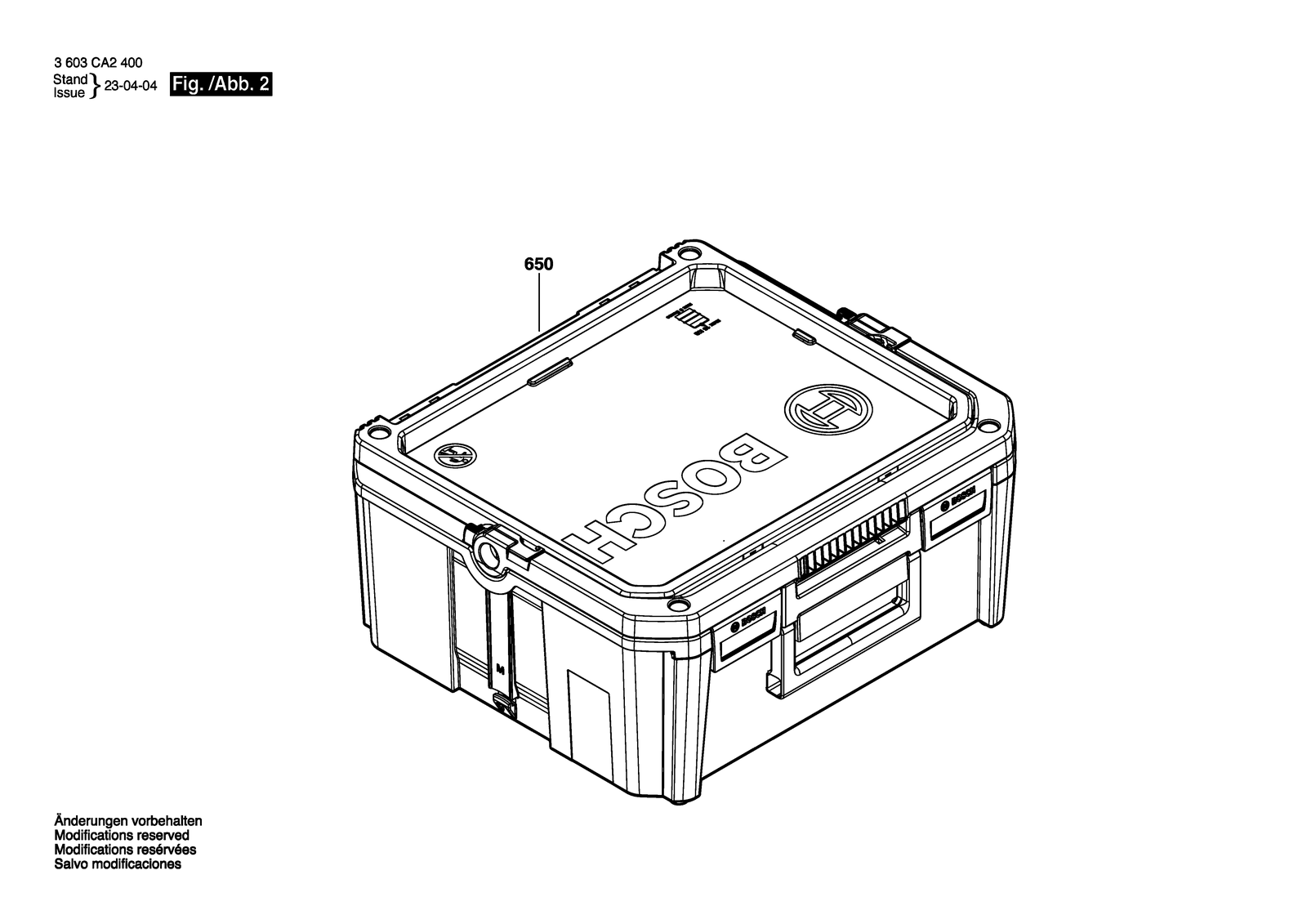

Bosch PWS 700-115 parts diagram, sheet 1Bosch PWS 700-115 parts diagram, sheet 2
No.Part numberPart name
12609004775Housing Green
12609004775Housing Green
1043600210127O-Ring 21,0X1,0 MM
1043600210127O-Ring 21,0X1,0 MM
1052609004785Rubber Bushing
1052609004785Rubber Bushing
162609004780Brush Holder
162609004780Brush Holder
192603490023Torx Oval-Head Screw 4X20
192603490023Torx Oval-Head Screw 4X20
22609005828Field 230V
22609005828Field 230V
202603490024Torx Oval-Head Screw 4X25
202603490024Torx Oval-Head Screw 4X25
2002609002203Protective Cover Ø115 MM
2002609002204Protective Cover Ø125 MM
2002609002204Protective Cover Ø125 MM
2012609002205Leaf Spring
2012609002205Leaf Spring
222609004779Lever
222609004779Lever
231600A007ULSwitch Button
231600A007ULSwitch Button
351600A00RE3Shim 1,5 MM
352609002208Shim 0,1 MM
352609002209Shim 0,2 MM
352609002210Shim 0,3 MM
351600A00RE3Shim 1,5 MM
352609002208Shim 0,1 MM
352609002209Shim 0,2 MM
352609002210Shim 0,3 MM
392609002762Guard Plate
392609002762Guard Plate
41607200325Switch
42607200673Switch
41607200325Switch
42607200673Switch
4316063332CNPinion
4316063332CNPinion
492610386516Torx Oval-Head Screw M4X12
492610386516Torx Oval-Head Screw M4X12
51604460423Power supply cord CH 2,75M 2 X 1,0MM H05 Vv-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52609002907Power supply cord EU 2,65M 2X0,75 H05 Vv-F
52609003026Power supply cord EU 2,65M 2X0,75 H05 Vv-F
51604460423Power supply cord CH 2,75M 2 X 1,0MM H05 Vv-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52609002907Power supply cord EU 2,65M 2X0,75 H05 Vv-F
52609003026Power supply cord EU 2,65M 2X0,75 H05 Vv-F
62609006376Grommet Ø6,4-Ø7,2X76 MM
62609006376Grommet Ø6,4-Ø7,2X76 MM
65016054381FVCarrying Case M
65016054381FVCarrying Case M
6802609002199Handle
6802609002198Handle Black
6811603345043Round Nut M14
6811603345043Round Nut M14
6822605703014Clamping Flange Ø22,3XØ42 MM
6822605703014Clamping Flange Ø22,3XØ42 MM
6831619P08927Pin-Type Face-Wrench
6831619P08927Pin-Type Face-Wrench
8032609005827Armature assembly 230V
8032609005827Armature assembly 230V
808160111A2SRNameplate
808160111A2SZNameplate
808160111A2T3Nameplate
808160111A2T7Nameplate
808160111A8M1Nameplate
808160111A8MXNameplate
808160111A8MZNameplate
8082609004795Nameplate
8082609004796Nameplate
8082609004797Nameplate
8082609004798Nameplate
8082609007079Nameplate
808160111A2TFNameplate
808160111A2TKNameplate
808160111A2TUNameplate
808160111C0K2Nameplate
8082609004800Nameplate
8082609004802Nameplate
8082609004803Nameplate
8082609004804Nameplate
8082609007153Nameplate
8102609005200Carbon-Brush Set
8102609005200Carbon-Brush Set
8212609006425Gear Housing
8212609006425Gear Housing
8282609002444Bearing Flange
8282609002444Bearing Flange
9160111C4BFManufacturer's nameplate PWS 700-115
9161111C04HManufacturer's nameplate X75 Ws
92609004787Manufacturer's nameplate PWS 750-115
92609007069Manufacturer's nameplate PWS 680-115
92609007076Manufacturer's nameplate PWS 750-125
92609007077Manufacturer's nameplate PWS 7500
92609007078Manufacturer's nameplate PWS 730-115
92609004788Manufacturer's nameplate PWS 850-125
92609007094Manufacturer's nameplate PWS 780-125
92609007123Manufacturer's nameplate PWS 7800
